Camera Features
Effective Sensor Size
12.48mm x 7.02mm
Focus
Auto focus. Peaking mode.

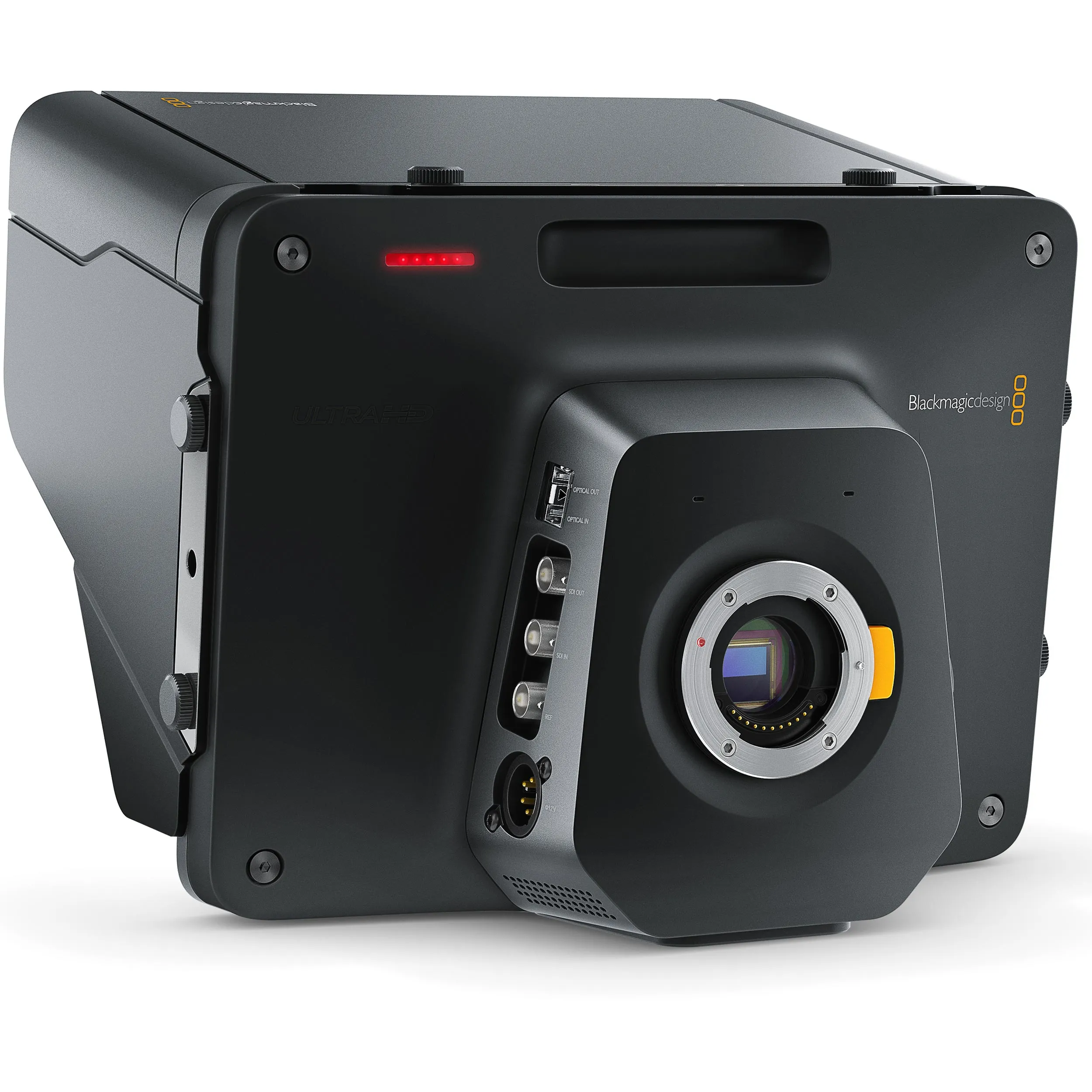

Lens Mount
Active MFT Mount
Lens Control
Iris, focus, zoom on supported lenses.
Dynamic Range
13 Stops.

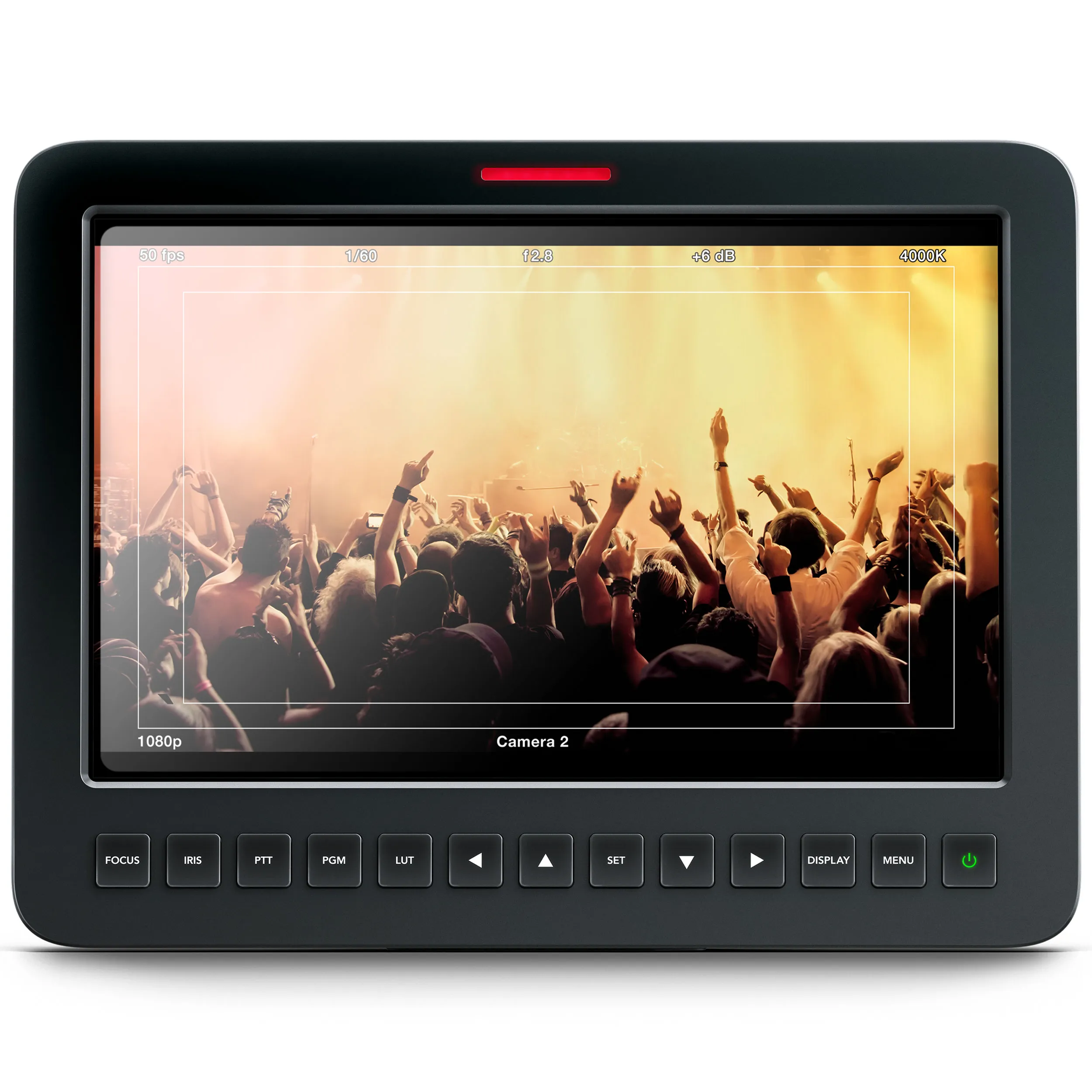

Screen Dimensions
10.1 inch 1920 x 1200
Screen Type
10.1 inch TFT-LCD
Controls
Push button controls for navigating menus.
Mounting Options
2 x 3/8 inch tripod mount. 4 x 1/4 inch 20 UNC thread mounting points on top of camera, 3 x 1/4 inch 20 UNC thread mounting points left on right of camera

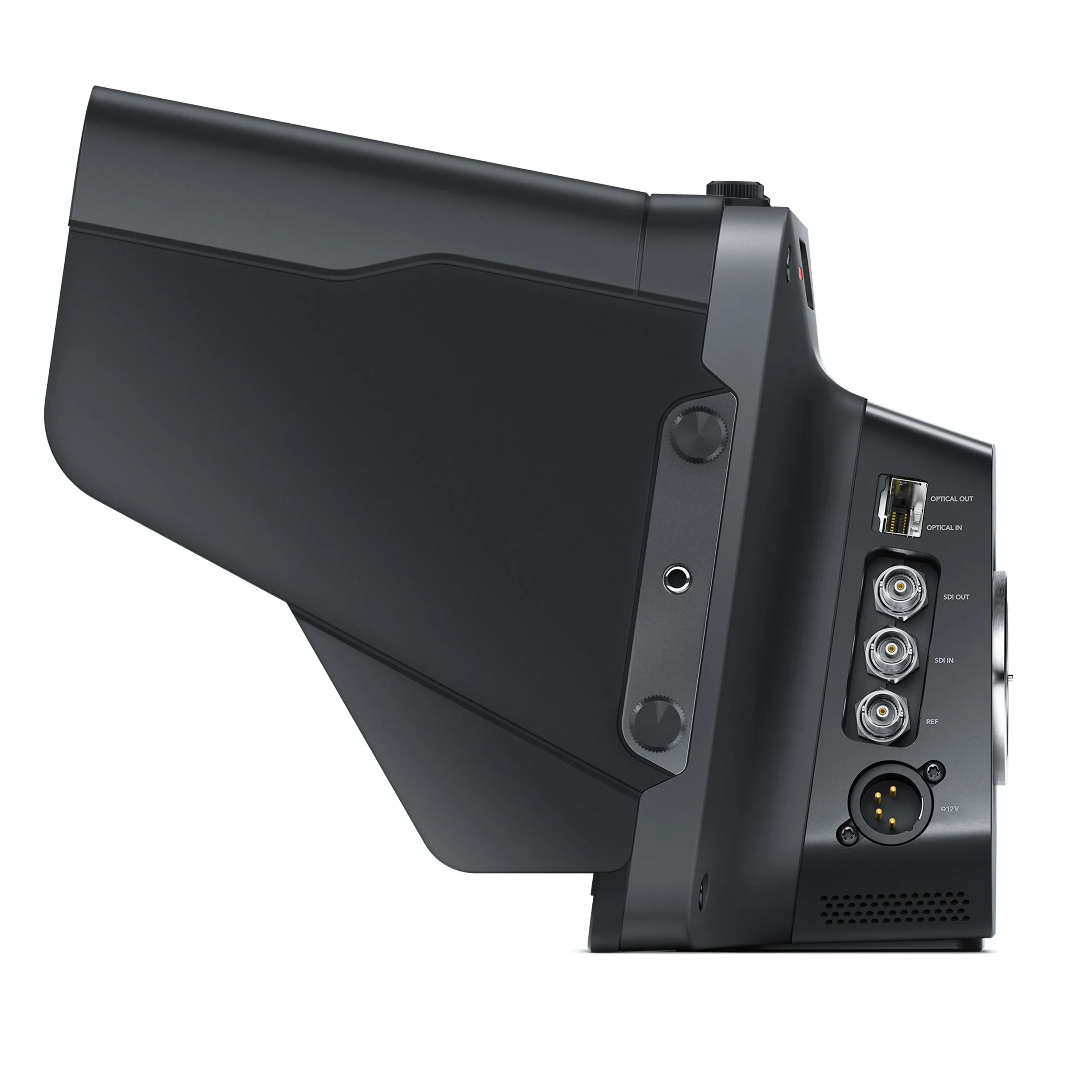

Connections
Total Video Inputs
1 x SDI
Total Video Outputs
1 x SDI
SDI Rates
1.5G, 3G.
Optical SDI
Supports optional SMPTE optical module.
Optical Fiber Inputs/Outputs
3G Optical Fiber Input and Output. Optical fiber SFP module sold separately.

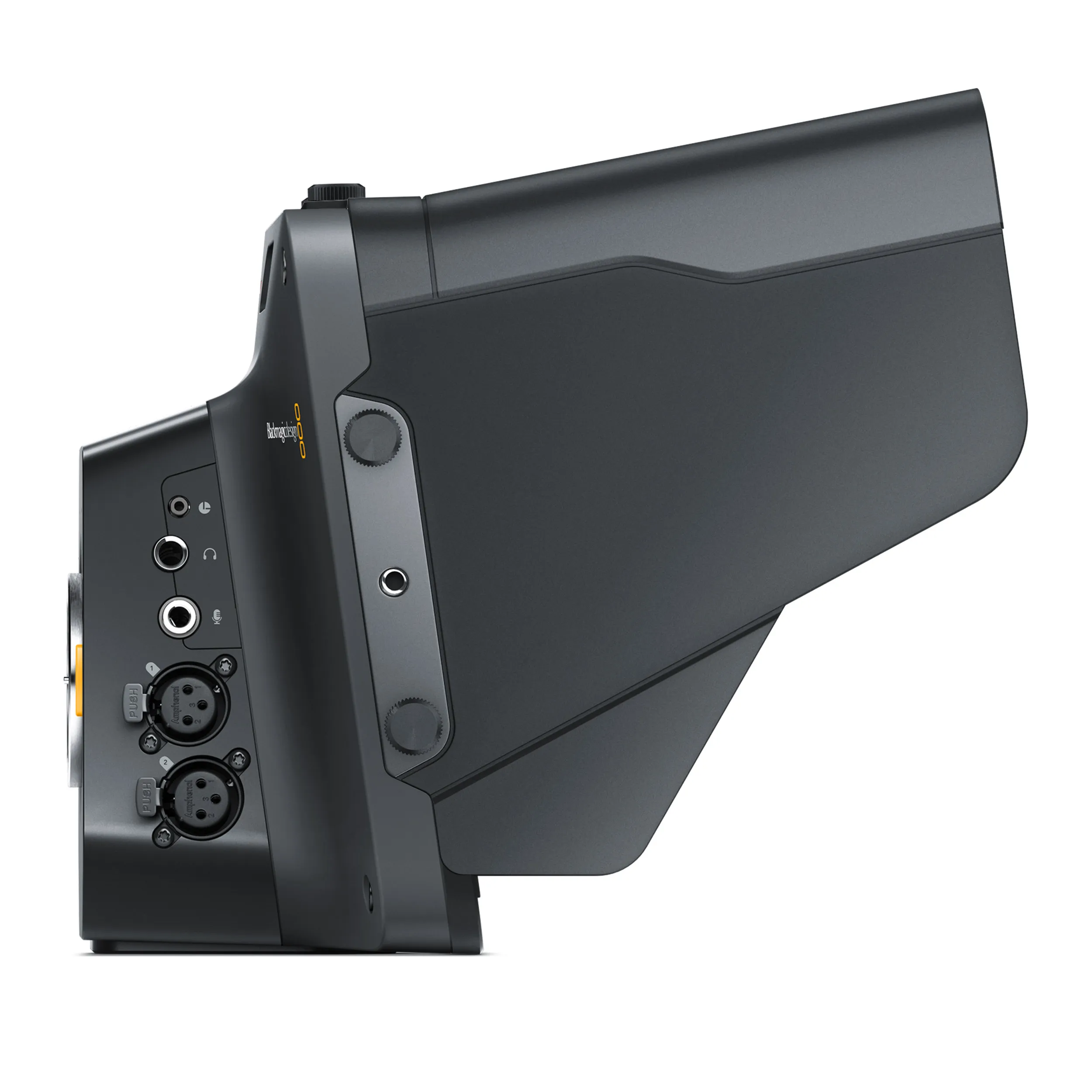

Analog Audio Inputs
2 x XLR analog switchable between mic and line levels. Phantom power support.
Analog Audio Outputs
Aviation headphone (Fixed Wing Plugs) output for talkback and audio monitoring.
Reference Inputs
Tri-Sync or Black Burst.
SDI Audio Outputs
2 channels in 3G-SDI 48Khz and 24 bit. 2 channels for talkback on channel 15-16.
Remote Control
1 x 2.5mm LANC for Iris Control and Focus. SDI CCU control from ATEM.
Computer Interface
USB 2.0 Mini-B port for software updates.
Blackmagic Studio Camera
Audio
Microphone
Integrated stereo microphone.
Built in Speaker
None.
Standards
SD Video Standards
None.
HD Video Standards
720p50, 720p59.94, 720p60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, and 1080i60
Ultra HD Video Standards
None.
SDI Compliance
SMPTE 292M. SMPTE 424M Level B
SDI Audio Sampling
48 kHz and 24-bit
Media
Media
None.
Media Format
None.
Supported Codecs
Codecs
None.
Control
External Control
Blackmagic SDI Control Protocol. 2.5mm LANC connection for lens control.
Color Corrector
DaVinci YRGB
Talkback And Tally
Live Tally Indicator
1 x for talent, 1 x for operator.
Talkback
SDI Channels 15 and 16.
Software
Software Included
Blackmagic Camera Setup for Mac OS X and Windows.
Power Requirements
1 x External 12V power supply
Optional Accessories
SMPTE compatible SFP Optical Module
ATEM Talkback Converter 4K
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
