Scissor Crane Specifications
Construction: High-grade CNC Aluminum
Total number of High-Speed Steel Bearing: 70

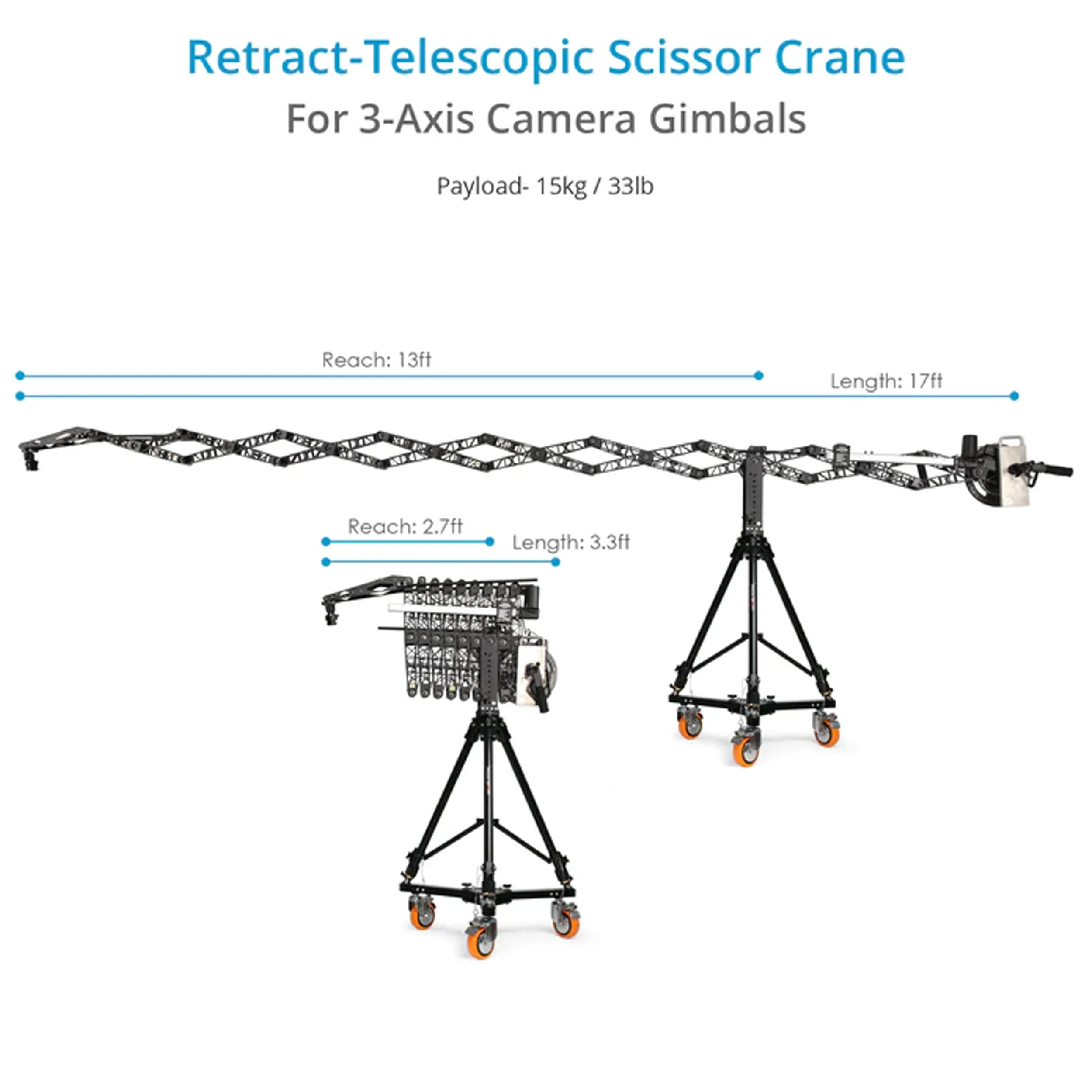

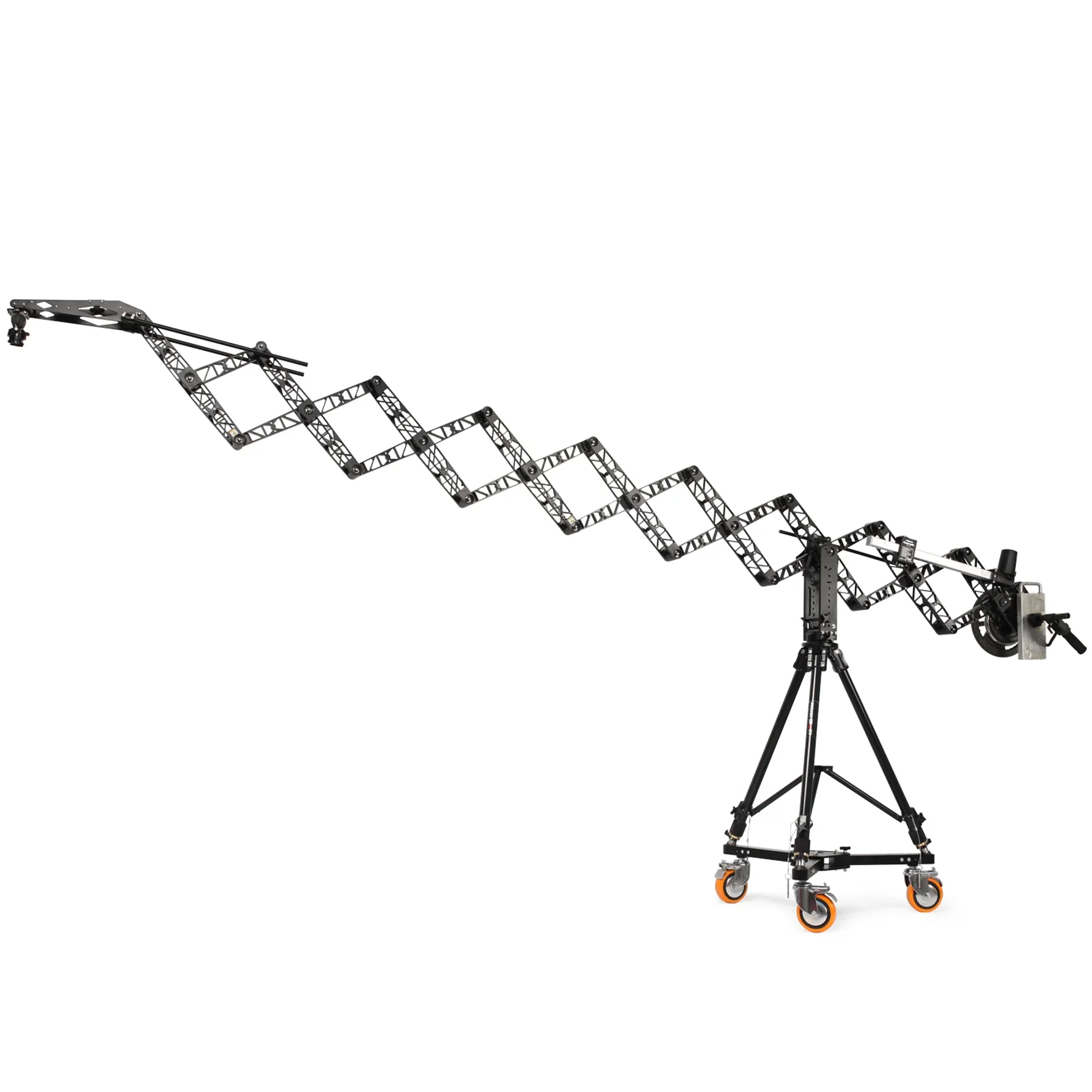

Total Length Extended: 17ft / 5.2m
Total Length Closed: 3.3ft
Extended Height from Ground: 17.4ft / 5.3m
Closed Height from Ground: 6.3ft
Load Capacity: 15kg / 33lb
Crane Pan and Tilt lock: Yes
Self balance weight (Extended/Collapsed): 15kg / 33lb
Battery Runtime: 1 ½ - 2 hours
Weight of Scissor Jib: 33kg / 73lb
Motor Specifications
IP44 Protection: Certified
Rated Voltage: 12V -15V DC
Rated Power: 60W
Nominal Current: 10A DC
Maximum Thrust Force: 1000N
Maximum Pulling Force: 1000N
Travelling speed: 36mm/sec
Noise: <55dB
Vibration: Not Noticeable

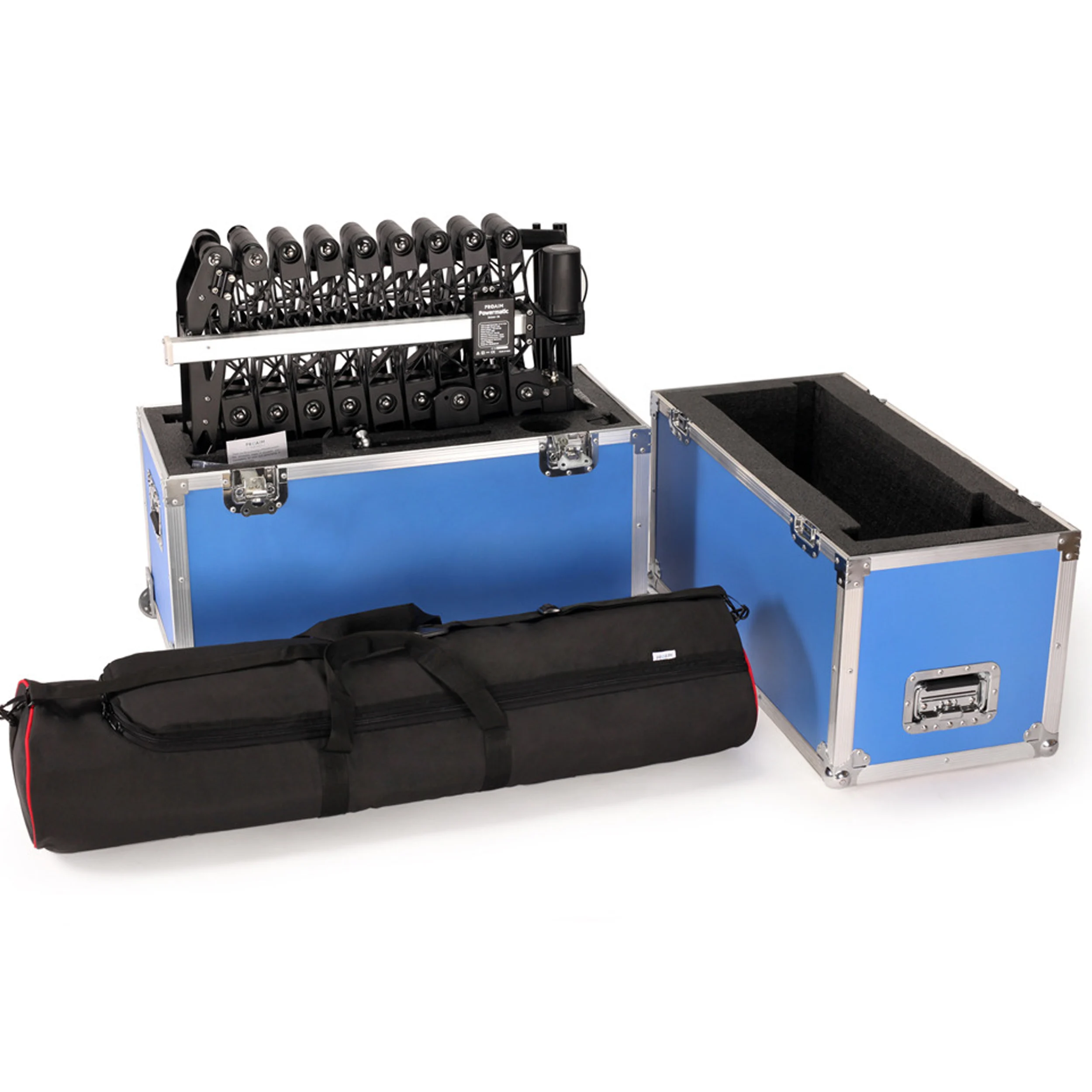

Jib Packing Info
Product weight with flight case: 71kg / 157lb
Flight case dimensions (LXWXH): 85cm x 40cm x 80cm
