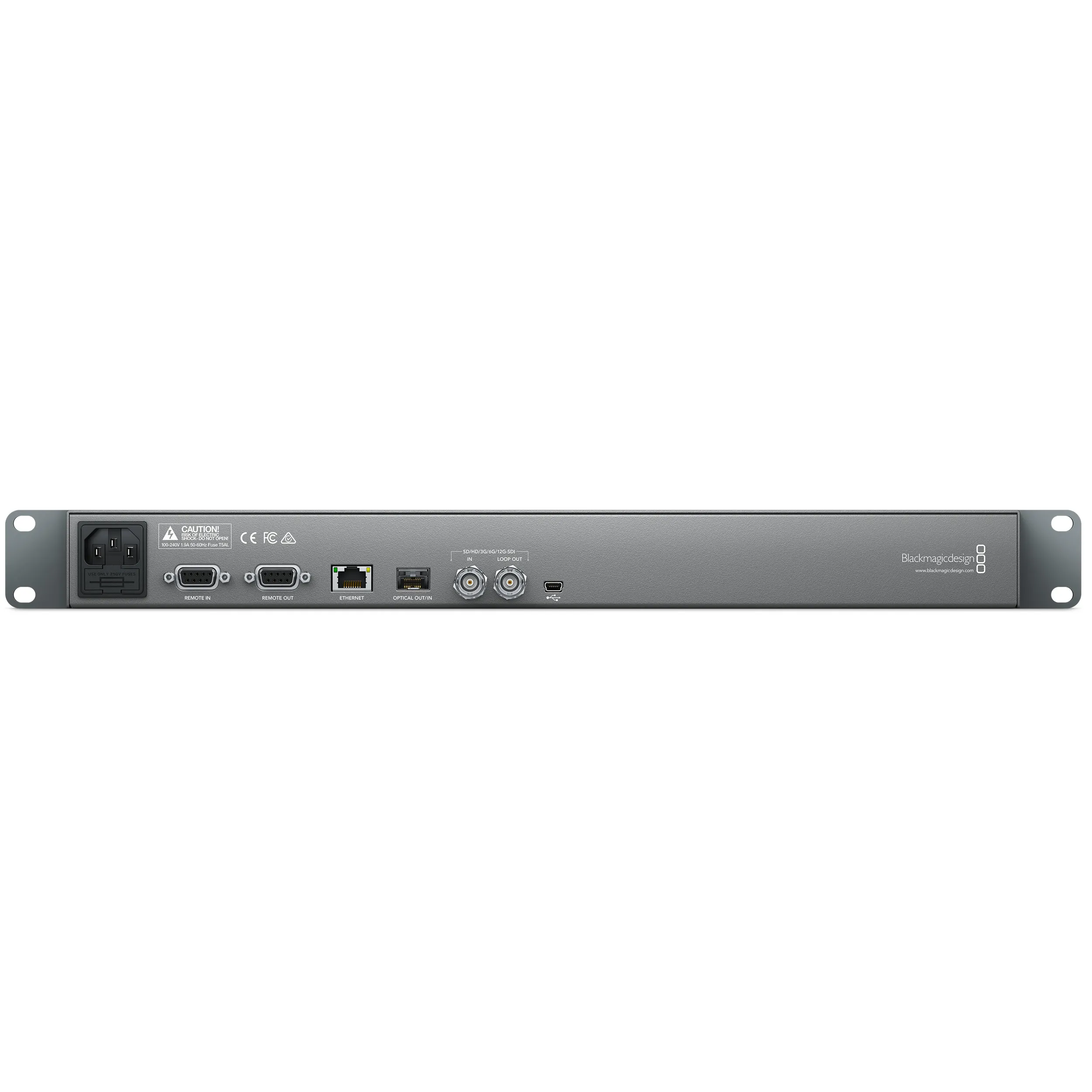

Connections
SDI Video Inputs
1
SDI Video Outputs
1 x loop out.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
SDI Audio Inputs
16 channels embedded.
SDI Audio Outputs
16 channels embedded.
Optical SDI
Supports optional SMPTE optical module.
Optical Outputs
1 x 10-bit SD/HD/UHD auto switching.
SD Card Interface
25 x SD Card Slots
Device Control
Sony™ compatible RS422 deck control port. 1 x in plus 1 x out.
Computer Interface
1 x USB 2.0 mini port for software updates and Blackmagic Duplicator software control.
Ethernet
Ethernet supports 10/100/1000 BaseT.

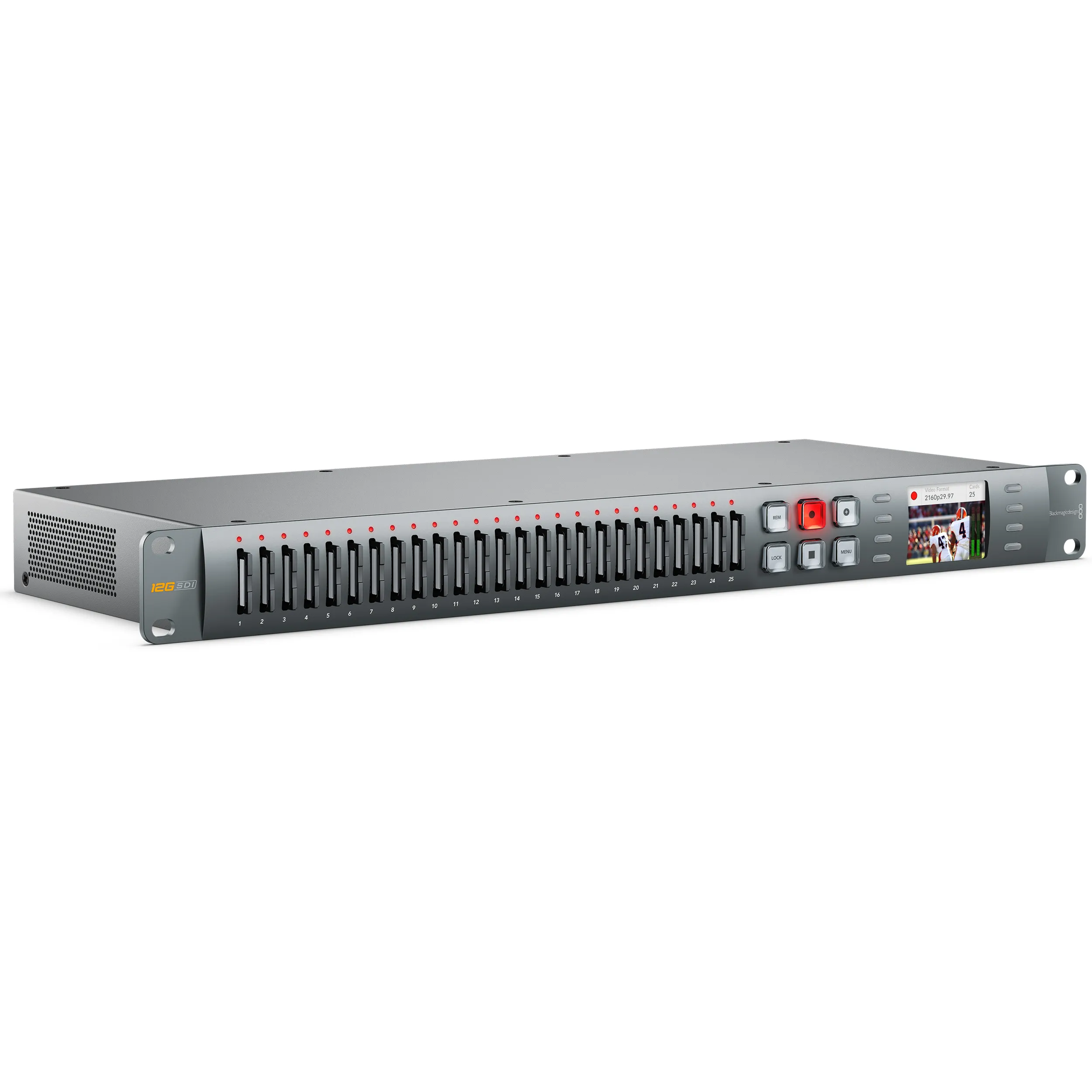

Blackmagic Duplicator 4K
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
SDI Compliance
SMPTE 259M, 292M, 296M, 425M
SDI Metadata Support
HD RP188 and closed captioning.
Audio Sampling
Television standard sample rate of 48kHz and 24-bit uncompressed.
Video Sampling
4:2:2
Record Codec
8-bit H.264 or 10-bit H.265 at 4:2:0 with ACC audio.
Media
Media
25 x UHS-I for SD, HD and Ultra HD recording.
Media Type
Class 10 minimum. SDXC UHS-I and SDHC UHS-I SD cards. Also supports UHS-II SD cards.
Media Format
Can format cards to ExFAT file system.
Control

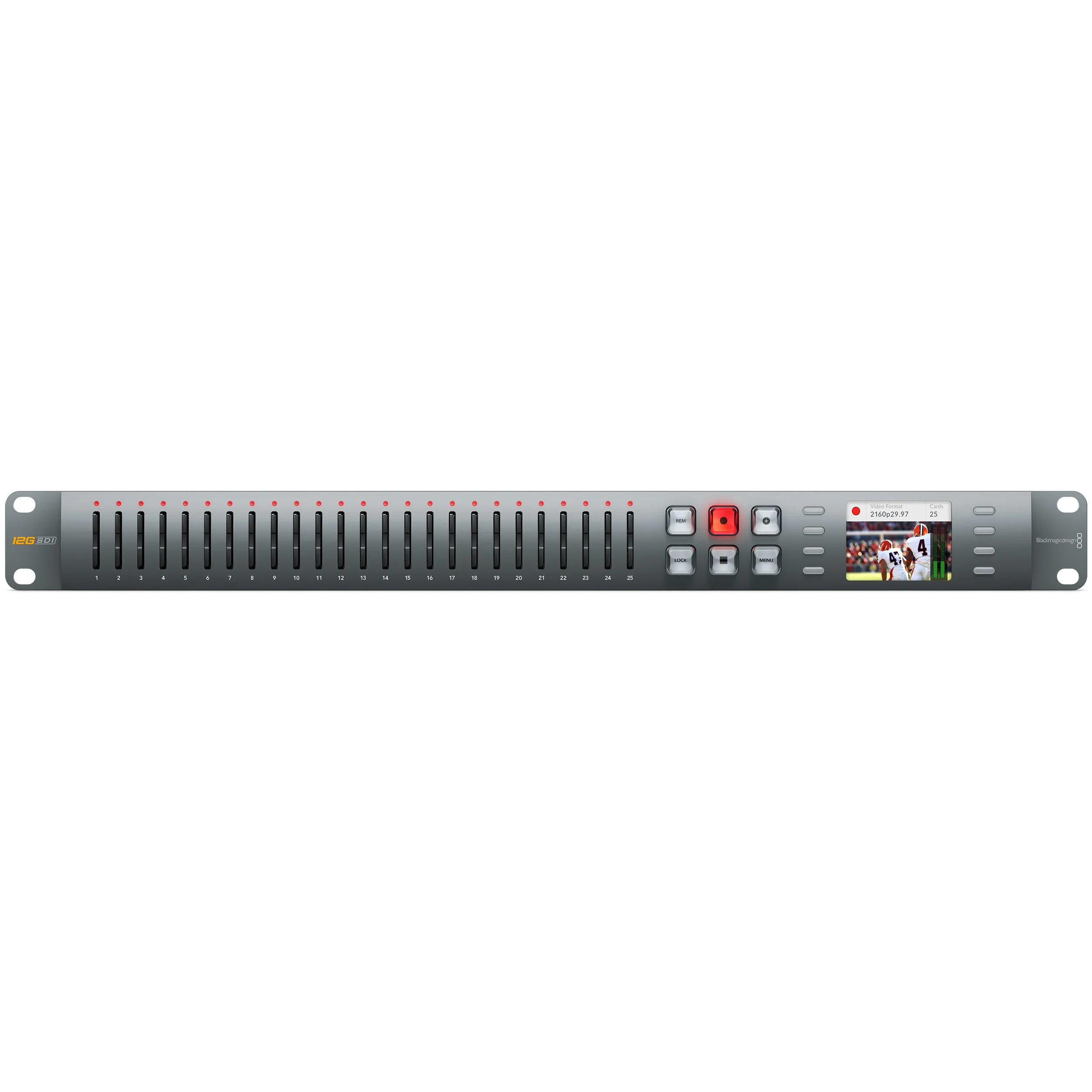

Built in Control Panel
6 buttons for transport and menu control. Includes record, append record, stop, menu, remote and control panel lock buttons. 2.2 inch color display.
External Control
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
Software
Software Included
Blackmagic Duplicator
Internal Software Upgrade
Firmware built into software driver. Loaded at system start, or via updater software.
Display
1x built in high res LCD 320 x 240 for menu settings, status, format, audio level and total number of SD cards.
Physical Installation
1 rack unit size. Less than 7 inches deep.
Power Requirements
Power Supply
1 x Internal 110 - 240V AC.
Environmental Specifications
Operating Temperature
5 to 50°C Environment
Storage Temperature
-20°to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
