Connections
HDMI Video Inputs
1 x HDMI type A connector.
HDMI Video Outputs
1 x HDMI type A connector.
HDMI Audio Inputs
8 Channels embedded in SD, HD and Ultra HD.
HDMI Audio Outputs
8 Channels embedded in SD, HD and Ultra HD.
Analog Video Inputs
Component, Composite or S-Video.
Analog Video Outputs
Component, Composite or S-Video.
Analog Audio Inputs
2 Channel RCA HiFi audio in 24-bit.
Analog Audio Outputs
2 Channel RCA HiFi audio in 24-bit.
Multiple Rate Support
HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video
connections are switchable between SD and HD.
Computer Interface
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots.

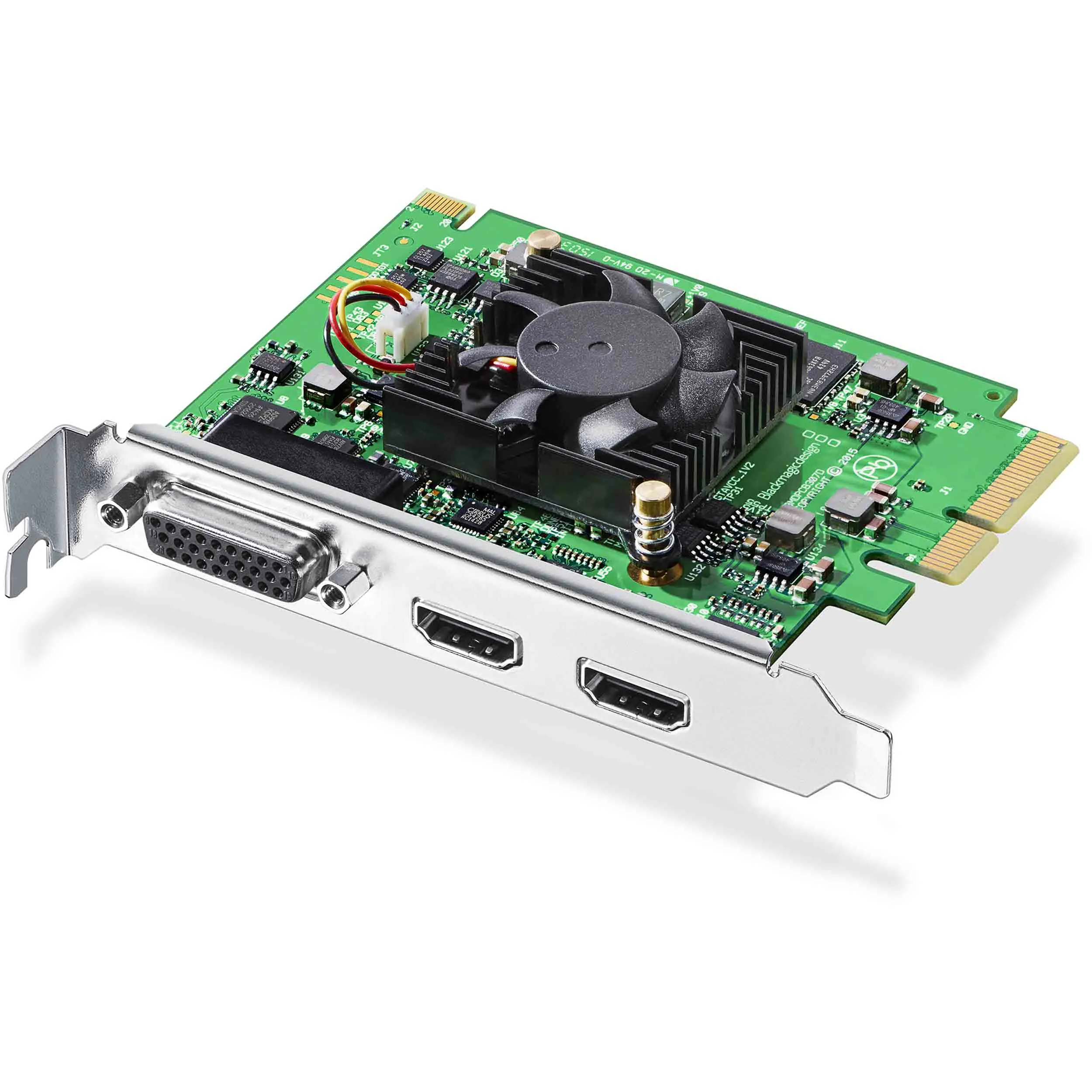

Intensity Pro 4K
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software Included
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
Color Space
REC 601, REC 709.
HDMI Video Sampling
4:4:4, 4:2:2 & 4:2:0.
HDMI Color Precision
8, 10-bit (Deep Color) RGB 4:4:4 in all modes up to 1080p60, 8, 10-bit YUV 4:2:2 in all modes.
HDMI Configuration
HDMI 1.4b supports Deep Color and automatically configures to connected display.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Ultra HD/HD Down Conversion
Software based down conversion during video playback.
HD Up Conversion
Real time SD to 1080HD and 720HD during video capture.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Power Requirements
Power Consumption
17 Watts
EMC Certifications
FCC, CE and C-Tick.
Environmental Specifications
Operating Temperature
5° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
