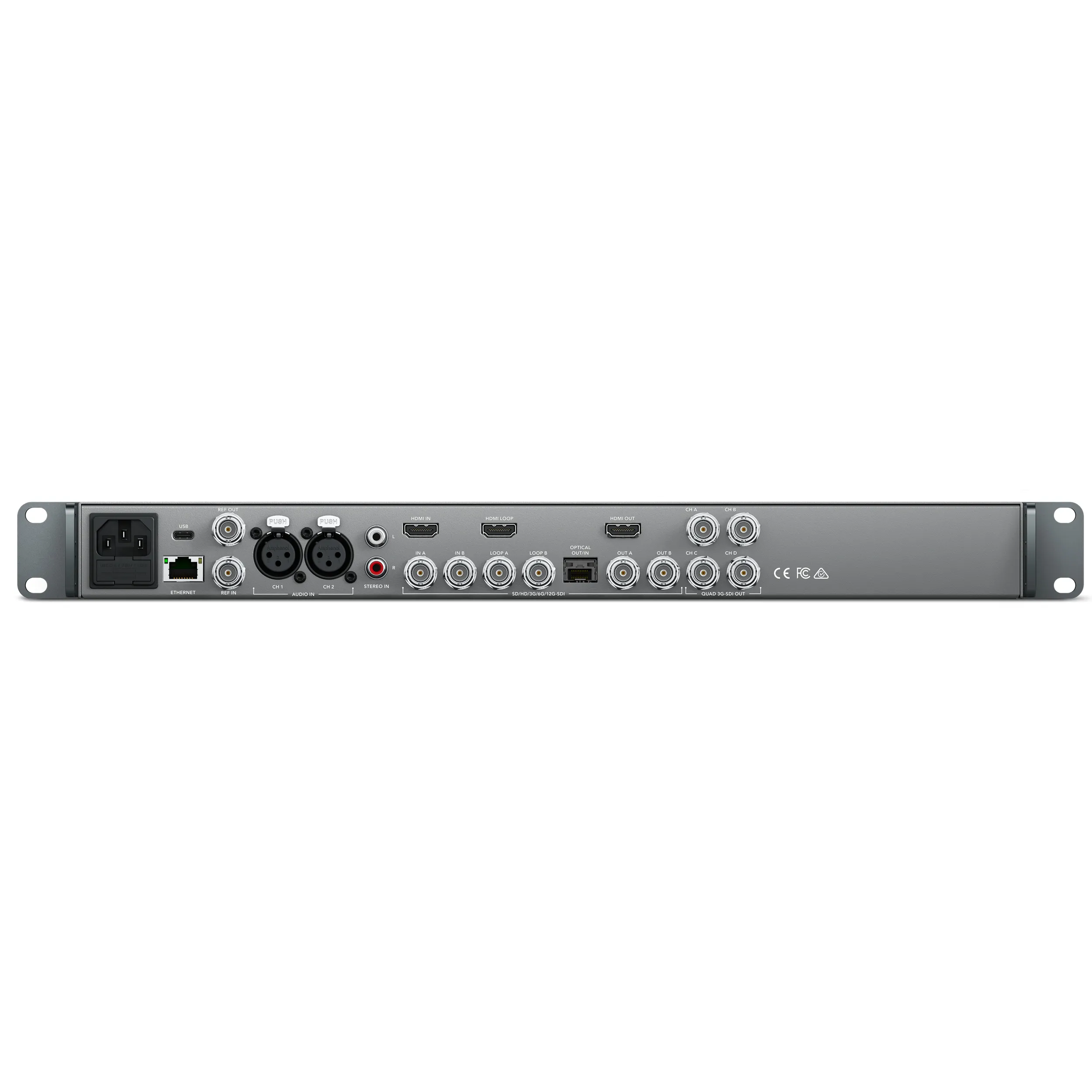

Connections
SDI Video Inputs
1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD
SDI Video Input L oops
1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
SDI Video Outputs
1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
Quad SDI Video Outputs
4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.
HDMI Video Inputs
1x HDMI 2.0 type A connector. YUV or RGB, auto switching.
HDMI Video Loop Inputs
1x HDMI 2.0 type A connector. Active Input loop.
HDMI Video Outputs
1x HDMI 2.0 type A connector. YUV or RGB, user selectable.
SDI Audio Inputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
SDI Audio Outputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
HDMI Audio Inputs
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
HDMI Audio Outputs
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Connection (optional)
1x SMPTE optical fiber SFP socket.
Optical Fiber Video Inputs
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical Fiber Video Outputs
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical Fiber Audio Inputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Audio Outputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Analog Audio Inputs
2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) .
2x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment.
AES/EBU Digital Audio Inputs
2x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)
Dolby® Support Built In
Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.
Timecode Inputs
Support for VITC/ATC. No support for LTC.
Timecode Outputs
Support for VITC/ATC. No support for LTC.
Multi Rate Support
SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
Reference Input
1x BNC - Black Burst in SD or Tri-level sync in HD.
Reference Output
1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.
Computer Interface
1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.
Processor Interface

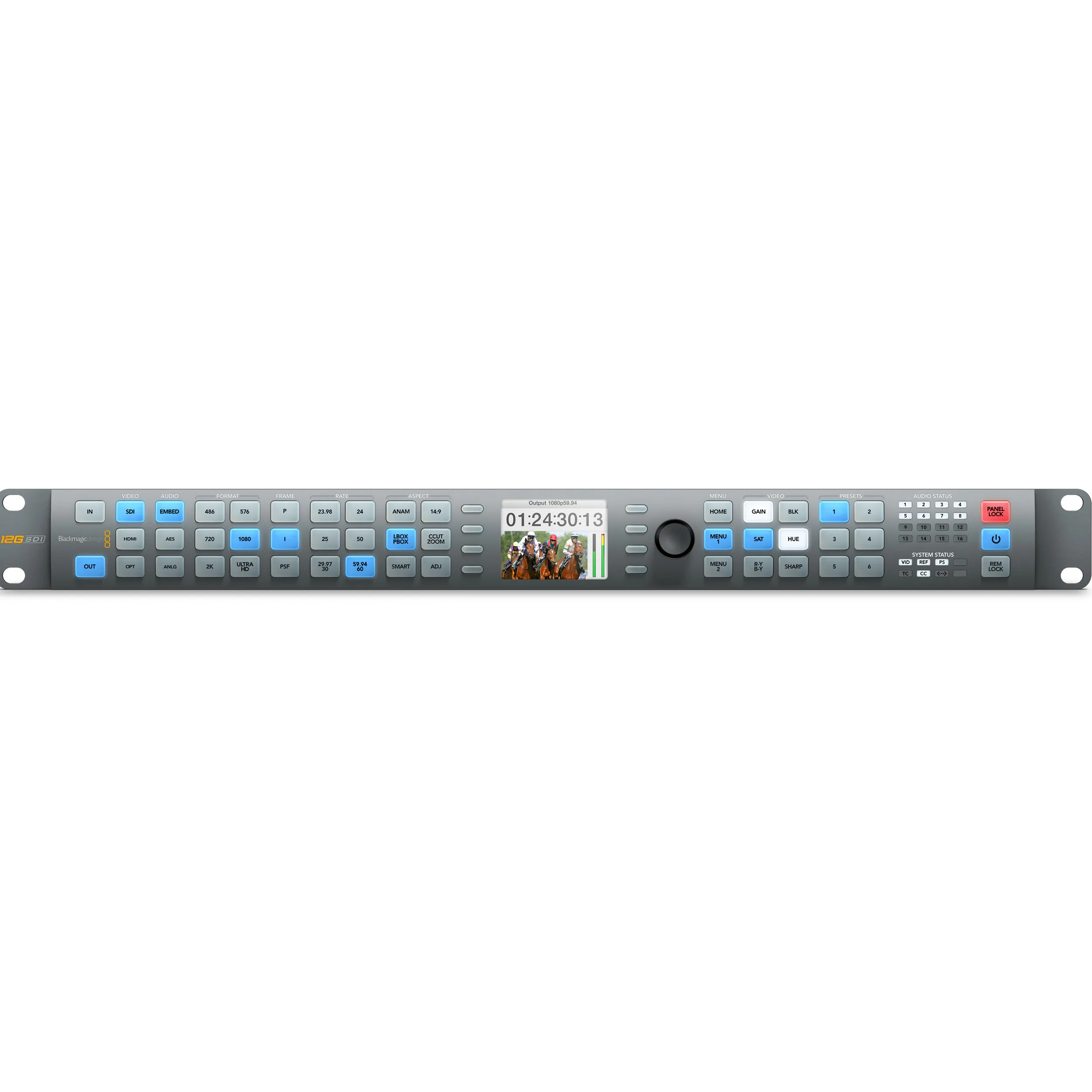

Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.

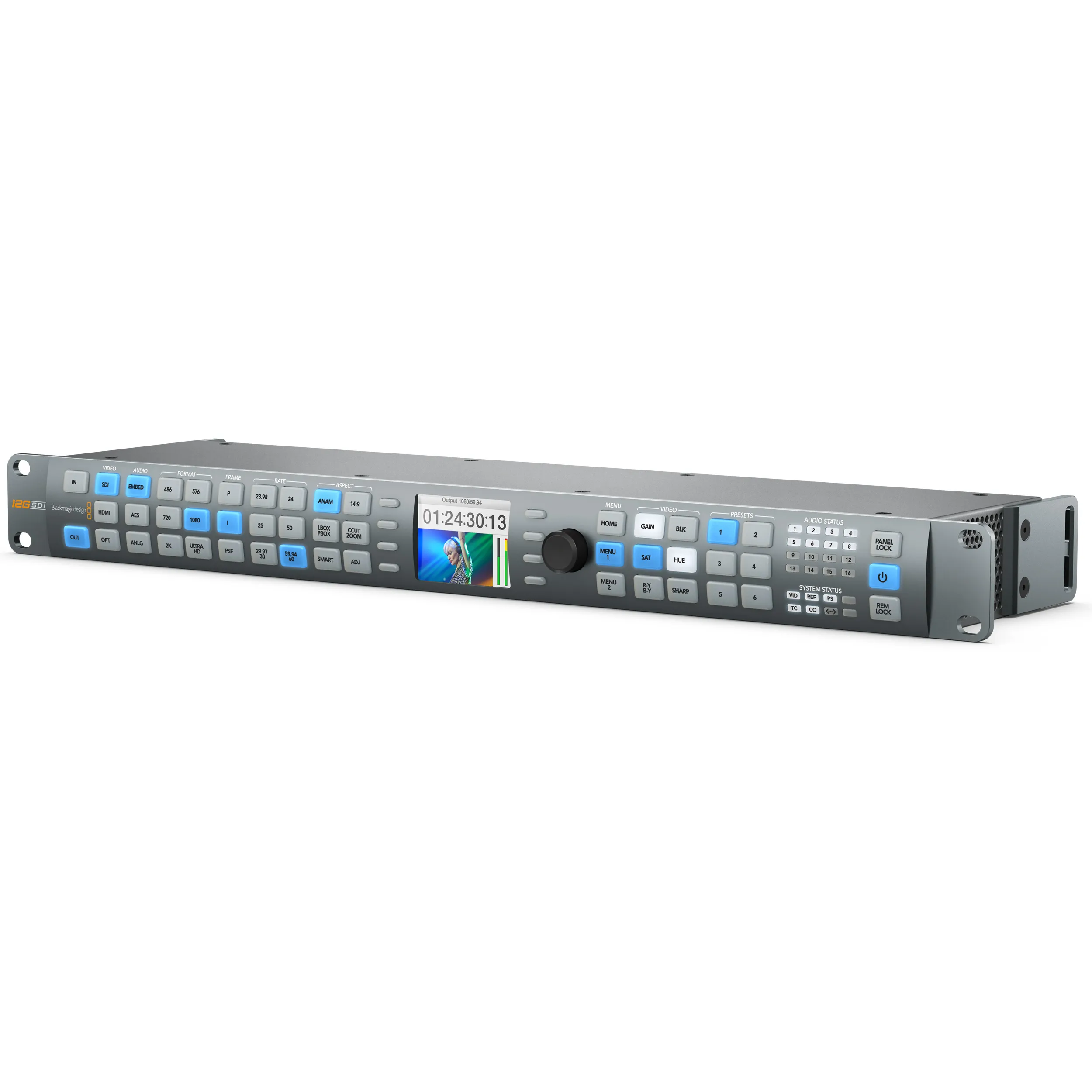

Teranex AV
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
1.5G-SDI HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
3G-SDI HD Video Standards
1080p50, 1080p59.94, 1080p60 levels A and B
2K Video Standards
2K DCI 23.98p, 2K DCI 24p
2K DCI 23.98PsF, 2K DCI 24PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
SDI Metadata Support
VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
Audio Sampling
Television standard sample rate of 48kHz and 24-bit HD, 20-bit SD.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
SDI Video Standards
525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable.
HDMI Color Precision
4:2:2 10-bit
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Aspect Ratio Conversion
Real time variable and fixed aspect ratio conversions.
Real Time Video Processing
Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control
Low Latency Processing
Real time processing with 2 frame latency, available for select format conversions.
Format Conversion
Real time up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion.
Colorspace Conversion
Hardware based real time
Still Store
Capture a video frame into non-volatile memory from the current input signal or freeze frame buffer.
Freeze Frame
Temporarily freeze incoming live video.
Test Patterns
SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black with selectable audio tones and selectable horizontal pattern motion.
Output Switching
Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video. The transition rate between output choices has a range of 0 to 5 seconds. A transition forces a dissolve through black.
Software
Software Control
Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac OS X.
Internal Software Upgrade
Via USB type C using the included Teranex Setup application.
Power Requirements
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50-60Hz
Typical Power Consumption
42 watts
Environmental Specifications
Operating Temperature
5° to 50° C (41° to 122° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
