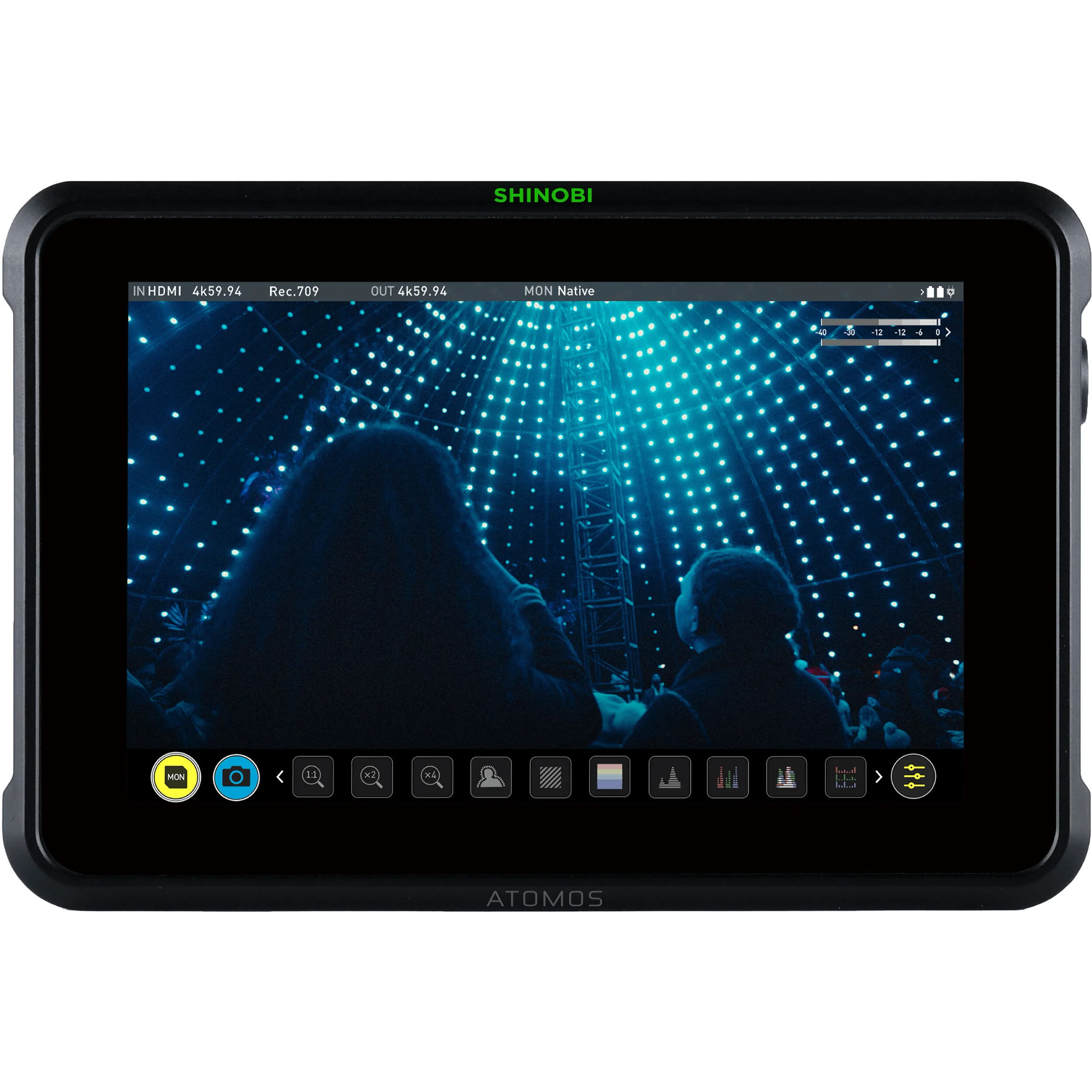

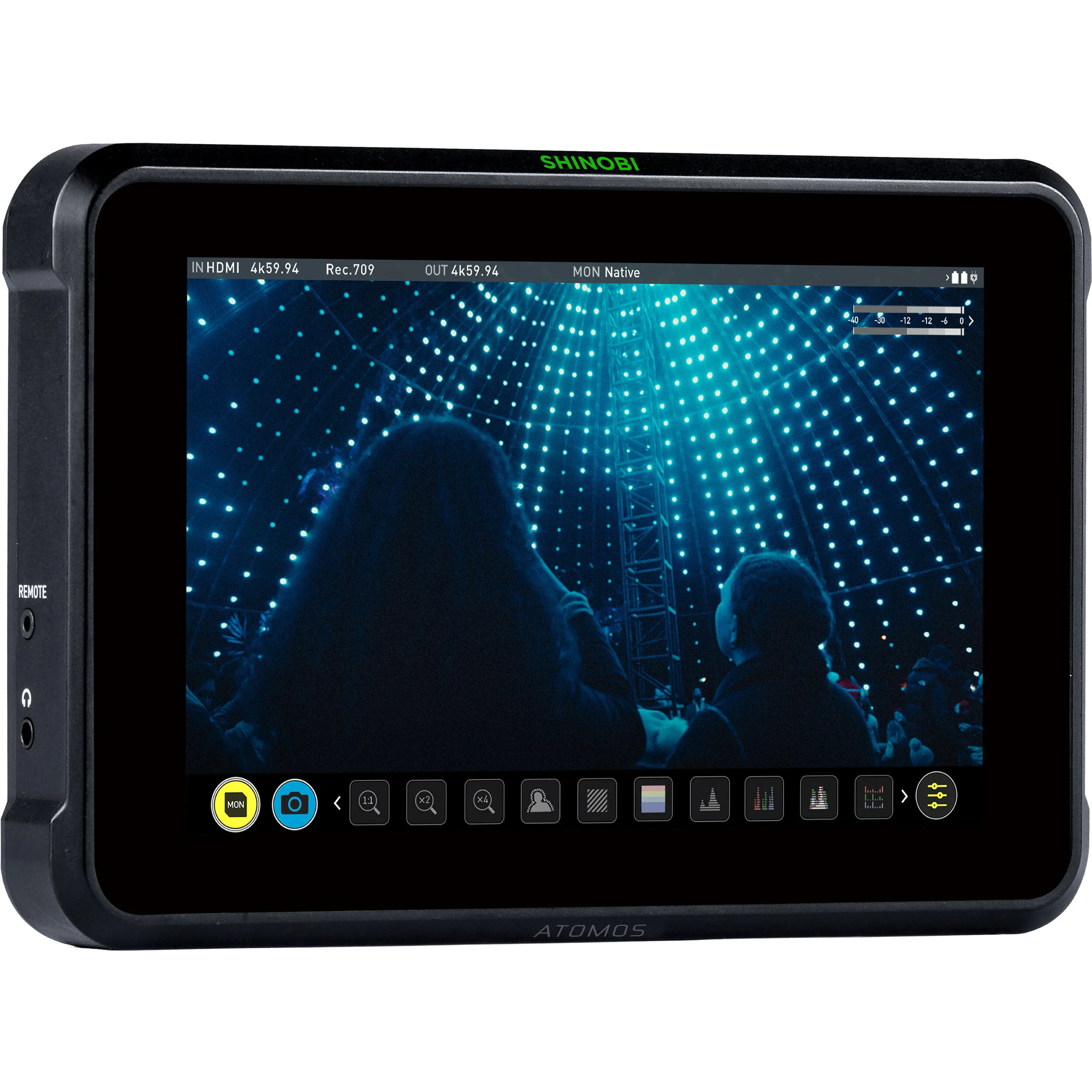

Physical
Dimensions (W x H X D mm)
198mm x 133mm x 39mm / 7.8" x 5.2" x 1.5"
Weight
577g / 1.04lb
Mounting Points
Top: 1 x 1/4"20 with anti rotational points, Bottom: 1 x 1/4"20 with anti rotational points
Environmental
Ambient Operating Temperature
Up to 40 Degrees Celsius
Construction
Body
ABS Polycarbonate Plastic
Cooling
Heat Sink + Actively controlled Fan

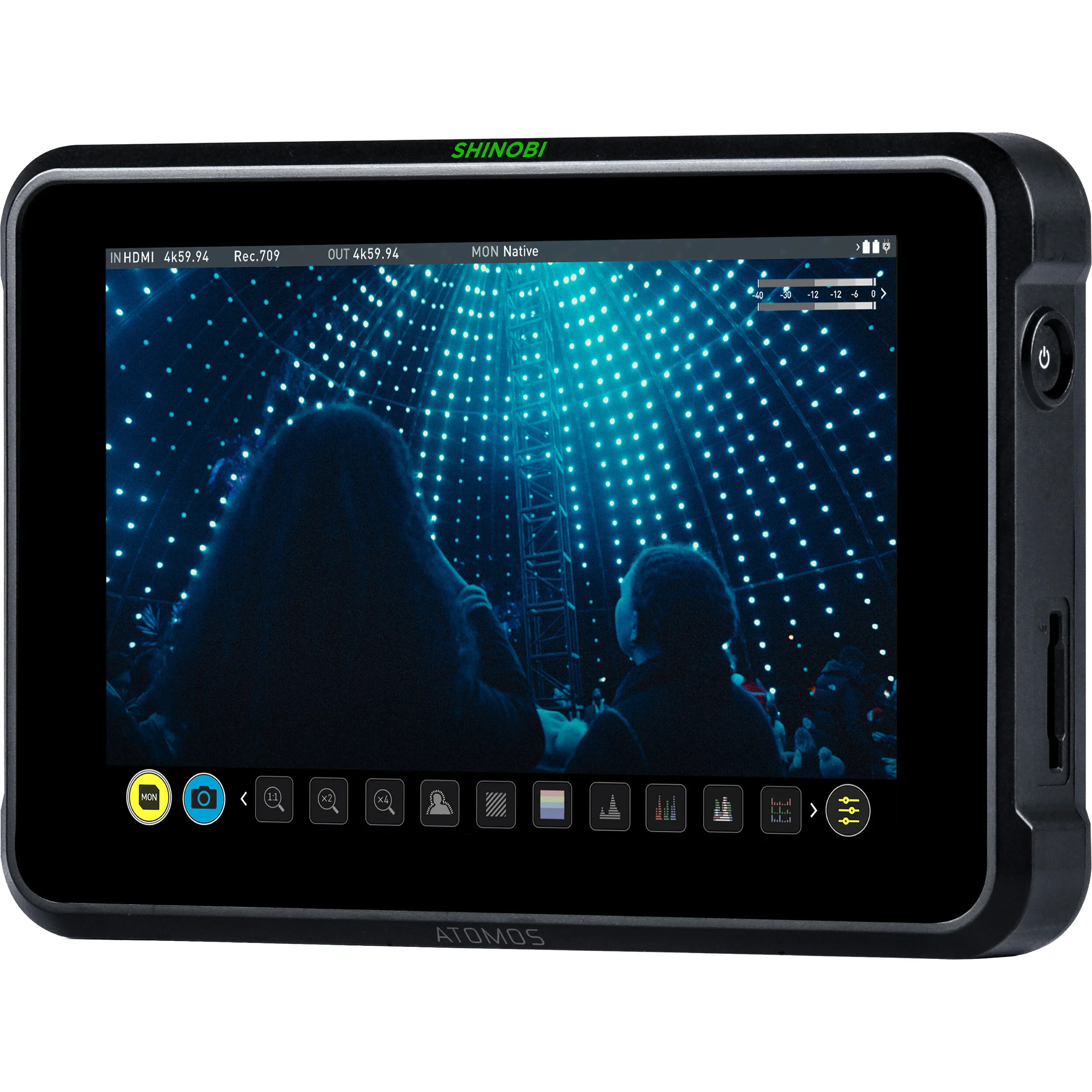

Multi-Function Button
Power / Lock Screen
Touch Screen
Capacitive Touch

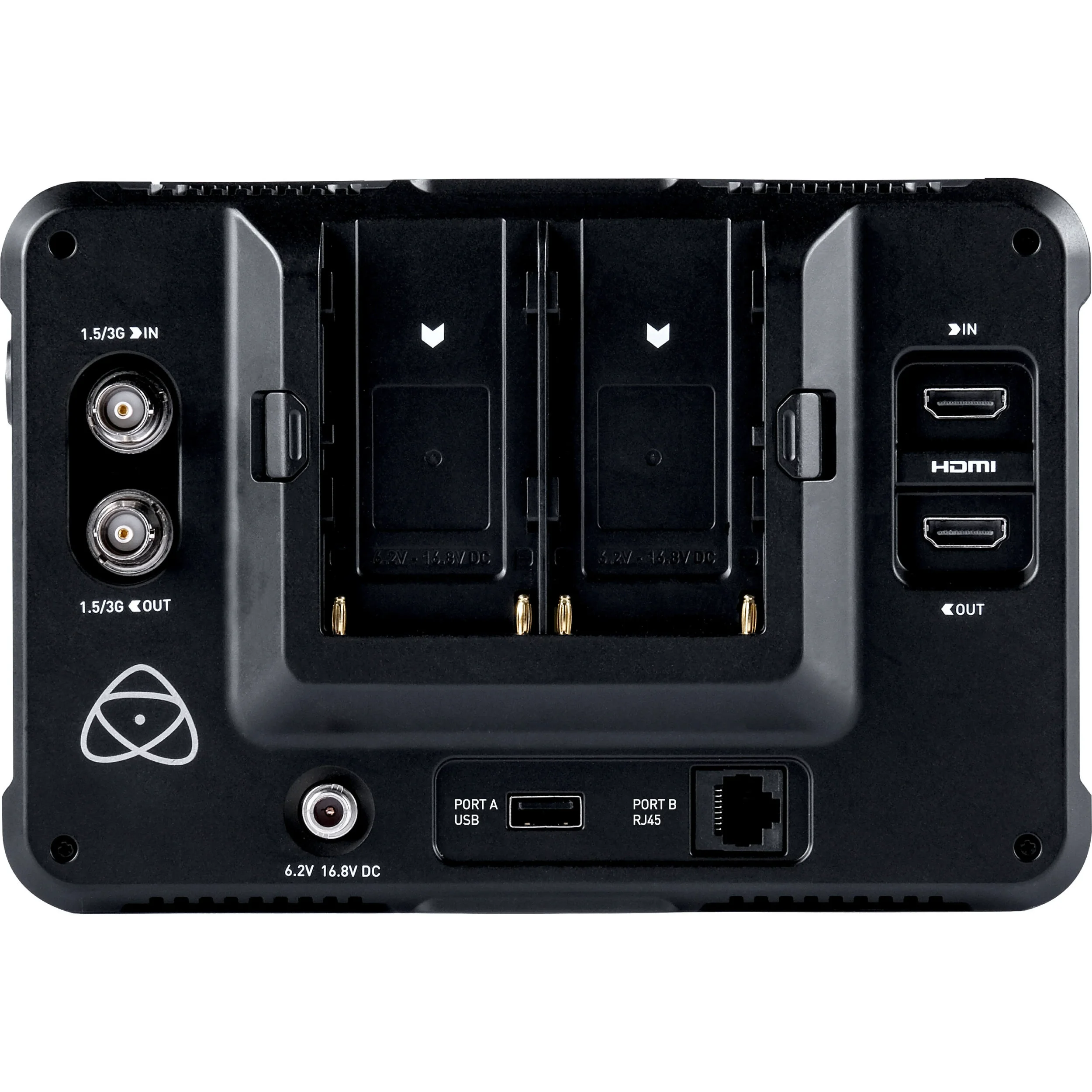

Power
Input Voltage
6.2V to 16.8V
Compatible Batteries
2 x NP-F / L-Series
DC-In Connector
Locking DC Jack (5.5mm OD & 2.1mm ID)
D-Tap
Via optional D-Tap to DC-Barrel Cable
Fan Control
Quiet Fan/Limited Brightness & High Fan/Peak Brightness
Display
Display Panel
SuperAtom IPS Panel (Capacitive Touch)
Size
7"
Resolution
1920 x 1200 (1920 x 1080 Image Display)
Viewing Angle
178 + H & V
PPI
325
Bit Depth
10-Bit (8+2 FRC)
Backlight Type
Edge-Lit
Brightness (cd/m² / nits)
2200 +/- 10%
Aspect Ratio
16:10 (16:9 Image Display)
Color Gamut
Rec.709
Calibration Support
ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Color Pipeline
Gamma
Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log
Gamut
Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display
.Cube Format (17 & 33 points supported)
3D LUT Output
Loop out
3D LUT 50/50
Via Compare Option in LUTs Menu
Monitoring Modes
Native / 709 / HLG / PQ / 3D LUT
HDR Output Conversion
Camera Log to HLG / PQ
Color Management
Calibration
ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Display Controls
Backlight, Lift, Gamma, Gain
AtomHDR
Built-in Technical Log to HDR EOTF
3D LUTs
Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring
Video Input
HDMI
1 x HDMI 2.0
SDI
1 x 3G SDI
Chroma Subsampling
YCbCr 4:2:0 & 4:2:2
Bit Depth
8 / 10-Bit
HDR
HDMI Auto Detection
Video Output
HDMI
1 x HDMI 2.0
SDI
1 x 3G SDI
Video Signal Conversion
HDMI to SDI
Supported
SDI to HDMI
Supported
Audio In/Out
HDMI
2ch 24-Bit, Input dependent
SDI
8ch 24-Bit, Input dependent
Analog Audio Out / Headphone Jack
3.5mm Jack
Timecode Display
HDMI
Embedded
SDI
Embedded
Resolution and Frame Rates (Monitoring)
4K DCI
up to 4Kp60 (HDMI only)
4K UHD
up to UHDp60 (HDMI only)
2K DCI
up to 2Kp60 (SDI only)
FHD 1920 x 1080 Progressive
up to 1080p60 (HDMI & SDI)
1280 x 720 Progressive
up to 720p60 (HDMI & SDI)
Supported Media
SD Card
up to 128GB Capacity – Used for Firmware Updates & Installing LUTs
File System
FAT & FAT32
On-Screen Tools
Waveforms
3 Sizes – Adjustable Opacity & Brightness
RGB Parade
3 Sizes – Adjustable Opacity & Brightness
Vector Scope
2 Sizes – Adjustable Opacity & Brightness
Histogram
1 Size – Adjustable Opacity & Brightness
MultiScope Analysis View
Image, Waveform, Histogram, Vector Scope & Audio Meters
1 x Zoom
Tap to Zoom
2 x Zoom
Tap to Zoom
4 x Zoom
Tap to Zoom
Focus Peaking
4 Modes (Color, Black & White, Outline, Edge Sharpening) with adjustable Outline Color & Peaking Intensity
Zebra
Adjustable Threshold (50% to 105%)
Isolate Color Channel
Blue Only
Cine Frame Guides
2.4:1, 2.35:1, 1.9:1, 1.85:1, 16:9, 4:3
Social Frame Guides
1:1, 5:4, 1:1.9
Grid Markers
9 Grid
Anamorphic Desqueeze
2x, 1.8x, 1.5x, 1.33x, 1.25x
Display Flip
Horizontal & Vertical
Colorized Exposure
Atomos False Color
Onboard Signal Processing
4K UHD Downscale for HD
Available on loop out
DCI Crop
Available on loop out
External Device Control
Serial 2.5mm Jack
Z CAM Camera Control via Remote to USB-C Cab
