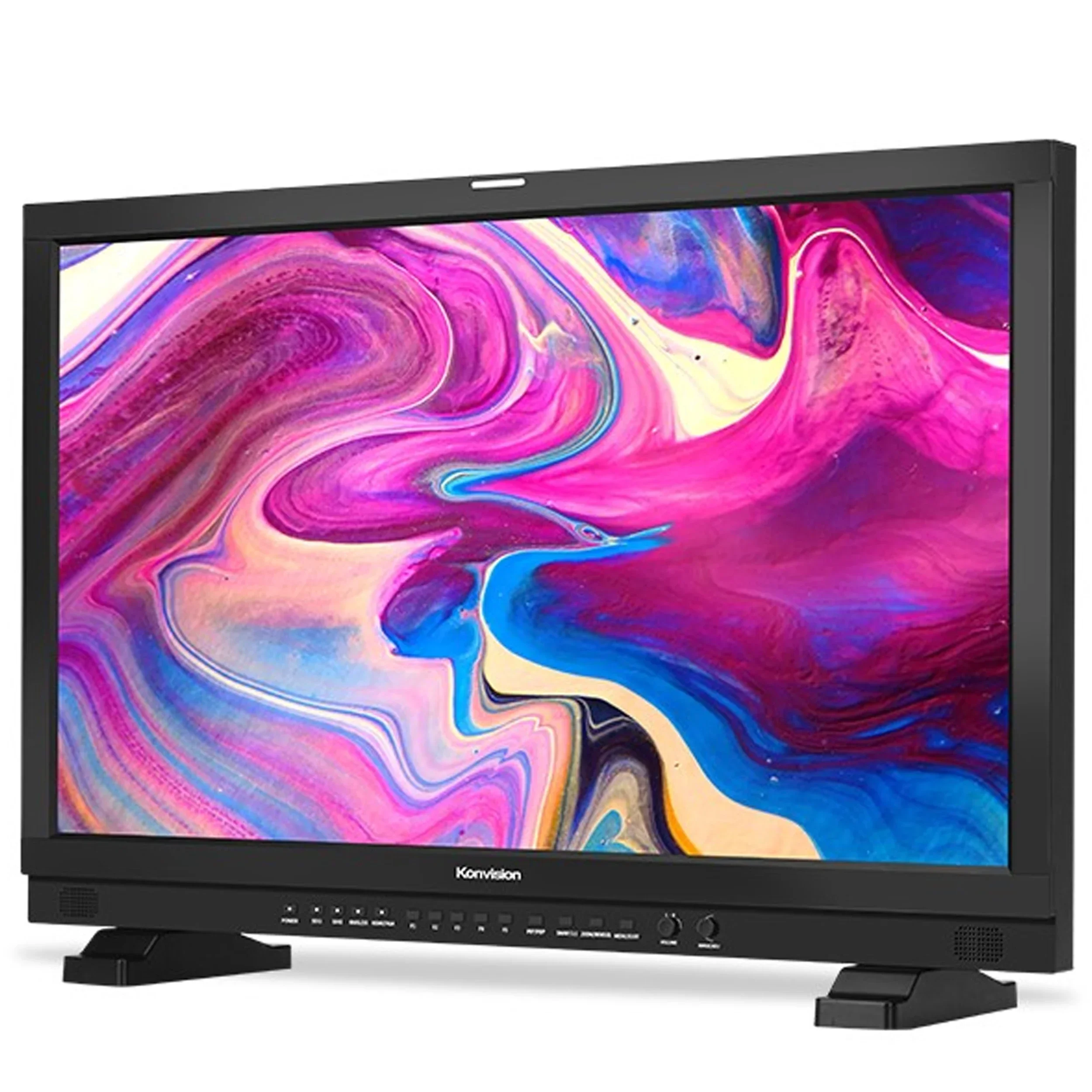

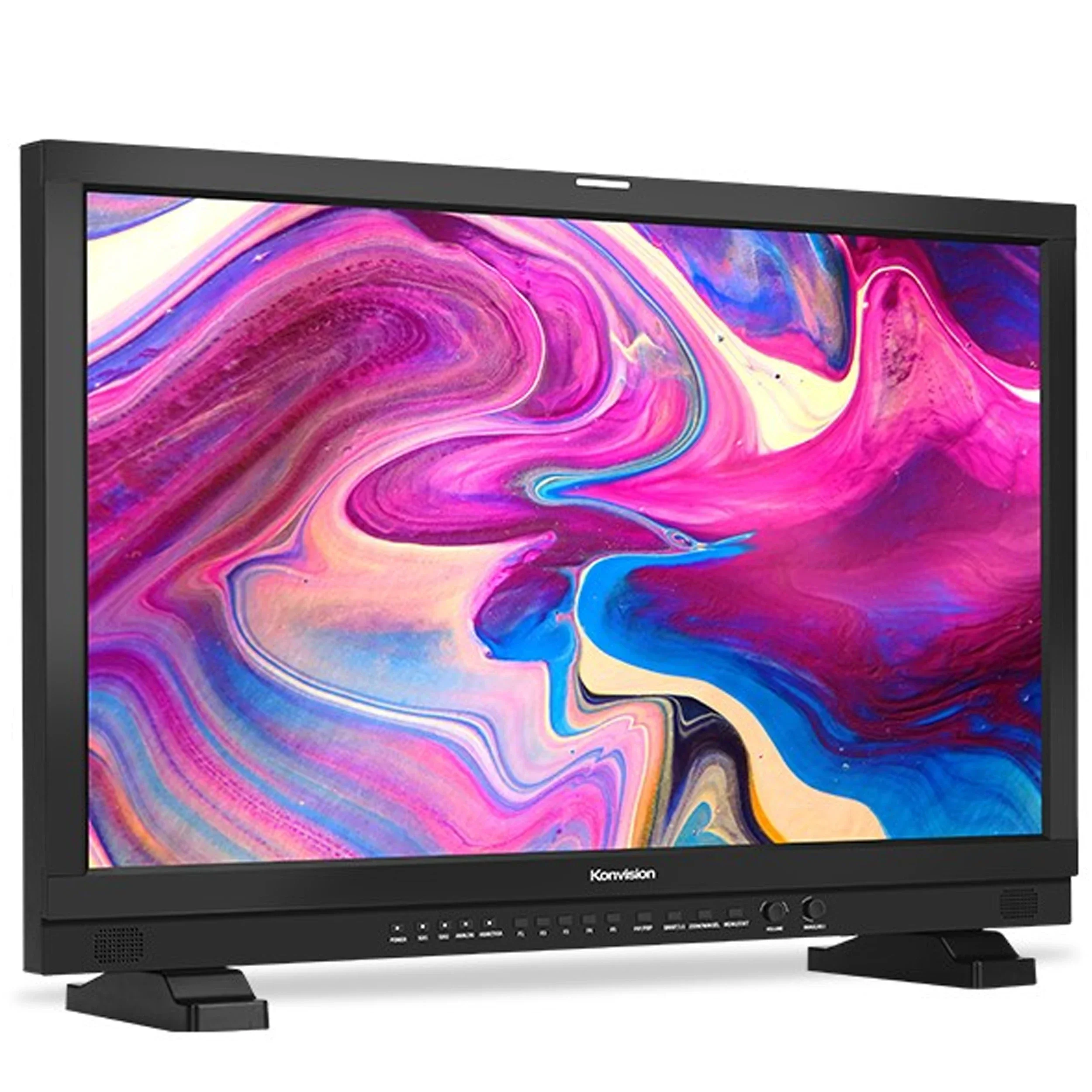

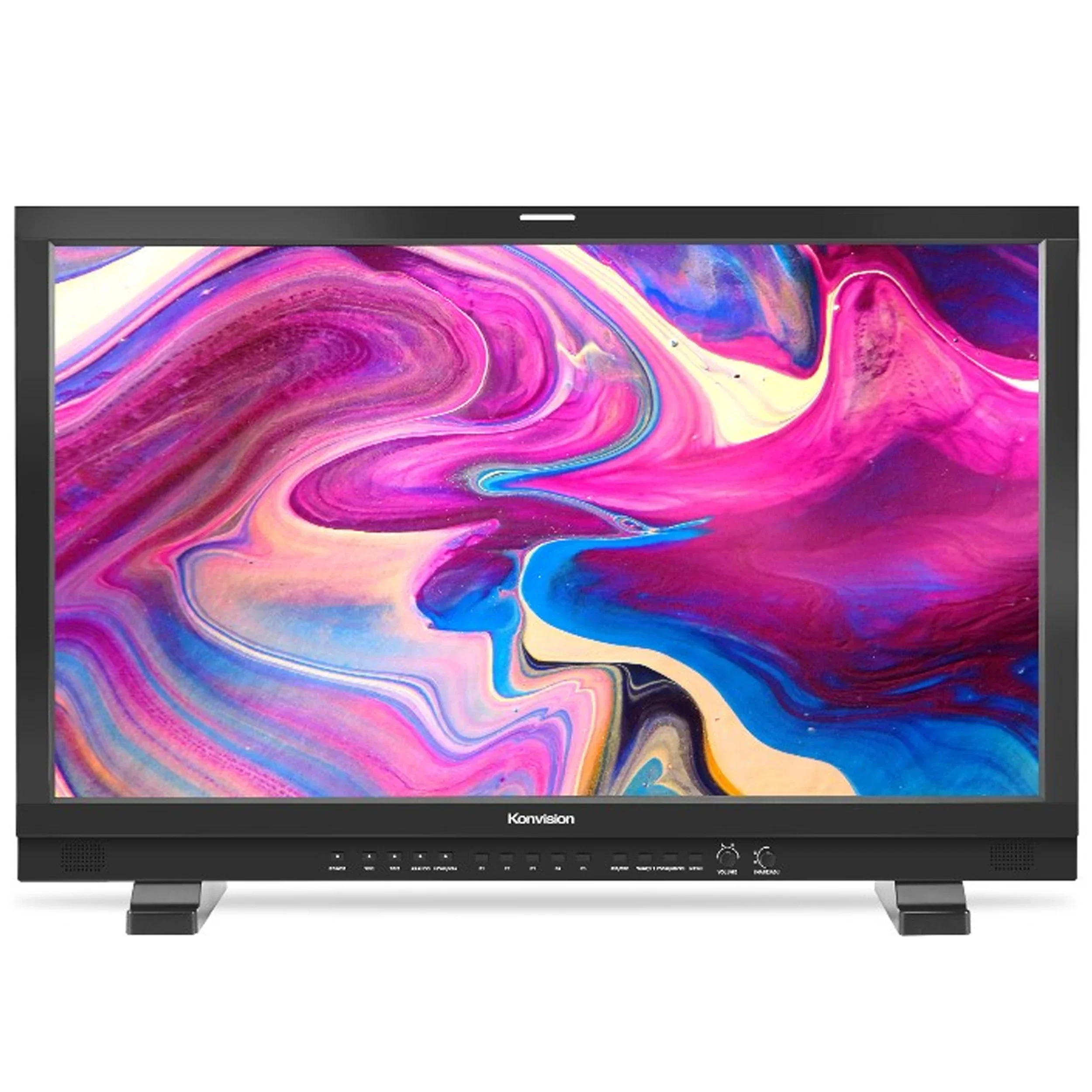

Panel
Display Size 24"
High Resolution Full HD 1920×1200
Aspect Ratio 16:10
Wide Viewing Angle 178°(H) /178°(V)
Color Depth 1.07B (True 10bit)
Back Light LED,98% P3
Brightness 400cd/m2
Contrast Ratio 1500:1
INPUT
2 × BNC
SDI1/2 Channel Inputs
(3G/HD/SD-SDI Auto-Detected)
3 × BNC YPbPr/Video/Y/C Inputs
1 × DVI-I DVI/VGA Inputs
1 × HDMI HDMI Input(optional)
OUTPUT
2 × BNC
SDI1/2 Channel Outputs
(3G/HD/SD-SDI Auto-Detected)
3 × BNC YPbPr/Video/Y/C Outputs
CONPATIBLE SDI FORMATS
SMPTE-425M-A/B 4:2:2 YCbCr 10-bit 1080P(60/59.94/50)
4:4:4 YCbCr/RGB 10-bit 1080i(60/59.94/50)
4:4:4 YCbCr/RGB 12-bit 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:2:2 YCbCr 12-bit 1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:4:4 YCbCr/RGB 10-bit 720P(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-274M 1080i(60/59.94/50)
1080P(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-296M 720P(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-260M 1035i(60/59.94)
SMPTE-125M 480i(59.94)
ITU－R BT.656 576i(50)
Audio In / Out
SDI Audio In 16 Channels Embedded Audio
Audio Meter Display H/V Audio Level Meter Display(VU+PPM)
Analog Audio Input 3.5mm Headset Switch Cable
Audio Headset Output 3.5mm Headset Jack
Built-in Speaker 2.5W×2
GENERAL
Operating Temperature -10℃～50℃
Input Voltage DC 12V and AC 100-240V 50/60Hz
Power Consumption 55W
Power-Saving Mode Turn off unimportant Key Automatically if no signal input
VESA Installation VEAS MIS-D(100×100mm)
Accessory Power Cord /Desktop stand
