מוניטור וידאו 10.1" ברזולוציה 1280X800 תוצרת SEETEC

קניה פופולארית

מוניטור וידאו 10.1" ברזולוציה 1280X800 תוצרת SEETEC

מק"ט: FW1018S

רזולוציה 1280X800
Peaking Focus Assist
כניסות ווידאו 3G-SDI, HDMI, Ypbpr
אפשרות להיפוך תמונה
12 חודשי אחריות ABS – יבואנים רשמיים

1. Wide view angle IPS Screen, High resolution 1280x800, bright, colorful display
2. 3G-SDI, HDMI, Ypbpr, Video, Audio(L/R) inputs and 3G-SDI, HDMI, Ypbpr, Video loop-through outputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR

גודל מסך: 10.1"

תיאור

מפרט טכני

גודל מסך: 10.1"

מה בקופסה

חוות דעת

קבצים להורדה

Model FW1018S
Screen Size 10.1" IPS
Resolution 1280×800 pixels
Dot pitch 0.1695(H)x0.1695(V) mm
Aspect Ratio 16:10
Brightness 650cd/m²
Contrast Ratio 800:1
Backlight LED
Viewing Angle 89°/89°(L/R) 89°/89°(U/D)

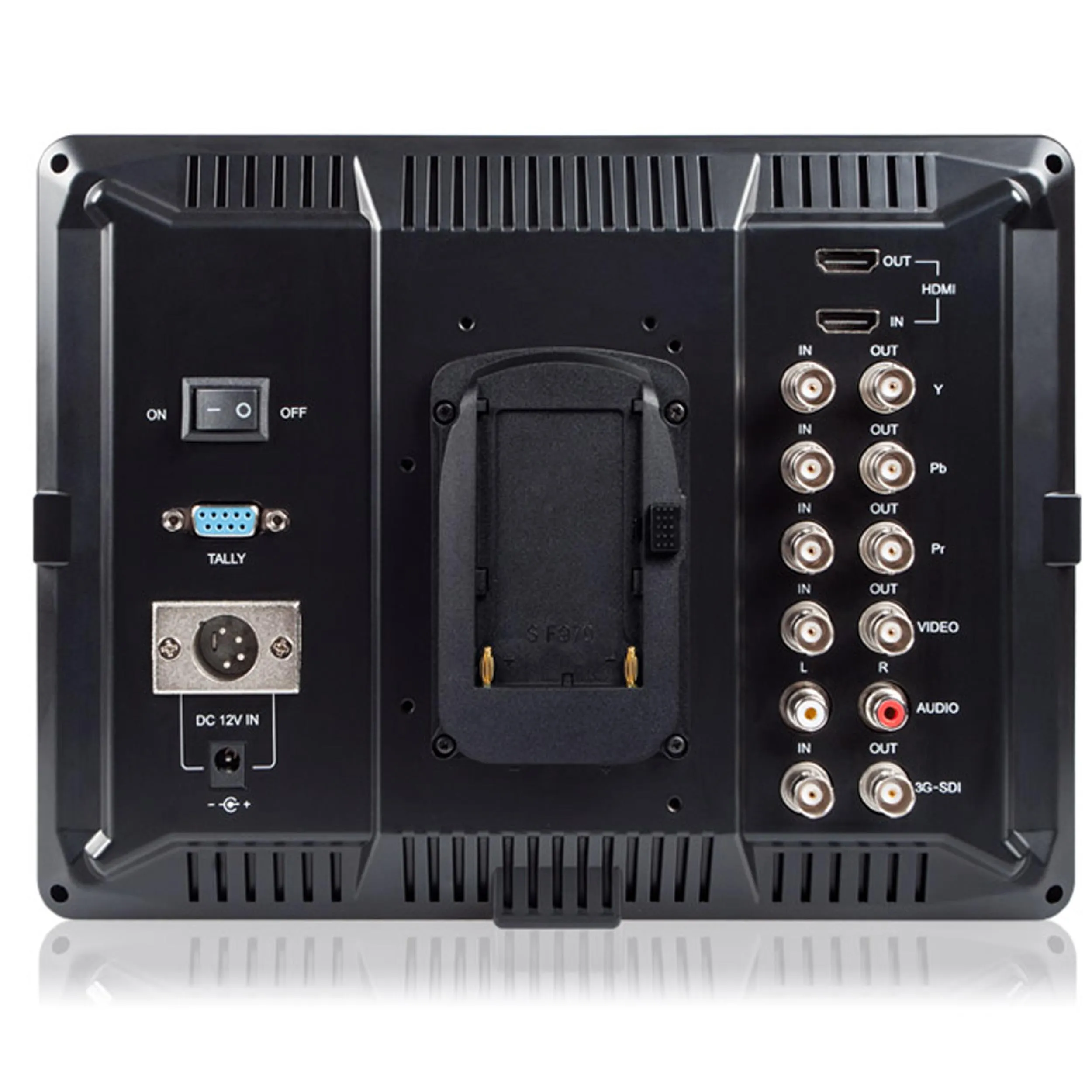

Input
1 X BNC 3G-SDI
1 X HDMI HDMI
1 X BNC Y
1 X BNC Pb
1 X BNC Pr
1 X BNC Video
2 X RCA Audio(L/R)
1 X DB-9 Tally

Output
1 X BNC 3G-SDI
1 X HDMI HDMI
1 X BNC Y
1 X BNC Pb
1 X BNC Pr
1 X BNC Video

Audio
Audio Out Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General
Input Voltage DC6～36V
Power Consumption ≤12W
Power Connector DC/ 4-pin XLR
Battery Plate F970 (Standard); D28S, LP-E6, V-Mount, Anton Bauer (Optional)
Working Temperature -20°C~55°C
Storage Temperature -30°C~65°C
Install Way 1/4"-20 Thread Socket (3 sides left&right&bottom)
Unit Size 258L×192H×39D mm
Unit Weight 810g

Advanced Features
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
* Check Field (Red,Green,Blue,Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Flip (H, V, H/V)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
* Built-in LED tally indicators (Red, Green, Yellow)

1× Mini HDMI Cable

1× Sunshade

1× Hot Shoe Mount

1× F970 Battey Plate

1× Tally Kit

1× U bracket

1× Operation Manual
