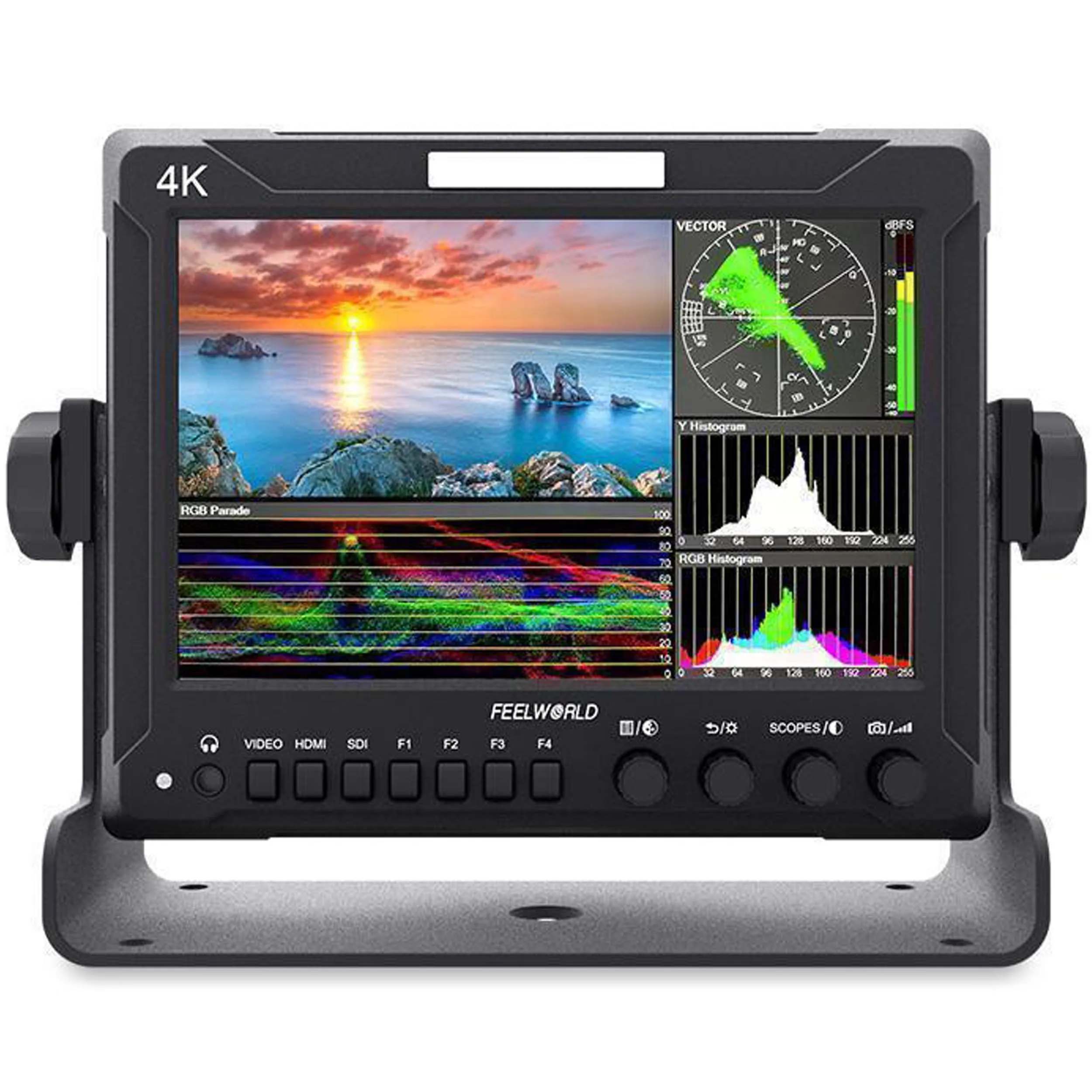

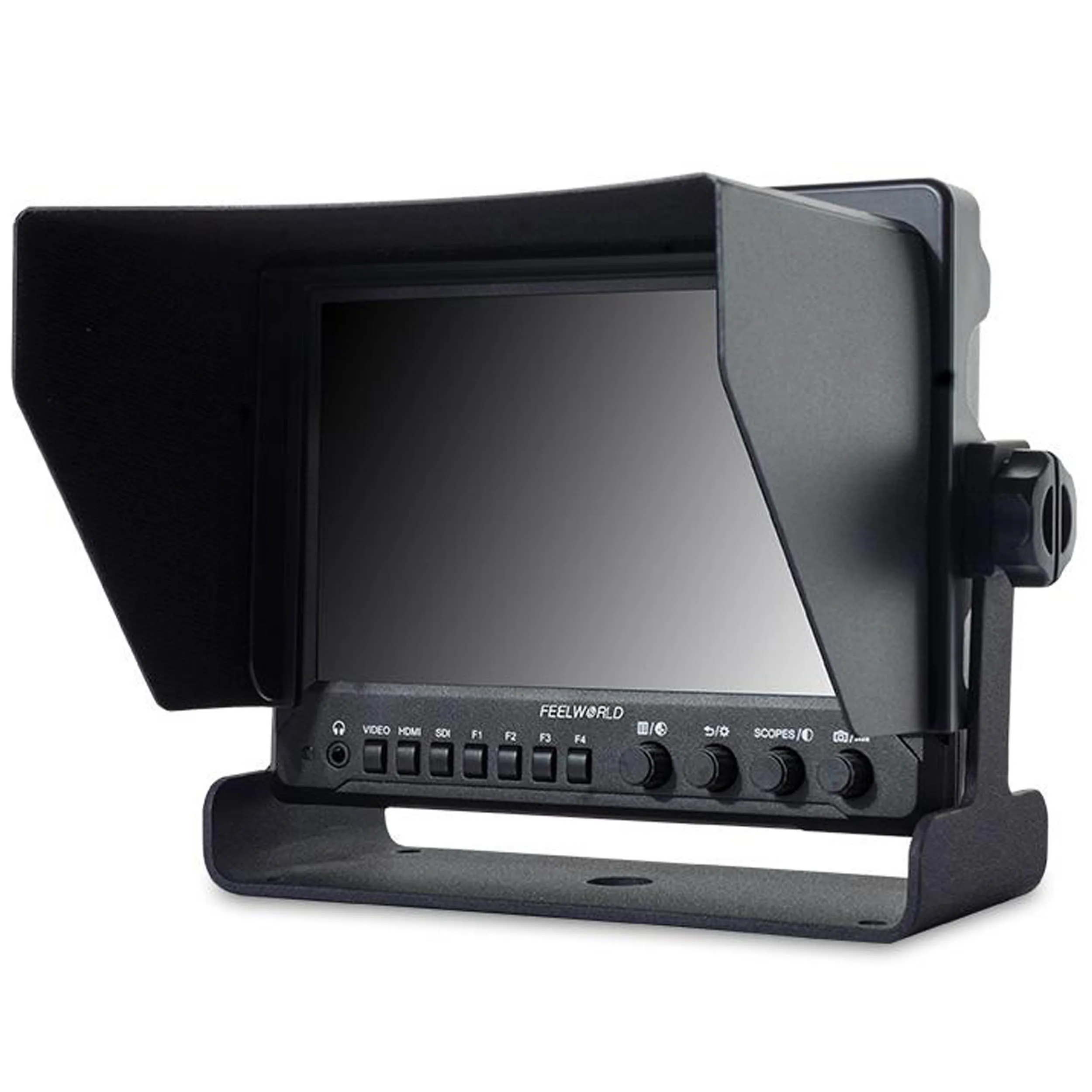

מוניטור וידאו 7" כניסות 1920X1200 SDI תוצרת FEELWORLD

Display Spec.
Model Z72
Size 7" IPS
Resolution 1920×1200 pixels
Pixel Pitch 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio 16:10
Brightness 450cd/m²
Contrast Ratio 1200:1
Backlight LED
Viewing Angle 80°/80°(L/R) 80°/80°(U/D)

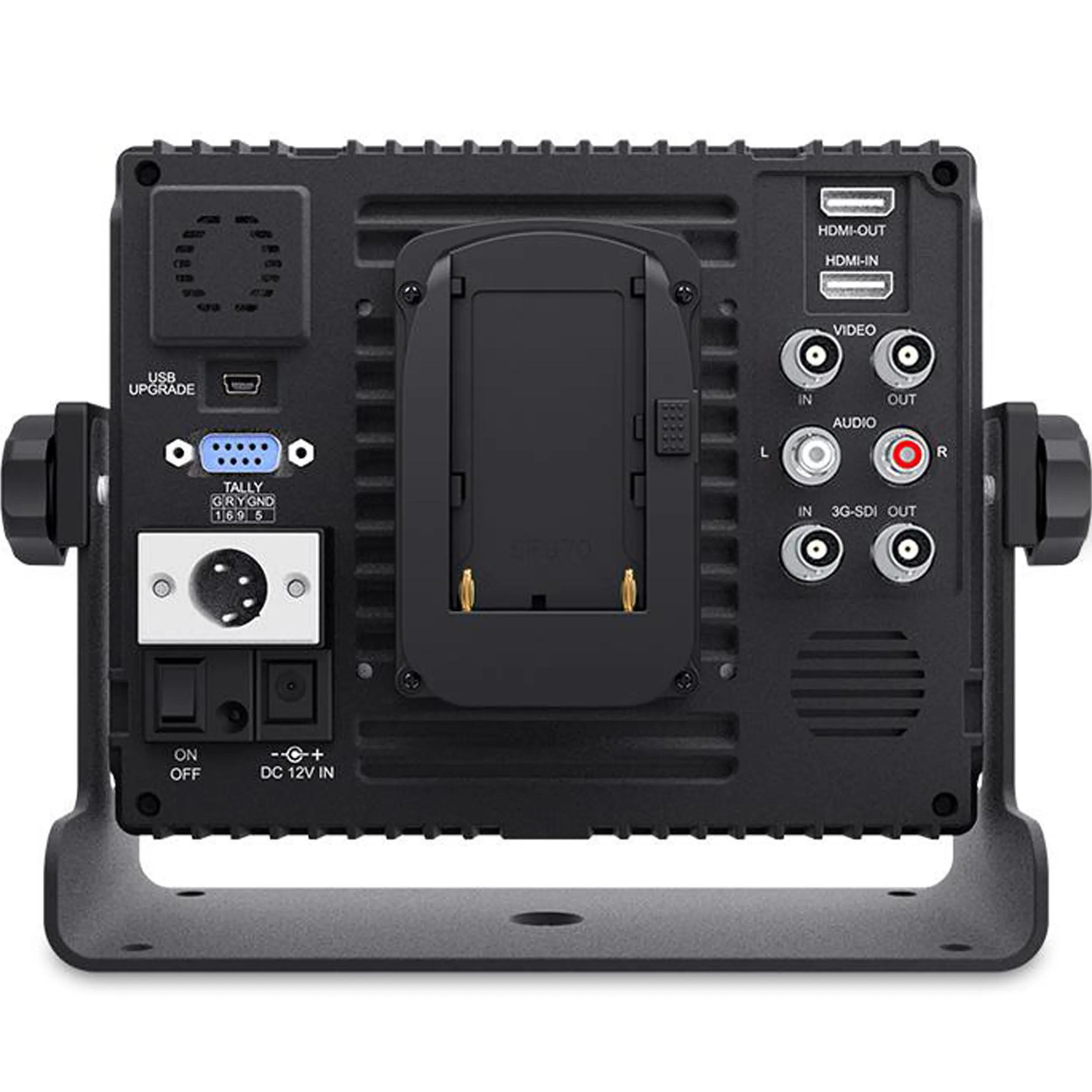

Input
1 X BNC 3G-SDI
1 X HDMI HDMI
1 X BNC Video
2 X RCA Audio(L/R)
1 X DB-9 Tally

Output
1 X BNC 3G-SDI
1 X HDMI HDMI
1 X BNC Video

Audio
Audio Out Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/29/25/24/23.98/23Hz), 4096×2160p (24Hz)

General
Input Voltage DC7～24V
Power Consumption ≤12W
Power Connector DC/ 4-pin XLR
Battery Plate F970 (Standard); D28S, LP-E6, U60 (Optional)
Working Temperature -20°C~55°C
Storage Temperature -30°C~65°C
Install Way 1/4"-20 Thread Socket (3 sides left&right&bottom)
Unit Size 182L×146H×27D mm
Unit Weight 720g/750g (With F970 Plate)
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

Advanced Features
* Waveform (RGB,YUV,Y (Luminance))
* Vector Scope
* Color Histogram
* Histogram
* Embedded Audio
* Peaking Focus Assist ( has High-Low level to adjust; Red, Green, Blue, White four color optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure
* Check Field (Red,Green,Blue,Mono)
* Internal Colorbar
* Camera Mode
* Scan Mode
* Zoom (Auto,4x,9x,16x)
* Anamorphic Mode (1.3x,2.0x,2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Nine Grid (Zoom one of the images to realize the full screen)
* Time Code
* Pixel-to-Pixel
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%)
* Marker Types (16:9, 4:3, 2.35:1, 1.85:1)
* Color Temperature Adjustment
* Built-in LED tally indicators (Red, Green, Yellow)
