Peripheral
Accessory Port
NATO Port
1/4"-20 Mounting Hole
RSS Camera Control Port (USB-C)
Pogo Pin (compatible with the DJI RS Intelligent Tracking Module)
Battery
Model: BHX724-3100-7.2
Type: LiPo 2S
Capacity: 3100 mAh
Energy: 22.32 Wh
Max Runtime: 13 hours (stationary) *
Charging Specification: 9 V/2.5 A
Charging Time: Approx. 1 hour and 50 minutes **
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)* Measured with the equipment in a level and stationary state and the gimbal balanced. When the gimbal is in motion, the operating time will be reduced.
** Tested in a 25° C (77° F) environment while using a 30W charger.
Connections
Bluetooth 5.1
USB-C Charging Port
Ronin App Requirements
iOS 14.0 or above
Android 9.0 or above
Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload
0.4-2 kg (0.88-4.4 lbs)
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +235°
Tilt Axis: -110° to +210°
Axis Locks
Auto
Vertical Shooting
Supported
Mechanical & Electrical Properties
Operating Frequency
2.4000-2.4835 GHz
Bluetooth Transmitter Power
< 4 dBm
Operating Temperature
-10° to 45° C (14° to 113° F)
Weight
Gimbal: Approx. 890 g (2 lbs) (including the Quick-Release Plate and excluding the tripod)
Extended Grip/Tripod: Approx. 140 g (0.3 lbs)
Dimensions

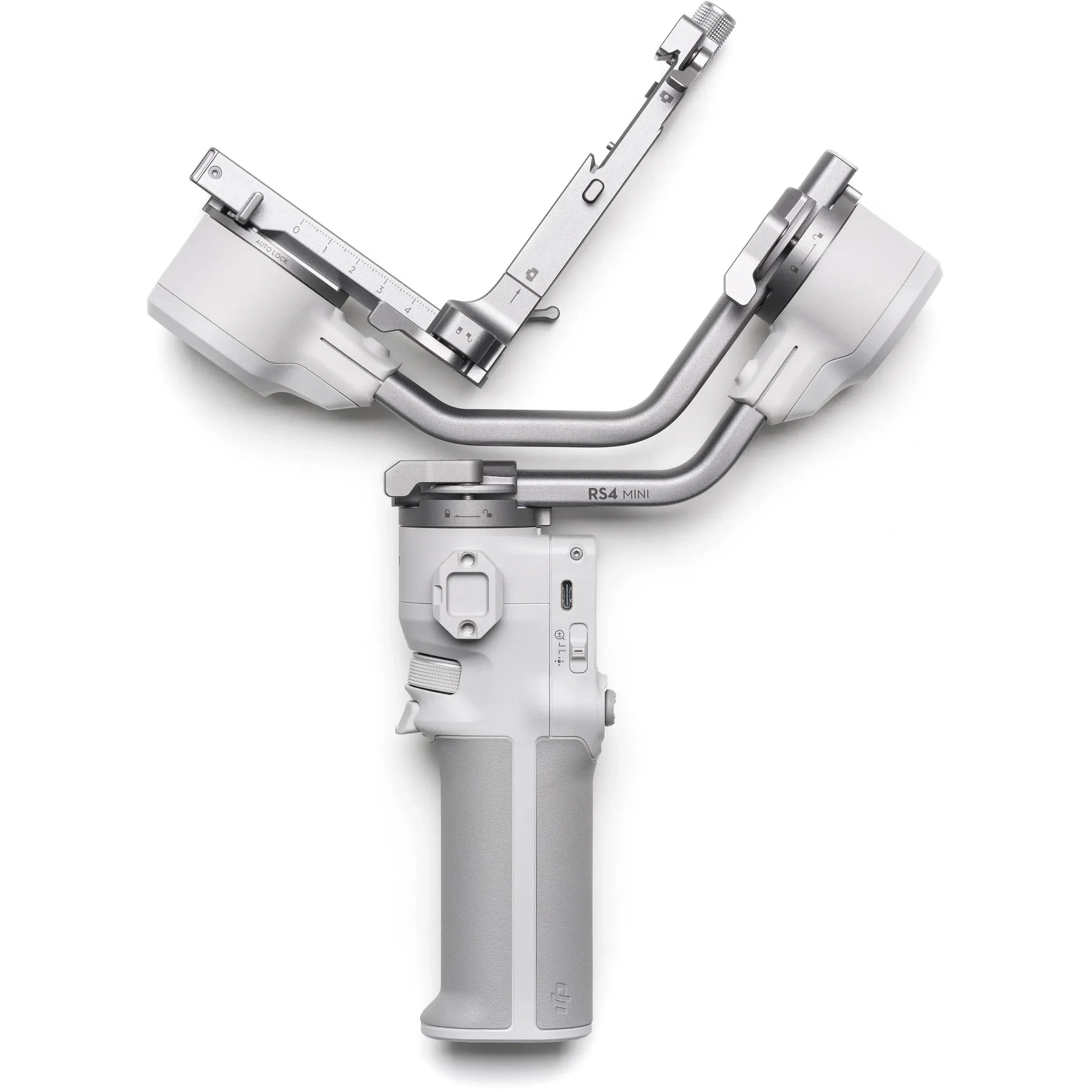

Folded: 236×64×316 mm (L×W×H, excluding the tripod and the Quick-Release Plate)
Unfolded: 175×182×338 mm (L×W×H, excluding camera, tripod, and the Quick-Release Plate)
