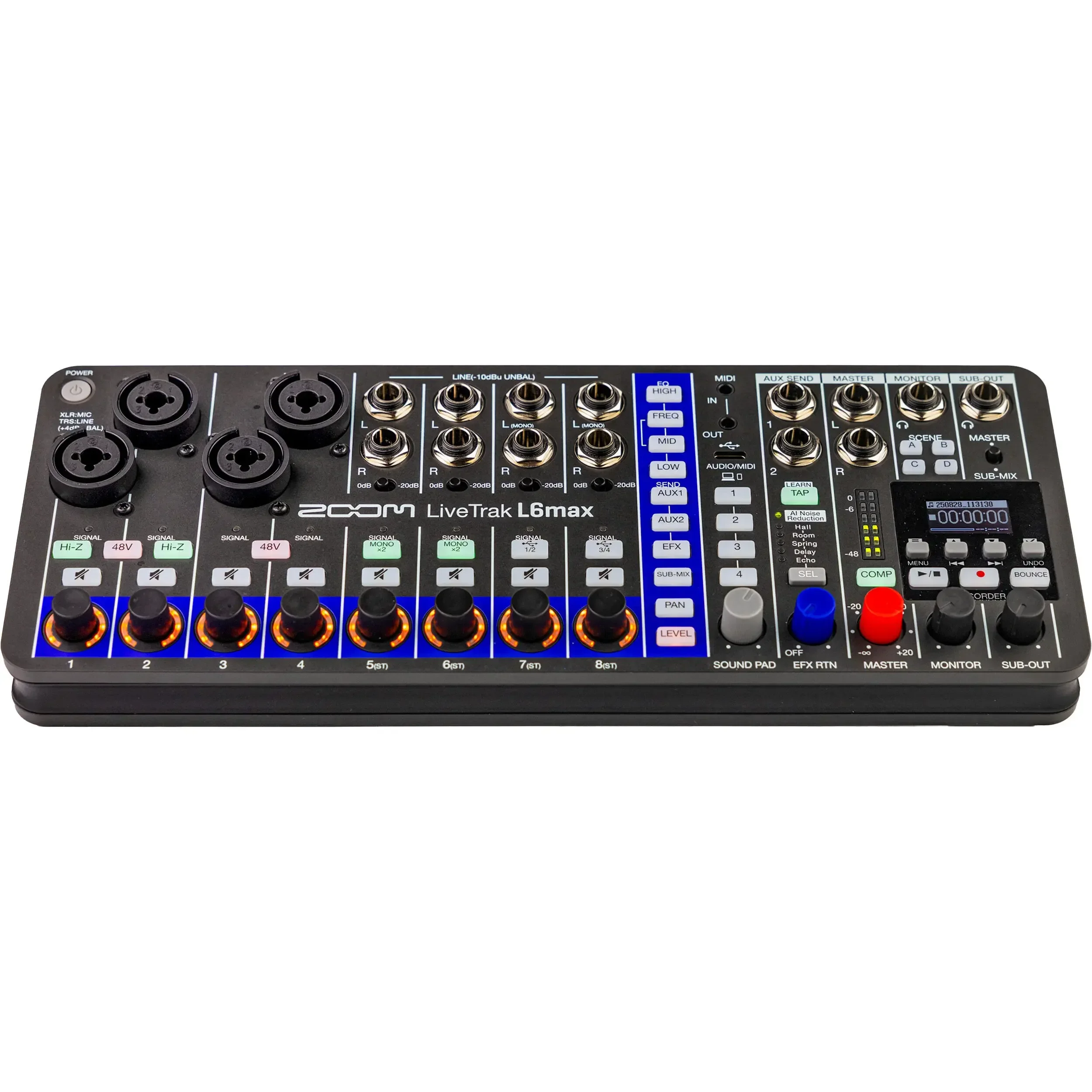

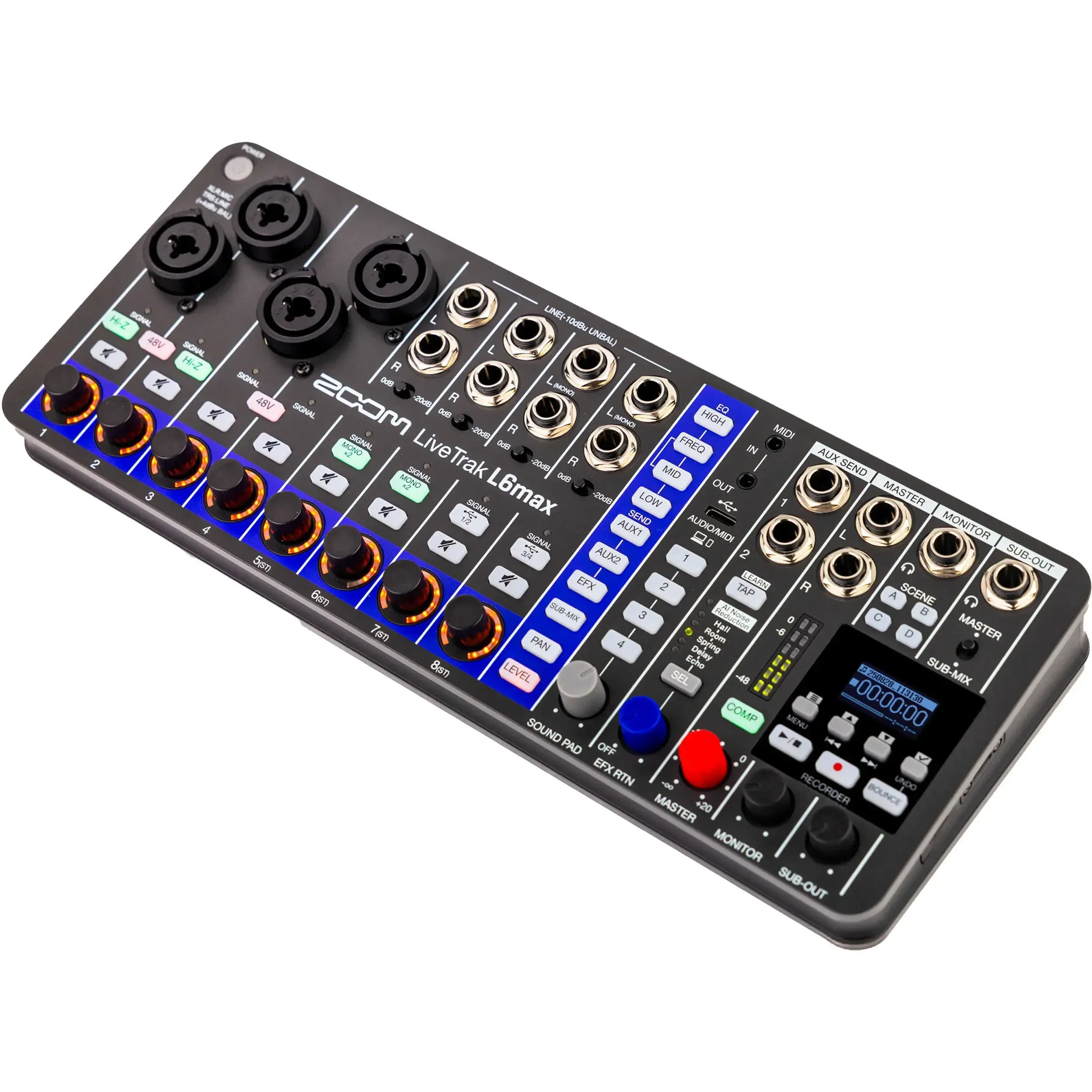

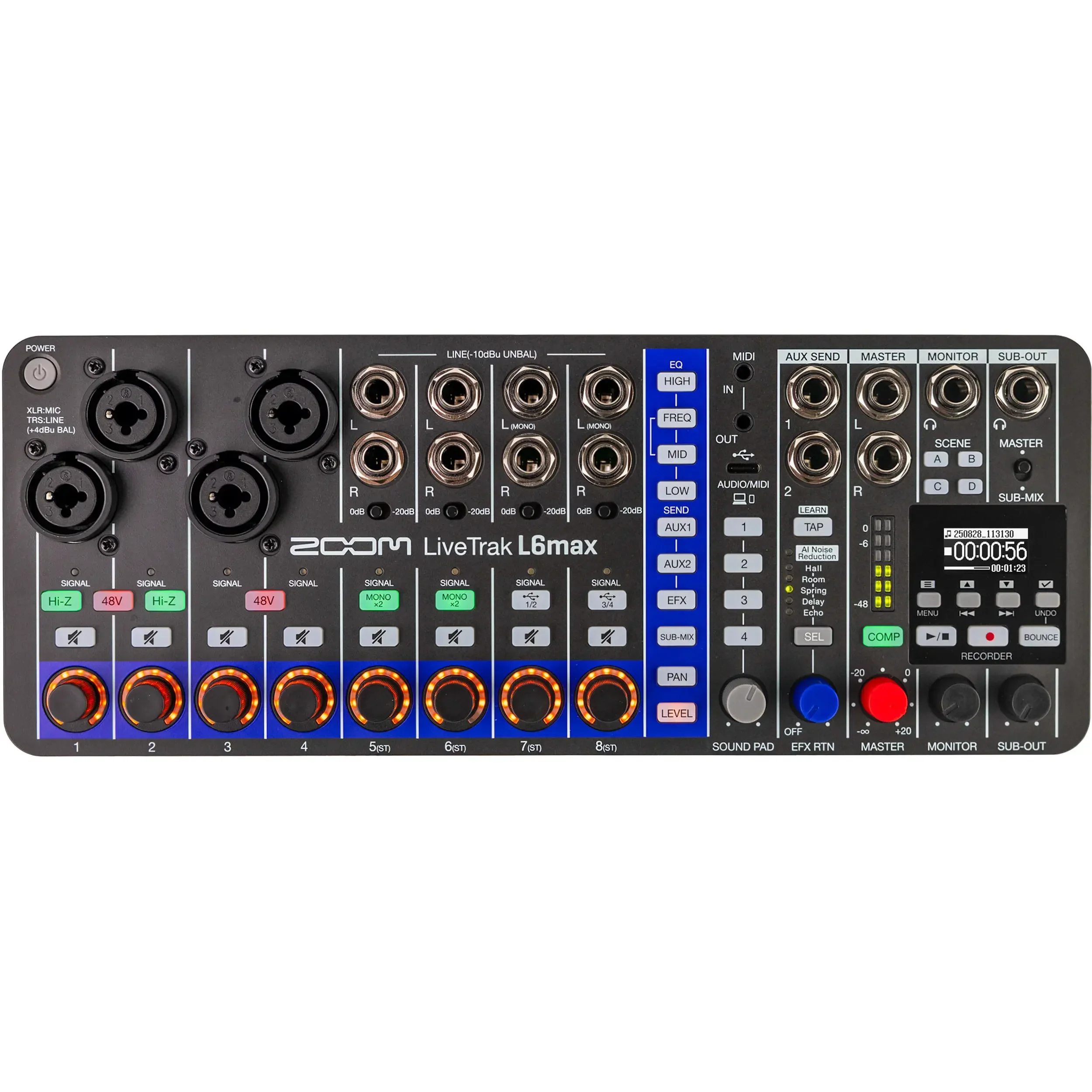

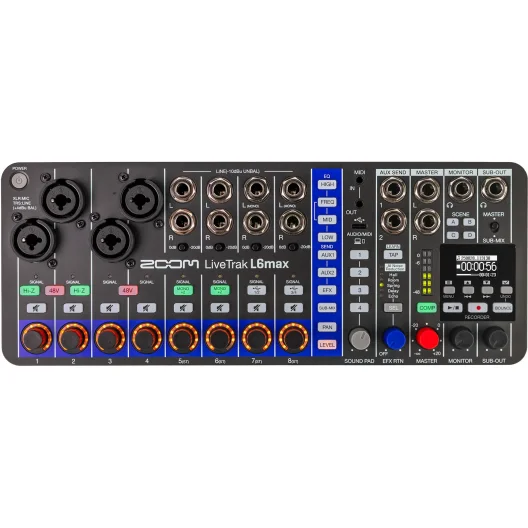

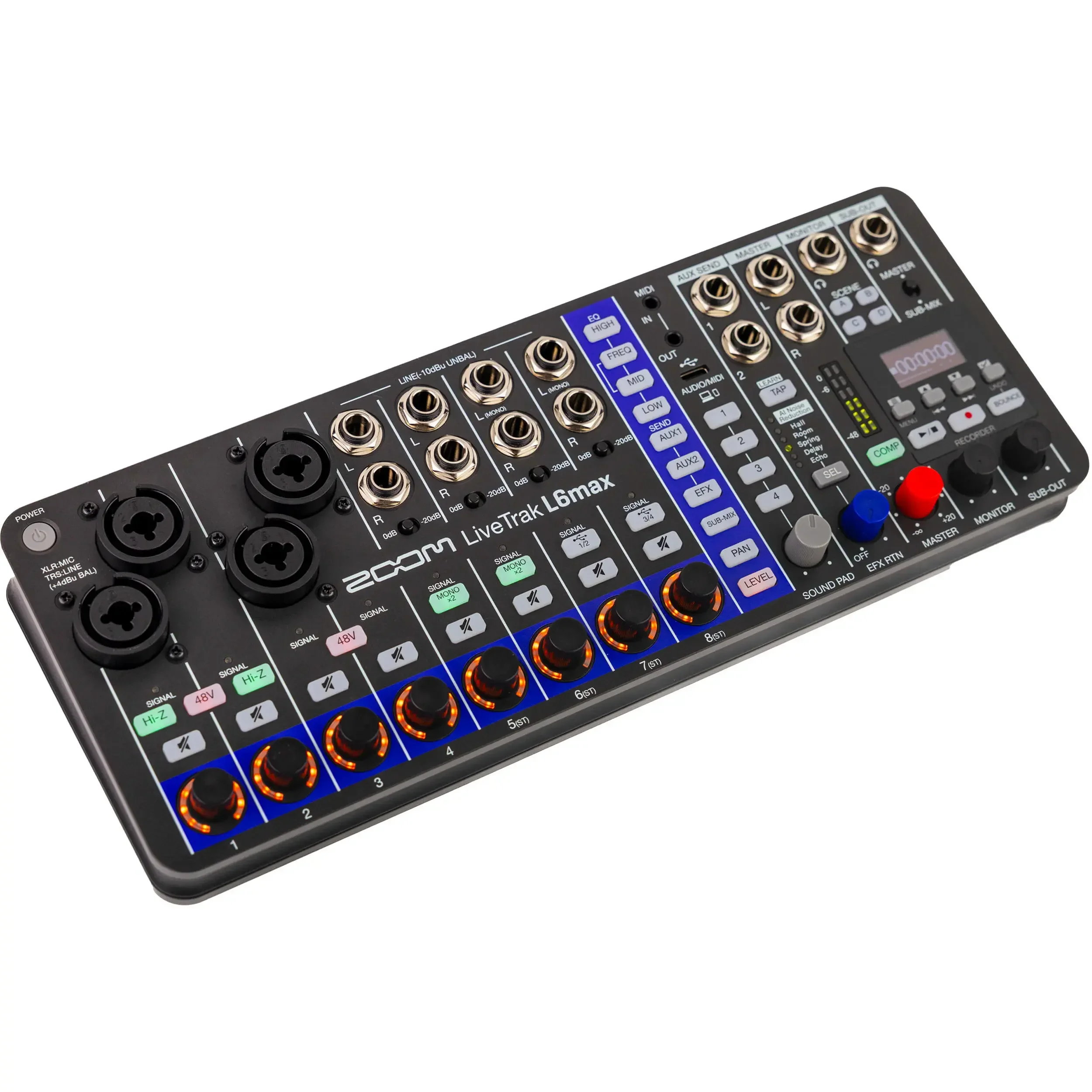

Inputs MIC/LINE (mono) 4
LINE (stereo) 4
Outputs AUX SEND (mono) 2
MASTER (stereo) 1
MONITOR (stereo) 1
SUB-OUT (stereo) 1
Inputs
MIC/LINE Connectors 4 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain Adjustment unnecessary (dual A/D converter circuits used)
Input impedance XLR: 3.8 kΩ or more
TRS: 18 kΩ or more (when Hi-Z off) / 1 MΩ or more (when Hi-Z on)
Maximum input level XLR: +4 dBu
TRS: +24 dBu
Phantom power +48 V
Channel total 20 mA or less
LINE Connectors 8 TS phone jacks
Input impedance 30 kΩ or more
Maximum input level +4 dBu (when PAD is 0 dB)
+24 dBu (when PAD is -20 dB)
Outputs
AUX SEND Connectors 2 TRS phone jacks (impedance balanced)
Maximum output level +9.5 dBu
Output impedance 147 Ω
MASTER Connectors 2 TRS phone jacks (balanced)
Maximum output level +15 dBu
Output impedance 147 Ω
MONITOR / SUB-OUT Connector TRS phone jack
Maximum output level 50 mW + 50 mW (63 Ω load)
Output impedance 14.7 Ω
Buses
MASTER 1
SUB-MIX 1
AUX SEND 2
SEND EFX 1
Channel strip
EQ HIGH 10 kHz, ±15 dB, shelving
MID 100 Hz – 8 kHz, ±15 dB, peaking
LOW 100 Hz, ±15 dB, shelving
Level meters
6 segments
Send effects
6 types
Recorder
Maximum simultaneous recording tracks 14
Maximum simultaneous playback tracks 14
Recording formats 48 kHz, 32-bit float, mono/stereo WAV
Recording media microSDHC memory cards (Class 10 or higher)
microSDXC memory cards (Class 10 or higher)
Display
128×64 OLED
Audio interface
Numbers of inputs and outputs Input: 14 channels
Output: 4 channels
Sampling frequency 48 kHz
Bit depth 32-bit float / 24-bit
Interface USB 2.0
Card reader
Class Mass storage class USB 2.0 High Speed
Sampling frequency
48 kHz
Frequency response
20 Hz – 20 kHz, −1.0 dB / +0.5 dB
Equivalent input noise
-120 dBu or less (IHF-A) at 150Ω input
Power
4 AA batteries Alkaline, Lithium, or Rechargeable NiMH
AC adapter ZOOM AD-17 : DC 5V/1A
• USB bus power is supported.
Estimated continuous recording time using batteries
Alkaline batteries About 1.5 hours
NiMH batteries (1900 mAh) About 2.5 hours
Lithium batteries About 5 hours
14-track recording, phantom power off, headphones used (63Ω load), no MASTER output connections
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
Power consumption 5 W maximum
Dimensions 284 mm (W) × 114 mm (D) × 46.5 mm (H)
Weight (main unit only) 673 g
Weight (including batteries) 767 g
