Maximum Output Level
(all into 10k load)
•
Line: +20 dBu (7.8 Vrms)
•
“-10”: +6 dBu (1.5 Vrms)
•
Mic: -20 dBu (0.078 Vrms)
•
X7/X8 Out: +6 dBu (1.5 Vrms)
•
Headphone outputs (¼”, TA-5, X9/X10): +14 dBu (4.0 Vrms)
A/D converters
•
32-bit, 120 dB, A-weighted dynamic range typical
•
Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz
Digital Outputs
•

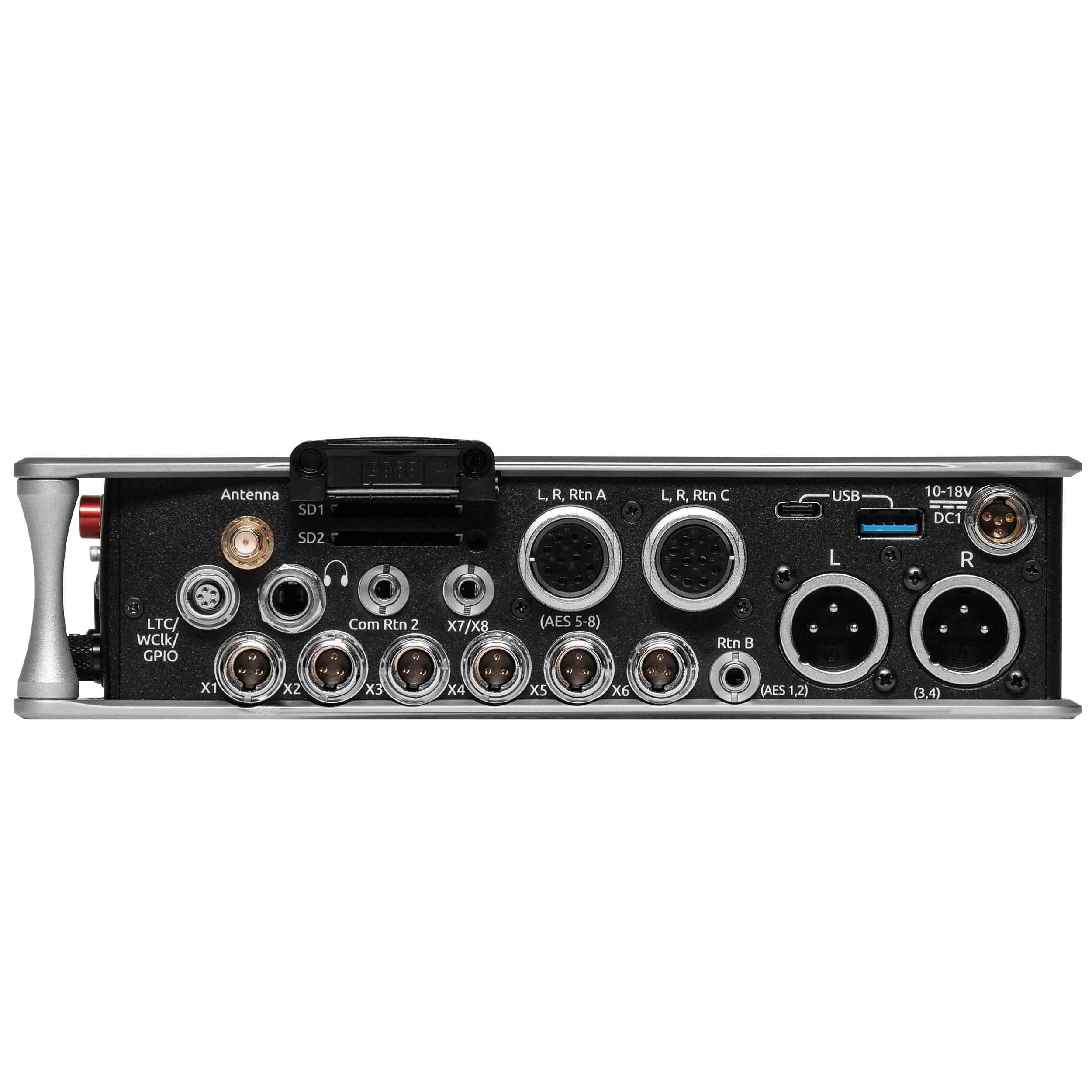

AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A)
•
110 ohm, 2 V p-p, AES and S/PDIF compatible
Recording
•
Internal 256 GB SSD
•
Two removable SD Cards
•
Simultaneous recording to internal SSD and the two SD cards
•
exFAT formatting
•
36 tracks (32 iso channels, 4 buses)
•
Broadcast WAV monophonic and polyphonic file format
•
64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 GB
USB
•
USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards
•
USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices
Wireless
•
Built-in Bluetooth v5.0 BLE (not supported with rev 1.0 release of SD-Remote)
Timecode and Sync
•
Modes Supported: Off, Rec Run, Free Run, 24h Run, External,
including External Auto-Record and Continuous modes.
•
Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
•
Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours)
•
Timecode Input: 20k ohm impedance, 0.3 V - 3.0 V p-p (–17 dBu - +3 dBu)
•
Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu)
•
Word Clock Input: 10k/75 ohm selectable impedance,
1-5 V p-p input sensitivity
•
Word Clock Output: 75 ohm impedance, 5 V p-p output, at SR
Remote Control
•
USB MIDI Control - 3rd party fader controllers
•
SD-Remote Android app
•
USB Keyboard
•
External Timecode Record Trigger

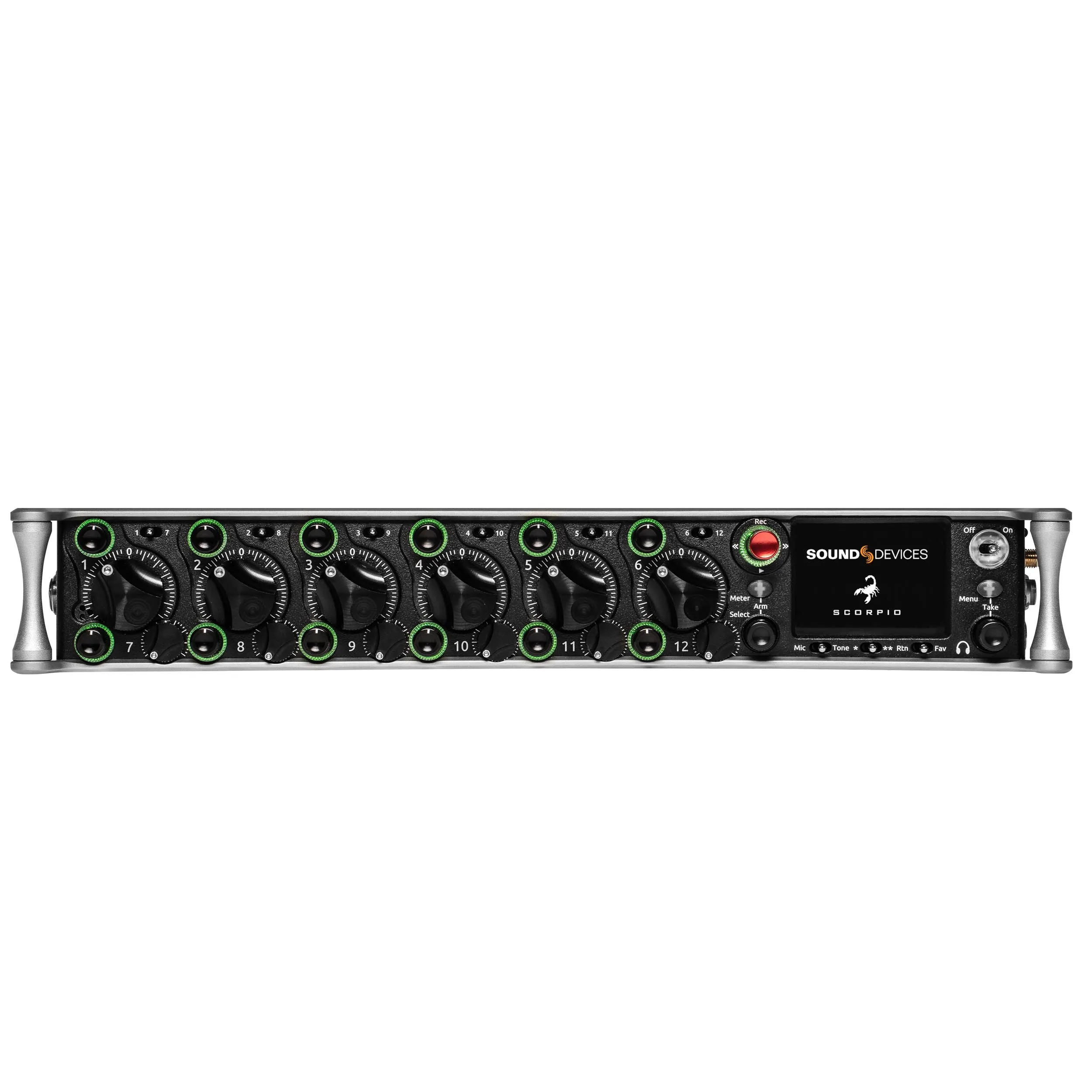

LCD
•
320x240, Transflective, excellent sunlight visibility
•
Larger touchscreen display available via USB-connected SD-Remote app
Power
•
External: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-)
•

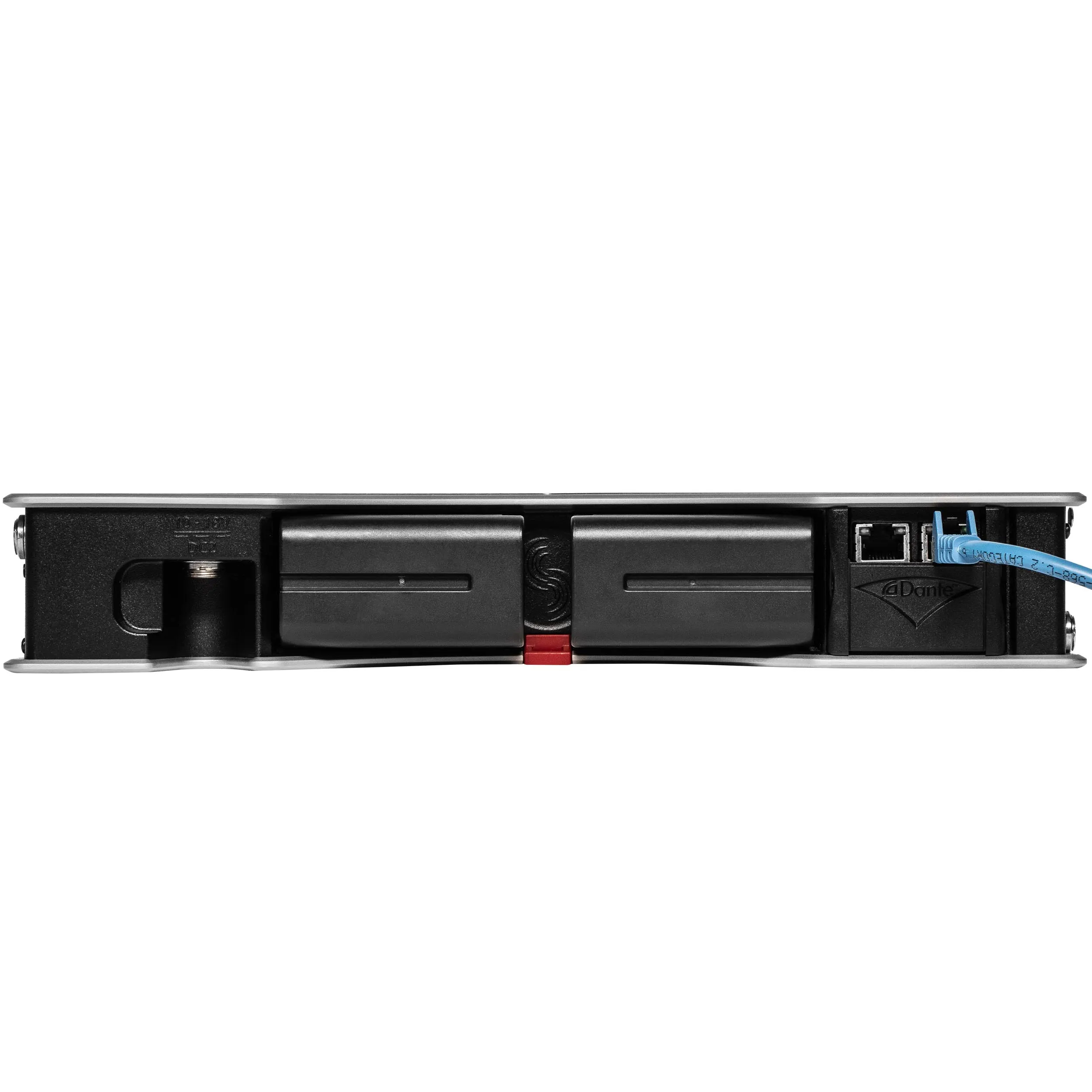

Dual rear-mount Sony-style L-mount batteries with chargers
•
Idle Current Draw: 875 mA @ 12 V (10.5 W)
•
Intelligent power-down of unused mic preamps and other internal circuits
Environmental
•
Operating: -20° C to 60° C, 0 to 90% relative humidity (non-condensing)
•
Storage: -40° C to 85° C
Dimensions
(H x W x D)
•
5.1 cm x 32 cm x 20.5 cm ( 2 in x 12.6 in x 8.1 in)
Weight
•
5.8 lbs (2.63 kg) unpackaged, without batteries
