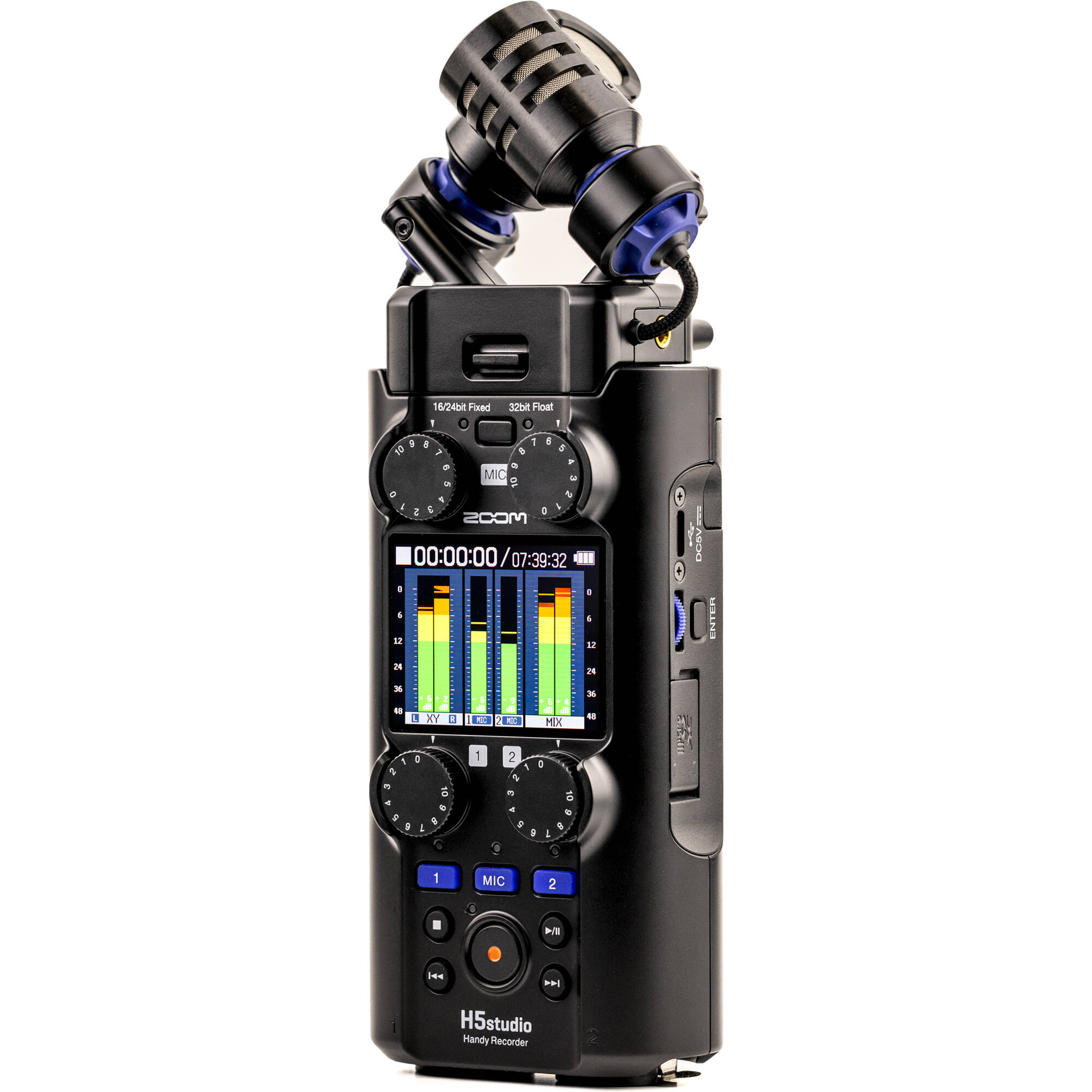

INPUT AND OUTPUT CHANNELS
Inputs Mic capsule 1
MIC/LINE (mono) 2
Outputs LINE OUT 1
Headphone 1
Built-in speaker (mono) 1
INPUTS

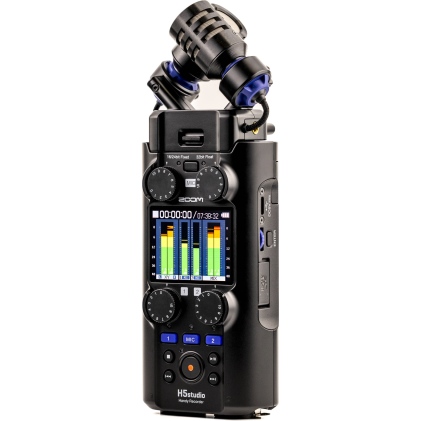

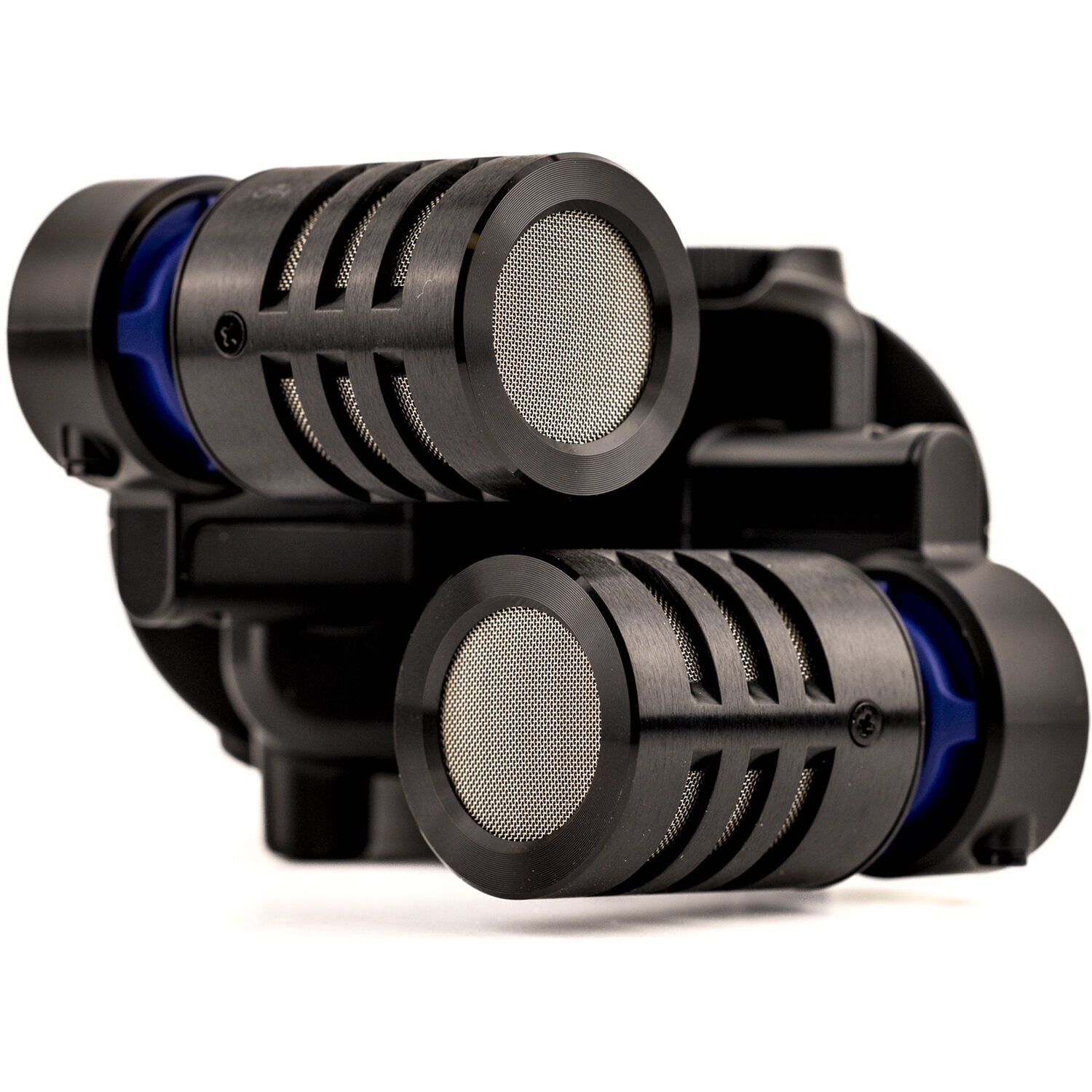

XY mic: XYH-5s 90º XY stereo format
Pickup pattern Unidirectional
Sensitivity –41 dB/Pa at 1 kHz
Maximum sound pressure input 140 dB SPL
MIC/LINE IN: XYH-5s Connector 1 stereo mini jack
Input gain −∞ – +60 dB
Input impedance 2 kΩ or more
Plug-in power 2.5 V
MIC/LINE (mono) Connectors 2 XLR/TRS combo jacks
(XLR：2 HOT TRS：TIP HOT）
Input gain −∞ – +60 dB
Input impedance MIC: 3 kΩ or more
LINE: 3 kΩ or more
Maximum input level MIC: +4 dBu
LINE: +24 dBu
Phantom power +48 V
Equivalent input noise –127 dBu or less (IHF-A) at 150Ω input

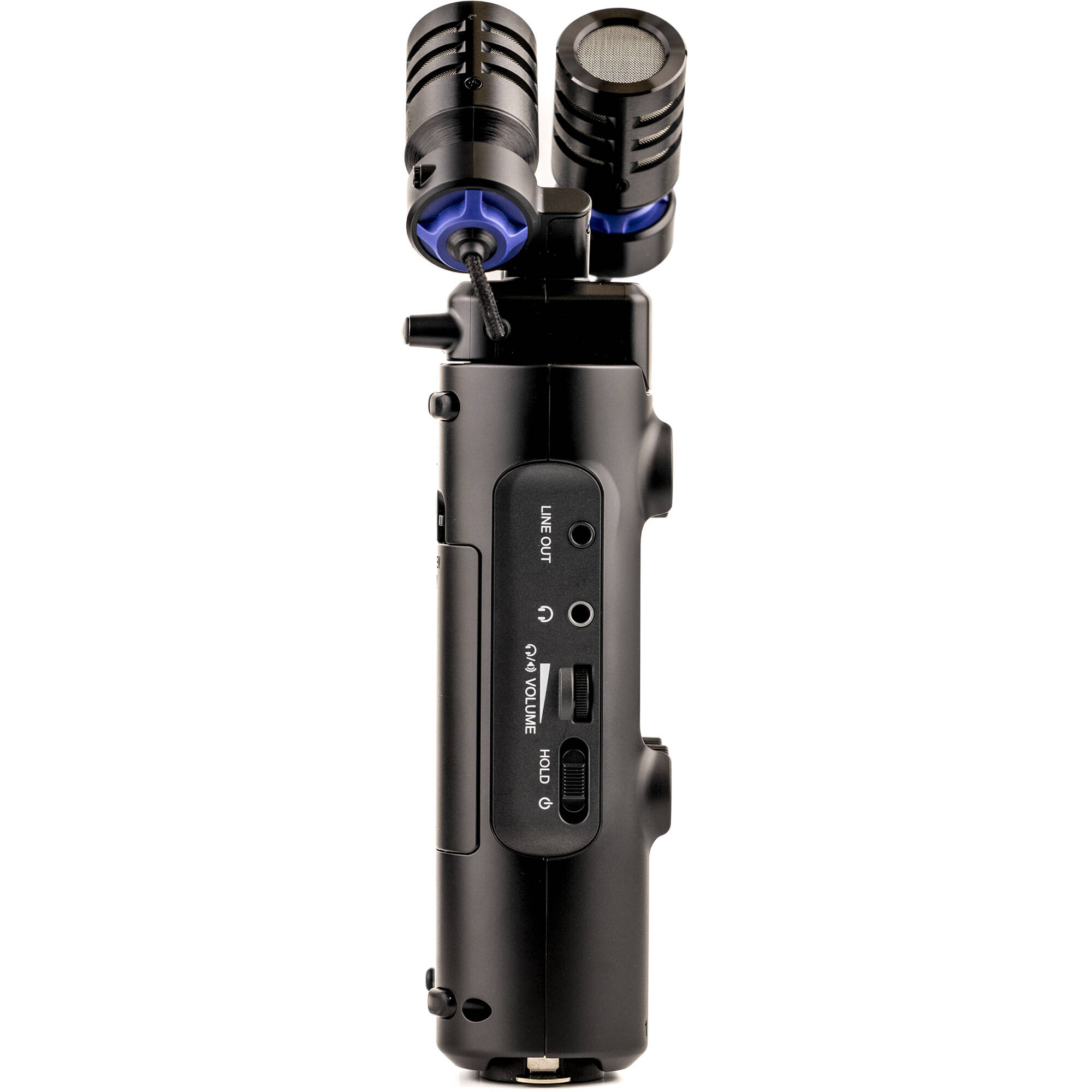

OUTPUTS
LINE OUT Connector 1 stereo mini jack
Maximum output level +1 dBu
Output impedance 110 Ω or less
Headphone Connector 1 stereo mini jack
Maximum output level 20 ｍW + 20 ｍW（when 32 Ω load）
Output impedance 10 Ω or less
Built-in speaker Type 20 mm x 30 mm elliptical dynamic speaker
Effective maximum output 250 mW
RECORDER
Maximum simultaneous recording tracks 6
Maximum simultaneous playback tracks 4
Recording formats WAV
44.1/48/96/192 kHz,
16-bit/24-bit/32-bit float
mono/stereo
BWF and iXML formats supported
Recording media microSDHC memory cards
microSDXC memory cards

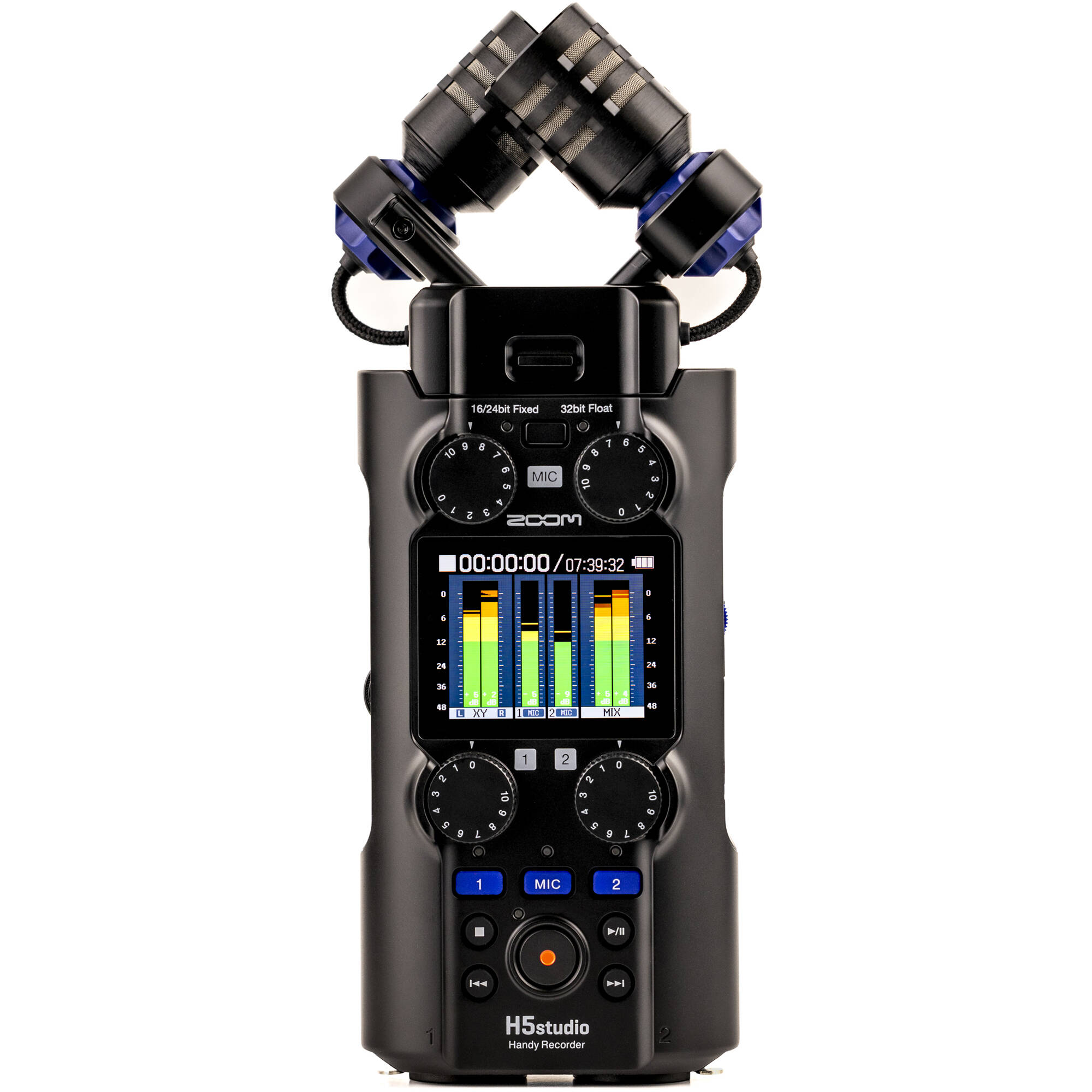

DISPLAY
2.00" full-color LCD 320 x 240

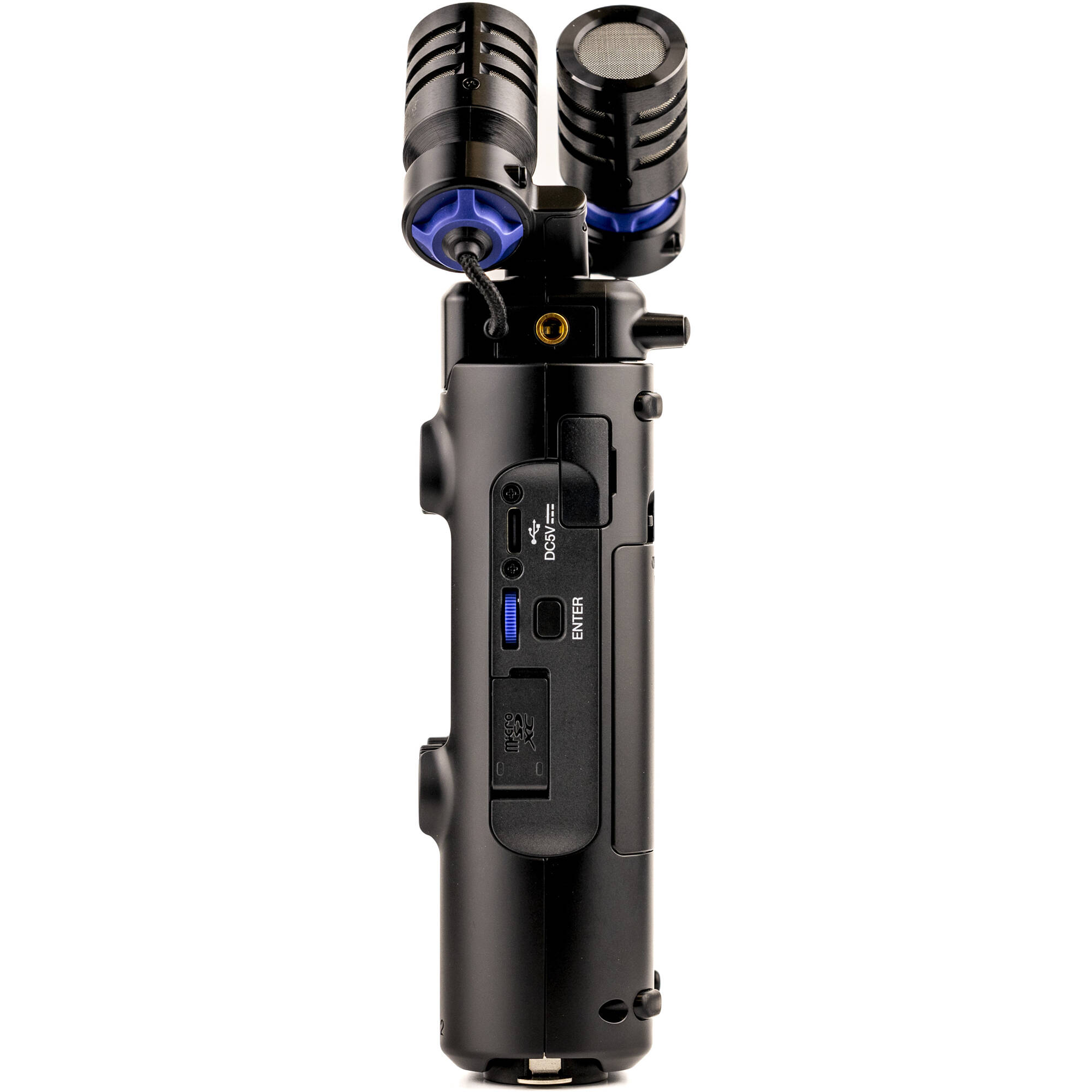

USB
Connector USB Type-C
• Use a USB cable that supports data transfer.
Audio Interface USB 2.0 High Speed
Input and output channels 4 in / 2 out (Multi)
2 in / 2 out (Stereo)
Sampling frequencies 44.1/48/96 kHz (audio interface only)
44.1/48 kHz (audio interface + onboard recording)
Bit depths 24-bit, 32-bit float
File transfer USB 2.0 High Speed
REMOTE
Dedicated wireless adapter ZOOM BTA-1
POWER
4 AA batteries Alkaline, lithium or rechargeable NiMH batteries
AC Adapter ZOOM AD-17 (DC 5 V/1 A)
• USB bus power is supported.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording
Alkaline batteries About 15 hours
NiMH batteries (1900 mAh) About 13 hours
Lithium batteries About 21 hours
48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 4-track (XYH-5s and inputs 1–2) recording
Alkaline batteries About 6 hours
NiMH batteries (1900 mAh) About 6 hours
Lithium batteries About 11.5 hours
48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness
Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Power consumption 5 W maximum
Dimensions 86.0 mm (W) × 206.0 mm (D) × 54.6 mm (H)
Weight 410 g (including batteries)
Note: 0 dBu = 0.775 Vrms
