Camera Features
Effective Sensor Size
36mm x 24mm (Full Frame)
Lens Mount
Active L-Mount.
Lens Control
Iris and focus on supported lenses.
Dynamic Range
13 Stops.
Dual Native ISO
400 and 3200
Shooting Resolutions
6048 x 4032 (Open Gate 3:2) up to 36 fps
4838 x 4032 (Anamorphic 6:5) up to 36 fps
6048 x 3200 (6K DCI 17:9) up to 48 fps
6048 x 2520 (6K 2.4:1) up to 60 fps
4096 x 3072 (Super 35 4:3) up to 50 fps
4096 x 2160 (4K DCI 17:9) up to 60 fps
2112 x 1184 (Super 16 16:9) up to 100 fps
1920 x 1080 (1080 HD 16:9) up to 120 fps
Frame Rates
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD.
Focus
Auto focus available using compatible lenses.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.

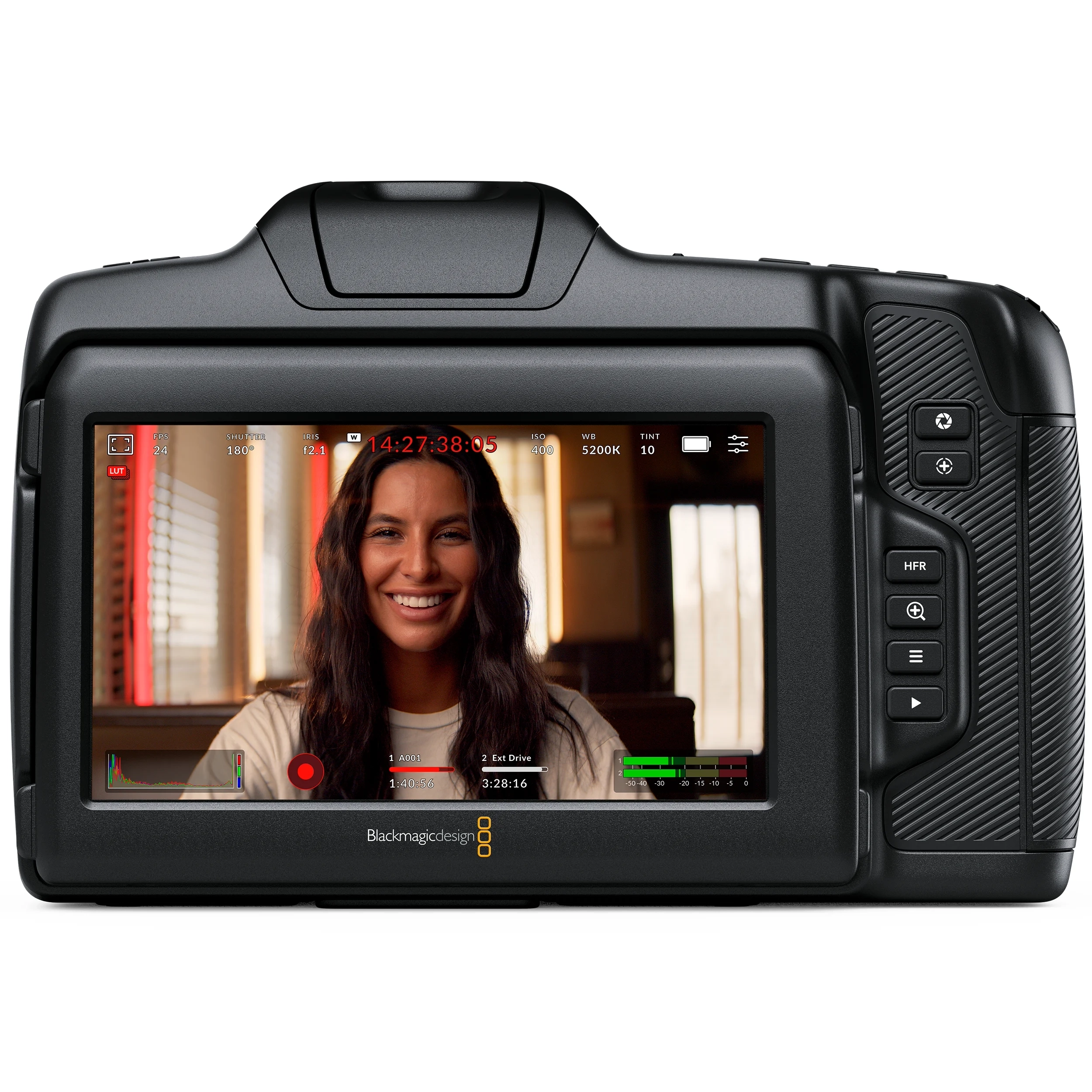

Screen Dimensions
5” 1920 x 1080.
Screen Brightness
1500 nits
Screen Type
LCD capacitive touchscreen.
Metadata Support
Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls
Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

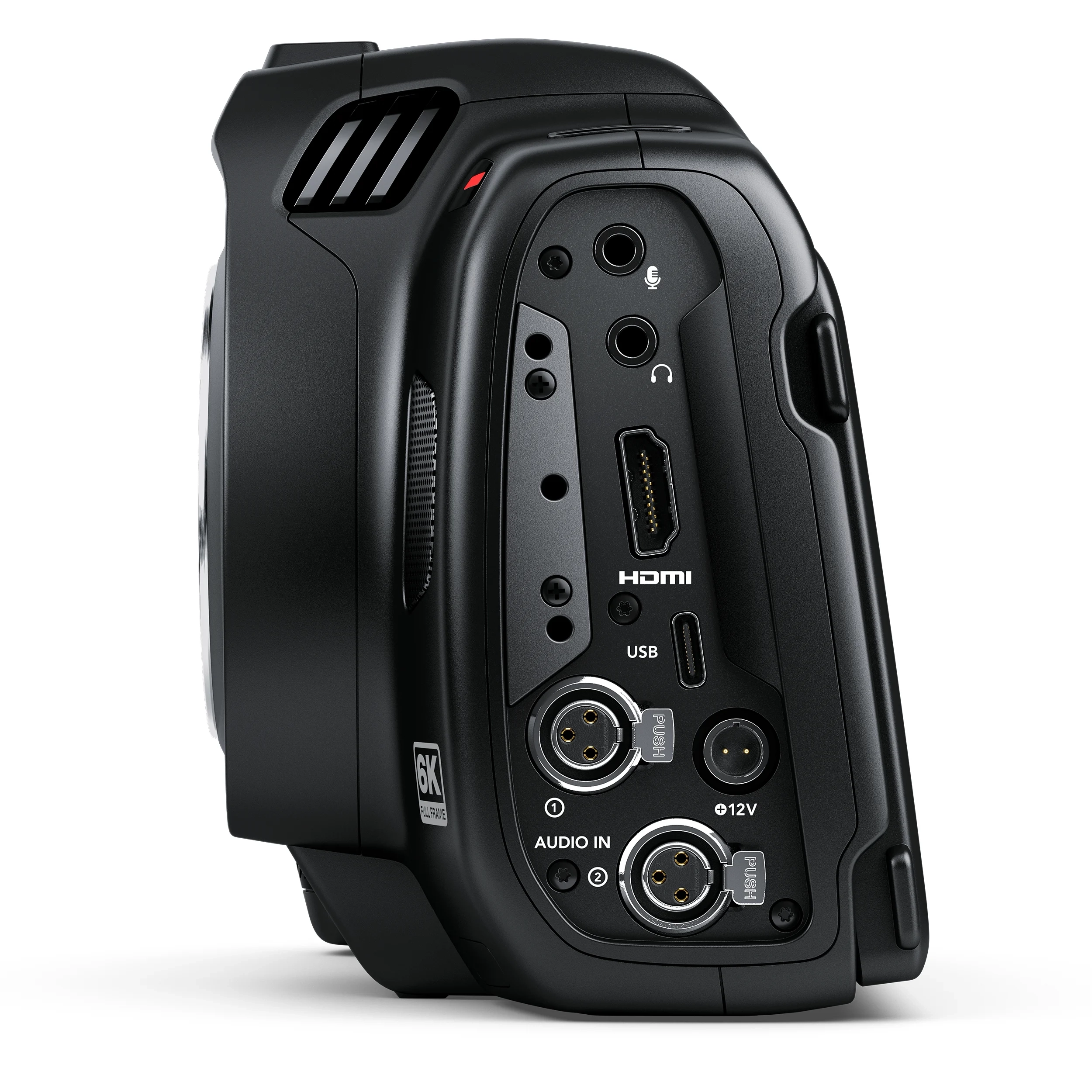

Connections
Total Video Inputs
None
Total Video Outputs
1 x HDMI up to 1080p60
Analog Audio Inputs
2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input.
All audio inputs can also be used for Timecode input.
Audio
Microphone
Integrated stereo microphone.
Built in Speaker
1 x mono speaker.
Media
Media
1 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs
Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Control
External Control
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over USB Ethernet for external control via HTTP when used with REST client applications such as Postman.
Storage Features
Storage Type
1 x CFexpress Type B
1 x high speed USB-C expansion port for external media.
Recording Formats
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4838 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.
Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies.
Power Requirements
Power Supply
1 x External 12V power supply.
External Power Input
1 x 2‑pin locking connector.
Battery Type
NP-F570
Battery Life
Approximately 60 minutes
(recording 6K RAW at 24 fps to CFexpress with screen brightness at 50%)
Power
12V-20V.
