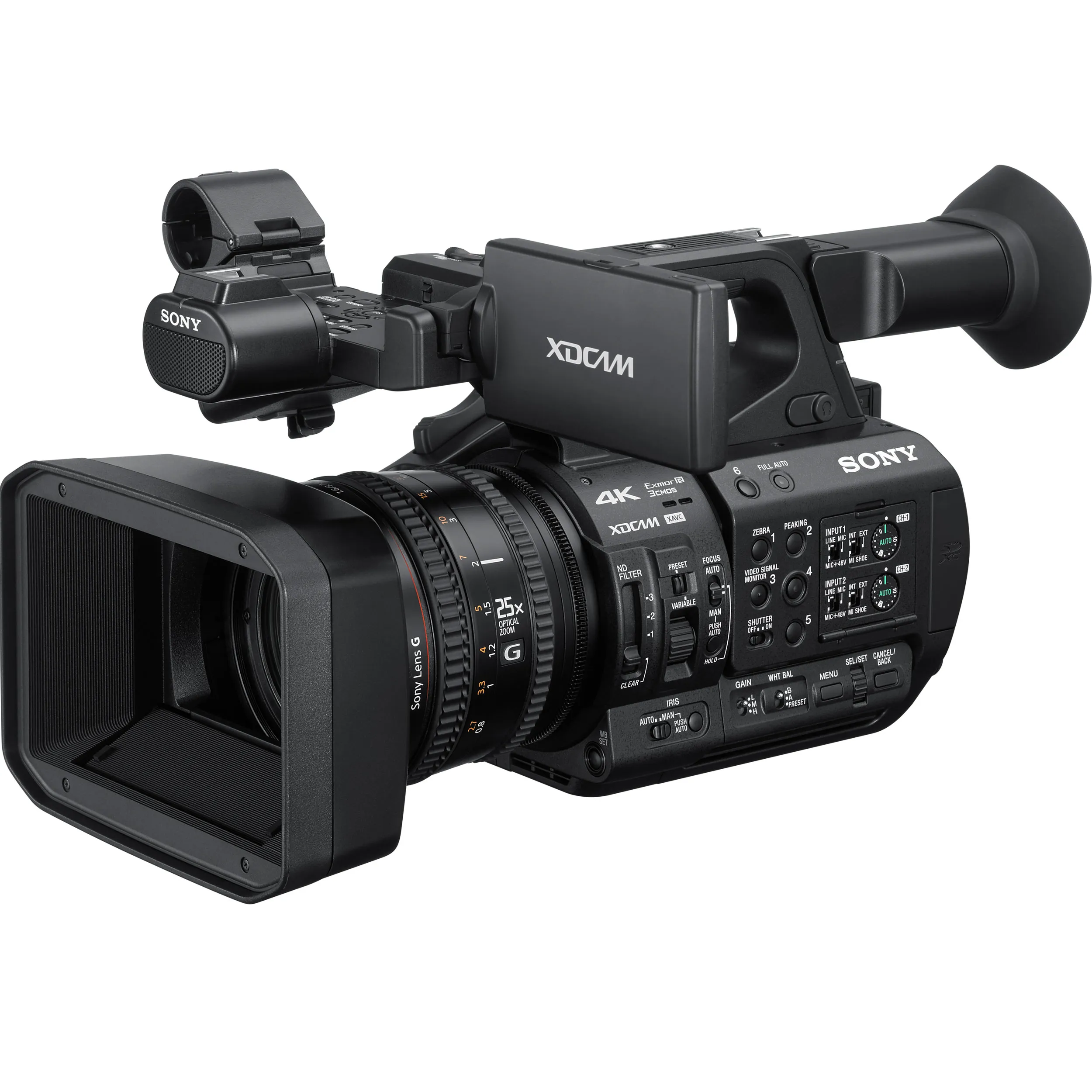

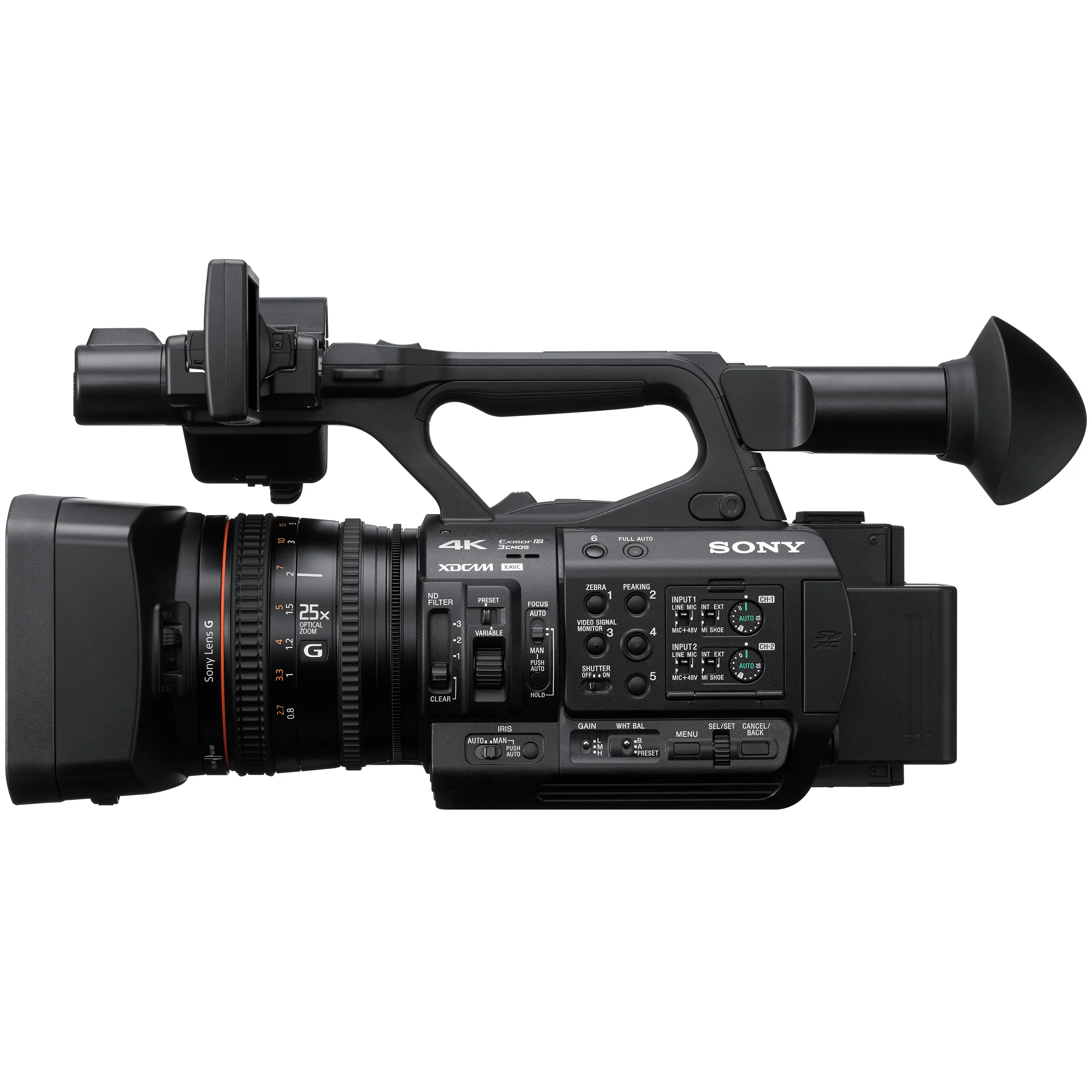

מצלמת וידאו 1/3" Sony PXW-Z190 4K

מק"ט: PXW-Z190V

1/3type 3CMOS Sensor
איכות וידאו: 4K
עדשת סוני 28.8-720 מ"מ
פילטר ND מובנה 1/4-1/128
זום X25
24 חודשי אחריות יבואן רשמי

כמות:

קנייה מהירה

THE PXW-Z190
4K Handheld Camcorder with all-new 1/3-type 3CMOS with 4K 50p/60p* recording capability, 25x zoom lens and advanced Face Detection AF.

4K 50p/60p with a stunning 25x zoom lens
This superb all-rounder is the de facto choice for a wide range of 4K and HD single camera shoots with an all-new 1/3-type 3CMOS sensor. A powerful 25x zoom lens with three independent lens rings delivers pin-sharp 4K imaging for almost any professional shooting scenario. Advanced Face Detection AF and Sony’s unique Electronic Variable ND filter making shooting great content stress-free.

Advanced workflow features
Instant HDR means you can deliver stunning imagery quickly without need for additional colour grading. Dual MI Shoe allows simultaneous use of wireless audio and video lighting, while advanced network performance support is easily enabled when required*.

4K 1/3-type 3CMOS Sensor
The PXW-Z190 is the world’s first professional camcorder with a 4K (QFHD) 1/3-inch type sensor. Red, blue, and green light are independently captured by separate image sensors within the Exmor RTM system in 3840 x 2160 resolution at up to 60fps. Even if you’re delivering in HD, 4:2:2 10bit recordings will capture detail and image texture that HD sensors simply cannot see.

25x professional zoom lens with three independent rings and large focal length
The PXW-Z190 is equipped with a 25x professional zoom lens able to zoom from 28.8mm to 720mm (35mm equivalent). The 1/3-inch type lens has three independent control rings, which allows manual control of focus, zoom and iris, making for better and faster adjustment.
The image can be enlarged without any picture degradation in an HD mode and a 50x zoom equivalent image is captured with sensor cropping extender.

Built-in electronic Variable ND Filters
Sony’s ground-breaking integration of electronic variable ND Filters into the body of a camcorder enables fast, agile shooting. Moving from shadowy interiors to bright sun-lit exteriors is no problem with the PXW-Z190. Unlike conventional optical ND filters, the electronic ND filter on the PXW-Z190 can be controlled from 1/4ND to 1/128ND linearly while ND Filters can be set to fully auto. You can even manually adjust Depth of Field using the iris lens ring, while relying on the PXW-Z190 to maintain constant exposure without changing gain nor shutter speed.

תיאור

מפרט טכני

מה בקופסה

חוות דעת

קבצים להורדה

Mass
Approx 2.3 kg (body)
Approx. 5 lb 1.1 oz (body)
Approx. 2.8 kg (with lens hood, eyecup, BP-U30 battery, a SD memory card)
Approx. 6 lb 2.8 oz (with lens hood, eyecup, BP-U30 battery, a SD memory card)

Dimensions (W x H x D)
190.0 × 202.0 × 419.7 mm (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
7 1/2 x 8 x 16 1/2 inches (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)

Power Requirements
DC In: 12V,
Battery: 14.4V
Please use genuine Sony batteries to ensure correct and safe operation*

Power Consumption
Approx. 22W
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 29W
(while recording with LCD On, EVF On when the external device connector is used.)

Operating Temperature
0°C to 40°C

Storage Temperature
-20°C to +60°C

Recording Format (Video)
<XAVC Long>
XAVC-L QFHD mode:
VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
XAVC-L HD 50 mode:
VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
XAVC-L HD 35 mode:
VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
XAVC-L HD 25 mode:
VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC
<DVCAM>
DVCAM mode:
CBR, 25Mbps, DVCAM

Recording Format (Audio)
<XAVC Long>
XAVC-L mode:
LPCM 24-bit, 48kHz, 4 channels
<DVCAM>
DVCAM mode:
LPCM 16-bit, 48kHz, 4 channels

Recording Frame Rate
<XAVC Long>
XAVC-L QFHD 150 mode:
3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode:
1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280x720/59.94P, 50P
XAVC-L HD 35 mode:
1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L HD 25 mode:
1920x1080/59.94i, 50i
<DVCAM>
DVCAM mode:
720x480/59.94i, 29.97PsF 720x576/50i, 25PsF

Recording/Playback Time
<XAVC Long>
XAVC-L QFHD 150 mode
When using 128GB memory card:
Approx. 88 minutes
XAVC-L HD 50 mode
When using 128GB memory card:
Approx. 240 minutes
XAVC-L HD 35 mode
When using 128GB memory card:
Approx. 325 minutes
XAVC-L 25 mode
When using 128GB memory card:
Approx. 445 minutes
<DVCAM>
When using 128GB memory card: Approx. 425 minutes

Recording Format (Proxy Audio)
XAVC Proxy: AAC-LC, 128 kbps, 2 channels

Recording Format (Proxy Video)
XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920x1080, 9Mbps
1280x720, 9Mbps
1280x720, 6Mbps
640x360, 3Mbps
480x270, 1Mbps
480x270, 0.5Mbps

Lens Mount
Fixed type

Zoom Ratio
25x

Focal Length
3.7 mm to 92.5 mm
(equivalent to 28.8 mm to 720 mm on a 35 mm lens)

Iris
Auto/manual swichable
F1.6 to F11 and C(close)

Focus
800 mm to ∞ (Macro Off)
10 mm to ∞ (Macro On, Wide)
800 mm to ∞ (Macro On, Tele)
AF/MF/Full MF selectable

Image Stabilizer
On/Off selectable, shift lens

Filter Diameter
M 82 mm , pitch 0.75 mm

Imaging Device (Type)
1/3 type back-illuminated Exmor R 3CMOS sensor

Effective Picture Elements
3840 (H) x 2160 (V)

Optical System
F1.6 prism system

Built-in Optical Filters
ND filters
OFF: CLEAR
1: 1/4ND
2: 1/16ND
3: 1/64ND
Linear variable ND (Approx. 1/4ND to 1/128ND)

Sensitivity (2000 lx, 89.9% reflectance)
F11 (typical, 1920 x 1080/59.94p, High Sensitivity Mode)
F12 (typical, 1920 x 1080/50p, High Sensitivity Mode)

Minimum Illumination
0.02lx (typical)
(1920 x 1080/59.94i mode, F1.6, +30 dB gain, High Sensitivity Mode, with 64 frame accumulation)

Horizontal Resolution
2,000 TV lines or more (3840 x 2160p mode)
1,000 TV lines or more (1920 x 1080p mode)

Shutter Speed
1/24 sec to 1/8,000 sec

Slow Shutter (SLS)
2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation

Slow and Quick Motion Function
<XAVC Long>
2160P: 1-60 fps
1080P: 1-60 fps
720P: 1-60 fps

White Balance
Preset (3200K), Memory A,
Memory B/ATW

Gain
-3, 0, 3, 6, 9, 12, 18 dB, 30dB (Turbo Gain ON), AGC

Gamma Curve
Selectable

Audio Input
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
LINE：+4, 0, -3dBu/10kΩ
MIC：-80dBu to -30dBu /3kΩ
(0 dBu=0.775 Vrms)

Audio Output
Integrated into Multi/Micro USB jack(

SDI Output
BNC , 3G/HD/SD selectable

Timecode Input
BNC (switchable to TC out)
0.5V-1.8Vp-p, 3.3kΩ

Timecode Output
BNC (switchable to TC in)
1.0Vp-p, 75Ω

USB
USB device, Multi/Micro USB jack
Host:USB 3.0/2.0 type A
USB 2.0 type A

Headphone Output
Stereo mini jack
-16dBu 16Ω

Speaker Output
Monaural
Output: 500mW

DC Input
DC jack

Remote
Stereo mini-minijack (Φ2.5 mm)

HDMI Output
HDMI connector (Type A)

Wired LAN
RJ-45 , 1000BASE-T, 100BASE-T, 10BASE-T

Viewfinder
1.0 cm (0.39 type)
Approx 2.36M dots

LCD
8.8cm (3.5 type)
Approx. 1.56M dots

Built-in Microphone
Omni-directional stereo electret condenser microphone

Type
MS/SD,SD

Supported Format
IEEE 802.11 a/b/g/n/ac

Frequency Band
2.4 GHz bandwidth
5.2/5.3/5.6 GHz bandwidth

Security
WEP/WPA-PSK/WPA2-PSK

NFC
NFC Forum Type 3 Tag compliant

Lens hood ,Pre-installed to the Camcorder
EVF eyecup
Battery pack BP-U30
AC Adapter/charger BC-U1A
Power Code
USB cable
