General
Camera typeDigital motion picture camera

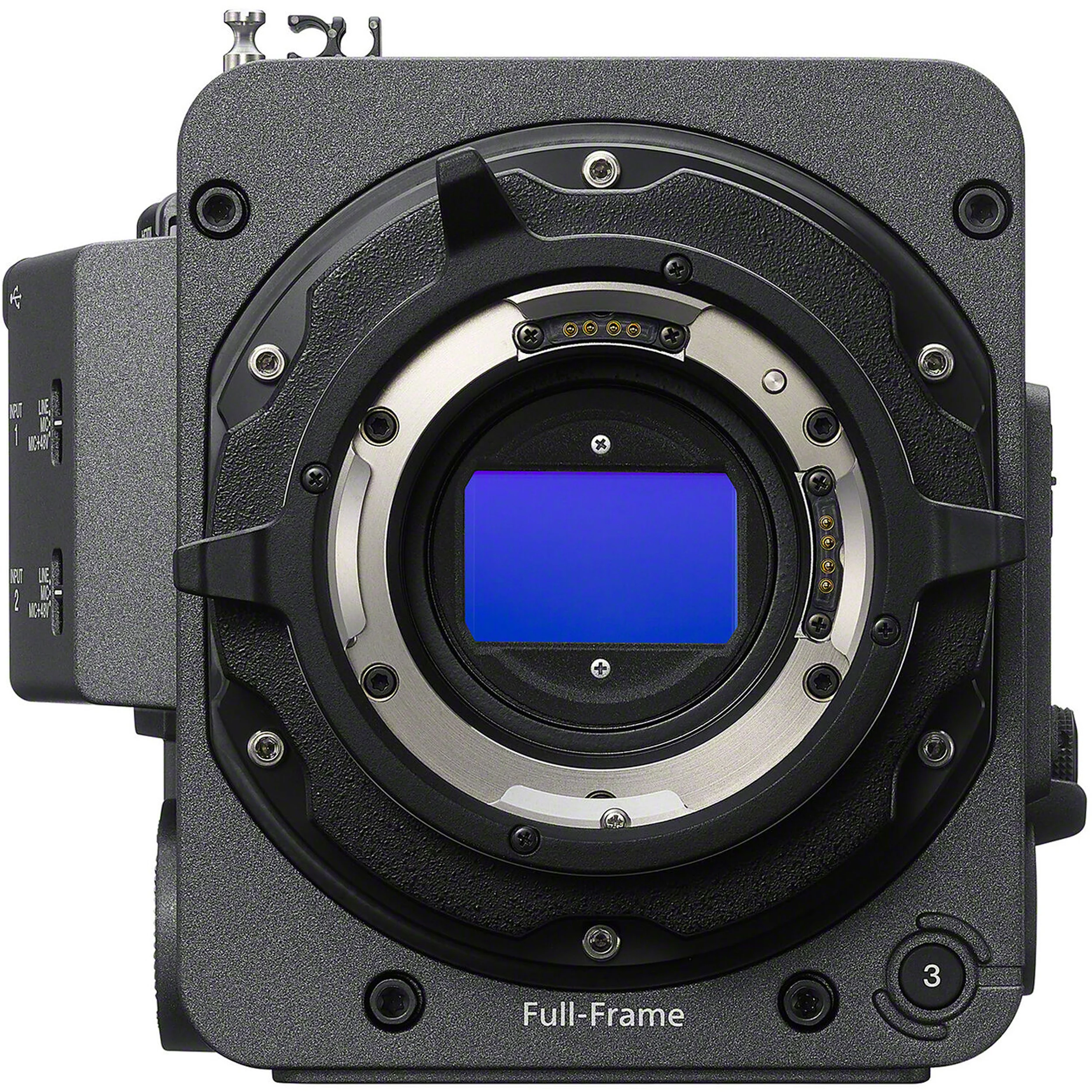

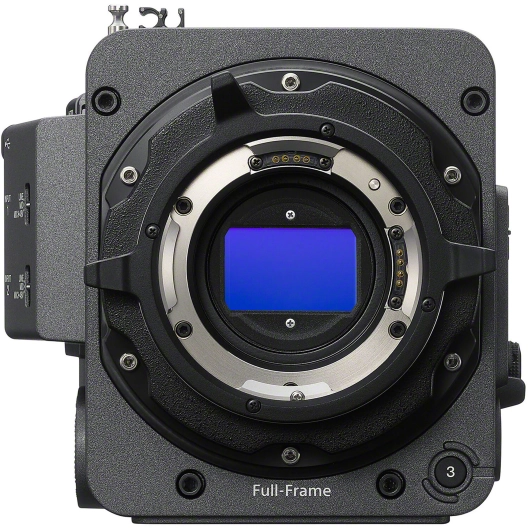

Lens mountPL Mount (detachable)/ E-mount (lever lock type)
Camera Section
Type35mm full frame (35.9 x 24.0 mm), Exmor RS CMOS image sensor
Number of pixels (effective)*1Approx. 41.9 megapixels
Optical low pass filterYes
Built-in ND filterCLEAR, linear variable ND (0.6(1/4) - 2.1(1/128))
Gain control-3 to 18 dB (every 1 dB)
Latitude16 stops
Color temperature range2000 K - 15000 K
Recording system (movie)
Video compressionX-OCN(LT), XAVC H Intra HQ, XAVC H Intra SQ, XAVC H Long, XAVC Intra, XAVC Long
Audio recording formatLPCM 4ch(48kHz 24bit)
Movie function
Slow & Quick Motion (S&Q)Yes
Proxy recordingYes
TC/UBYes
Memory card slot
Memory card slotSLOT A: Slot for CFexpress Type B card, SLOT B: Slot for CFexpress Type B card, Slot for Utility SD card
Focus System
TypeFast Hybrid AF (phase-detection AF / contrast-detection AF)
Focus pointMax. 627 points (phase-detection AF)
Recognition target (Movies)Human
Other featuresAF Subj. Shift Sensitivity
AF Transition Speed
AF Assist
Exposure Control
ISO sensitivityISO 800/3200 (Cine EI mode, D55 Light source)
LCD screen
Type8.8 cm (3.5 type) TFT
Touch panelYes
Number of dots (total)2 764 800 dots
Shutter
Shutter speedAngle Mode: 5.6°to 360°, 2F to 64F
Speed Mode: 1/8000 sec to 64F
Image Stabilization
TypeImage Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications)
ModePL mount : High / Low / Off
E-mount : Active / Standard / Off
Interface
PC interfaceMass-storage
USB Type-C® TerminalYes (SuperSpeed USB 5 Gbps (USB 3.2) compatible)
Wireless LAN (built-in)Yes (Wi-Fi Compatible, IEEE 802.11a/b/g/n/ac (2.4 GHz band/5 GHz band))*2*3
HDMI outputHDMI connector (Type-A)
XLR audio inputYes (3-pin (female) x2)
Headphone terminalYes (3.5 mm Stereo minijack)
Remote terminal2.5 mm, 3-pole sub-mini type
SDI outputSDI OUT1: BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A/B), HD-SDI
SDI OUT2: BNC, 3G-SDI (Level A/B), HD-SDI
DC inputXLR, 11 V to 17 V
TC input / TC outputBNC, TC IN / OUT Switchable
Genlock input / Ref outputBNC, REF IN / OUT Switchable
Grip remote control connector3.5 mm, 4-pole mini jack
LAN terminalYes (1000BASE-T, 100BASE-TX, 10BASE-T)
Audio
MicrophoneBuilt-in, monaural
SpeakerBuilt-in, monaural
Lens Compensation
Lens compensationE-mount: Shading, Chromatic Aberration, Distortion, Breathing
Power
BatteryBattery pack BP-GL95B (Sold separately)
Power consumption
With LCD screenUnit nominal power consumption: Approx. 50.0 W (lens, 6K 17:9, 59.94P, X-OCN LT recording, auto fan, excluding grip remote control and peripheral devices)
Unit maximum power consumption: Approx. 66.0 W (lens, 6K 17:9, 59.94P, X-OCN LT recording, 40 °C (104 °F) environment, ND filter (1/4), proxy recording on, Wi-Fi on, auto fan, including grip remote control and peripheral devices)
Weight
Body onlyApprox. 2.4 kg (body only, excluding PL-mount adaptor)
Body only (oz.)Approx. 5 lb 4.7 oz (body only, excluding PL-mount adaptor)
Dimensions (W x H x D)
Dimensions (W x H x D)145.7 mm x 142.5 mm x 218.1 mm (body without protrusions)
Dimensions (W x H x D) (in.)5 3/4 x 5 5/8 x 8 5/8 inches (body without protrusions)
Operation
Operating temperature0 - 40 ℃ / 32 - 104 °F
Storage temperature-20 to 60 ℃ / -4 to 140 °F
