IMAGING
Image Sensor Sony 1/2.8” CMOS • ULTRA HD
Lens f=3.42mm - 40.02mm
Optical Zoom 12x
Video Format HDMI ：2160p30, 1080p60/59.94/50/30/29.97/25, 720p60/50/59.94/30
NDI：2160p30/29.97/25, 1080p30/29.97/25/23.98
Horizontal angle of view 80.56º (W) - 7.89º (T)
Vertical angle of view 49.61º (W) - 4.46º (T)
Diagonal angle of view 89.51º (W) - 9.04º (T)
Aperture F1.88 ~ 3.77
Focus Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation Yes
Digital Noise Reduction 2D and 3D Noise Reduction
SNR >50dB
Effective Pixels 8.29 MP
MECHANICAL
Pan/Tilt Rotation ±175°, -90°～+90°
Pan Control Speed 0.1 -80°/sec
Tilt Control Speed 0.1 -60°/sec
Preset Number 255 presets
I/O INTERFACE

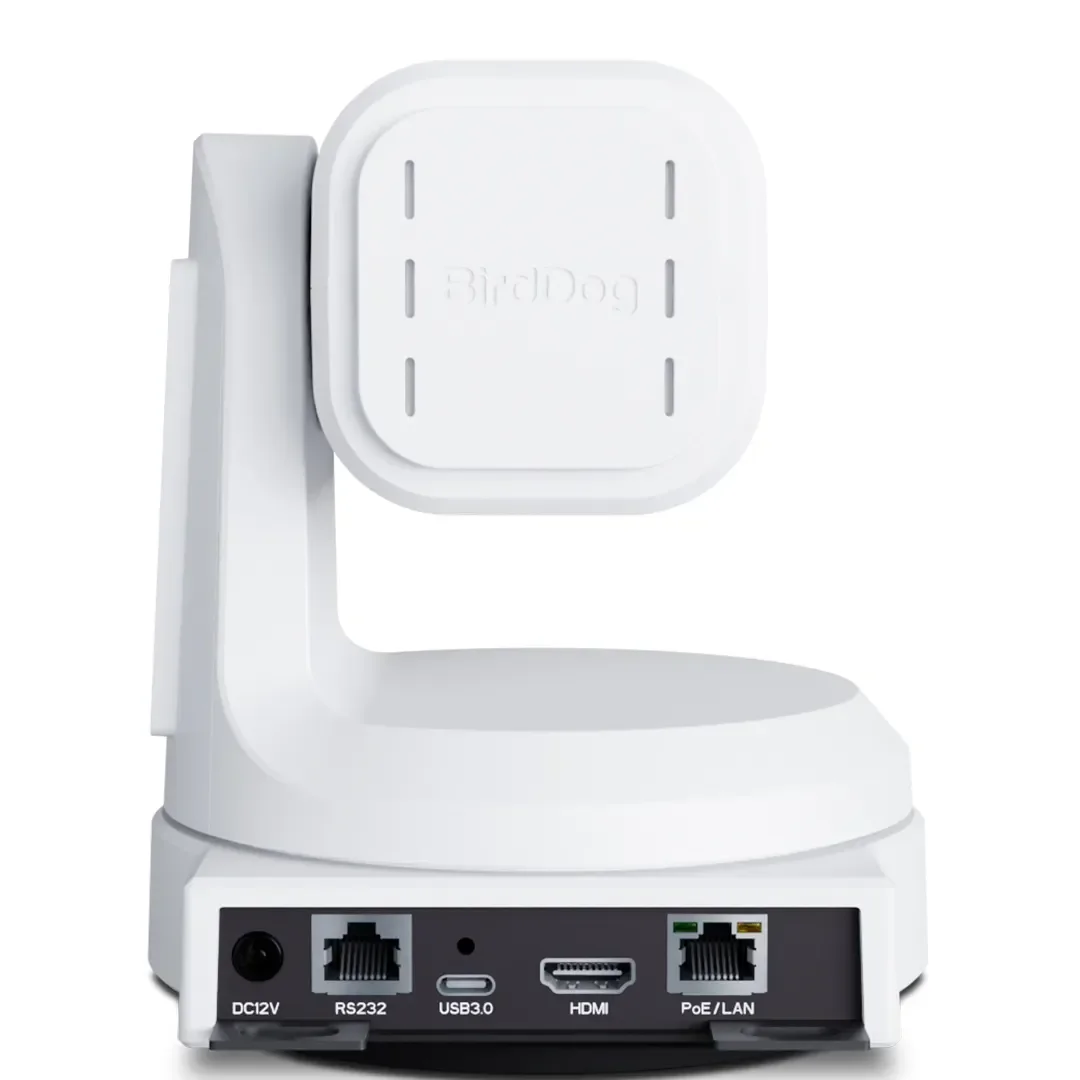

Video Output Interfaces HDMI, USB-C UVC 1.1, Network
Video Compression Format H.264, H.265
Network Interfaces 100M adaptive Ethernet port; POE IEEE802.3af
Encoder Network Protocols NDI|HX2, NDI|HX3, RTSP, RTMP, SRT
Control Interfaces 10M/100M Ethernet, RS232 (input & output), RS485, TYPE-C(UVC1.1)
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
GENERAL PARAMETER
Input Voltage DC 12V, POE IEEE802.3af
Input Current 2.0A (Max.)
Power Consumption 13W (Max.)
Working Temperature 0℃ ～ +40℃
Working Humidity 20% ～ 80%
Dimension (W*H*D) 171.6*192.6*171.6mm/ 260*217*197mm (before/ after packing)
Net and Gross Weight 1.43kg/2.096kg (Net/Gross weight)
