Camera Features
Effective Sensor Size
25.34mm x 14.25mm (Super35)
Lens Mount
EF mount included. Interchangeable with optional PL, B4 and F lens mounts.
Lens Control
Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses
Dynamic Range
15 Stops.
Shooting Resolutions
4608 x 2592, 4608 x 1920 (4.6K 2.40:1), 4096 x 2304 (4K 16:9), 4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 3072 x 2560 (3K Anamorphic), 2048 x 1152 (2K 16:9), 2048x1080 (2K DCI), 1920 x 1080
Frame Rates
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60p in 4.6K, 120p in 2K windowed.
Built in ND Filters
Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters.
Focus
Focus button turns on peaking, auto focus available using compatible lenses.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
Screen Dimensions
4 inch
Screen Type
LCD capacitive touchscreen.
Metadata Support
Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections
Total Video Inputs
1 x SDI
Total Video Outputs
1 x SDI, 1 x SDI Monitoring.
SDI Rates
1.5G, 3G, 6G, 12G.
Analog Audio Inputs
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog Audio Outputs
1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference Inputs
Tri-Sync/Black Burst/Timecode.
Remote Control
2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer Interface
USB Type-C for software updates.

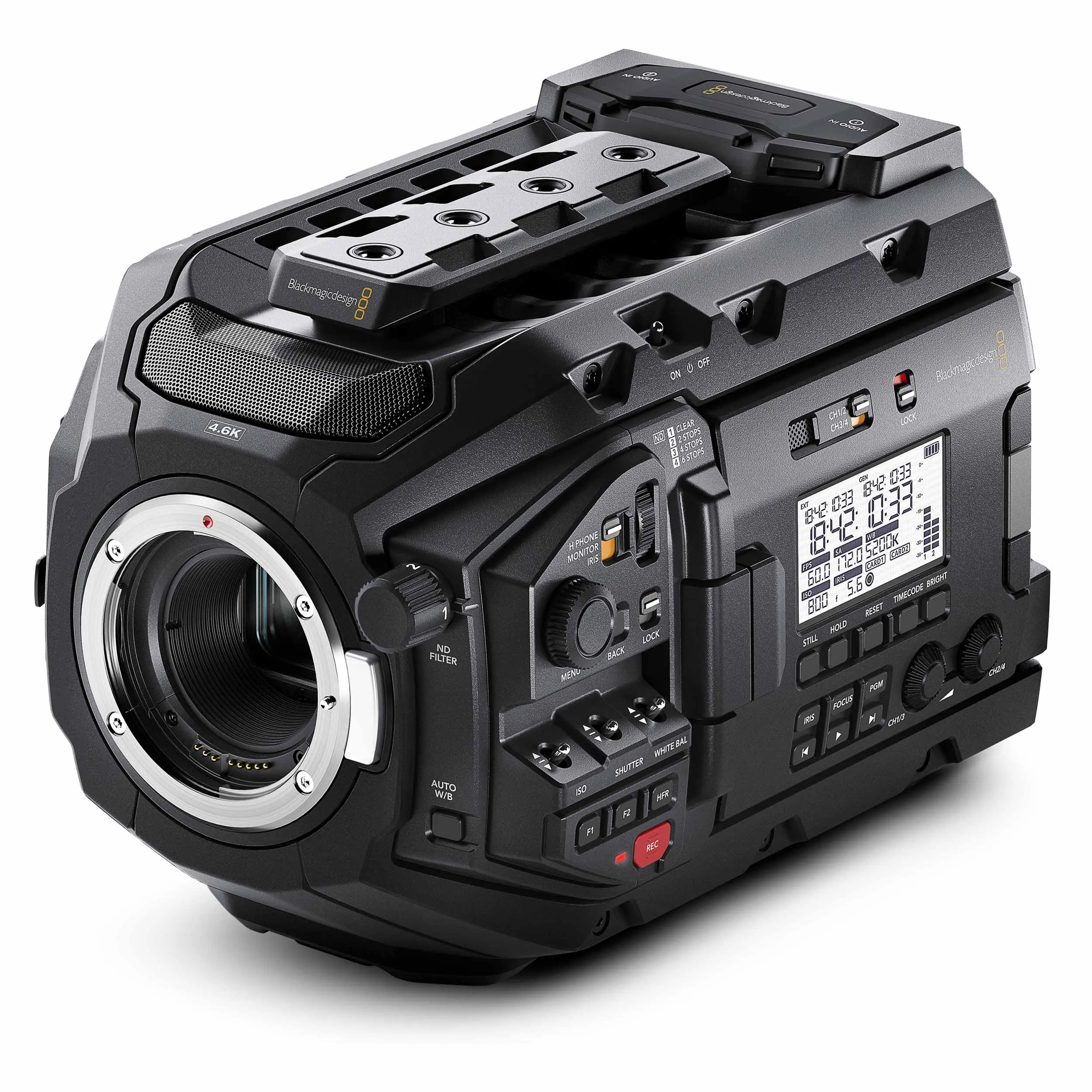

Blackmagic URSA Mini Pro
Audio
Microphone
Integrated stereo microphone.
Built in Speaker
1 x mono speaker.
Standards
SD Video Standards
None.
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
SDI Audio Sampling
48 kHz and 24 bit
Media
Media
2 x CFast for 4.6K RAW and ProRes recording. 2 x SD UHS-II card slots for HD and Ultra HD recording.
Media Format
Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs
CinemaDNG RAW, CinemaDNG RAW 3:1, CinemaDNG RAW 4:1, Apple ProRes 4444 XQ QuickTime, ProRes 4444 QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime and ProRes 422 Proxy QuickTime.
Control
External Control
Blackmagic SDI Control Protocol, iPad control, Bluetooth control, 2 x 2.5mm LANC for lens and record control.
Color Corrector
Color Corrector
DaVinci YRGB.
Talkback and Tally
Talkback
SDI Channels 15/16 and iPhone headset.
Live Tally Indicator
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage Features
Storage Type
2 x CFast 2.0
2 x SD UHS-II cards
Storage Rates
4608 x 2592
CinemaDNG RAW - 513MB/s
CinemaDNG RAW 3:1 - 180 MB/s
CinemaDNG RAW 4:1 - 135 MB/s
3840 x 2160
Apple ProRes 444 XQ - 250 MB/s
Apple ProRes 444 - 165 MB/s
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s
1920 x 1080
Apple ProRes 444 XQ - 62.5 MB/s
Apple ProRes 444 - 41.25 MB/s
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Storage rates based on 30 frames per second.
Recording Formats
Lossless CinemaDNG RAW, RAW 3:1 and RAW 4:1 with film dynamic range at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080. Apple ProRes 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with either film or video dynamic range.
Software
Software Included
URSA Mini Operating System.
DaVinci Resolve Studio grading software including Resolve USB dongle for Mac OS X and Windows.
Blackmagic Camera Setup.
Power Requirements
Power Supply
1 x External 12V power supply. 12 pin Molex connector on rear battery plate.
External Power Input
1 x 4 pin XLR port for external power or battery use.
1 x 12 pin molex connector on rear battery plate.
Custom V-mount battery plate with D-tap +12V regulated output from camera.
Power
Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Acessories
Optional Accessories
URSA Mini Pro PL, EF, B4 and F mounts
URSA Mini Shoulder Kit including top handle and extender arm
URSA Viewfinder
URSA Studio Viewfinder
URSA Mini Pro Shim Kit
URSA VLock Battery Plate
Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
