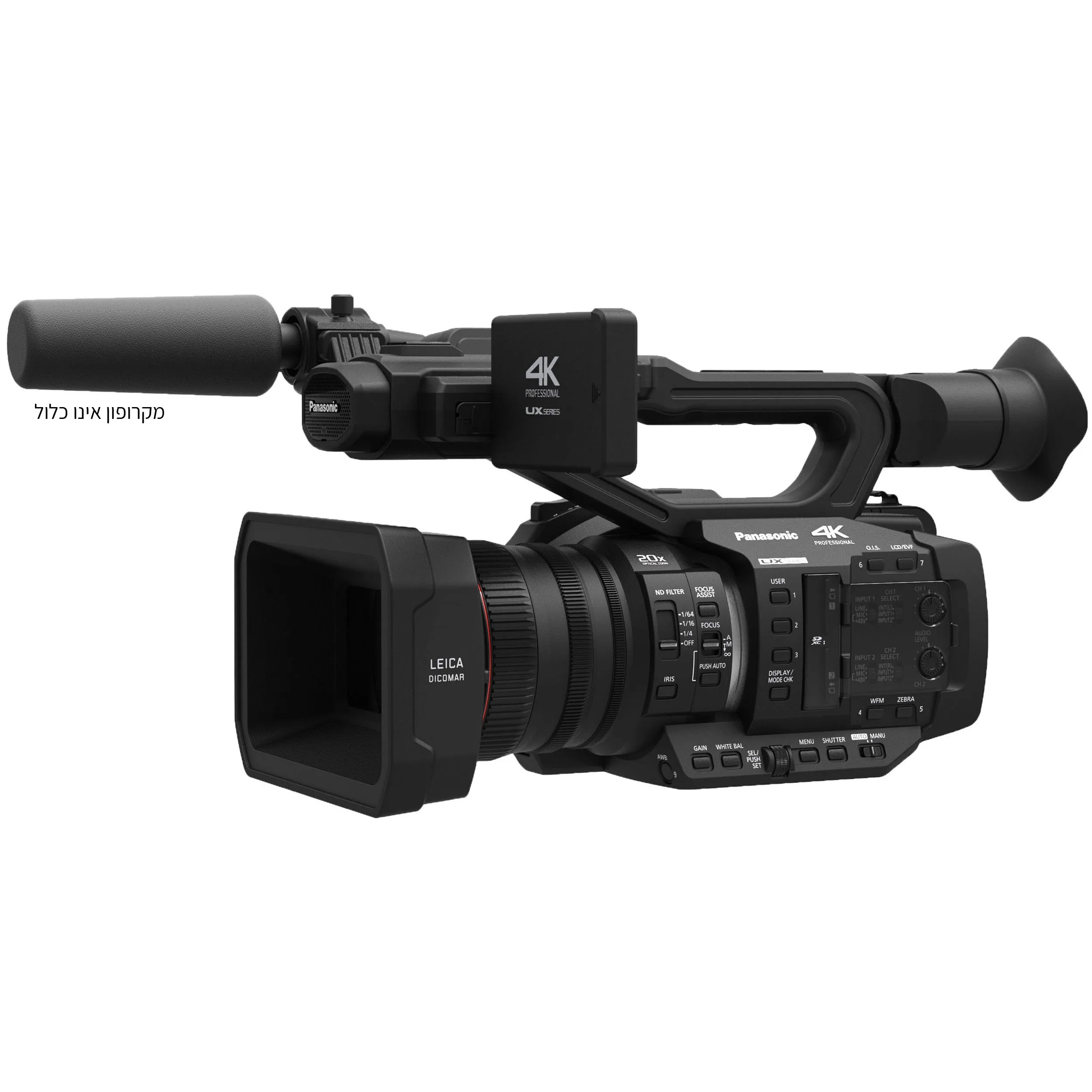

מצלמת וידאו Panasonic AG-UX180

מק"ט: AG-UX180

מייצב אופטי עם 5 צירים
איכות וידאו: 4K
עדשת LEICA Dicomar
אורך מוקד: 24-480 מ"מ
זום X20
24 חודשי אחריות יבואן רשמי

כמות:

מוצרים משלימים

הופסק ייצור

תיק למצלמות וידאו בינוניות - Manfrotto CC-193N

מהנמכרים ביותר

כרטיס זיכרון Lexar 128GB 1667x SDHC™/SDXC™ UHS-II

363 ₪

סוללה Jupio AG-VBR59/VW-VBD58 למצלמות וידאו PANASONIC

אוזניות מתקפלות SONY MDR-7506

503 ₪

הופסק ייצור

סט וידאו אלחוטי SDI/HDMI למרחק 120 מ' HOLLYLAND MARS400S

מומלץ

מיקרופון כיווני Deity S-MIC 2S

1361 ₪

הופסק ייצור

פנס לד על מצלמה Amaran AL-F7

The AG-UX180 is the premium model in the 4K UX Professional Camcorder Series, featuring a 1” (effective size) high-sensitivity MOS sensor and the industry’s widest angle zoom lens (20x to 24mm at the widest angle). With its extensive focus assist features, multiple recording formats in 4K and HD, as well as precise image adjustment functions, the highly-affordable UX180 is the pro camcorder you’ve been waiting for to upgrade to 4K acquisition.

High Performance 4K LEICA Dicomar Lens
The AG-UX180 is one of the world’s first 1” sensor cameras (with an integrated lens) to feature 20x optical zoom. Combined with the industries widest lens (24 mm), it ensures you get the shot you need, near or far, with the ability to take your frame from 24 mm (wide) to 480 mm (telescopic) in no more than 2 seconds. The i.Zoom function (HD mode only) increases the zooming capability to a maximum of approximately 30x zoom, while still maintaining high resolution. If needed, Digital Zoom (2x, 5x or 10x) gives you super-telephoto magnification equivalent to a 300x zoom without a significant drop in light intensity.

4K Optical Image Stabilization
Using a handheld camera, encountering shooting conditions, such as low-angle, high-angle or zoomed in shots, which result in visible handshake is inevitable. The UX180 is equipped with an advanced O.I.S. system which uses the measure of small balls inside the camera to correct the stability of your image. This, paired with a 5-Axis (Roll / Pitch / Yaw / X / Y) Hybrid Image Stabilizer helps detect and correct unwanted handshake.

Variety of Recording Formats
The variety of recording modes with selectable image quality, frame rate and bit rate settings are ideal for a wide range of applications, from cinema production to online distribution. Images can be recorded with a resolution of 4K (4096 x 2160)/24p, UHD (3840 x 2160)/60p or FHD (1980 x 1080)/60p. Versatile and easy-to-use MOV (QuickTime), MP4 and AVCHD file formats are supported.

IR (Infrared) Shooting in Dark Places
The IR Cut Filter can be turned ON/OFF (allocated on the User button). When the filter is turned OFF, IR lights (sold separately) can be used for shooting in dark places.

Variable Frame Rates
VFR (2 fps to 60 fps)
FHD VFR (variable frame rate) Recording: VFR recording can be set in 10 steps from 2 fps to 60 fps (60Hz) / 9 steps from 2 fps to 50 fps (50Hz).

Slow Motion
Super-Slow Motion (120 fps/100 fps)
Super-Slow Motion: Slow-motion effect can be achieved by highspeed HD recording at 120 fps (59.94 Hz) or 100 fps (50 Hz).

Precise Image Adjustments
The UX180 comes fully equipped to help provide you with the best possible colored image, featuring broadcast-grade camera image adjustments, such as 16-axis color correction. Easily match the look of any other camera you may be shooting with, and create your own scene files.

Skin Detail
Makes skin colors appear soft and beautiful. Especially effective when recording the person up close.

Master Detail
Adjusts the overall degree of contour enhancement.

8-Mode Gamma
The AG-UX180 is equipped with eight selectable gamma modes, including two Cine-Like Gammas, drawing on technologies developed for the VariCam.

ROP iPad App: Wireless Camera Operation
The AG ROP app for iPad is available free of charge from the App Store. It enables wireless remote control of the AG-UX180, with installation of a wireless module (optional AJ-WM50/AJ-WM30). In addition to a multitude of control functions, such as camera settings, picture quality adjustment, REC start/stop and menu setting, the AG ROP app allows control of the UX180's internal lens for remote operation of the i.Zoom, zoom and focus. It also displays a thumbnail view and a preview view, so sub-recording clips can be displayed as thumbnails and previewed on an iPad.

מותג: Panasonic

תיאור

מפרט טכני

מותג: Panasonic

מה בקופסה

חוות דעת

קבצים להורדה

Power
DC 7.28 V (when the battery is used)
DC 12 V (when the AC adaptor is used)

Power consumption
19.7 W (when the LCD monitor is used)

Operating temperature
0 °C to 40 °C

Operating humidity
10 % to 80 % (no condensation)

Weight
Body: Approx. 2.0 kg (4.41 lb)
(body only, excluding lens hood, battery, and accessories)
Shooting: Approx. 2.4 kg (5.29 lb)
(including lens hood, battery, and eye cup)

Dimensions
173 mm (W) x 195 mm (H) x 346 mm (D)
(6-13/16 inches x 7-11/16 inches x 13-5/8 inches)
(excluding protrusion and eye cup)
173 mm (W) x 195 mm (H) x 392 mm (D)
(6-13/16 inches x 7-11/16 inches x 15-7/16 inches)
(including eye cup, excluding protrusion)

Pickup Devices
1.0-type (effective size) MOS solid state image sensor

Effective Pixels
8.79 megapixel: UHD/FHD 59.94p/29.97p/23.98p
9.46 megapixel: 4K 24p

LENS
Optical image stabilizer lens, optical 20x motorized zoom
F2.8 to F4.5 (f=8.8 mm to 176 mm)
35 mm equivalent:
f=25.4 mm to 508.0 mm: UHD/FHD 59.94p/29.97p/23.98p
f=24.0 mm to 480.0 mm: 4K24.00p
Filter Diameter: 67 mm
ND Filter: 4 Positions (OFF, 1/4, 1/16, 1/64)
IR Filter: Incorporates the ON/OFF control function
Shortest Shooting Distance (M.O.D.):
Approx. 1.0 m from the front lens

Gain setting
L/M/H selector switch
Standard mode: 0 dB to 24 dB (Adjustable in 1 dB steps)
(Automatic setting can be assigned to L/M/H)
Extended ON: -3 dB to 24 dB (Adjustable in 1 dB steps)
(Automatic setting can be assigned to L/M/H)
30 dB and 36 dB switched
(when assigning [S. GAIN] to the USER button)

Color Temperature Setting
ATW, ATW LOCK, Ach, Bch,
preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)

Shutter Speed
When [SYSTEM MODE] = 59.94 Hz
60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec.,
1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,
1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
30p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec.,
1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,
1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec.,
1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec.,
1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
When [SYSTEM MODE] = 50.00 Hz
50i/50p mode: 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec.,
1/180 sec.,1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,
1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
25p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec.,
1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,
1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.

Shutter Speed (Slow Shutter)
When [SYSTEM MODE] = 59.94 Hz
60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec.,
30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
When [SYSTEM MODE] = 50.00 Hz
50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.

Shutter Speed (Synchro Scan)
When [SYSTEM MODE] = 59.94 Hz
59.94i/59.94p mode: 1/60.0 sec. to 1/249.7 sec.
29.97p mode: 1/30.0 sec. to 1/249.7 sec.
23.98p mode: 1/24.0 sec. to 1/249.6 sec.
24.00p mode: 1/24.0 sec. to 1/249.9 sec.
When [SYSTEM MODE] = 50.00 Hz
50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
25p mode: 1/25.0 sec. to 1/250.0 sec.

VFR Recording Frame Rate
When [SYSTEM MODE] = 59.94 Hz
30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60 (fps)
24p mode: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 (fps)
SYSTEM MODE = 50.00, Hz
25p mode: 2, 12, 21, 23, 25, 27, 30, 37, 50 (fps)

Super-Slow Motion Recording
When [SYSTEM MODE] = 59.94 Hz
Shooting frame rate FHD 120 fps,
Slow motion effect 1/4 speed (when 30p mode),
1/5 speed (when 24p mode)
When [SYSTEM MODE] = 50.00 Hz
Shooting frame rate FHD 100fps,
Slow motion effect 1/5 speed (when 25p mode)

Sensitivity
When [HIGH SENS.] mode
F11 (2000 lx, 3200 K, 89.9 % reflect, 1080/59.94i)
F12 (2000 lx, 3200 K, 89.9 % reflect, 1080/50i)

Minimum Subject Illumination
0.2 lx (F2.8, gain 18 dB, Manual slow shutter 1/2S,
When [HIGH SENS.] mode)

DIGITAL ZOOM
2x/5x/10x, i.Zoom (max. 30x)

Recording Media*1
SDHC memory card (4 GB to 32 GB),
SDXC memory card (48 GB to 128 GB), UHS-I supported

Recording slot
Slot x 2

System format
59.94 Hz/50 Hz

Motion Picture Recording
Recording Format: MOV, MP4, AVCHD

2 Slot Functions
Relay, Simultaneous, Background*2, Dual codec

Still Picture Recording Mode
JPEG (DCF/Exif2.2)

Still picture recording
Motion Picture Playback: 8.8M: 4096 x 2160 (17:9),
8.3M: 3840 x 2160 (16:9), 2.1M: 1920 x 1080 (16:9),
0.9M: 1280 x 720 (16:9)

Video Signal for External Output
8bit 4:2:2*3

Recording video signal
8bit 4:2:0

Video Compression Format
MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)

Recording audio signal
48 kHz/16 bit 2CH

Audio Signal Format
LPCM (MOV/MP4), Dolby Digital (AVCHD)

Headroom
12 dB

Recording Method
MOV, MP4

Video Compression Format (Dual Codec)
MPEG-4 AVC/H.264 High Profile

Audio Signal Format (Dual Codec)
LPCM

Recording Time (Dual Codec)
32 GB: Approx. 1 hour 20 min.(FHD 50Mbps) Approx. 8 hours 30 min.(FHD 8Mbps)
64 GB: Approx. 2 hour 40 min.(FHD 50Mbps) Approx. 17 hours 10 min.(FHD 8Mbps)
128 GB: Approx. 5 hours 20 min.(FHD 50Mbps) Approx. 35 hours(FHD 8Mbps)

SDI Out
BNC x 1, 0.8 V [p-p], 75 Ω, 3 G/1.5 G, HD SDI, SD SDI supported
Output format: 1080/59.94p LEVEL-A/50.00p LEVEL-A,
1080/29.97PsF/25.00PsF/24.00PsF/23.98PsF,
1080/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94i, 576/50.00i

VIDEO OUTPUT
AV connector

HDMI
Type A connector x 1, VIERA Link not supported
Output format: 2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p,
1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i,
720/59.94p/50.00p, 480/59.94p, 576/50.00p

Built-in microphone
Stereo microphone

XLR Input
XLR (3-pin) x 2 (INPUT1, INPUT2)
Input high impedance, LINE/MIC/MIC+48V (switchable SW)
LINE: +4 dBu/0 dBu (switchable menu)
MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)

SDI
2 ch (LPCM) switchable gain: 0 dB/-6 dB/-12 dB

HDMI (Audio Output)
2 ch (LPCM)

Audio OUT
AV connector , Output level: 600 Ω, 316 mV

Headphone
3.5 mm diameter stereo mini jack

Speaker
20 mm diameter, round

Camera Remote
2.5 mm diameter super mini jack x1 (ZOOM, S/S)
3.5 mm diameter mini jack x1 (FOCUS, IRIS)

TC PRESET IN/OUT
BNC x 1, Used as the input and output terminals
Input: 1.0 V to 4.0 V [p-p] 10 KΩ
Output: 2.0 V ± 0.5 V [p-p] low impedance

USB 3.0 (Host)
Standard-A connector, 9-pin, external media device connection*4,
bus power supported

USB 3.0 (Device)
Micro-B connector, 10-pin, Mass storage function (read only)

DC IN 12V
DC 12V (11.4V to 12.6V) EIAJ Type4

LCD monitor
3.5 type LCD color monitor, Approx. 1,150,000 dots

View Finder
0.39 type OLED (organic EL display)
Approx. 2,360,000 dots, video display area: approx. 1,770,000 dots

Battery (AG-VBR59)
Battery charger (AG-BRD50)
AC adaptor
Microphone holder kit
AC cable
Eye cup
Lens hood
INPUT terminal cap
Operating instructions
