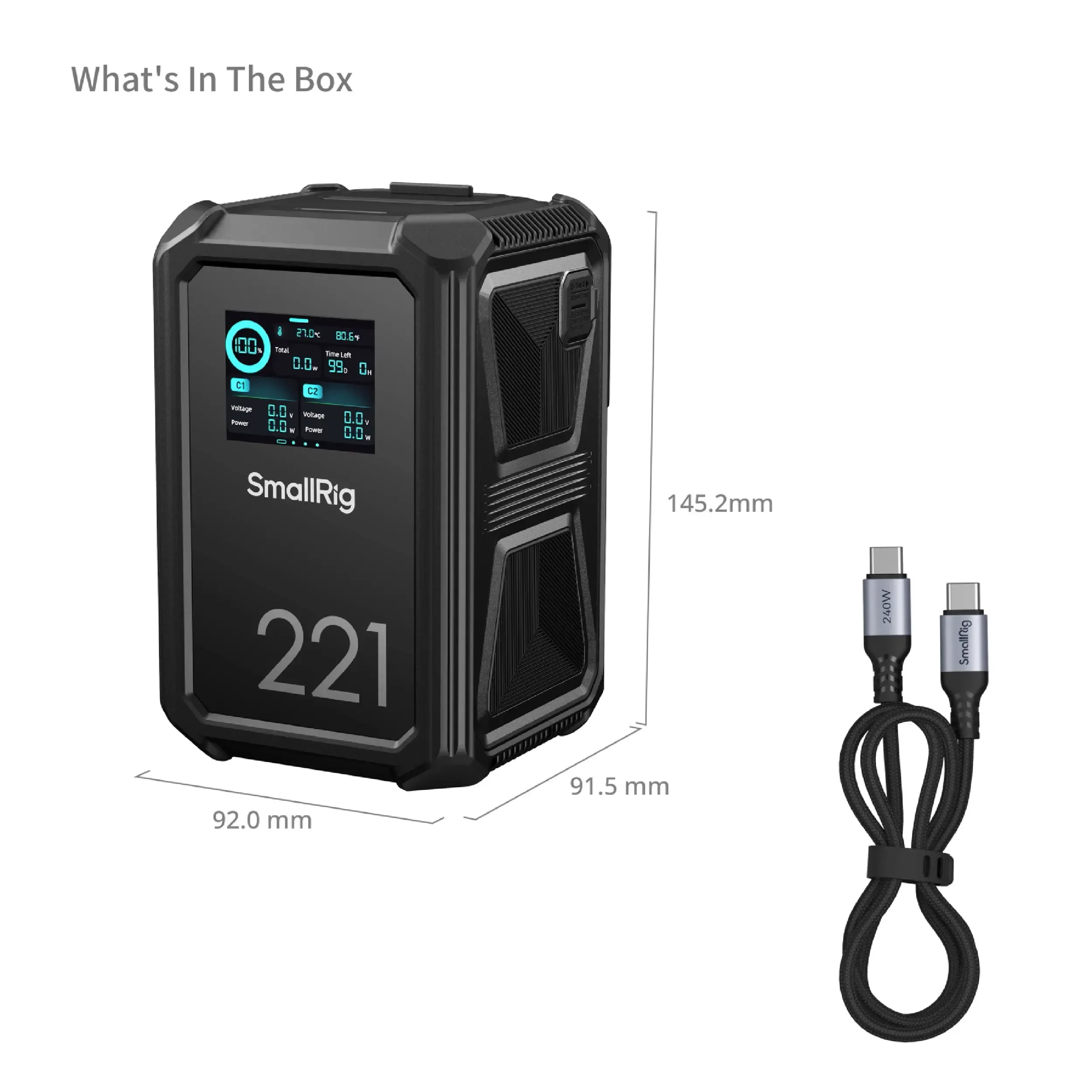

Product Dimensions: 145.2 x 92.0 x 91.5mm
Package Dimensions: 180.0 x 138.0 x 109.0mm
Product Weight: 1564 ± 10g
Package Weight: 1847 ± 10g
Material(s): Flame-retardant PC, Silicone, Aluminum Alloy
Battery Type: Lithium-ion Battery
Rated Battery Parameters: 14.76V / 14910mAh / 220.0716Wh
Total Rated Output: 221W

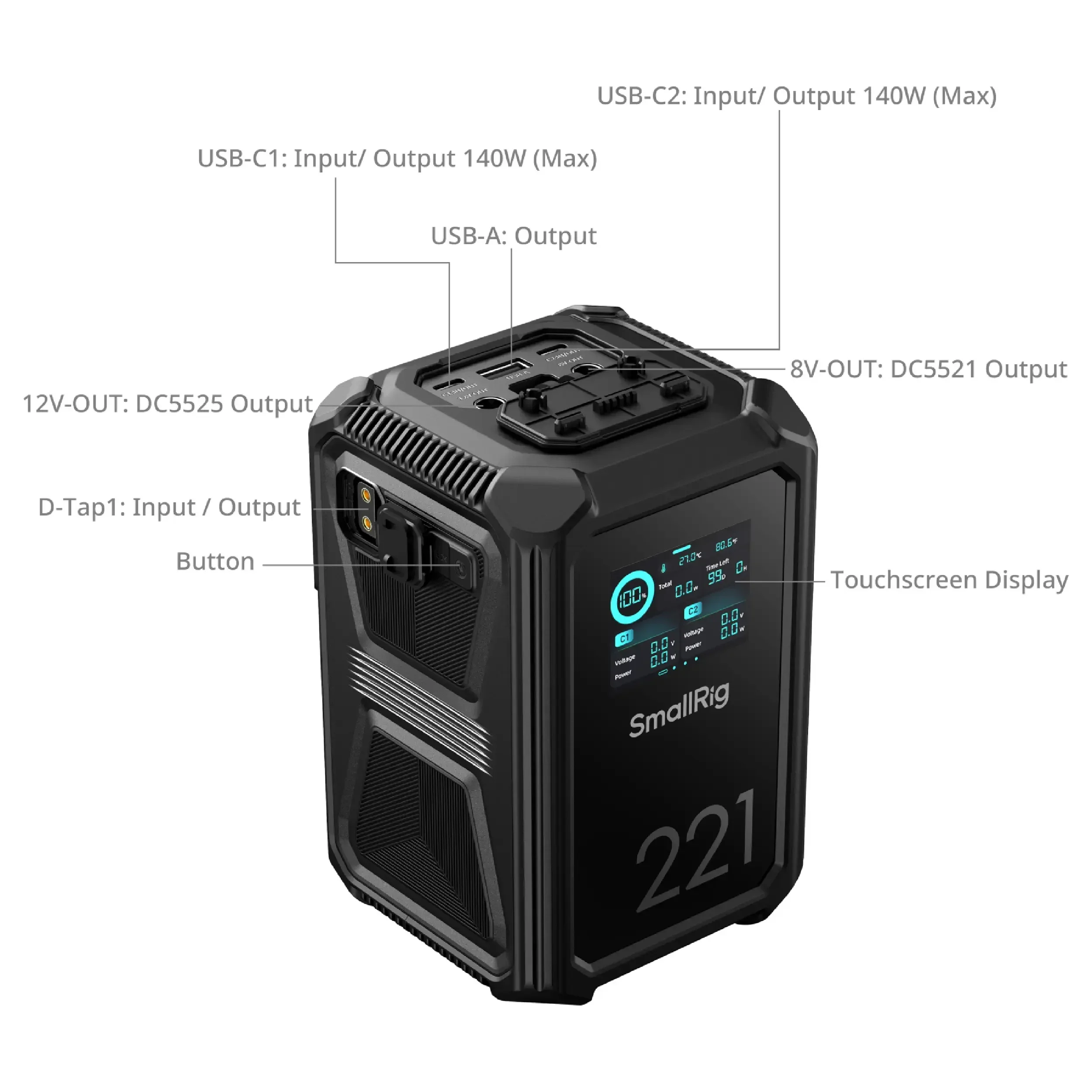

Input:
USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A; 140W (Max)

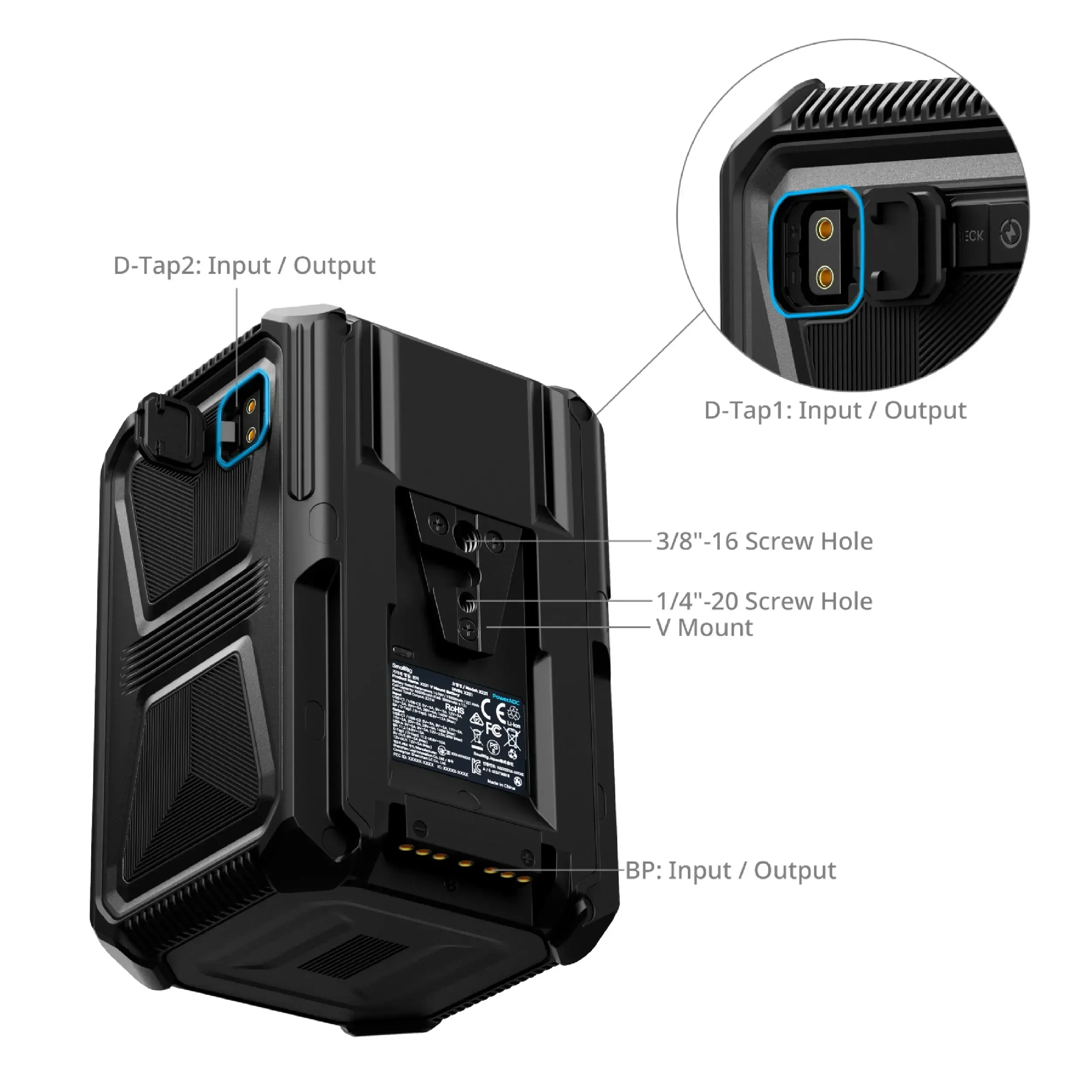

BP / D-Tap1 / D-Tap2: 16.8V⎓12A (Max)
Output:
USB-C1 / USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A; 140W (Max)
USB-A: 5V⎓3A, 9V⎓3A, 12V⎓2.5A; 30W (Max)
BP: 11.2-16.8V⎓15A
D-Tap1 / D-Tap2: 11.2-16.8V⎓10A
8V-OUT: 8V⎓3A (Max)
12V-OUT: 12V⎓3A (Max)
Supported Protocols:
USB-C1 / USB-C2: PD3.1, PD3.0, QC2.0, QC3.0, AFC, DCP-1.5A, PPS, APPLE-2.4A
USB-A: QC3.0, QC2.0, AFC, FCP, SCP, DCP-1.5A, APPLE-2.4A
Discharge Cut-off Voltage: 11.2V
Charging Temperature: 0°C to 45°C
Discharging Temperature: -15°C to 55°C
Charging Ports: BP, D-Tap, USB-C
Drop Resistance Rating: 1.5m (4.9ft)
Ingress Protection Rating: IP54
Operating Frequency/Max Power: 2402MHz~2480MHz/-9.24dBm(EIRP)
