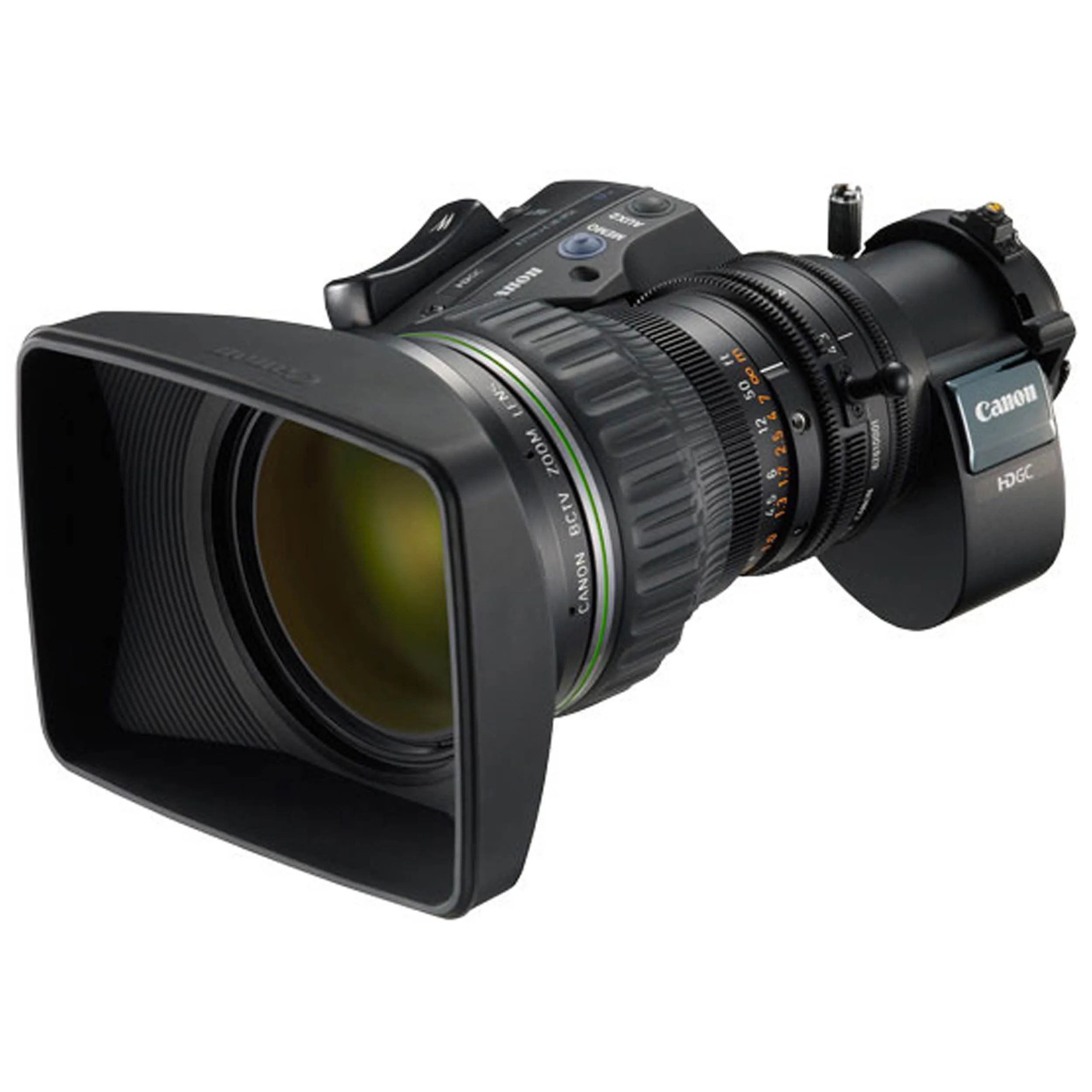

Canon’s breakthrough technologies and powerful computer-aided design techniques produced the KJ13x6B KRS, a standard HDTV lens with an excellent performance-cost optimization. In addition, it offers focal lengths of up to 78mm and a wide field of view of 77.3 degrees. It is a design that directly responds to the expressed creative desires of broadcasters and HD producers for low-cost HD acquisition system. The KJ13x6B KRS represents a fine compromise between the demands for mobility in a handheld HDTV camera system and the high imaging performance requirements for HDTV production. The requisite optimization strategies to achieve this balance sought a high MTF over the entire image plane, minimization of chromatic aberrations, and maximization of image contrast. Preservation of a high MTF at the wider-angle focal lengths (where scene detail can be particularly high) was a special priority.
Relative light distribution was optimized for the more open aperture settings and this uniformity of brightness across the image plane combined with the high contrast and excellent picture sharpness produces vividly clear HD pictures. Contrast was extended by careful control of black reproduction – with optical and mechanical design innovations that substantially reduced flare, veiling glare, and any internal reflections. Tight control of the geometric distortion at wide-angle settings constituted another central design imperative. The lens spectral transmittance characteristic was closely coordinated with that of all of the major portable cameras to ensure adherence to the HDTV colorimetric standards and to additionally support flexible creative control of color reproduction.
Four significant technologies converge to produce the KJ13x6B KRS portable HD production lens system that has been tailored to partner with today's highest performing HDTV portable cameras and camcorders:
Optical Technologies
Newly developed optical materials combined with the very latest lens element design innovations and multilayer coatings - that produce an unsurpassed pristine imaging system for the most discerning production team.
Internal Focus
A Canon design innovation that uses a floating optical system to better control chromatic aberrations.
Control Technologies
Enhanced servo system called Shuttle Shot that adds value-added creativity to handheld acquisition systems.
Advanced Drive technology
Encompasses a servo control that allows the operator to precisely zoom between tow pre-programmed zoom positions Maximum Zoom speed is 1.2 seconds over entire range.
Mechanical Technologies
Ergonomic mechanical design that produced this HD lens having the same size and weight as its SDTV predecessor Compact drive unit is mounted to the lens at a 12.5 degree angle for comfort and balance Aluminum alloy body for light weight and exceptional durability.
Ecological Design
All contemporary Canon lenses avoid the use of materials and substances potentially harmful to the environment. Lead has been removed from all optics, and other identified substances such as cadmium, mercury, PBBS etc from all components comprising the composite lens system.
