INPUTS
Built-in mic 90º XY stereo format
Directionality Unidirectional
Sensitivity –37 dB/1 Pa at 1 kHz
Maximum sound pressure input 120 dB SPL
MIC/LINE IN jack Connector Stereo mini jack
Input impedance 2 kΩ or more
Plug-in power 2.5 V
Built-in mic 90º XY stereo format
Directionality Unidirectional
OUTPUTS

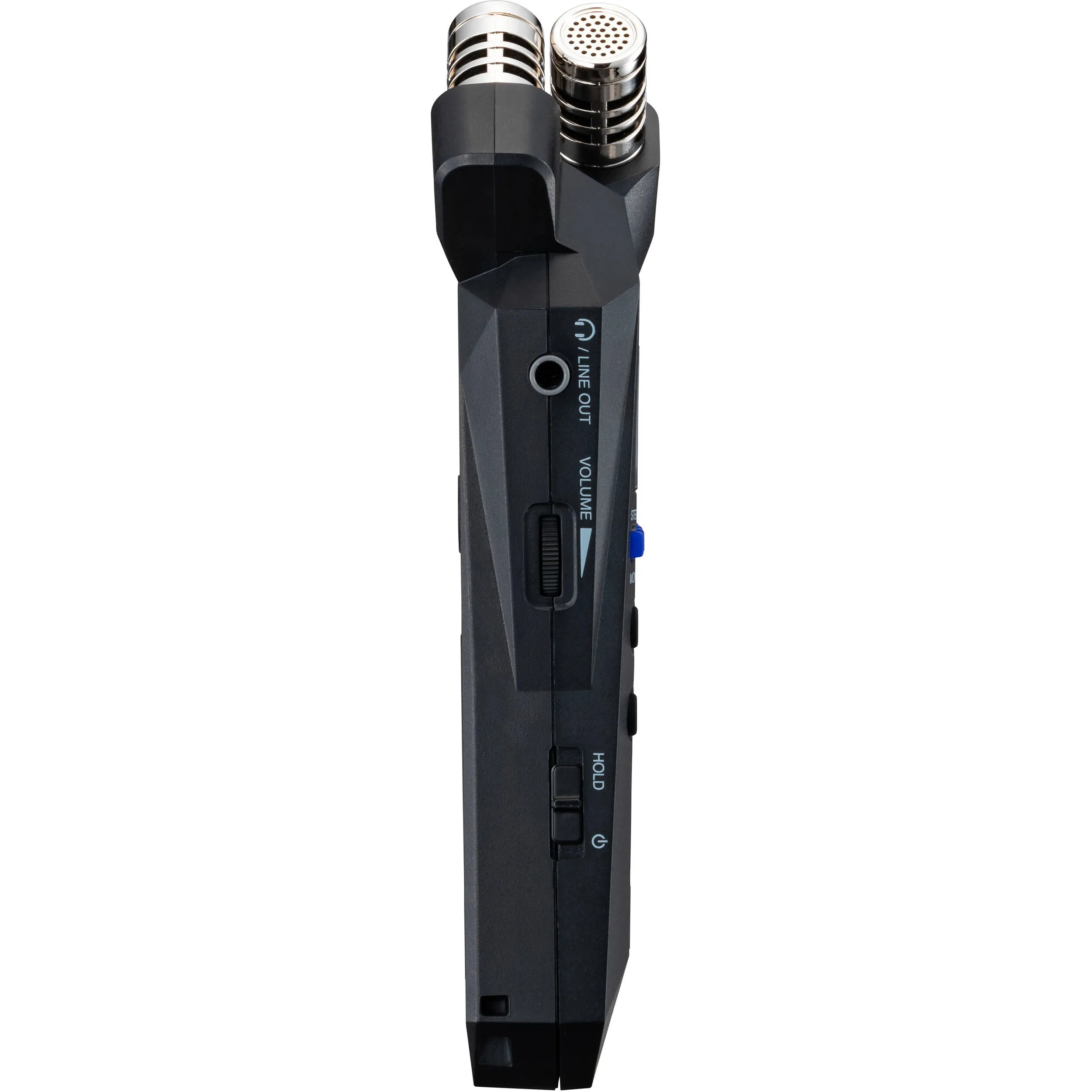

PHONE / LINE OUT jack Connector Stereo mini jack
Maximum output level 20 ｍW + 20 ｍW(into 32Ω load)
Output impedance 10 Ω or less
Built-in speaker Type 20 x 30mm oval dynamic speaker
Practical maximum output 250mW
RECORDER
Recording formats WAV
44.1/48/96 kHz、32-bit Float
Stereo / Mono
BWF and iXML formats supported
Recording media 4–32GB cards compatible with the microSDHC specification
64GB–1TB cards compatible with the microSDXC specification
DISPLAY
OLED 128 x 64
USB
Connector USB Type-C
• Use a USB cable that supports data transfer.
USB Mic USB 2.0 High Speed
48 kHz, 24-bit
File transfer USB 2.0 High Speed
POWER
2 AAA batteries Alkaline, Lithium, or Rechargeable NiMH
AC adapter ZOOM AD-17: DC 5 V/1 A
• USB bus power is supported.
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
Alkaline batteries About 10 hours
NiMH batteries (800 mAh) About 9 hours
Lithium batteries About 18 hours
Stereo recording, 48kHz/32-bit float, no headphones, Power Save 1min
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
POWER CONSUMPTION 5 W maximum
DIMENSIONS 53.9 mm (W) × 136.6 mm (D) × 29.0 mm (H)
WEIGHT (INCLUDING BATTERIES) 92 g
Note: 0 dBu = 0.775 Vrms
