CCT 2,500K – 10,000K
CRI >96
TLCI >96
CQS TBD
SSI (Tungsten) 87
SSI (D56) 86
TM-30 RF (Average) 96
TM-30 RG (Average) 101
Operating Voltage
Standard Output 100~240V 50/60Hz
Full Output 180~240V 50/60Hz
Max Power
Consumption
(180-240V)
Standard Mode 5200W
Extended Head
Cable Mode 6000W
Max Power Consumption (100-179V) 3200W
Max LED Power Output 4800W
AC Power Max Current 32A
Weather Resistance Rating IP65
Native Beam Angle (No Reflector) 93o
Compatible Aputure Mount Reflectors 20o, 25o, 50o XT52 Reflectors
Max Head Cable Daisy Chain Length 45m
Operating Temperature -20oC ~ 50oC / -4oF ~ 113oF
Storage Temperature -40oC ~ 80oC / -40oF ~ 176oF
Control Methods Onboard, Sidus Bluetooth, DMX, CRMX,
Art-Net/sACN
Firmware Upgradeable USB-A, Sidus Link, Sidus Link Pro
Wireless Range (Bluetooth & CRMX) 100m
Screen Type TFT
Cooling Method Liquid + Air Cooling
Fan Noise Levels
(1m distance)
High Speed Mode 56.0dBA
Default Mode 45.4dBA
Dimensions

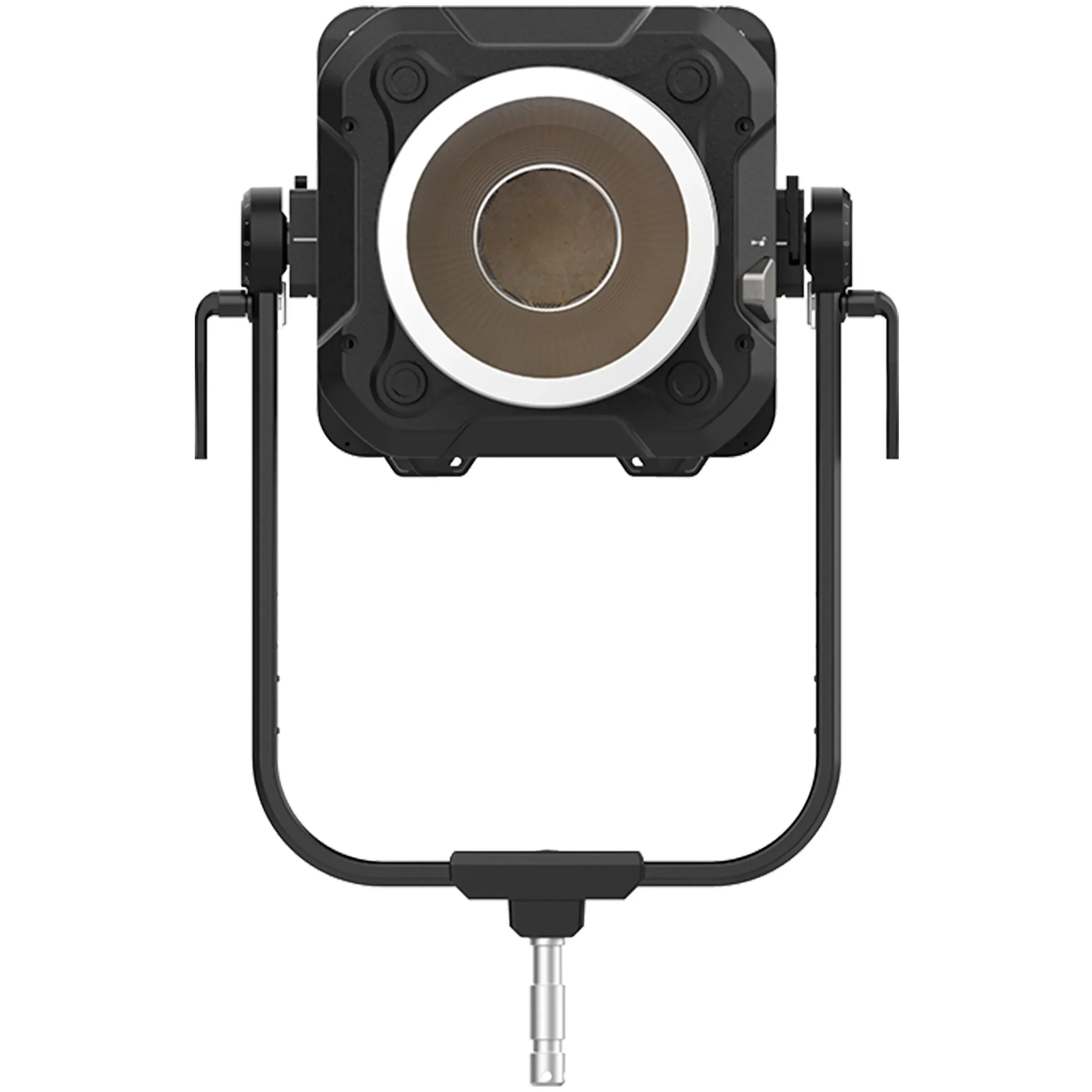

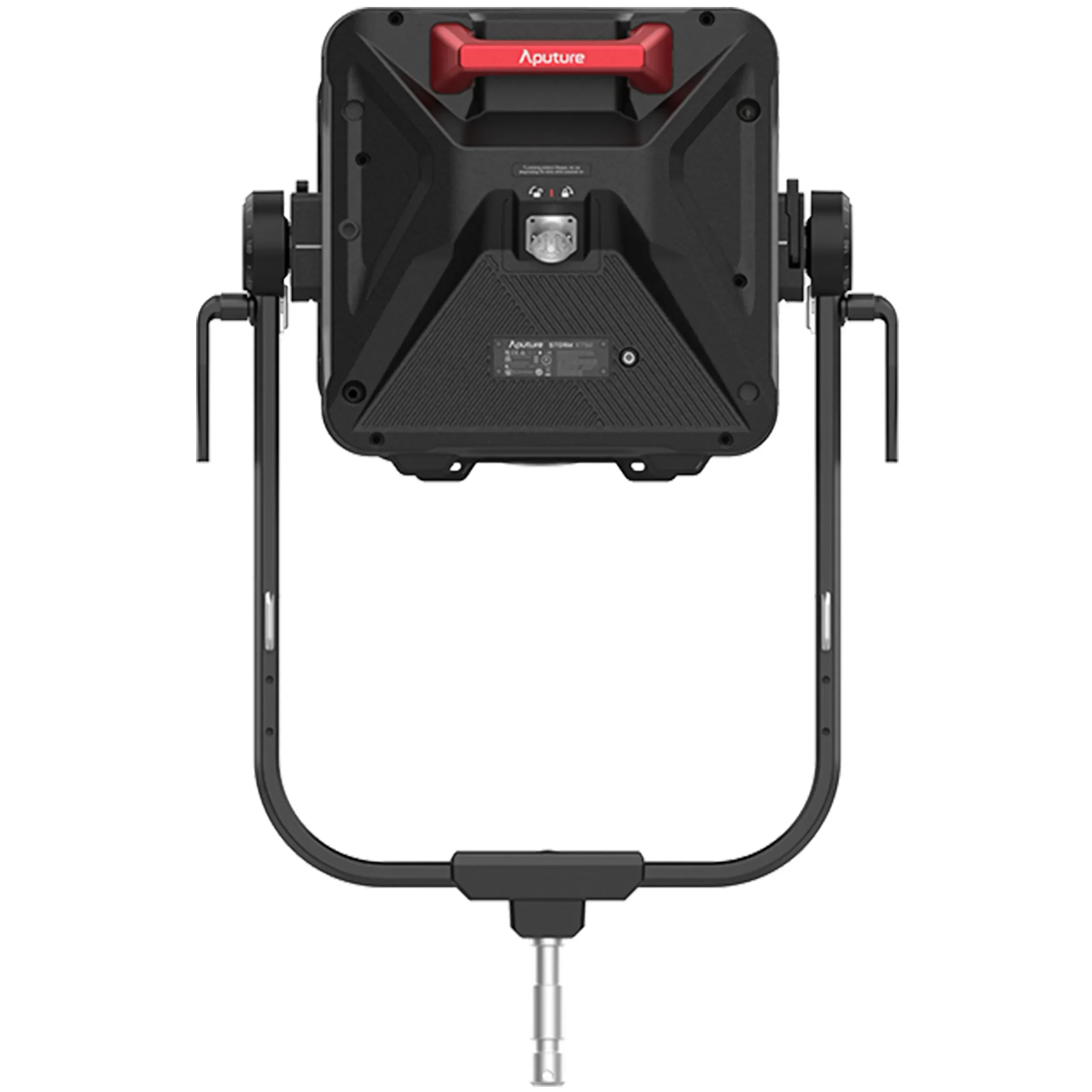

Lamp Head with Yoke 55.0 x 54.1 x 83.0cm
21.7 x 21.3 x 32.7in
Lamp Head without Yoke 55.0 x 35.3 x 36.2cm
21.7 x 13.9 x 14.3in
Removable Yoke for
STORM XT52
54.1 x 69.0cm

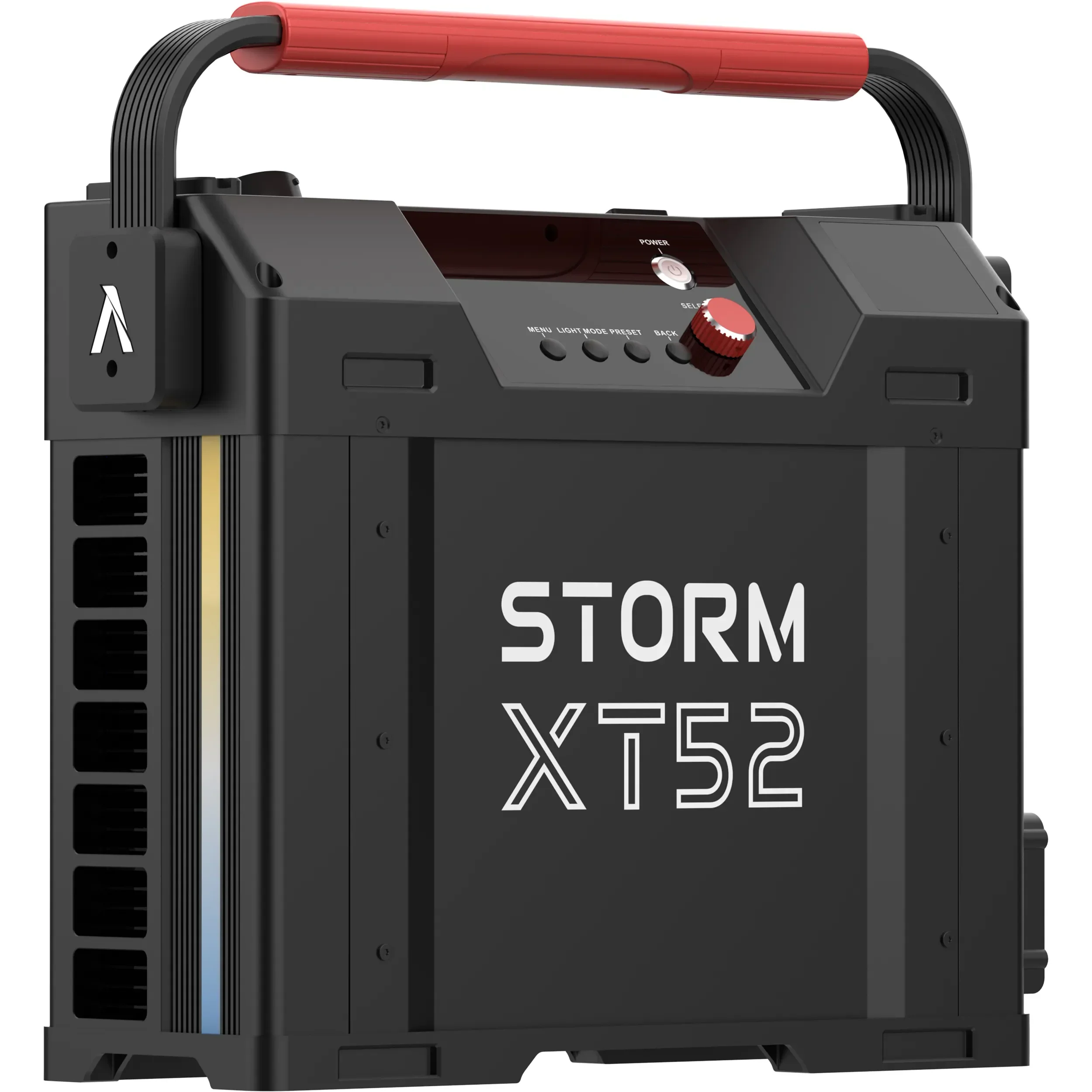

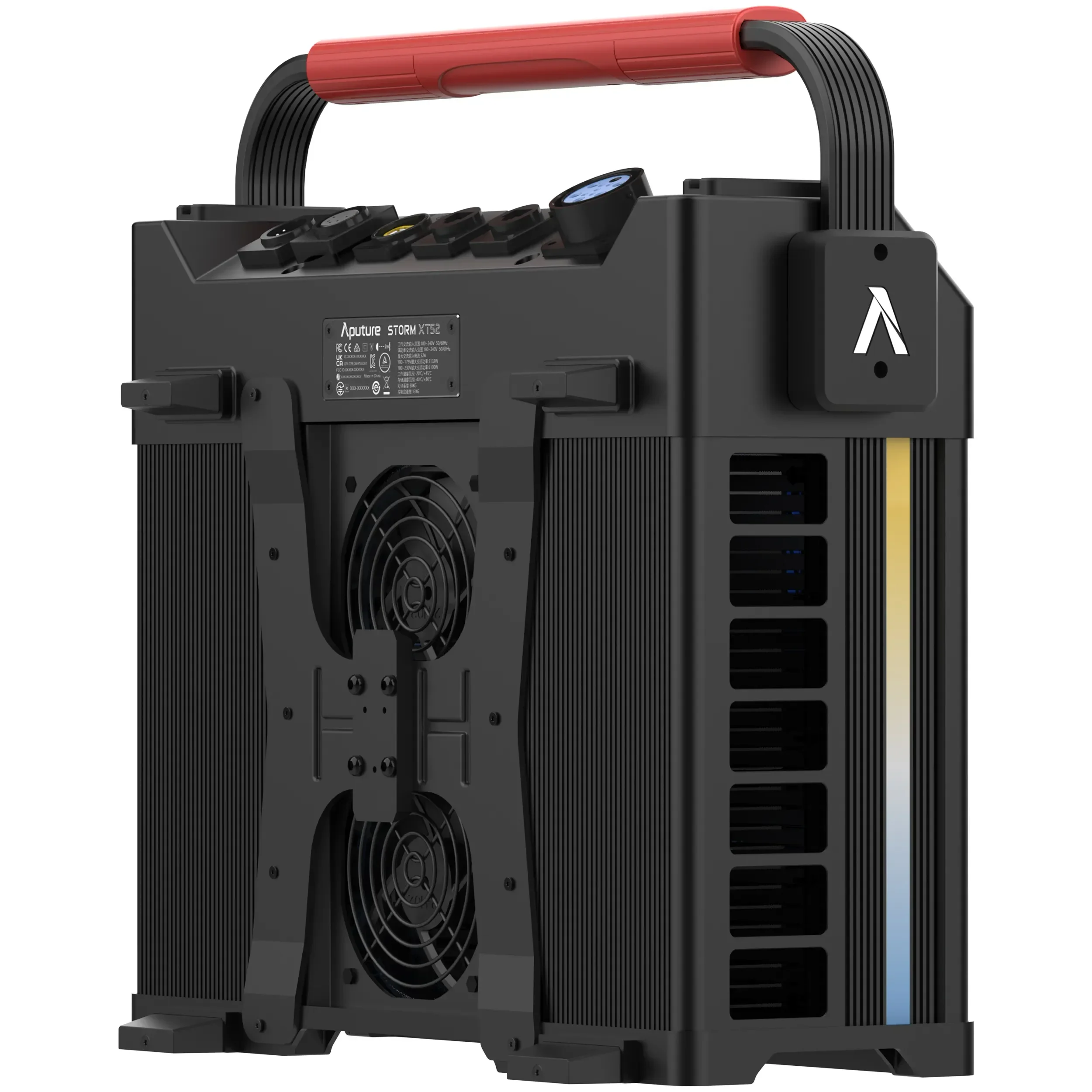

Control Box 41.1 x 16.0 x 38.8cm

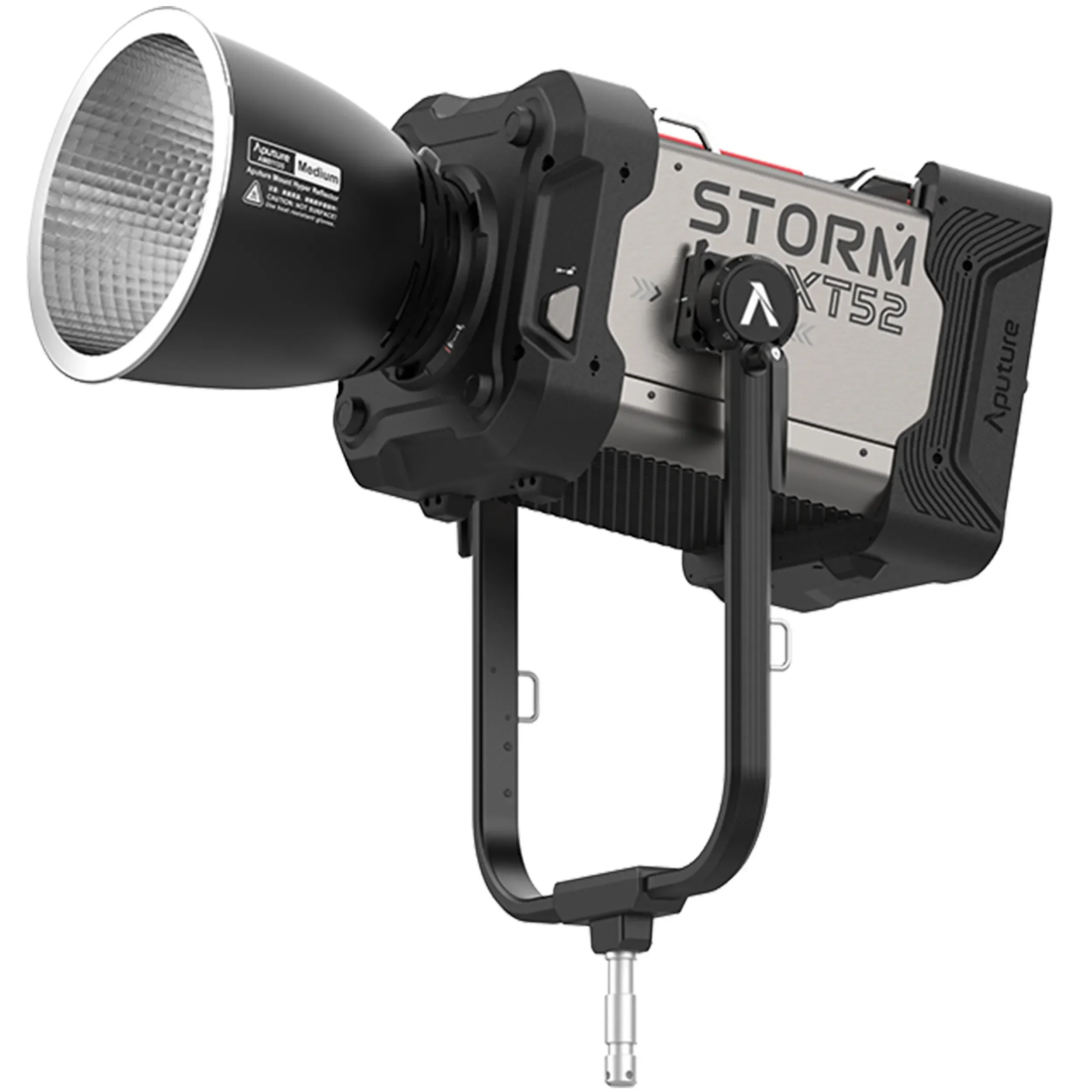

Aputure Mount 35° Reflector ⌀33.0 x 30.7cm
Weight
Lamp Head with Yoke 31.30kg
Lamp Head without Yoke 27.80kg
Removable Yoke for
STORM XT52 3.50kg
Control Box 13.40kg
Aputure Mount 35° Reflector 1.50kg
