CCT 2,300K – 10,000K
CRI 95
TLCI 98
CQS 96
SSI (D56) 74
SSI (Tungsten) 85
TM-30 RF (Average) 93
TM-30 RG (Average) 100
Beam Angle (No Accessories) 93°
LS 600 Series Hyper Reflector 62°
BM1215 Bowens Mount Hyper Reflector (Narrow) 23°
BM1230 Bowens Mount Hyper Reflector (Medium) 53°
BM1245 Bowens Mount Hyper Reflector (Wide) 69°
F10 Fresnel 25-70°
Lumens 35,686lm
Max Power Output 600W
Max Power Consumption 720W
Max Operating Current 8A
Operating Voltage (Power Supply) 100V~240V, 50Hz/60Hz
Operating Voltage (Battery) - V-Mount / Gold Mount (Two Batteries) - Half Output 12.5V-16.8V (14.4V/15A) 22V-33.6V (26V/8.5A, 28.8V/7.5A)
Operating Voltage (Battery) - V-Mount / Gold Mount (Two Batteries) - Full Output 22V-33.6V (26V/18A, 28.8V/16A)
3-Pin XLR (48V DC) 48V/15A
Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F
Dimming 0-100%; Linear, Exponential, Logarithmic, S- Curve
Control Methods On-board, Sidus Link App, 16-bit DMX512, Art- net & sACN via etherCON, LumenRadio CRMX
Wireless Operating Range (Bluetooth) ≤80m
Wireless Operating Range (LumenRadio) ≤100m
Screen Type LCD
Firmware Upgradeable USB (FAT16/FAT32), Sidus Link
Cooling Method Active Cooling
Head Cable 7-Pin Weatherproof Head Cable (7.5m)
Max Head Cable Length 7.5m
Power Cable Neutrik® powerCON TRUE1 TOP AC Cable (6m)
Construction Material Magnesium Alloy
Weather Resistance Dust & Water Resistant
Accessory Mount Bowens Mount
Tilt Angle 360°
Mounting 16mm / 28mm | 0.625in / 1.125in (Dual Junior/Baby Pin)

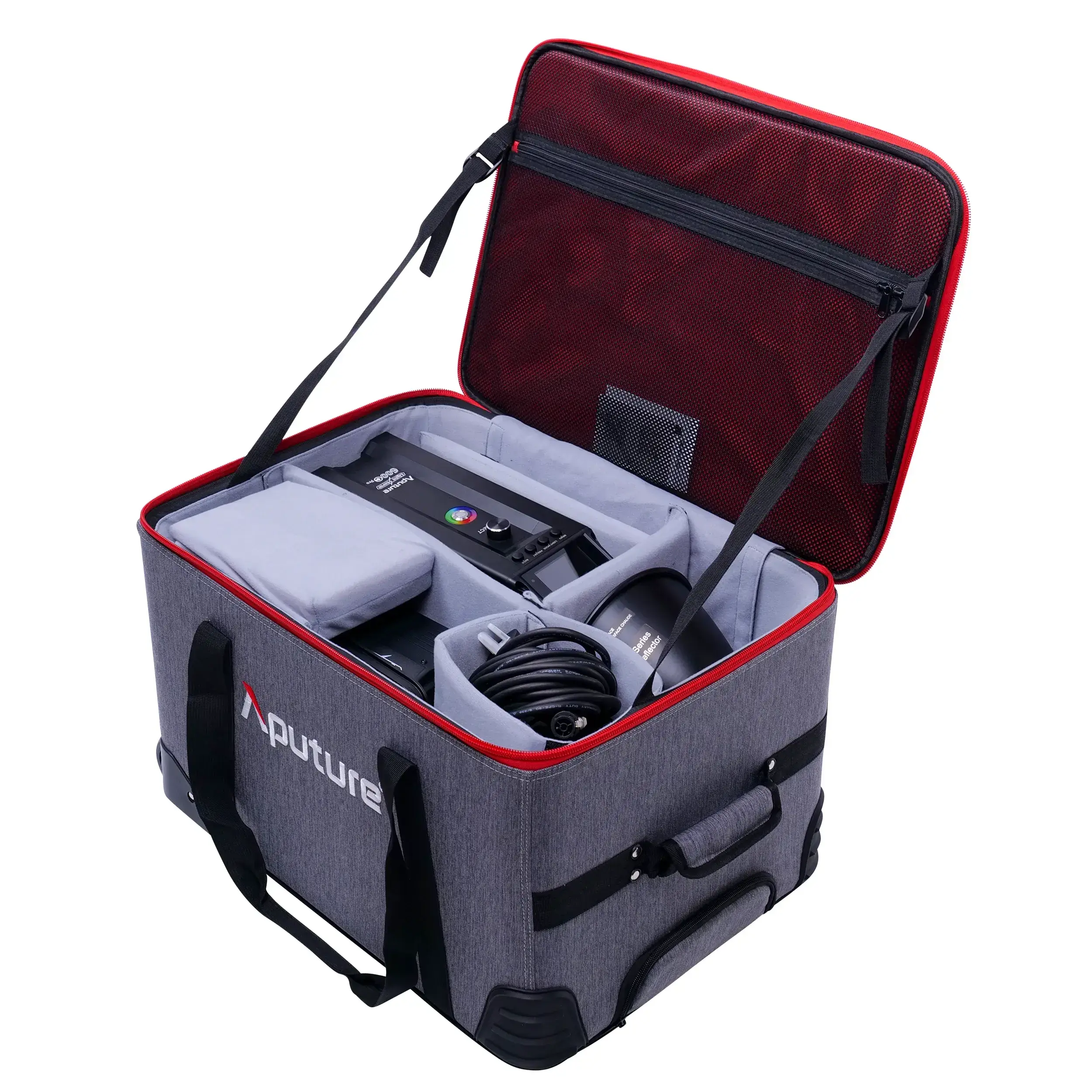

Carrying Case Telescoping Handle, Wheels
Estimated LED Lifetime (L70) 50,000H
Est. Max Flicker-Free FPS 2,000 FPS
Certifications CE, FCC, ROHS, KC, NCC, PSE, BIS
WEIGHT
Lamp Head w/ Yoke 5.86 kg / 12.92lbs
Control Box 5.21 kg / 11.48lbs
Lightning Clamp 670g / 1.48lbs
Rolling Case (Filled) 14.36 kg / 31.66 kg
DIMENSIONS
Lamp Head w/o Yoke 30.2x22.2x15cm/11.9x8.74x5.9in
Lamp Head w/ Yoke 45.3x26.7x15cm/17.8x10.5x5.9in
Control Box 36.6 x 19.7 x 15.6cm / 14.4 x 7.7 x 6.1in
Lightning Clamp 10.35 x 8.74 x 12.5cm / 4.07 x 3.44 x 4.92in
Rolling Case 59x40x35.5cm/23.2x15.7x14in
