IMAGING
Image Sensor Sony 1/2.8” CMOS • ULTRA HD
Lens f=4.1mm - 49.2mm
Optical Zoom 12x
Video Format
2160p @ 30/29.97/25fps
1080p @ 30/29.97/25fps
720p @ 30 /29.97/25fps
Horizontal angle of view 70.28º (W) - 6.57º (T)
Vertical angle of view 42.06º (W) - 3.76º (T)
Diagonal angle of view 78.36º (W) - 7.5º (T)
Aperture F1.8 ~ 2.68
Focus Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation Yes
Digital Noise Reduction 2D and 3D Noise Reduction
SNR >50dB
2.07 MP
MECHANICAL
Pan/Tilt Rotation ±175º, -90º ~ +90º
Pan Control Speed 0.1 -80º/sec
Tilt Control Speed 0.1 -60º/sec
Preset Number 255 presets

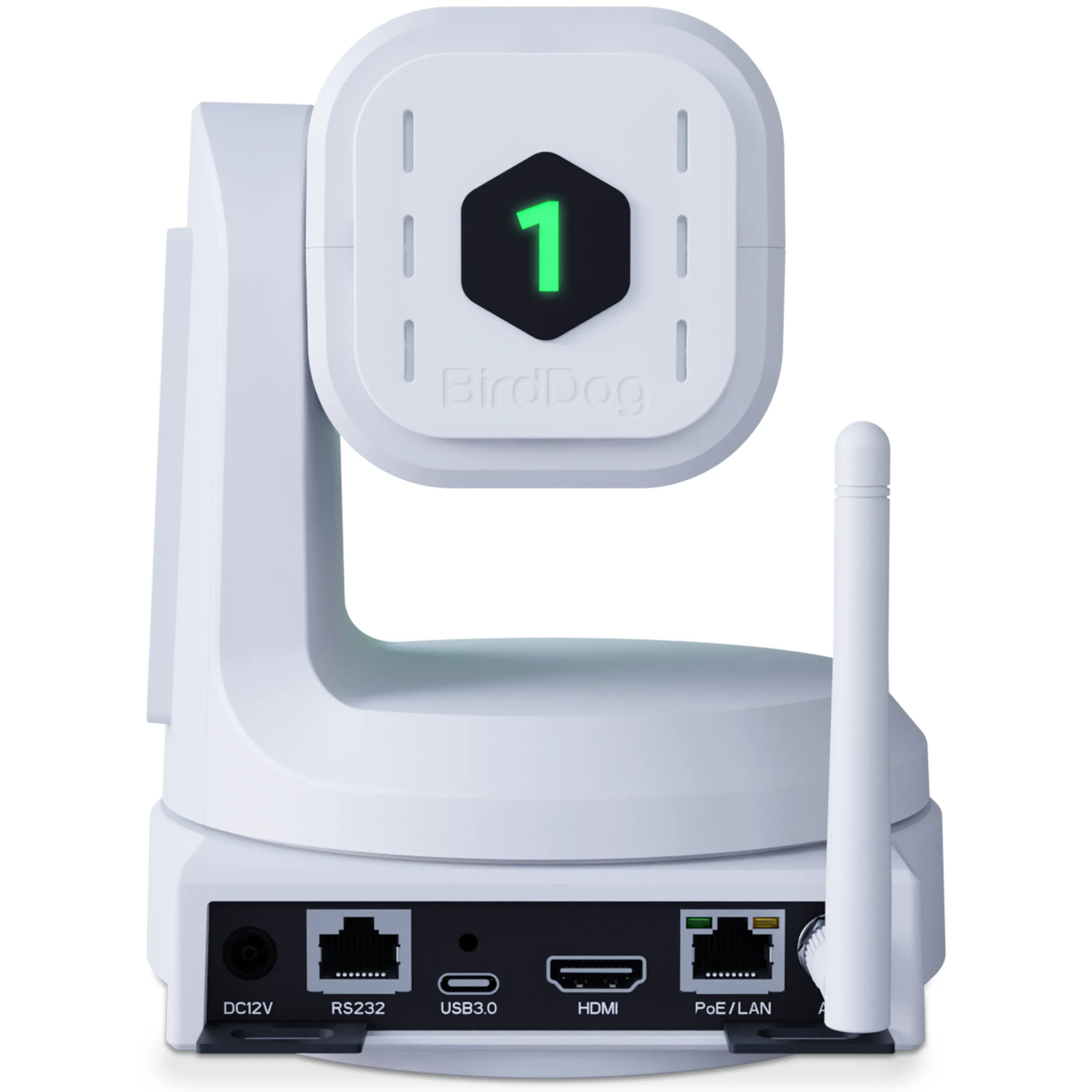

I/O INTERFACE
Video Output Interfaces HDMI, USB-C UVC 1.1, Network
Video Compression Formats H.264, H.265
Network Interfaces 100M adaptive Ethernet port; POE IEEE802.3af, Wi-Fi IEEE 802.11ac
Encoder Network Protocols NDI|HX2, NDI|HX3, RTSP, RTMP
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
Control Interfaces 10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
HDMI Decoder Network Protocols NDI|HX2, NDI|HX3
GENERAL PARAMETER
Input Voltage DC 12V, PoE IEEE802.3af
Input Current 2.0A (Max.)
Power Consumption 13W (Max.)
Working Temperature -10ºC ~ +40ºC
Working Humidity 20% ~ 80%
Dimension (W*H*D) 171.6*192.6*171.6mm / 260*217*197mm (before / after packing)
Net and Gross Weight 1.43kg/2.096kg (Net/Gross weight)
Effective Pixels 8.29 MP
