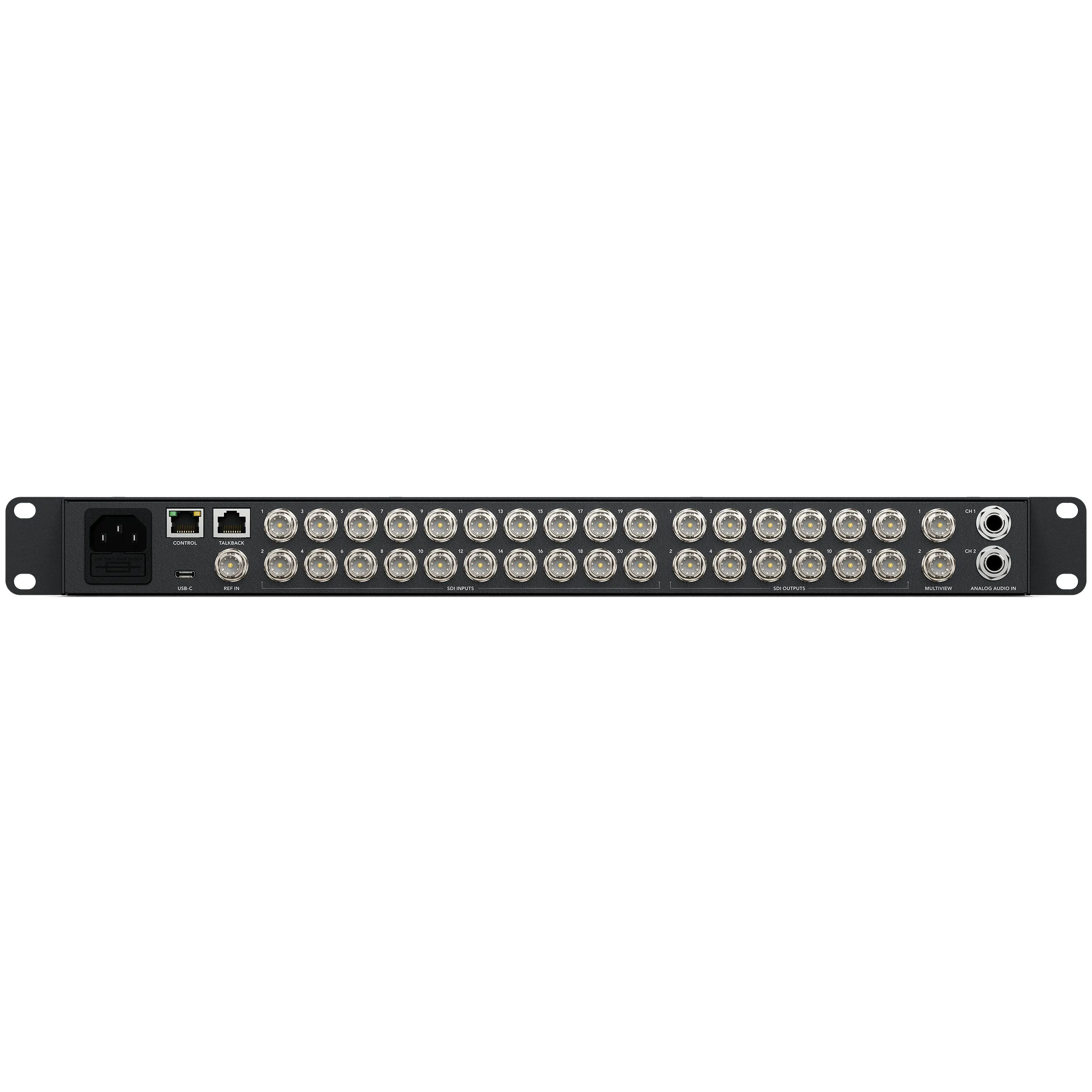

Connections
Total Video Inputs
20
Total Video Outputs
12
SDI Rates
1.5G, 3G, 6G, 12G
Total Audio Inputs
2 x balanced 1/4 inch Jack,
1 x 5 pin XLR Talkback.
Total Audio Outputs
1 x 5 pin XLR Talkback.
SDI Audio Inputs
16 Ch embedded audio on all SDI inputs.
SDI Audio Outputs
16 Ch embedded audio on all SDI outputs.
Timecode Connections
None
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 20 inputs.
Frame Rate and Format Converters
On all 20 inputs.
SDI Aux Outputs
Any of the 12 SDI outputs.
SDI Preview Outputs
Any of the 12 SDI outputs.
SDI Program Outputs
Any of the 12 SDI outputs.
Down Converted SDI Program Output
1
Webcam Output
1 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views
2 x 12G-SDI
Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.
Internal Timecode Generator
Yes
Talkback
RJ45 for 3rd party talkback systems.
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet
Supports 10/100/1000 BASE-T.
Computer Interface
1 x USB-C supports USB 2.0
ATEM 2 M/E Constellation 4K
Standards
SD Video Standards
None
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97
2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.
Video Sampling
4:2:2
Color Precision
10-bit.
Color Space
REC 709, REC 2020
SDI Auto Switching
Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product Specifics
Upstream Keyers
8
Downstream Keyers
2
Advanced Chroma Keyers
8
SuperSource
1
DVEs
2
Linear/Luma Keyers
11
Transition Keyer (Stinger/DVE)
2 Stinger, 2 DVE.
Total Number of Layers
15
Pattern Generators
11
Color Generators
2
Control Panel
Front fascia emergency switching, software or optional hardware panel.
Routable Windows
32
Windows Source Labels
Yes
Tally
Red for program and green for preview indication.
Talkback Support
Yes
Mix Minus Support
Yes
Multi View Monitoring
Multi View Monitoring
2 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters.
Multi View Video Standard
HD or Ultra HD
Media Player
Media Players
2
Channels
Fill and key for each media player.
Media Pool Still Image Capacity
40
Media Pool Clip Capacity
2 x up to 2160p60.
Media Player Clip Length in 720 HD
3200 frames.
Media Player Clip Length in 1080 HD
1600 frames.
Media Player Clip Length in 2160 UHD
400 frames.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
TGA Sequence.
Media Pool Audio File Format
WAV, MP3 and AIFF.
Display

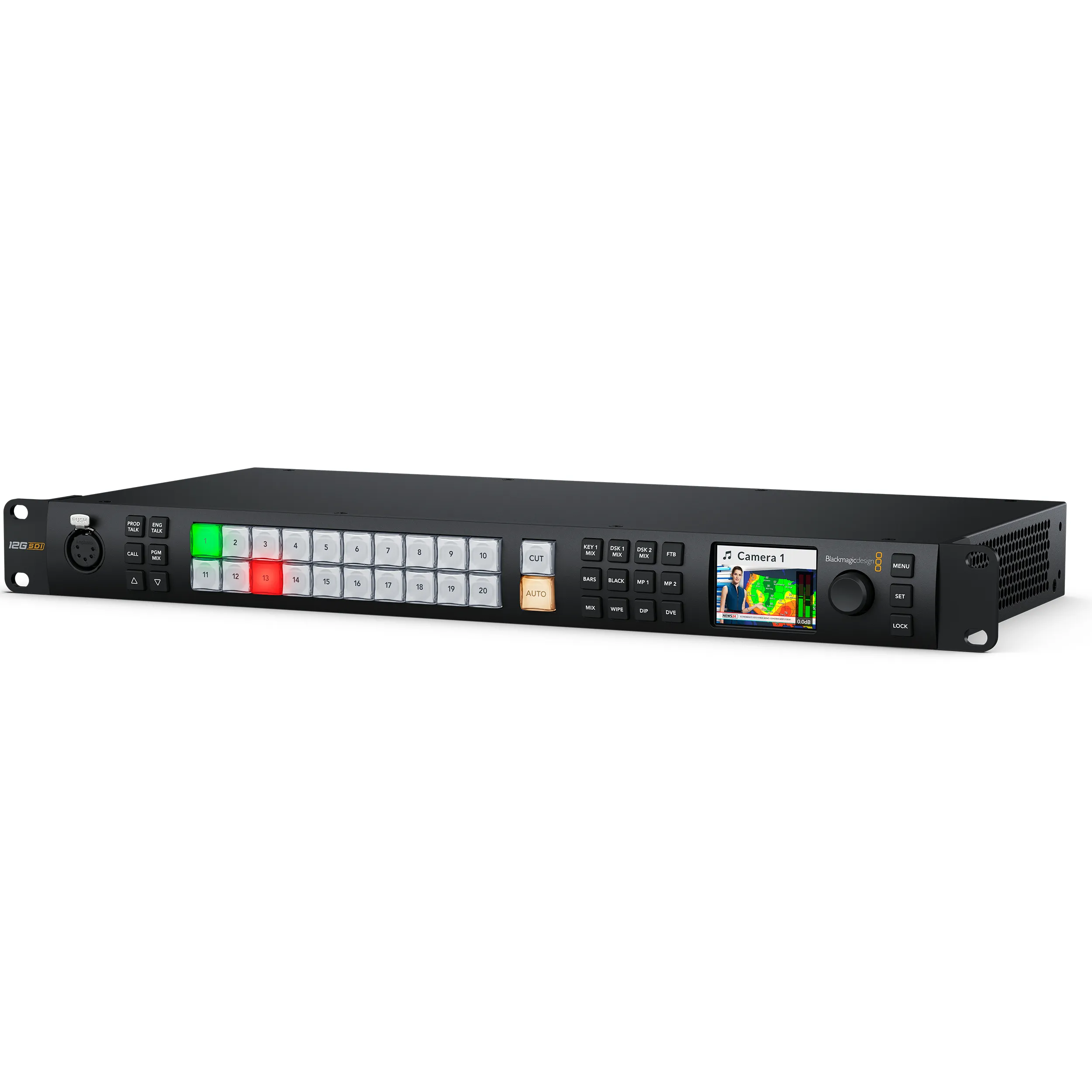

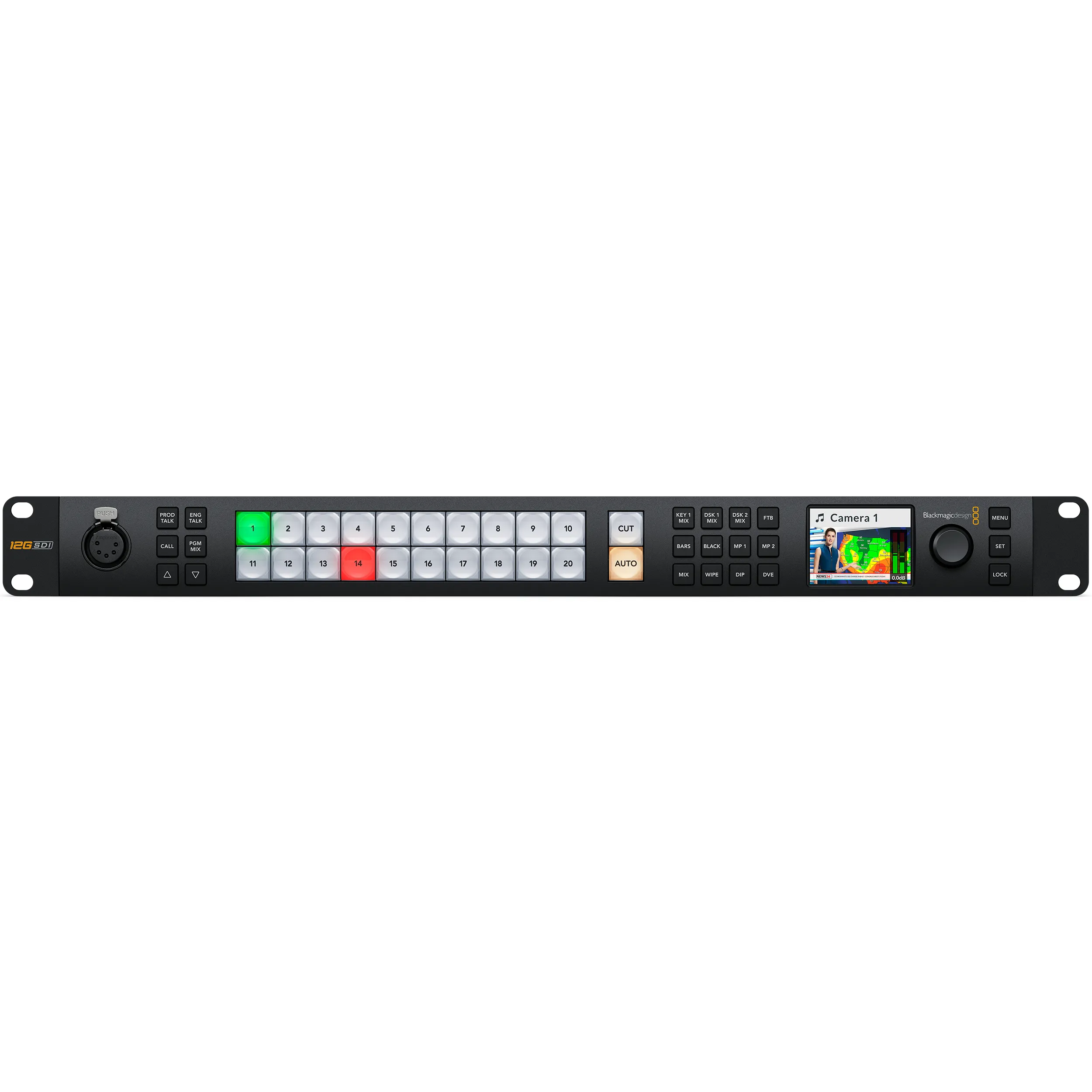

Front panel
Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing
Processing Delay
< 10 lines.
Audio Mixer
48 Channel mixer
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down Conversion
1 x selectable HD down converted output
Software
Control Panel Included
ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11.
Software Updates
Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating Systems
Mac icon
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows Icon
Windows 10 and 11.
Power Requirements
Power Supply
1 x Internal 100 - 240 AC.
Power Usage
140 W
Physical Specifications
ATEM 2 M/E Constellation 4K
Physical Installation
Physical Installation
1 Rack Unit Size.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
