Connections
Computer Interface
USB Type‑C.
Bluetooth
Bluetooth 5.1 LE
Software Updates
1 x USB‑C for firmware updates.

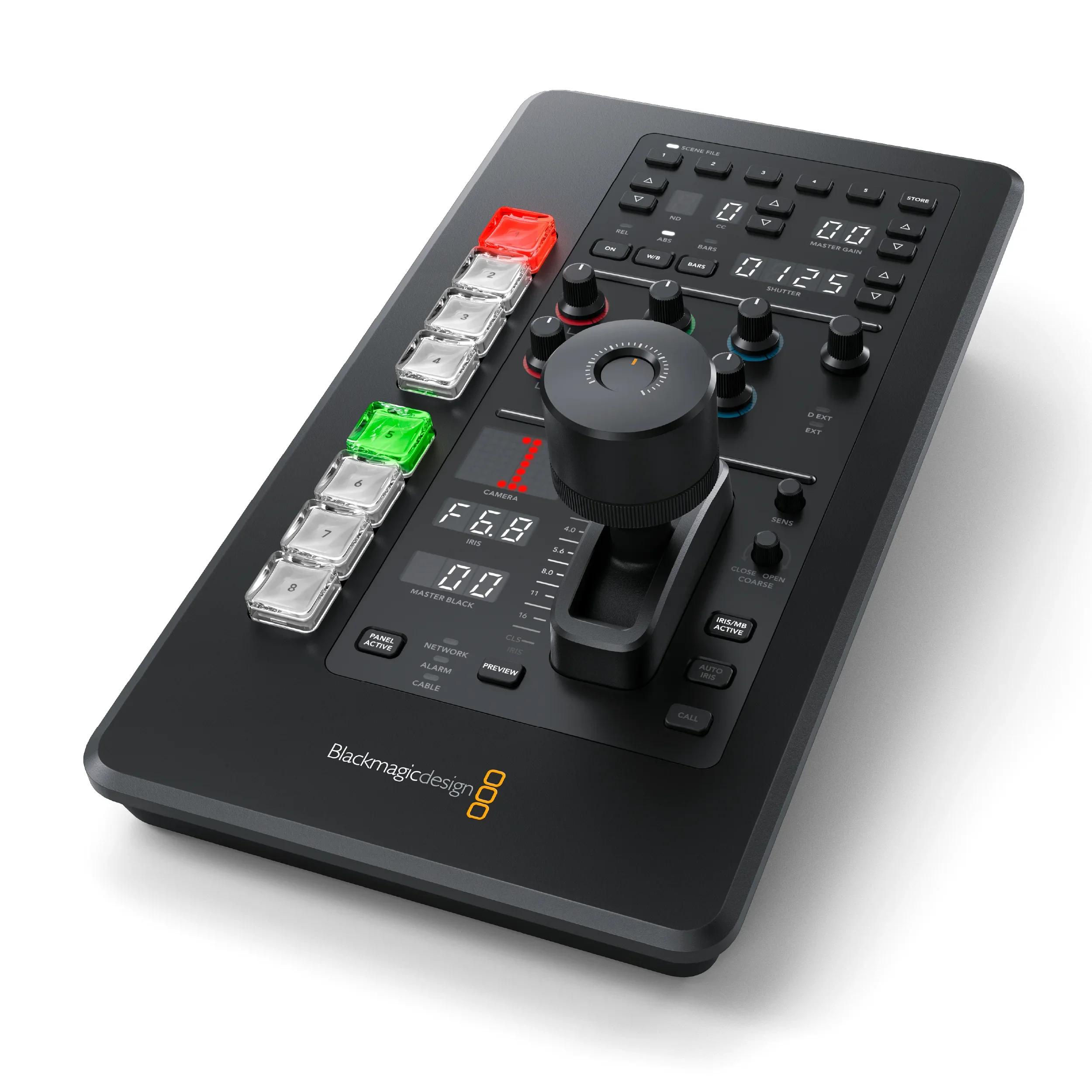

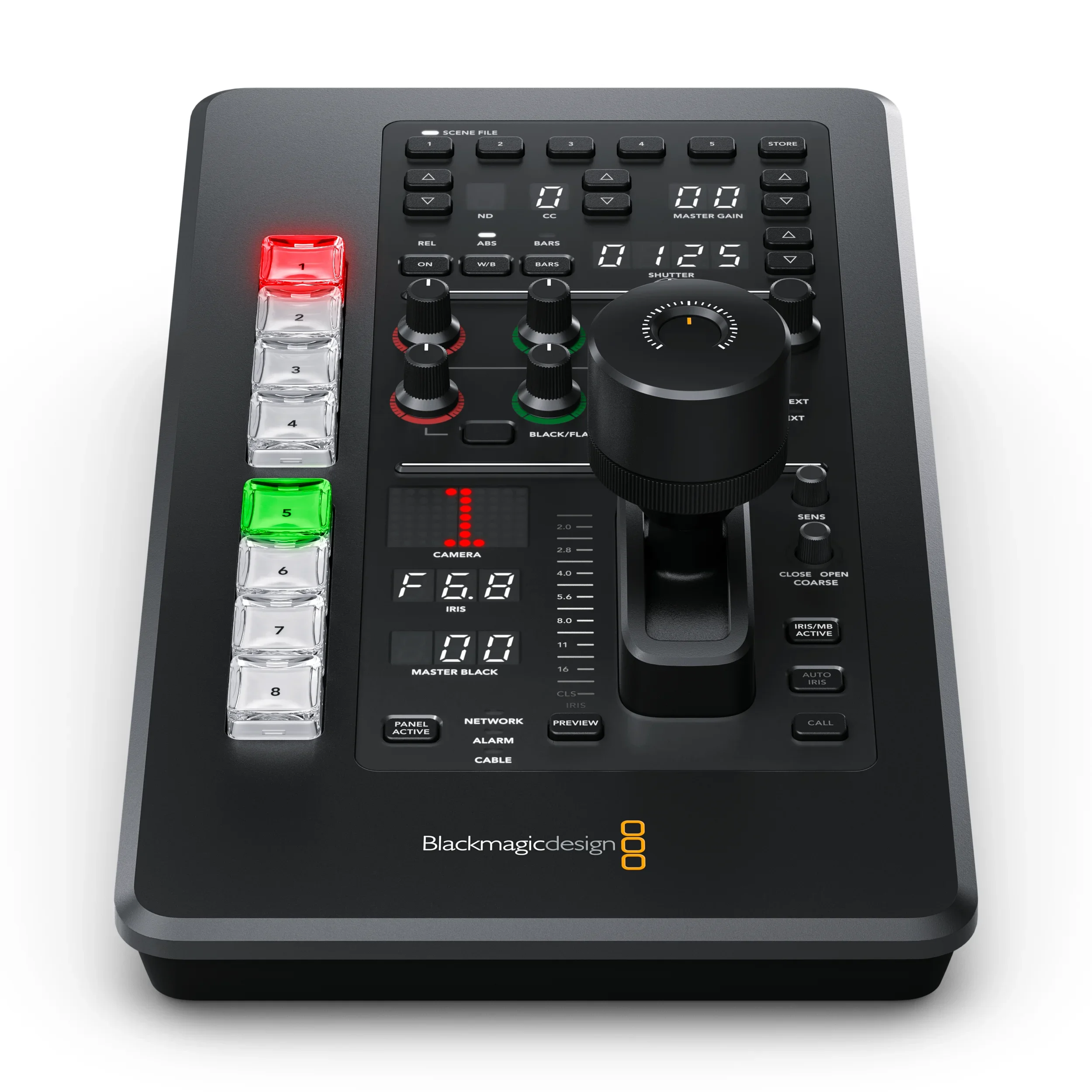

ATEM Micro Camera Panel
Product Specifics
Camera Selection buttons
8 x NKK buttons.
Assignable via setup utility.
Camera Number Display
Green off air, red on air.
Setup
White and black balance setup.
Flare via modifier key.
3 Axis Joystick 1
Preview Button 1
Iris Control
Auto Iris On, Coarse control.
Iris Range
CLS f32 to f1.2
Gain Range
-12dB to +32dB
ND Filters 0, 2, 4, 6.
Shutter Range
1/24 to 1/2000
White Balance Range
2500K to 10,000K
Recallable Scenes
5 per camera.
Panel Active
Protects settings.
Software
Software Applications
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating Systems
Mac icon
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows Icon
Windows 10 and 11.
Windows 11 for ARM

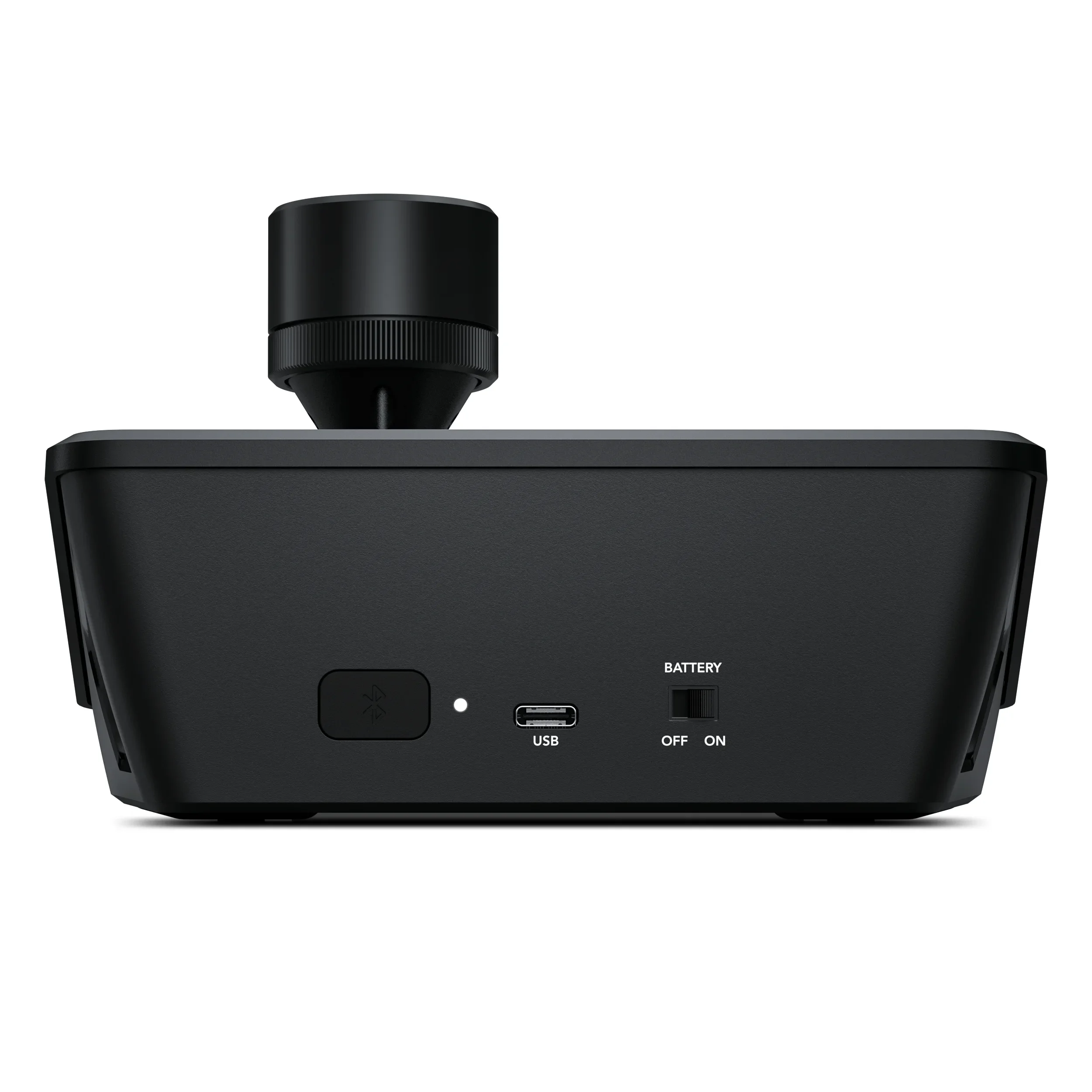

Power Requirements
Power Supply
Internal battery with power switch.
USB-C port for external power supply and battery charging.
Power Usage
TBA
Battery Life
TBA
Physical Specifications
ATEM Micro Camera Panel
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
