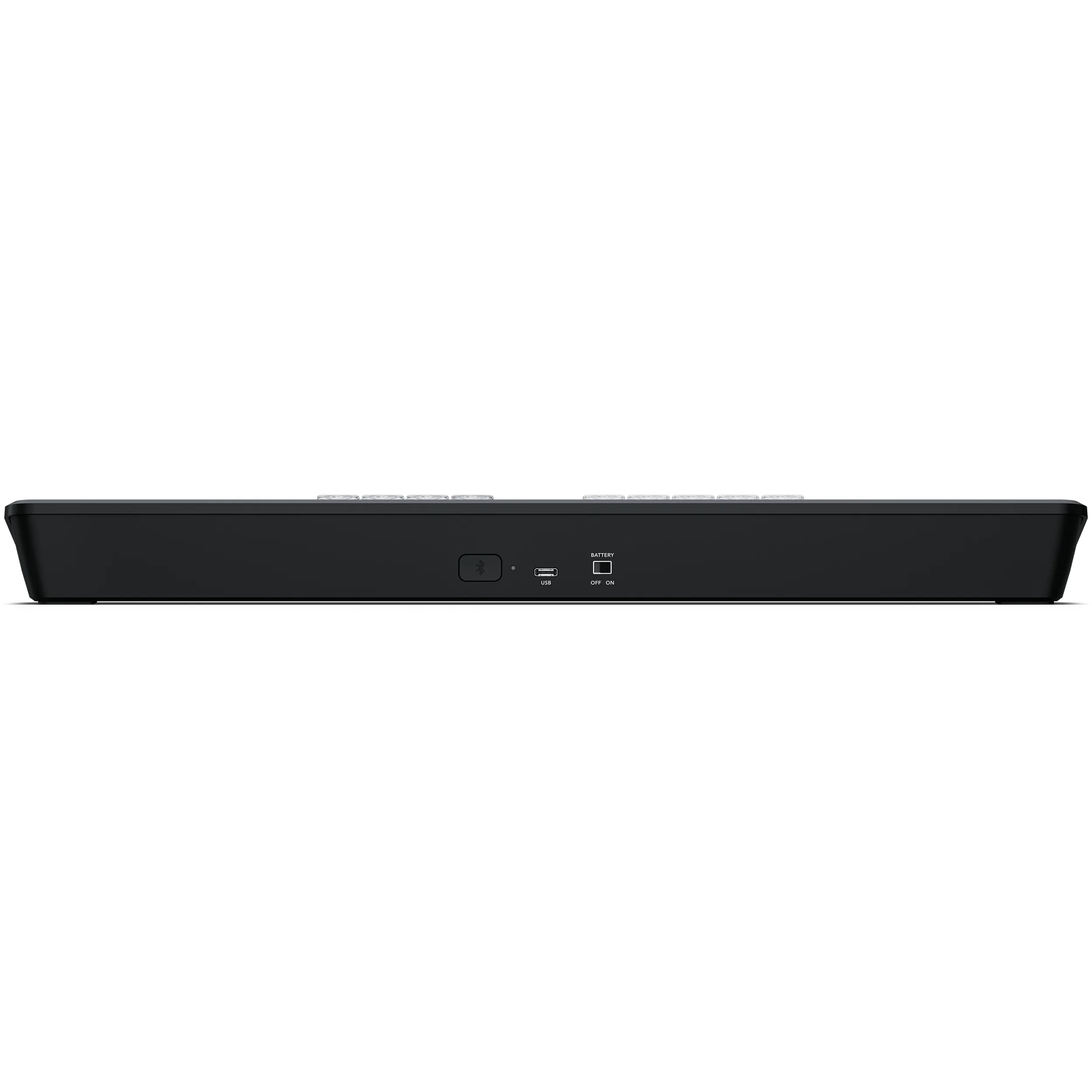

Connections
Computer Interface
USB Type‑C.
Bluetooth
Bluetooth 5.1 LE

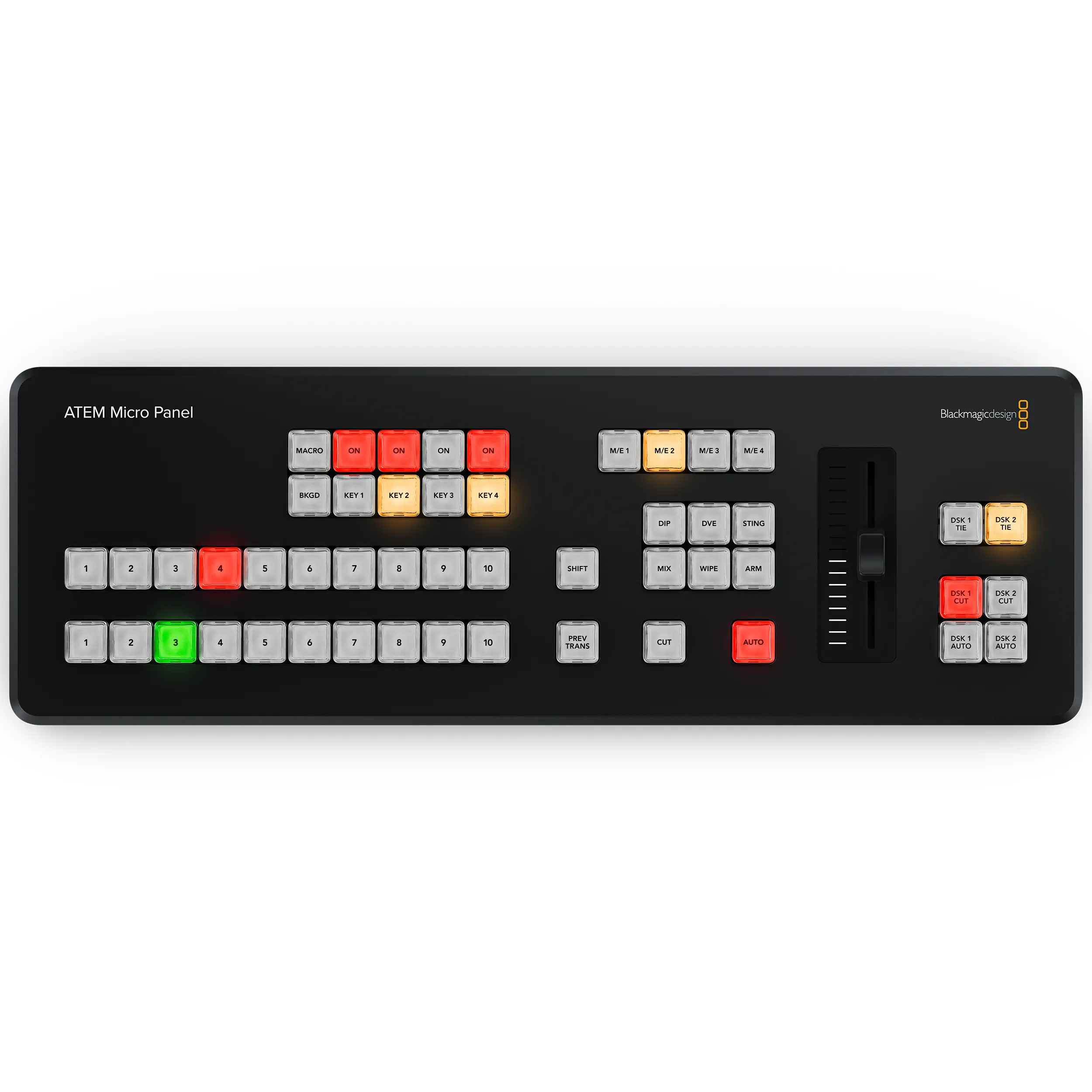

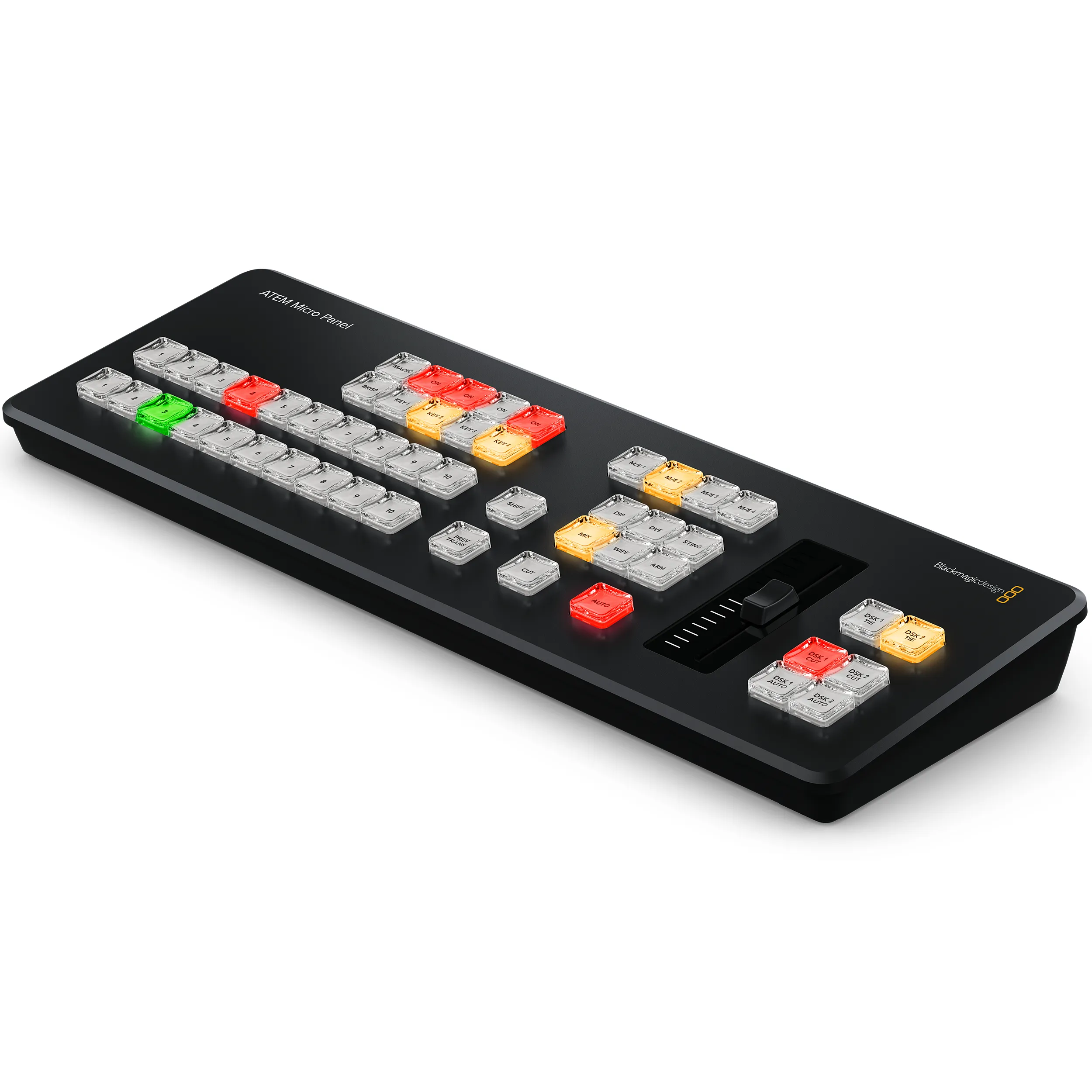

ATEM Micro Panel
Product Specifics
Number of Mix Effects Rows
1
Direct Cross Points
10
Shifted Cross Points
20
Crosspoint Button Type
Tri-Color LED
Preview Transition
1
Switching Type Buttons
CUT and AUTO
Transition Type Buttons
DIP, DVE, STINGER, MIX, WIPE.
M/E Select Buttons
4
Upstream Key Buttons
4 with ON/OFF
Downstream Key Buttons
2 with ON/OFF
Transition Slider
1
Software
Software Applications
ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating Systems
Mac icon
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows Icon
Windows 10 and 11.
Power Requirements
Power Supply
Internal battery with power switch.
USB-C port for external power supply and battery charging.
Power Usage
3 W max.
Physical Specifications
ATEM Micro Panel
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
