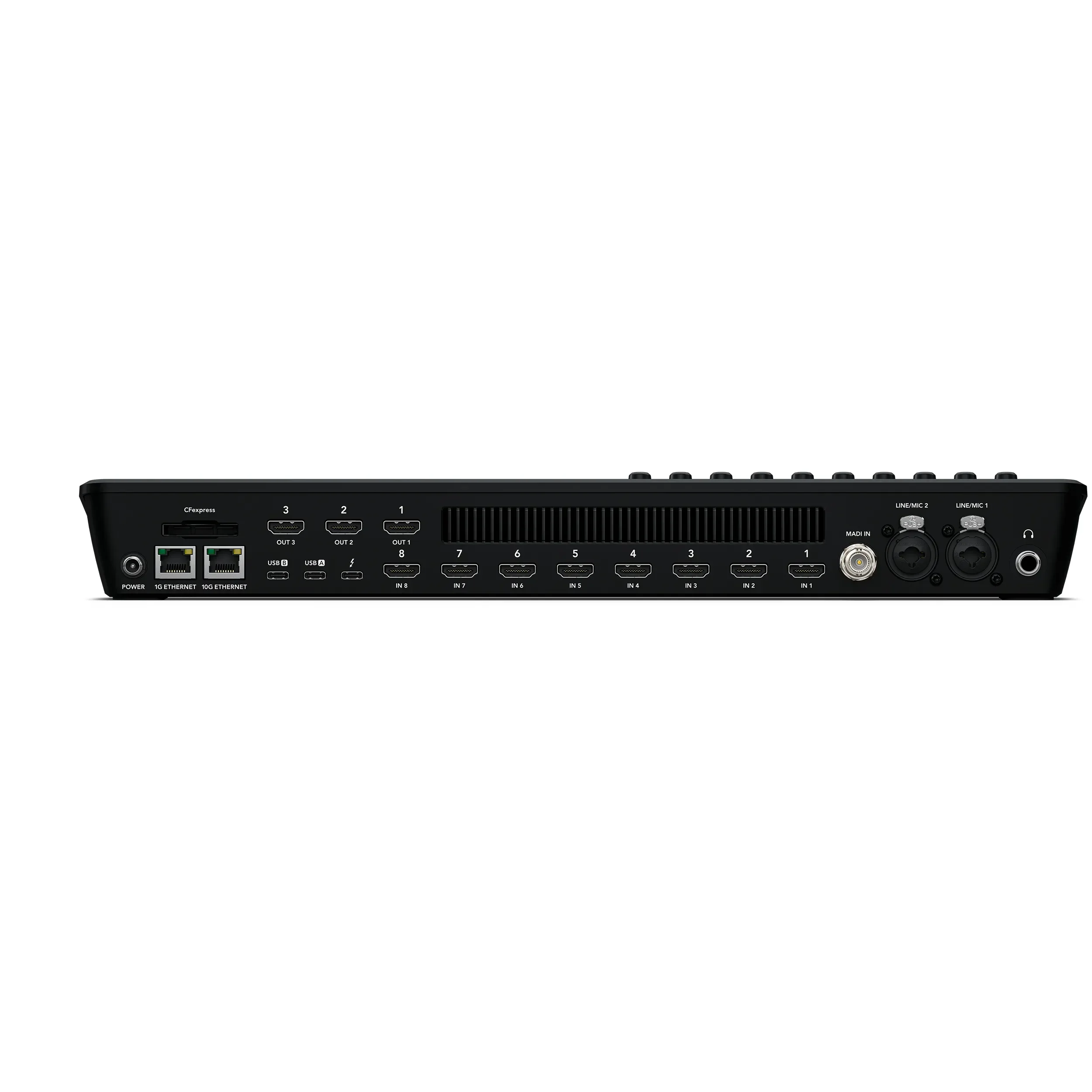

Connections
Total Video Inputs 9
Total Outputs 4
Total Aux Outputs 4
SDI Rates 1.5G, 3G
HDMI Video Inputs
8 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.
HDMI Video Outputs 3
HDMI Program Outputs 3
Total Audio Inputs
2 x XLR Combo with phantom power.
1 x BNC 32 Ch MADI digital audio.
Total Audio Outputs
1 x 6.35mm headphone jack
Timecode Connection
None
Reference Input
None
Video Input Re-Sync
On all 8 HDMI inputs and remote sources
Frame Rate and Format Converters
On all 8 HDMI inputs and remote sources
Webcam Output
2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views
1 x HDMI
1 x Webcam
Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.
Internal Timecode Generator
Yes
Tally Output
On Blackmagic HDMI and remote cameras.
Ethernet
1 x 1G Ethernet for simple streaming, control panels and internet connection,
1 x 10G Ethernet connection for recording.
Computer Interface
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power

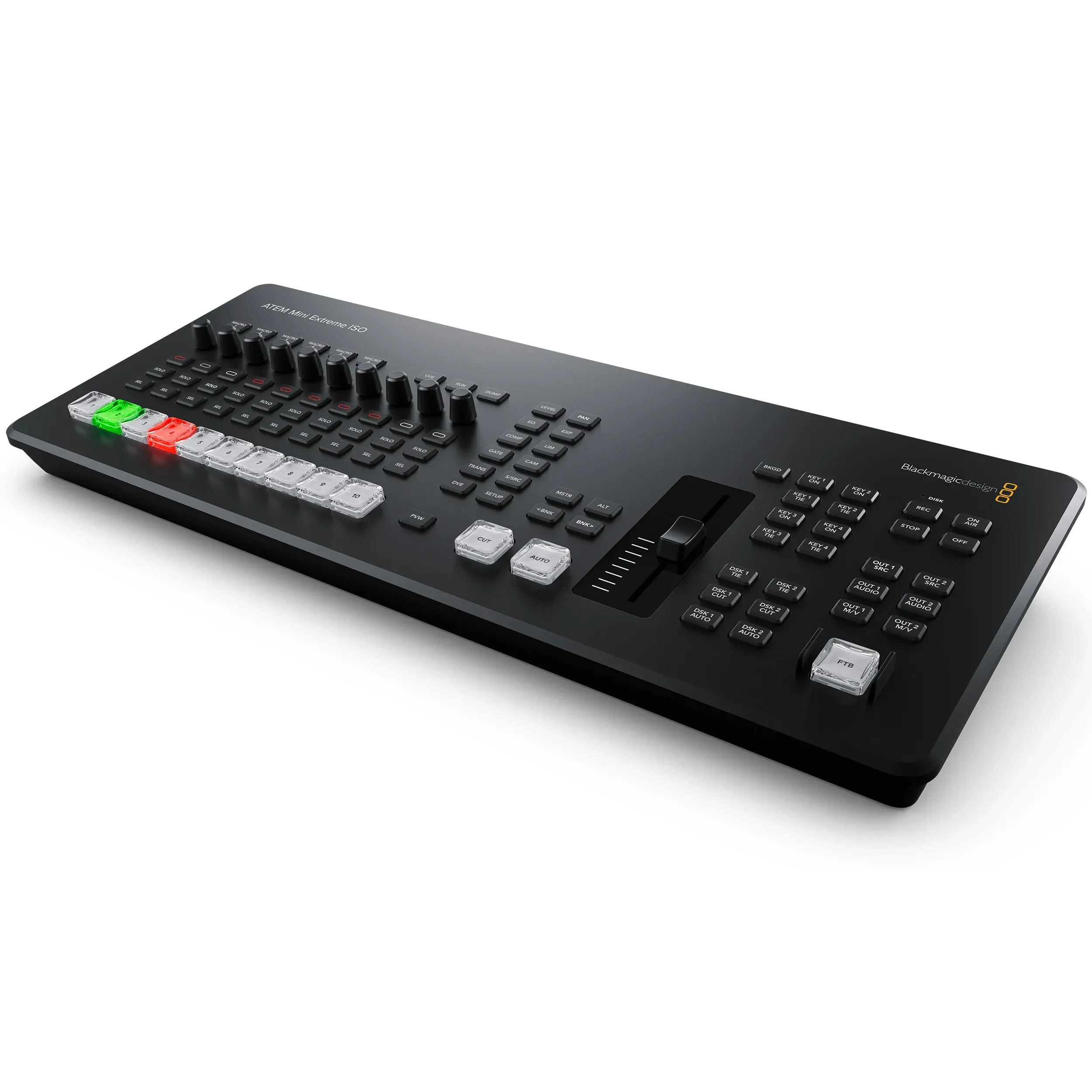

ATEM Mini Extreme ISO G2
Standards
HD Video Input Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HD Video Output Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Sampling
4:2:2 YUV
Color Precision
10-bit
Color Space
Rec 709
HDMI Input Resolutions from Computers
1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz
Colorspace Conversion
Hardware based real time.
SDI Auto Switching
-

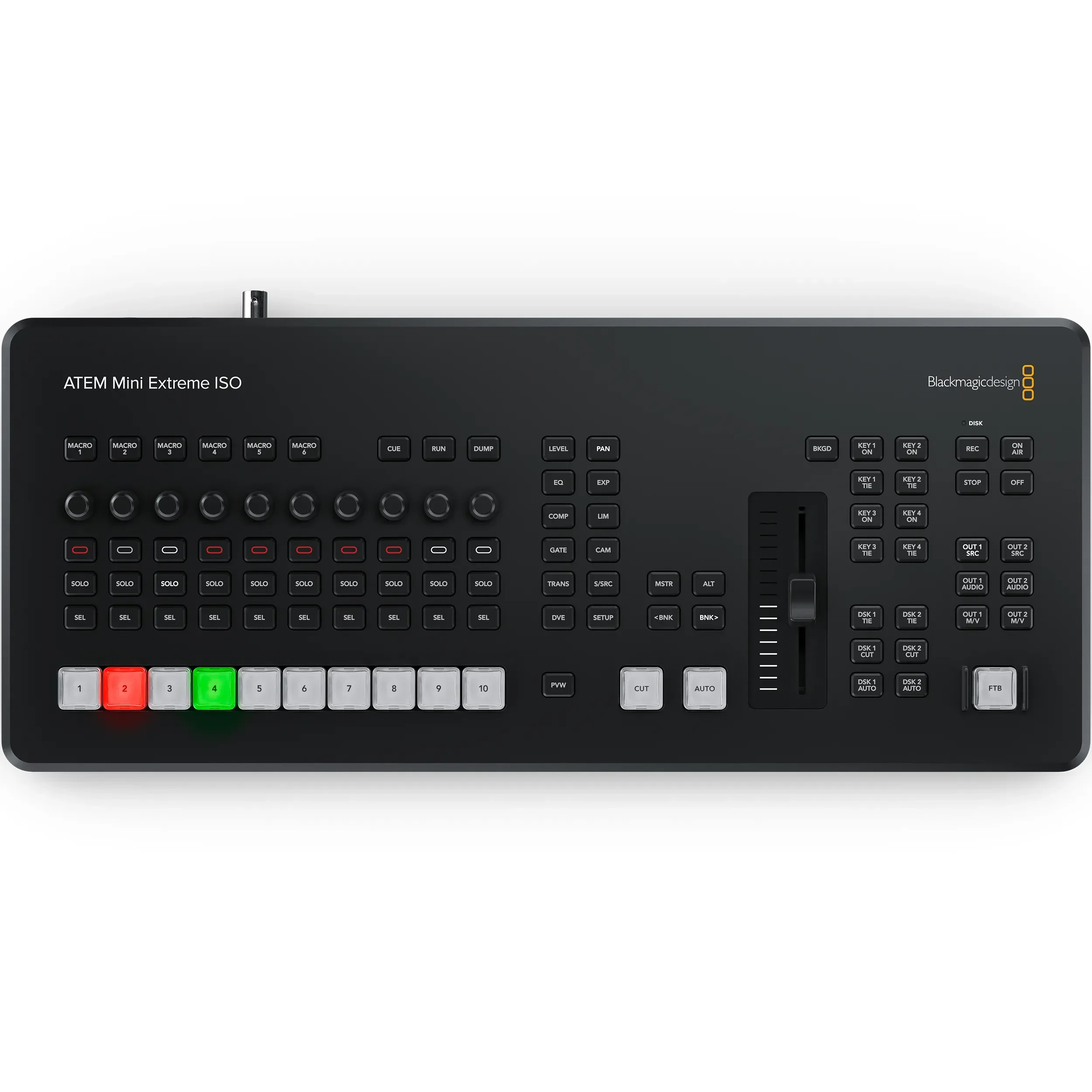

Product Specifics
Number of Mix Effects Rows 1
Direct Cross Points 10
Crosspoint Button Type
NKK Buttons
Preview Transition 1
Source Select Bus
Set using Multi Function Controls and Fairlight Audio Status Output.
Dedicated Macro Buttons 6
Transition Type Buttons
Set using Multi Function Controls and Fairlight Audio Status Output.
Transition Rate
Set using Multi Function Controls and Fairlight Audio Status Output.
Key Buttons 8
AUX Buttons 6
Fader Bar 1
Record Buttons 2
Stream Buttons 2
DSK Transition Selectors 6
Fade to Black Buttons
1 NKK button
Upstream Keyers 4
Downstream Keyers 2
Advanced Chroma Keyers
Up to 4
SuperSource 1
DVEs 2
Linear/Luma Keyers
Up to 4
Transition Keyer (Stinger/DVE)
DVE only
Color Generators 2
Control Panel
Set using Multi Function Controls and Fairlight Audio Status Output.
Routable Windows 16
Tally
Red for program and green for preview indication.
Audio
Audio Mixer
26 input x 2 channel mixer.
(8 HDMI+16MADI+XLR+Thunderbolt)
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input
Balanced stereo XLR combo connectors
Analog Input Delay
Up to 8 frames
Mic Plug In Power
+48V phantom power on XLR combo inputs
Streaming Sources
Total Streaming Sources
Up to 8
Streaming Source Format
RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting.
See user manual for data rates.
Streaming Source Setup
Mapped to inputs in ATEM Software Control Settings.
Streaming
Direct Streaming
Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Recording
Direct Recording Video and Audio
CFExpress slot for recording
Network Recording
USB-C Recording
Video Recording
8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio Recording
26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels.
Switching
Program switching recorded as a DaVinci Resolve project .drp file.
Media Format
Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi View Monitoring
Multi View Monitoring
Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.
Multi View Video Standard
HD
Media Player
Media Players
2
Channels
Fill and key for each Media Player.
Media Pool Still Image Capacity
20 with fill and key.
Media Pool Still Image Format
200 frames in 1080 HD.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
TGA Sequence.
Media Pool Audio File Format
WAV, MP3 and AIFF.
Control
Control Panel
Built in control panel.
Software control panel with camera control included. Supports optional hardware panel.
Control Panel Connection
Ethernet supports 10/100/1000/10G BaseT.
Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Control Panel Compatibility
Includes ATEM Software Control Panel.
Also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel.
Can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control Panel Included
ATEM Software Control Panel included free for Mac 10.14 Sonoma, Mac 10.15 Sequoia or later later and Windows 11, Windows 10 64 bit only.
Processing
Audio Mixer
58 Channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
6 band parametric EQ,
Dynamics including Expander,
Gate, Compressor and Limiter.
Camera Control
When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Software
Control Panel Included
ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later. and Windows 10 or 11.
Software Updates
Using USB or Ethernet connection directly connected to macOS or Windows computers.
Includes ATEM Setup Utility.
Configuration
Set via ATEM Software Control, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating Systems
Mac icon
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows Icon
Windows 10 and 11.
Windows 11 for ARM
Power Requirements
Power Supply
1 x External 12V power supply.
Power Usage
-
Physical Specifications
ATEM Mini Extreme ISO G2
Environmental Specifications
Operating Temperature
5° C to 40° C (41° - 104° F)
Storage Temperature
-10° to 60° C (14° to 140° F)
Relative Humidity
0% to 90% non-condensing
