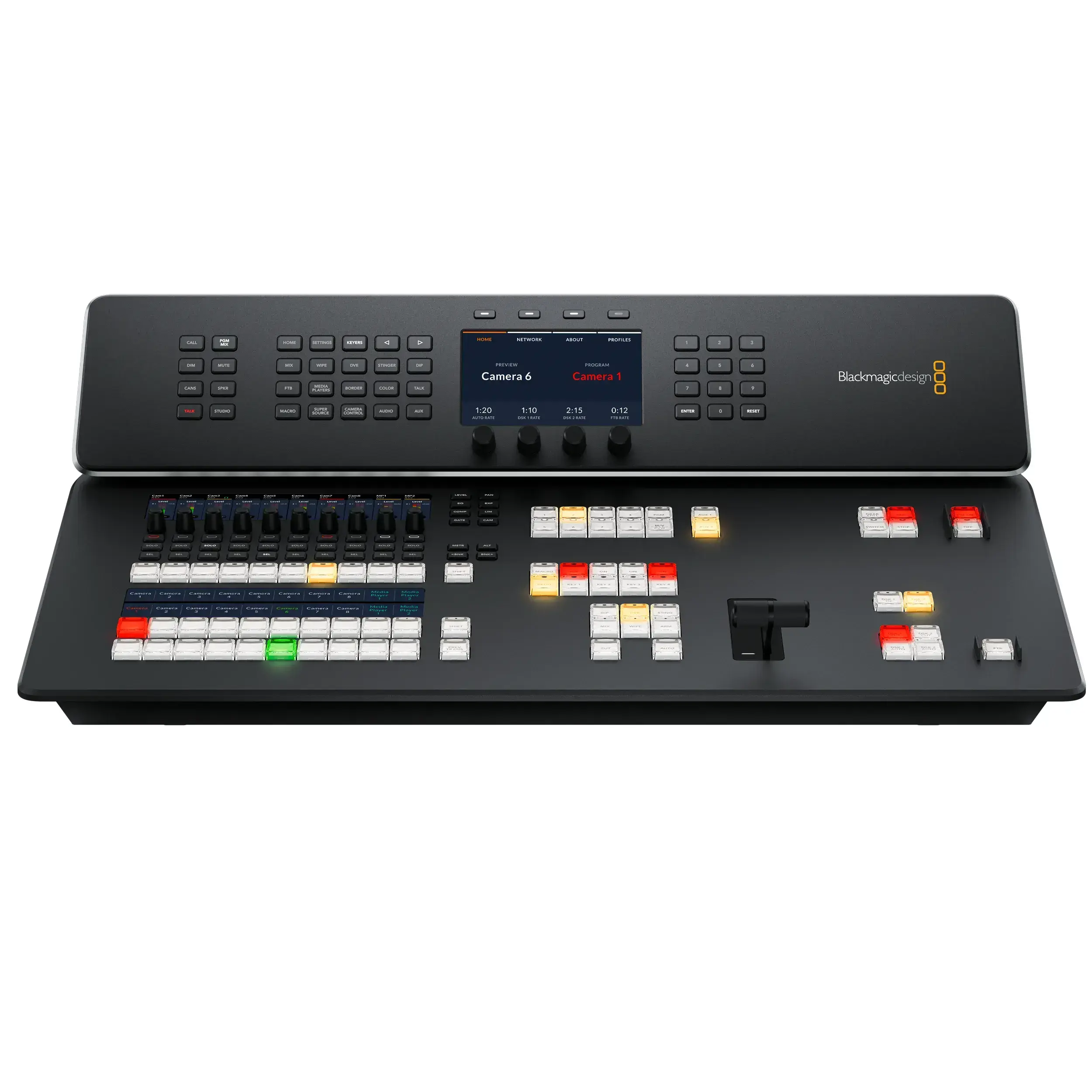

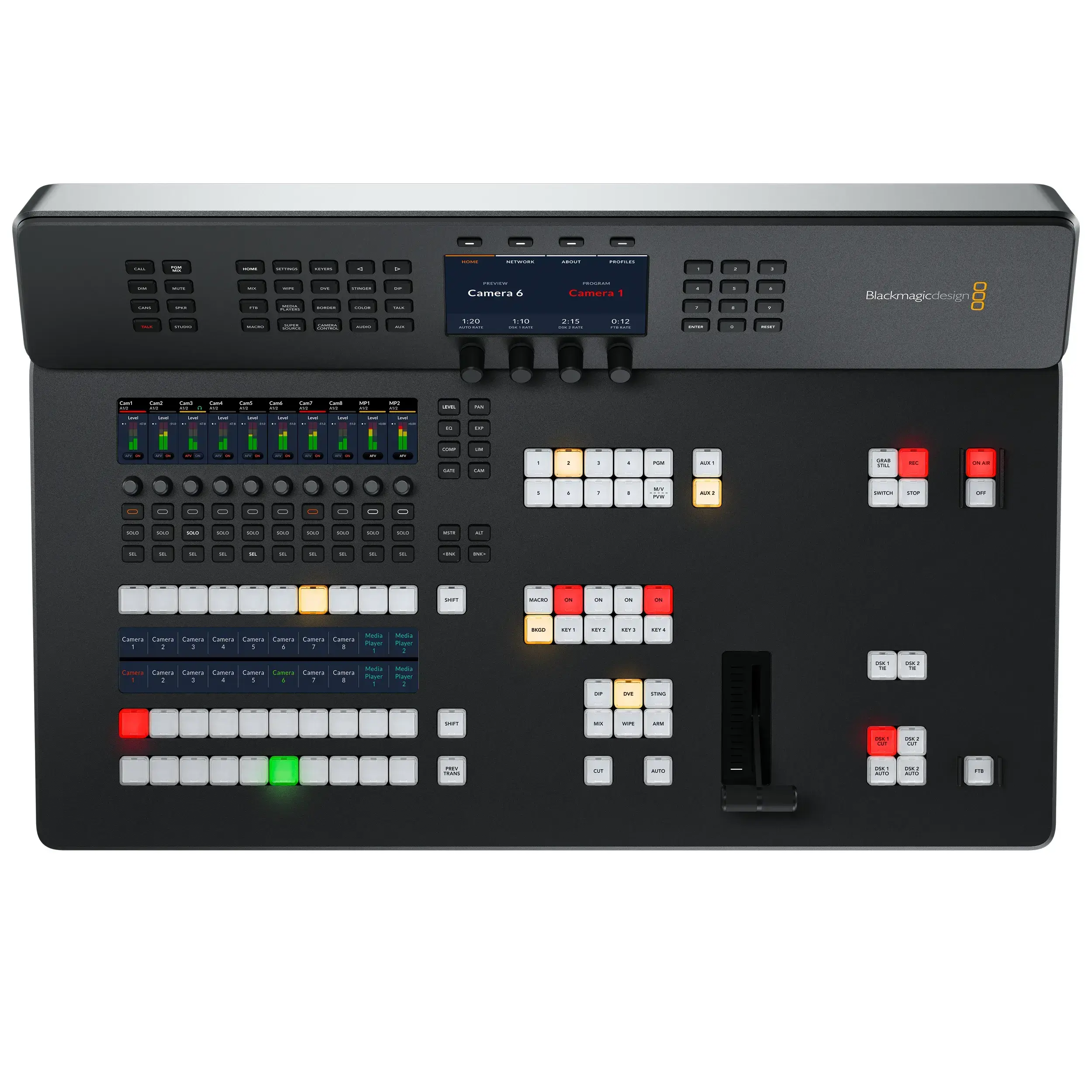

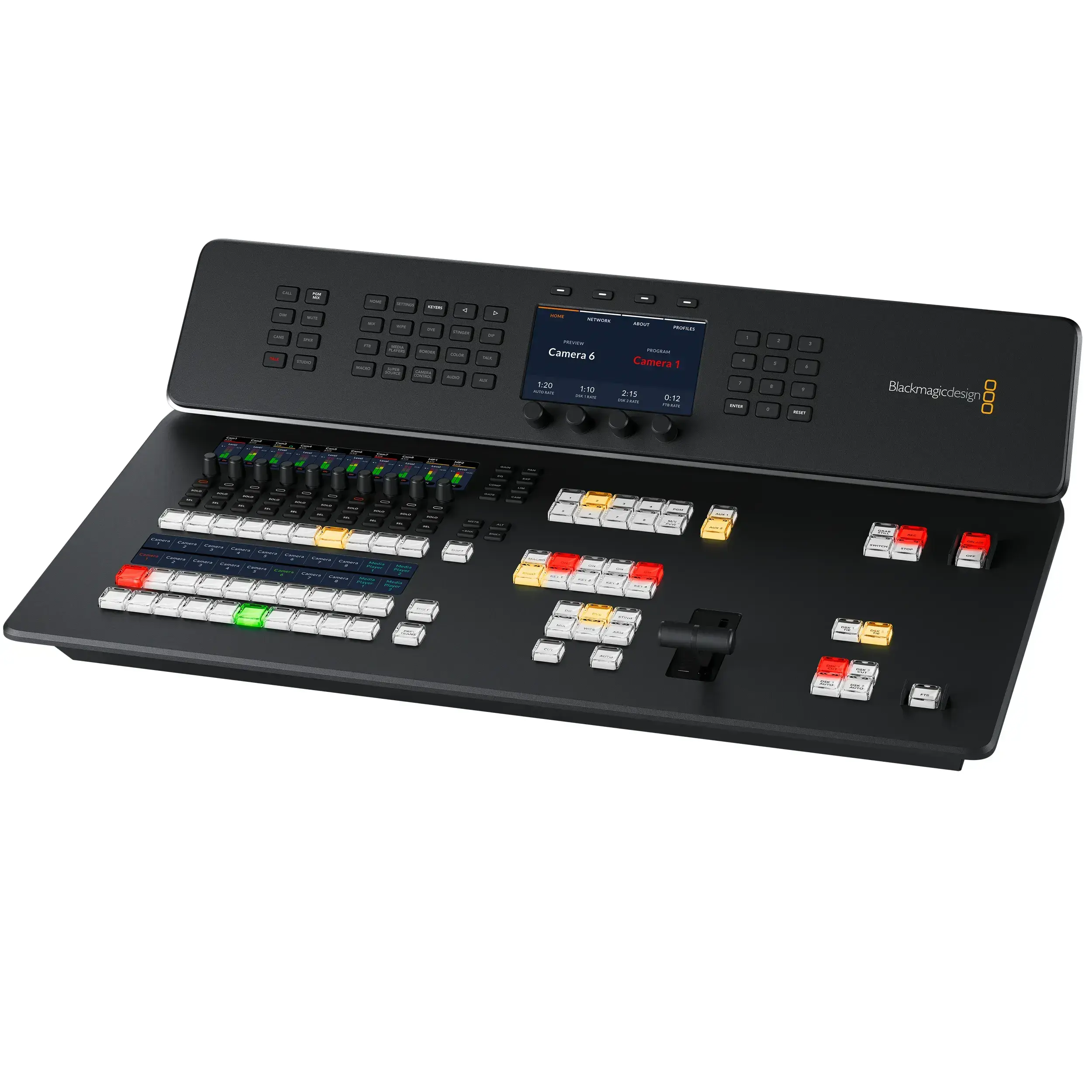

Blackmagic ATEM Television Studio HD8 ISO

Connections
SDI Video Inputs
8

SDI Video Outputs
12

SDI Rates
1.5G, 3G

HDMI Video Outputs
1

Total Audio Inputs
2 x XLR balanced analog audio,

1 x BNC 32 Ch MADI digital audio,

2 x RCA stereo analog audio,

1 x 5 pin XLR Talkback.

Total Audio Outputs
4 x 1/4 inch Jack analog audio,

1 x BNC 64 Ch MADI digital audio, up to 50 active,

1 x 5 pin XLR Talkback.

SDI Audio Inputs
4 Ch embedded audio on all SDI inputs.

SDI Audio Outputs
2 Ch embedded audio on all SDI outputs.

Timecode Connections
1 x BNC In, 1 x BNC Out.

Reference Input
1 x BNC In, 1 x BNC Out.

Tri-Sync or Black Burst.

Video Input Re-Sync
On all 8 inputs.

Frame Rate and Format Converters
On all 8 inputs.

SDI Aux Outputs
2

SDI Program Outputs
1

Webcam Output
2 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views
1 x 3G-SDI

1 x HDMI

Remote
RJ12 supports RS-422

Control Panel Connection
Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator
Yes

Talkback
RJ45 for 3rd party talkback systems.

Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet
4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.

Computer Interface
2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection.
