Connections
10G Ethernet Ports
16 x 10Gb/s RJ‑45 connectors supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
100G Ethernet Ports
2 x 100Gb/s QSFP connectors supporting 10/100/1000/10G/100G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
SDI Monitor Outputs
1
HDMI Monitor Outputs
1
Computer Interface
USB‑C

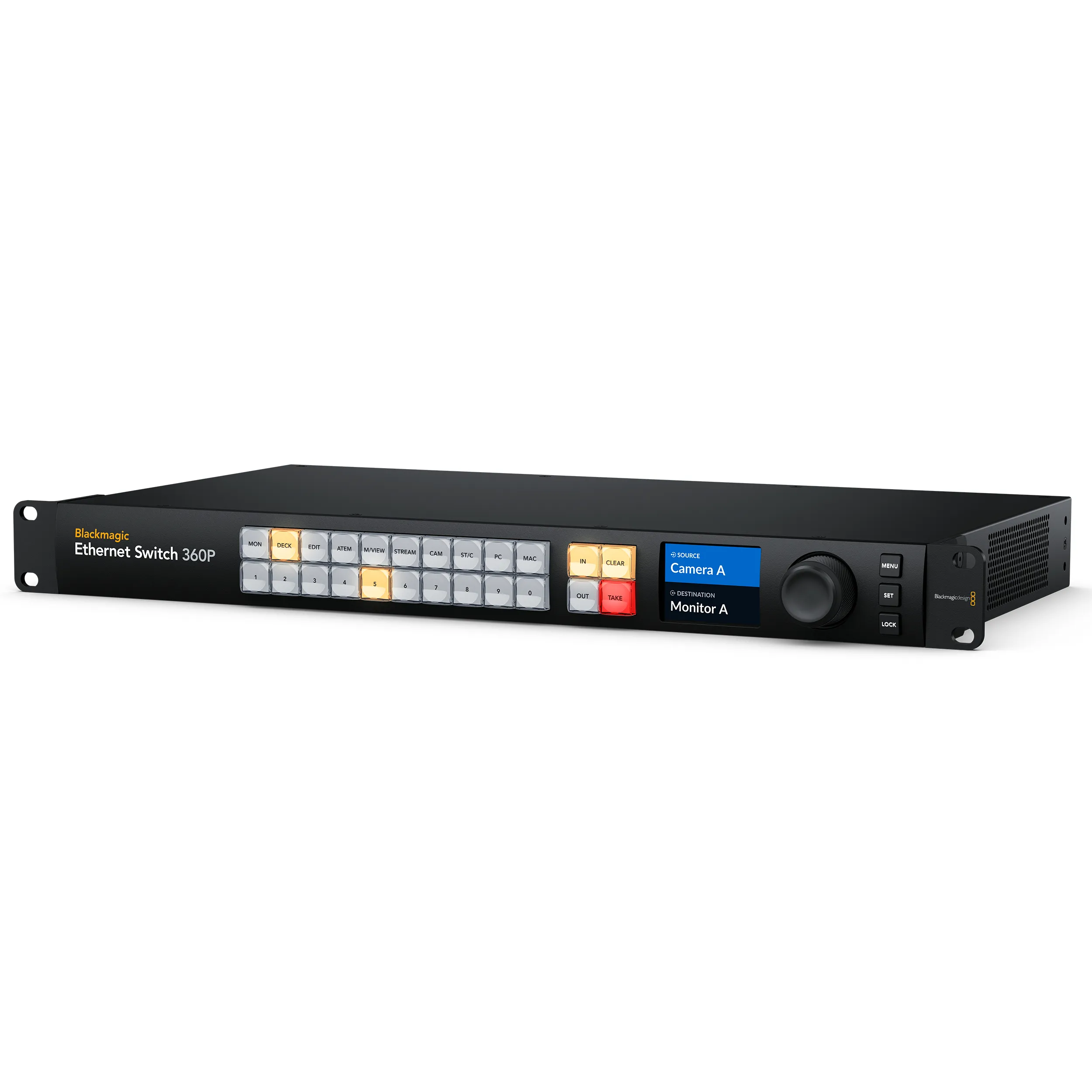

Blackmagic Ethernet Switch 360P
IP Video Compliance
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059‑1
ST 2059‑2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP‑002‑01
Natural Grouping
NMOS BCP‑004‑01
Receiver capabilities
Displays
SDI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
HDMI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
Monitor Out Displays
Device Name, network connections, network activity.

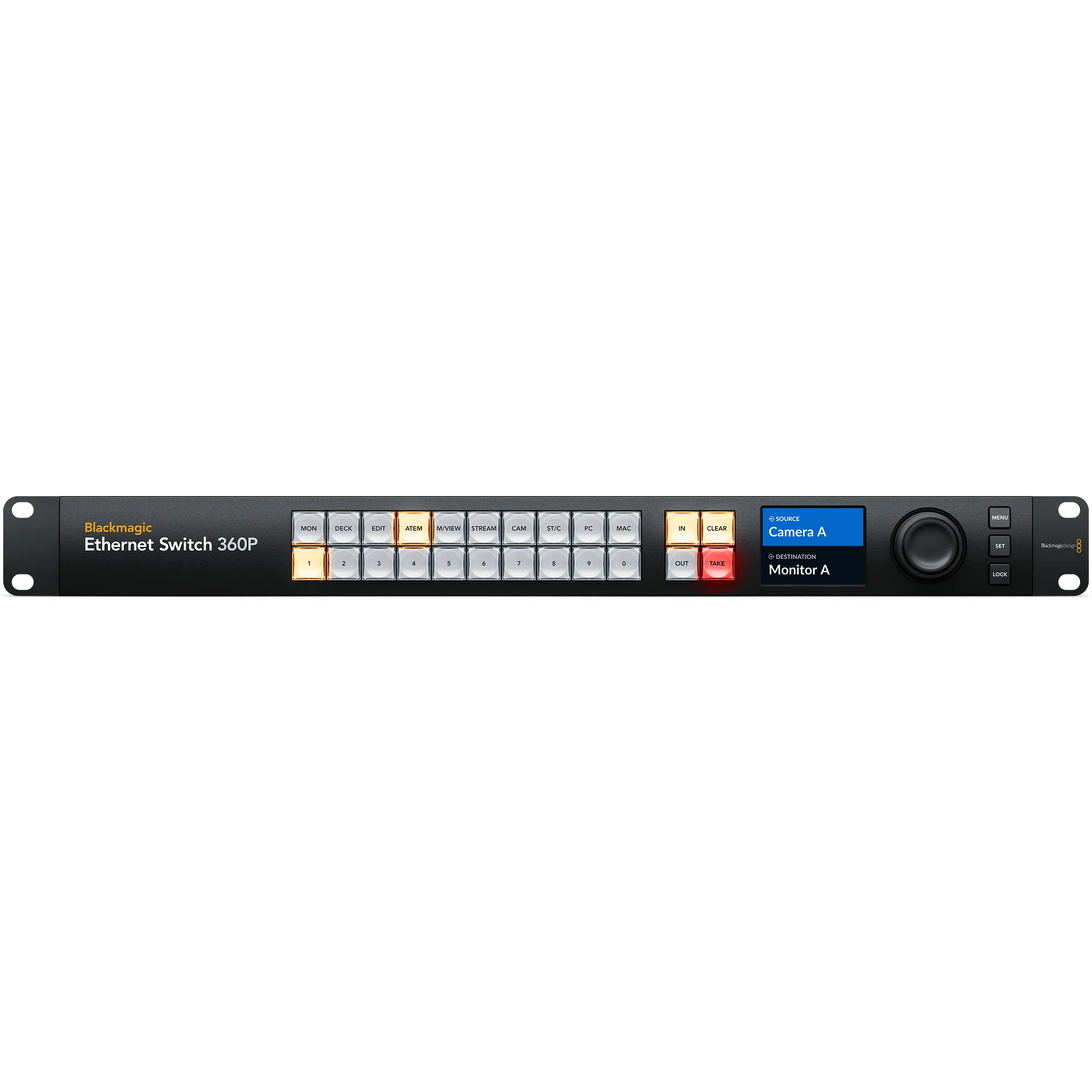

Front Panel Display
Built in 2.2 inch LCD for video and menu settings.
Control
Built in Control Panel
24 buttons for local control of Blackmagic Ethernet Switch 360P with 3 buttons and search dial for video and menu settings menu control. 2.2 inch color display.
Software
Software Control
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac icon
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows Icon
Windows 10, 64-bit.
Windows 11.
Power Requirements
Power Supply
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Inputs
1 x IEC C14 mains input.
1 x 4-pin XLR +12V DC input.
Power Usage
TBA
Physical Installation
1 rack unit.
Physical Specifications
Blackmagic Ethernet Switch 360P
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
‑20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
