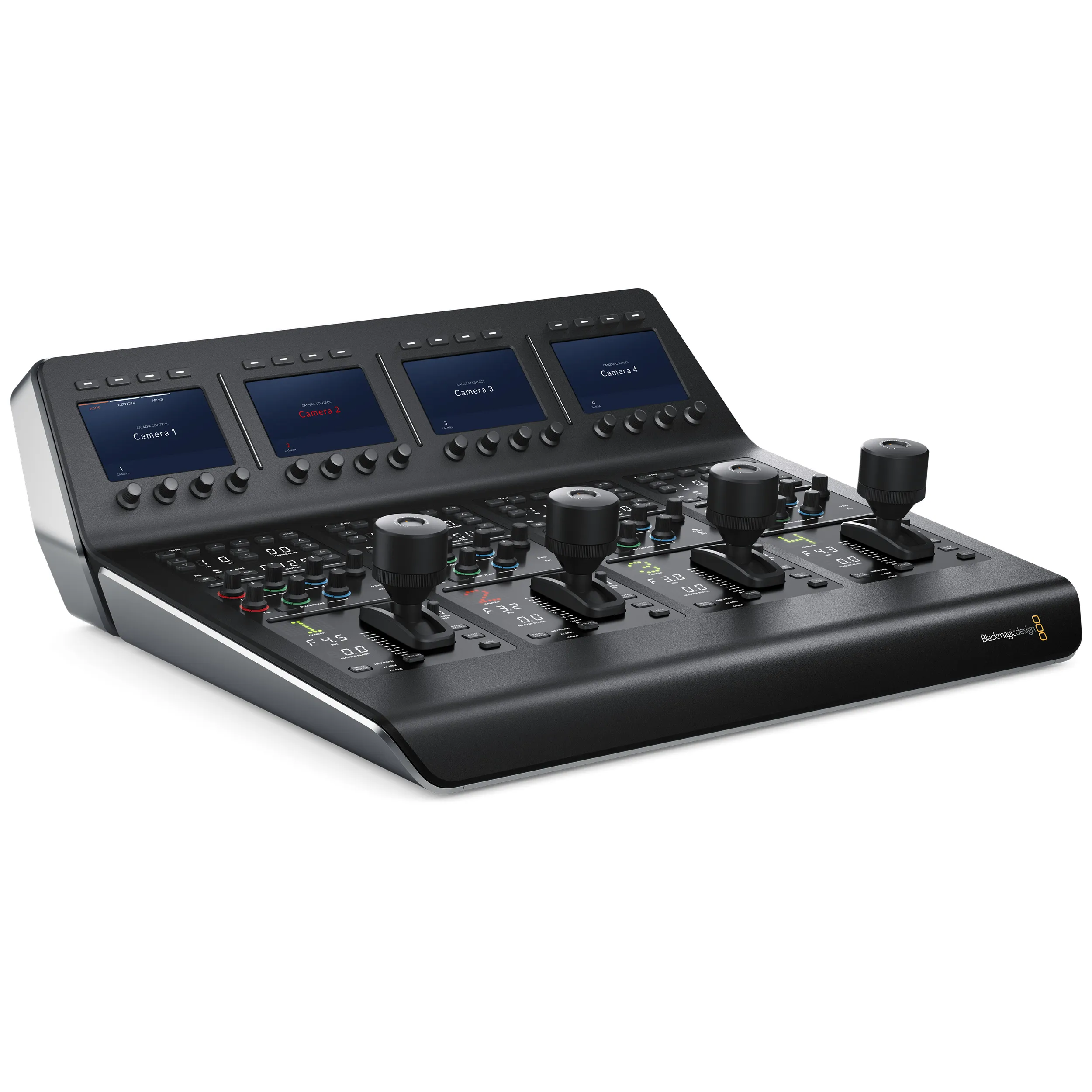

Blackmagic ATEM Camera Control Panel

מק"ט: SWPANELCCU4

24 חודשי אחריות – יבואן רשמי ABS

כמות:

The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.

Blackmagic ATEM Camera Control Panel

תיאור

מפרט טכני

מה בקופסה

חוות דעת

קבצים להורדה

Blackmagic ATEM Camera Control Panel

Connections
Ethernet
2 x 10/100/1000 BaseT with loop output for additional control panels or computers.

Software Updates
1 x USB-C for firmware updates.

ATEM Camera Control Panel
Product Specifics
LCD Menu Displays
4

Camera Number Display
Green off air, red on air.

Setup
White and black balance setup.

3 Axis Joystick
4

Preview Button
4

Iris Control
Auto Iris On, Coarse control.

Focus Control
Remote Focus control.

Panel Active
Protects settings.

Software
Software Applications
ATEM Software Control Panel.

Power Requirements
Input Voltage
1 x Internal 110 - 240V AC.

Redundant Power
Yes

Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)

Storage Temperature
-20° to 60° C (-4° to 140° F)

Relative Humidity
Up to 95%

ATEM Camera Control Panel
