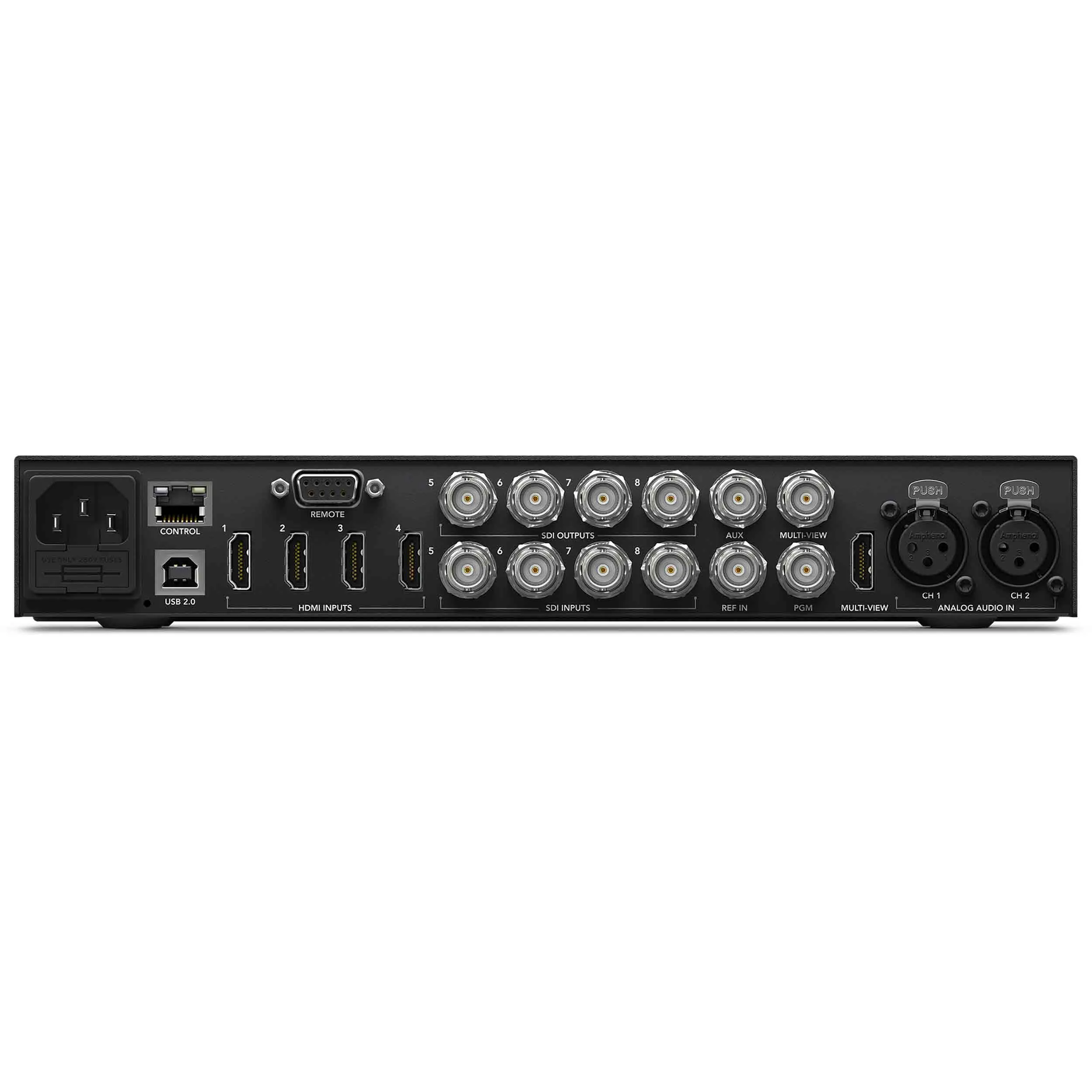

Connections
Total Video Inputs
8
Total Outputs
8
Total Aux Outputs
1
SDI Rates
270Mb, 1.5G, 3G.
Total Audio Inputs
2 x XLR.
Total Audio Outputs
None, embedded audio only.
Timecode Connection
None.
SDI Video Inputs
4 x 10-bit SD/HD switchable. 2 channel embedded audio.
HDMI Video Inputs
4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio.
Reference Inputs
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 8 inputs.
SDI Program Outputs
5 x 10-bit SD/HD switchable.
HDMI Program Outputs
None.
SDI Audio Outputs
2 Ch embedded into SDI output.
Computer Outputs
None.

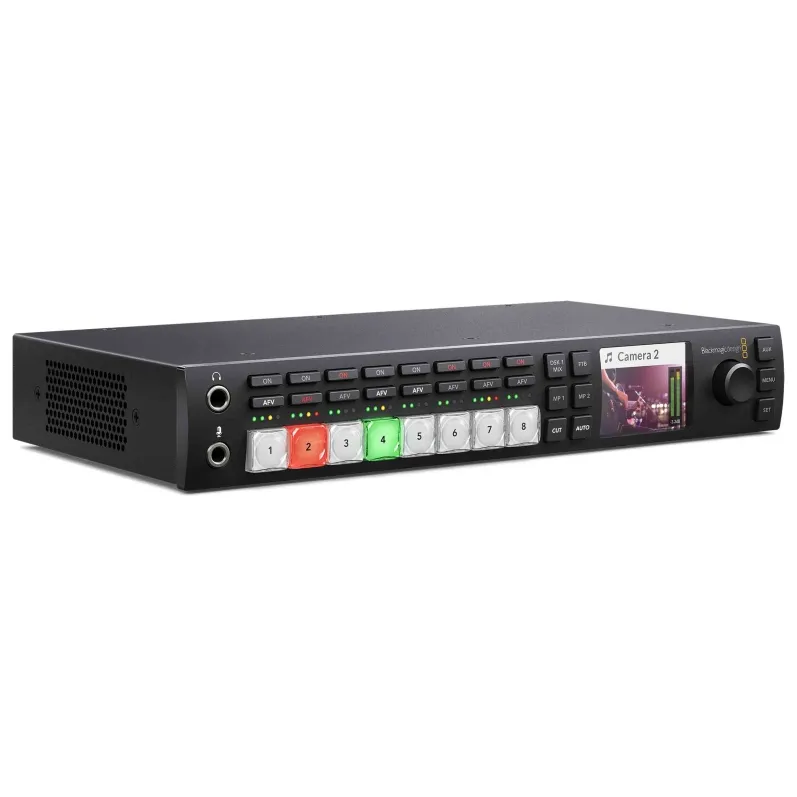

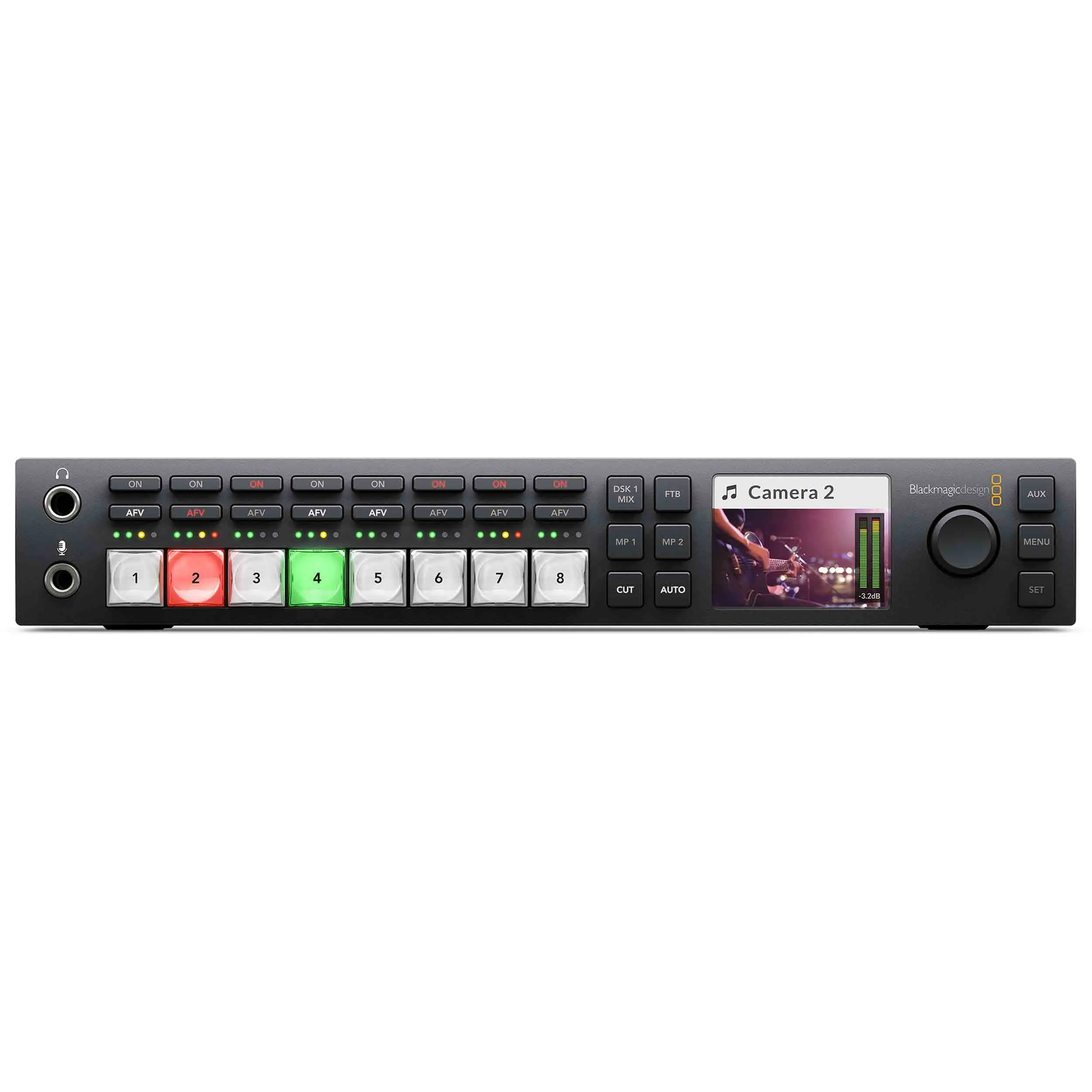

ATEM Television Studio HD
Standards
SD Video Standards
525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
HD Video Standards
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94,
1080i50, 1080i59.94
Ultra HD Video Standards
None.
SDI Compliance
SMPTE 259M, 292M and 424M.
Video Sampling
4:2:2 10-bit
Color Precision
4:2:2 10-bit
Color Space
4:2:2 YUV
HDMI Input Resolutions for Computers
720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz.
Colorspace Conversion
Hardware based real time.
Processing Delay
6 Lines.
Audio Mixer
10 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.
Product Specifics
Upstream Keyers
1
Downstream Keyers
2
Chroma Keyers
1
Linear/Luma Keyers
3
Talkback Support
Built in, uses aviation headset.
Mix Minus Support
Yes, on 4 camera PGM outputs.
Transition Keyer (Stinger/DVE)
DVE only.
Total Number of Layers
5
Pattern Generators
2
Color Generators
2
DVE with 3D Borders & Drop Shadow
1
Interface
Minimum monitor resolution of 1366 x 768.
Number of Windows
1 x 10
Routable Windows
8 routable and 2 fixed for Program and Preview.
Tally
Red for program and green for preview indication.
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
Windows Source Labels
Yes
Multi View Monitoring
Multi View Monitoring
1 x 10 Views.
Multi View Video Standard
HD
Media Player
Media Players
2, with non volatile flash memory.
Channels
Fill and key for each Media Player.
Media Pool Still Image Capacity
20 with fill and key.
Media Pool Clip Capacity
None.
Media Player Clip Length in 720 HD
None.
Media Player Clip Length in 1080 HD
None.
Media Player Clip Length in Ultra HD
None.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
None.
Media Pool Audio File Format
None.
Control
Control Panel
Built in control panel. Software control panel included. Supports optional broadcast panel.
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software.
Control Panel Compatibilty
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.
Control Panel Included
ATEM Software Control Panel included free for Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit.
Software
Software Updates
Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Power Requirements
Power Supply
1 x internal 110 – 240V AC
Power Usage
40W
Environmental Specifications
Operating Temperature:
5° C to 40° C (41° - 104°F)
Storage Temperature:
-10° to 60° C (14° to 140° F)
Relative Humidity:
0% to 90% non-condensing
