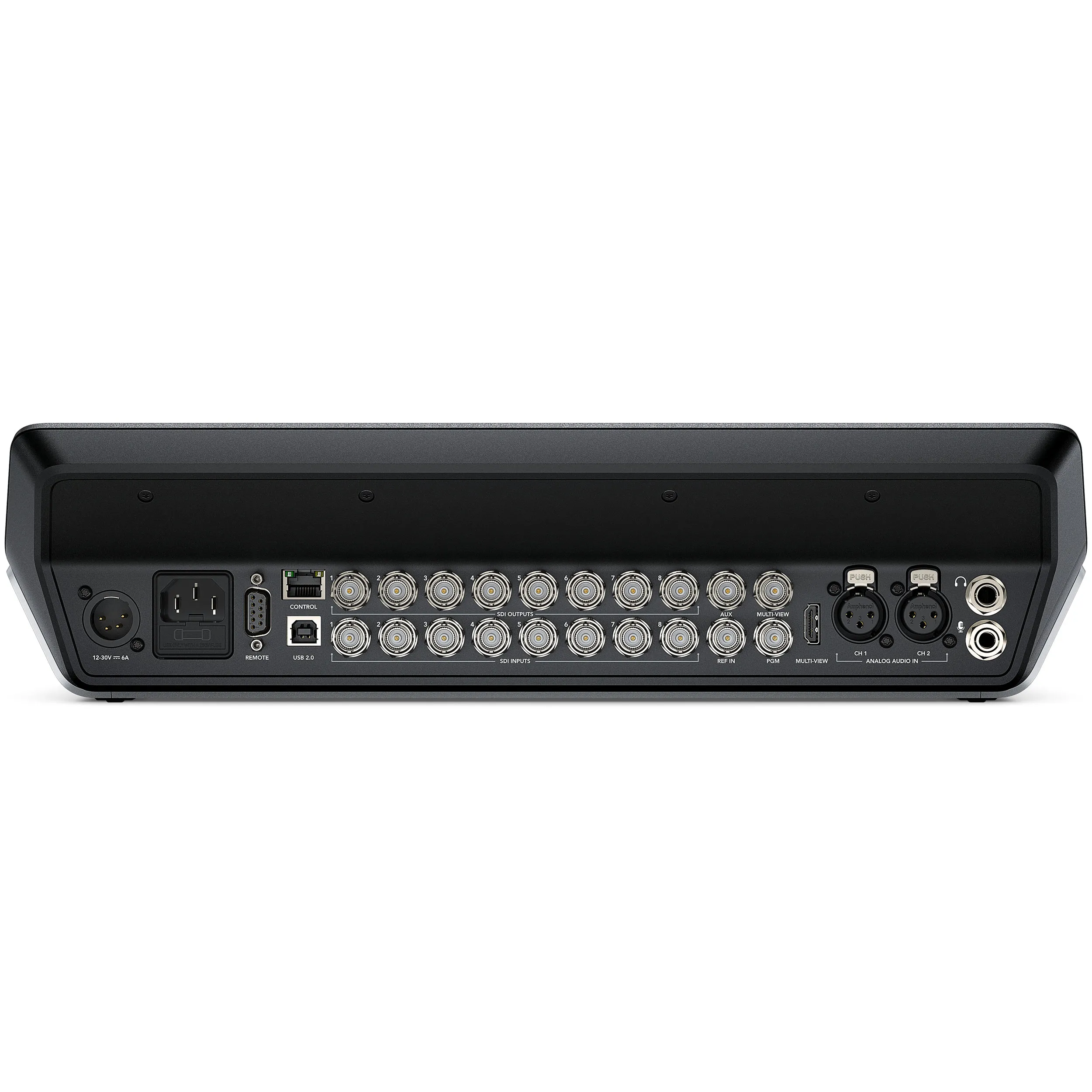

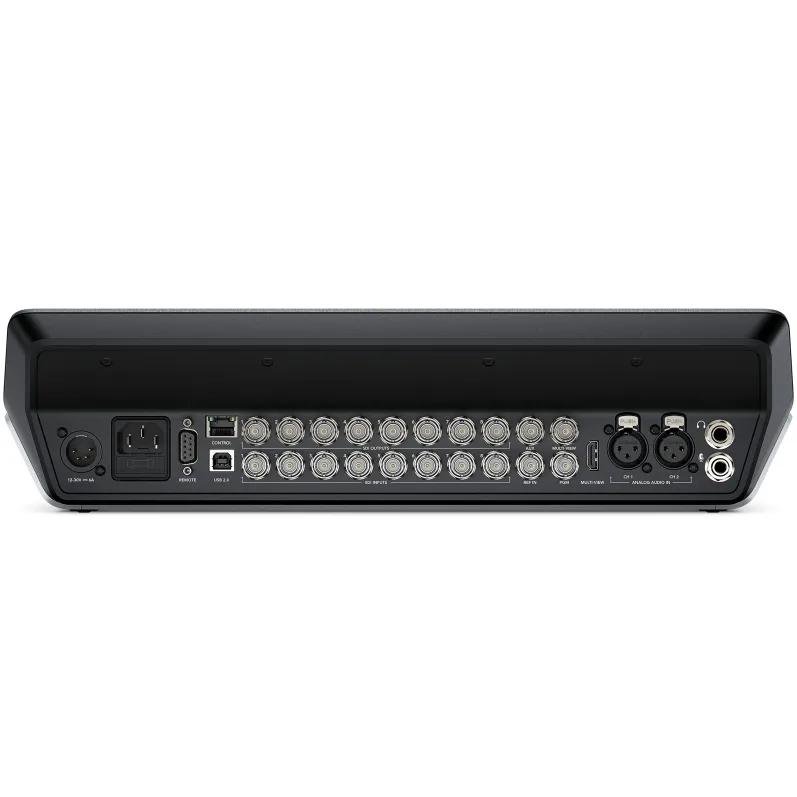

Connections
Total Video Inputs
8
Total Outputs
12
Total Aux Outputs
1
SDI Rates
1.5G, 3G, 6G,12G.
Total Audio Inputs
2 x XLR. 1 x Microphone.
Total Audio Outputs
1 x Headphone.
SDI Video Inputs
8 x 10-bit HD/UHD switchable. 2 channel embedded audio.
HDMI Video Inputs
None
Reference Inputs
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 8 inputs.
Frame rate and format convertors
On all 8 inputs.
SDI Program Outputs
9 x 10-bit HD/UHD switchable.
SDI Audio Outputs
2 Ch embedded into SDI output.
Multi View Monitoring
1
Multi View Video
1 x SDI and 1 x HDMI.

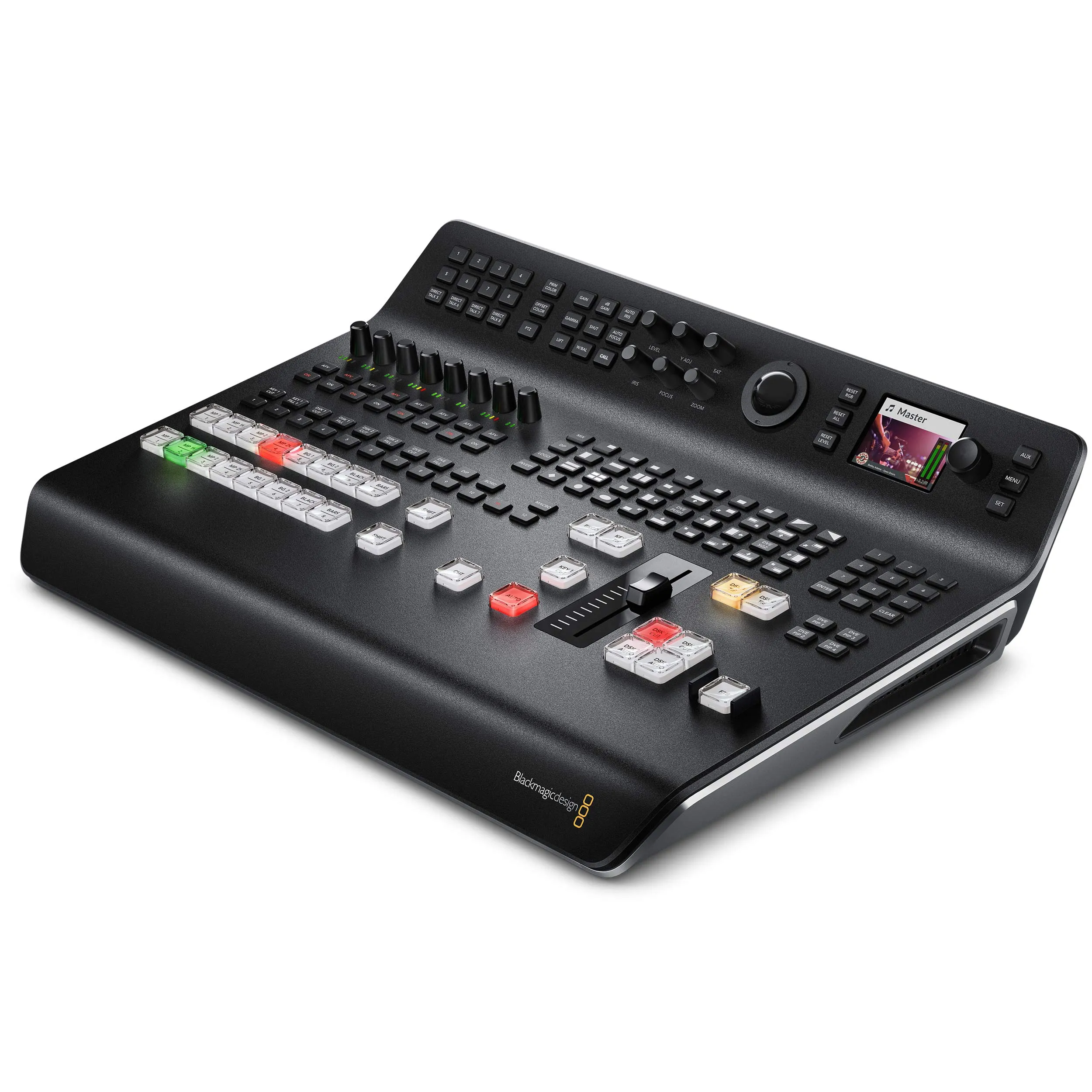

ATEM Television Studio Pro 4K
Standards
SD Video Standards
None
HD Video Standards
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
1080i50, 1080i59.94
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94
SDI Compliance
292M and 424M, 2081, 2082.
Video Sampling
4:2:2 10-bit
Color Precision
4:2:2 10-bit
Color Space
4:2:2 YUV
Input Resolutions for Computers
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
Colorspace Conversion
None
Processing Delay
6 Lines.
Audio Mixer
12 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Delay line and Stereo Synthesizer on the XLR inputs only.
Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.
Product Specifics
Upstream Keyers
1 with Chroma/Linear/Luma key.
Downstream Keyers
2
Chroma Keyers
1
Linear/Luma Keyers
3
Talkback Support
Built in, uses aviation headset.
Mix Minus Support
Yes, on 8 camera PGM outputs.
Transition Keyer (Stinger/DVE)
Stinger and DVE.
Total Number of Layers
5
Pattern Generators
2
Color Generators
2
DVE with 3D Borders & Drop Shadow
1
Interface
Minimum monitor resolution of 1366 x 768.
Number of Windows
1 x 10
Routable Windows
8 routable and 2 fixed for Program and Preview.
Tally
Red for program and green for preview indication.
Tally Output
Embedded via SDI. Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
Windows Source Labels
Yes.
Multi View Monitoring
Multi View Monitoring
1 x 10 Views.
Multi View Video Standard
HD/Ultra HD.
Media Player
Media Players
2, with non volatile flash memory.
Media Pool Still Image Capacity
20 with fill and key.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Channels
Fill and key for each Media Player.
Media Pool Clip Capacity
2 with fill and key. Shared pool.
Media Pool Clip File Format
TGA Sequence.
Media Player Clip Length in 720 HD
1440 frames.
Media Player Clip Length in 1080 HD
360 frames.
Media Player Clip Length in Ultra HD
90 frames.
Media Pool Audio File Format
WAV, MP3 and AIFF.
Control

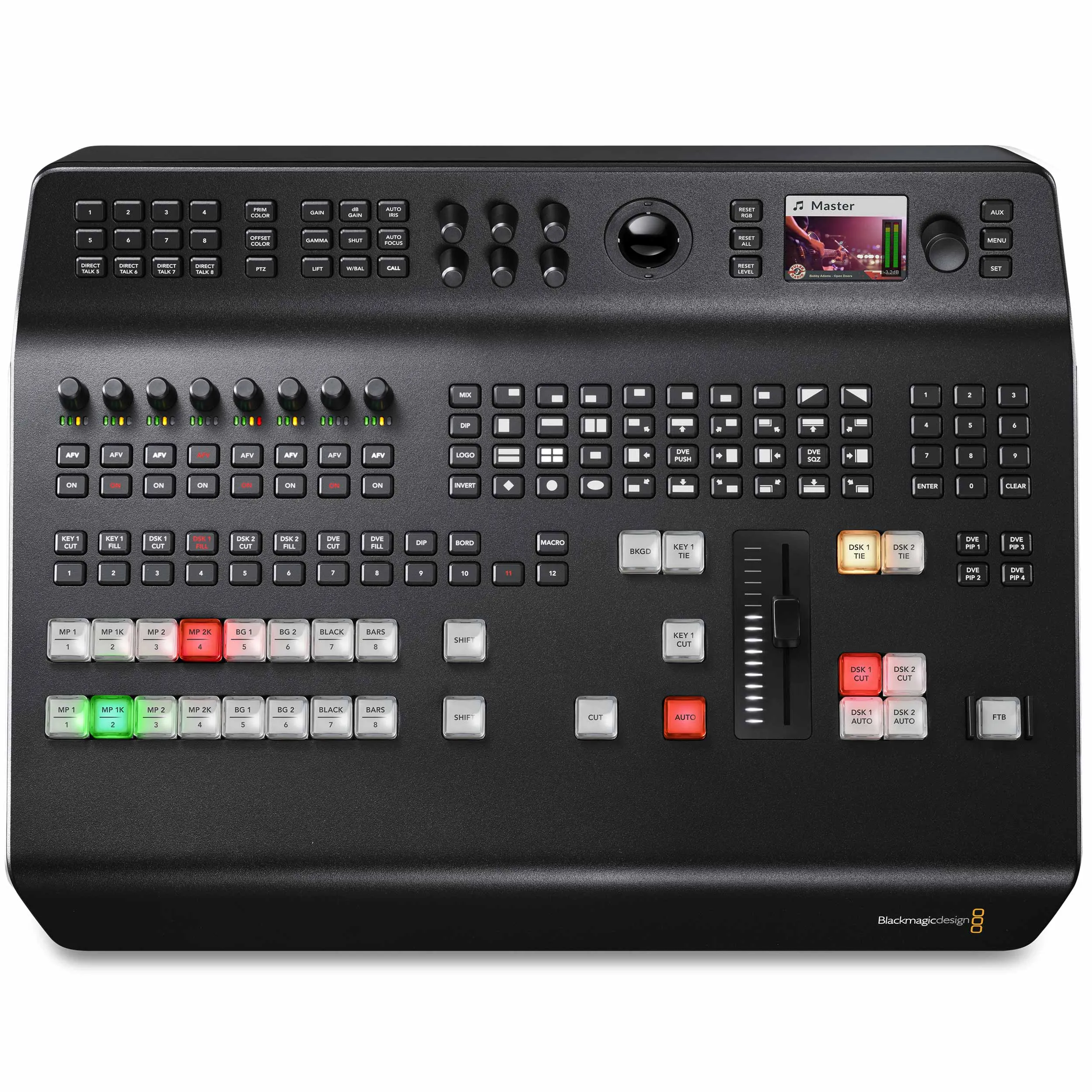

Control Panel
Built in with camera control. Software panel included. Supports optional broadcast panel.
Control Panel Compatibilty
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.
Control Panel Included
ATEM Software Control Panel included free for macOS Sierra 10.12 or macOS High Sierra 10.13 or later and Windows 8.1 64-bit or Windows 10 64-bit.
Software
Software Updates
Using USB connection directly connected to macOS or Windows computers. Includes ATEM Switcher Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Power Requirements
Power Supply
1 x Internal 110 - 240V AC. 4 pin 12V DC.
Power Usage
70W
Environmental Specifications
Operating Temperature:
5°C to 40°C
Storage Temperature:
-20° to 60°C (-4° to 140°F)
Relative Humidity:
0% to 90% non-condensing
