Connections
Optical Fiber Input
1x SMPTE Hybrid Fiber Optic with SMPTE 304 connector (Male).
SDI Video Input
1x 12G SDI for Camera feed.
SDI Video Output
1x 3G SDI for Camera return feed, 3x 3G SDI for Return SDI Outputs.
Talkback Audio
2x 5-pin XLR for headset with three way audio mixer per output, 1x Tracker output.
Analog Audio
2x 3-pin XLR Inputs for AES, Line or Mic input. Phantom Power available.
Computer Interface
1x USB-C connector.

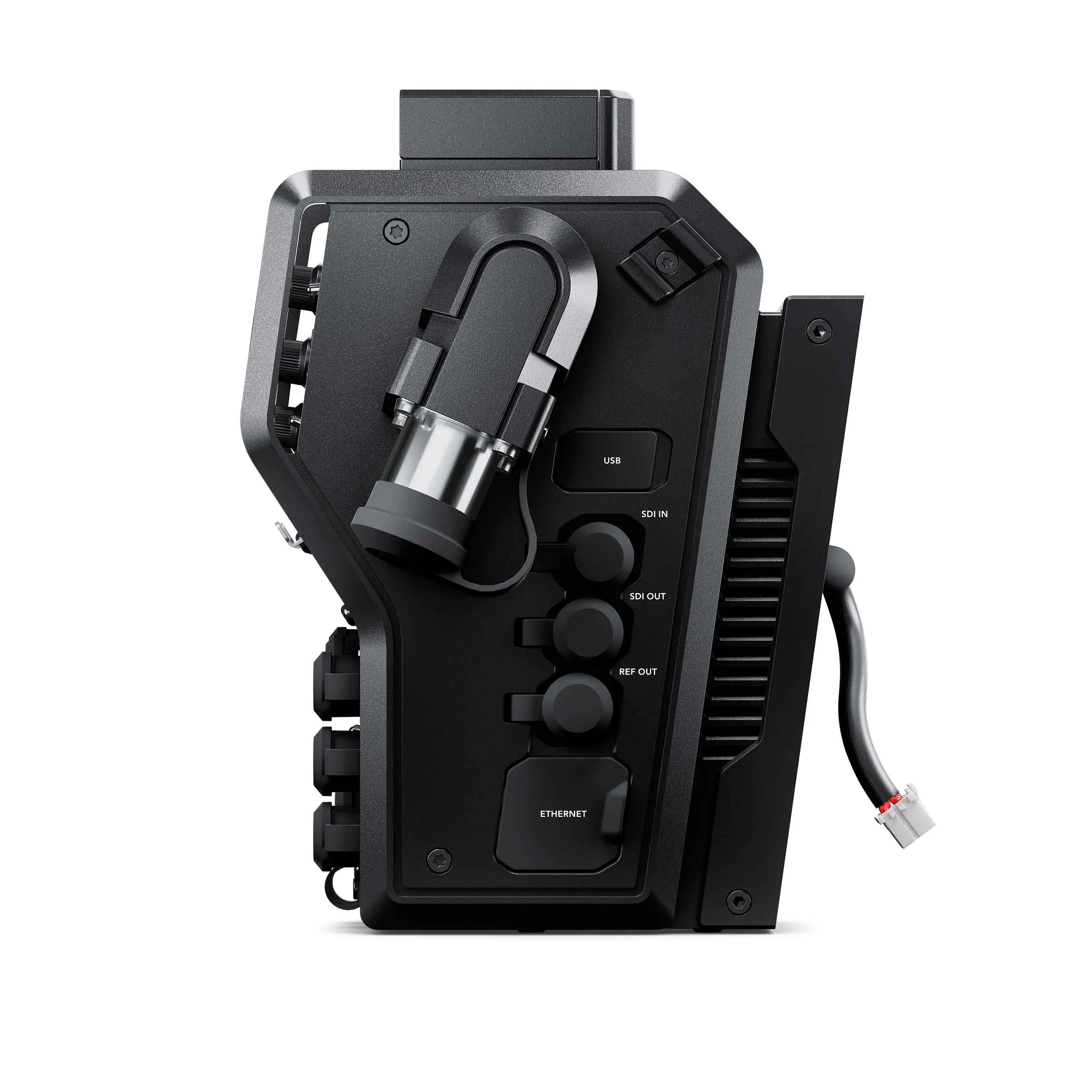

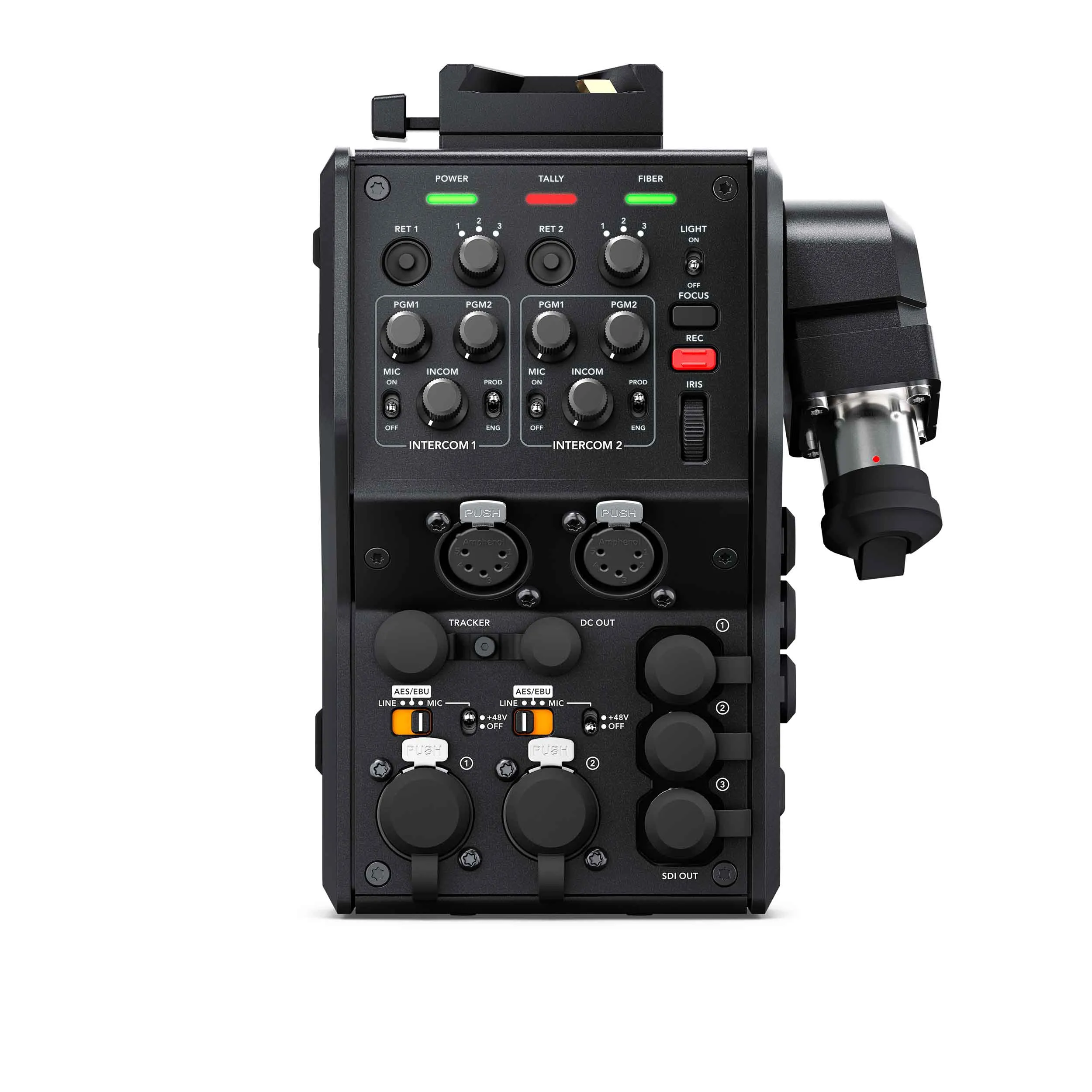

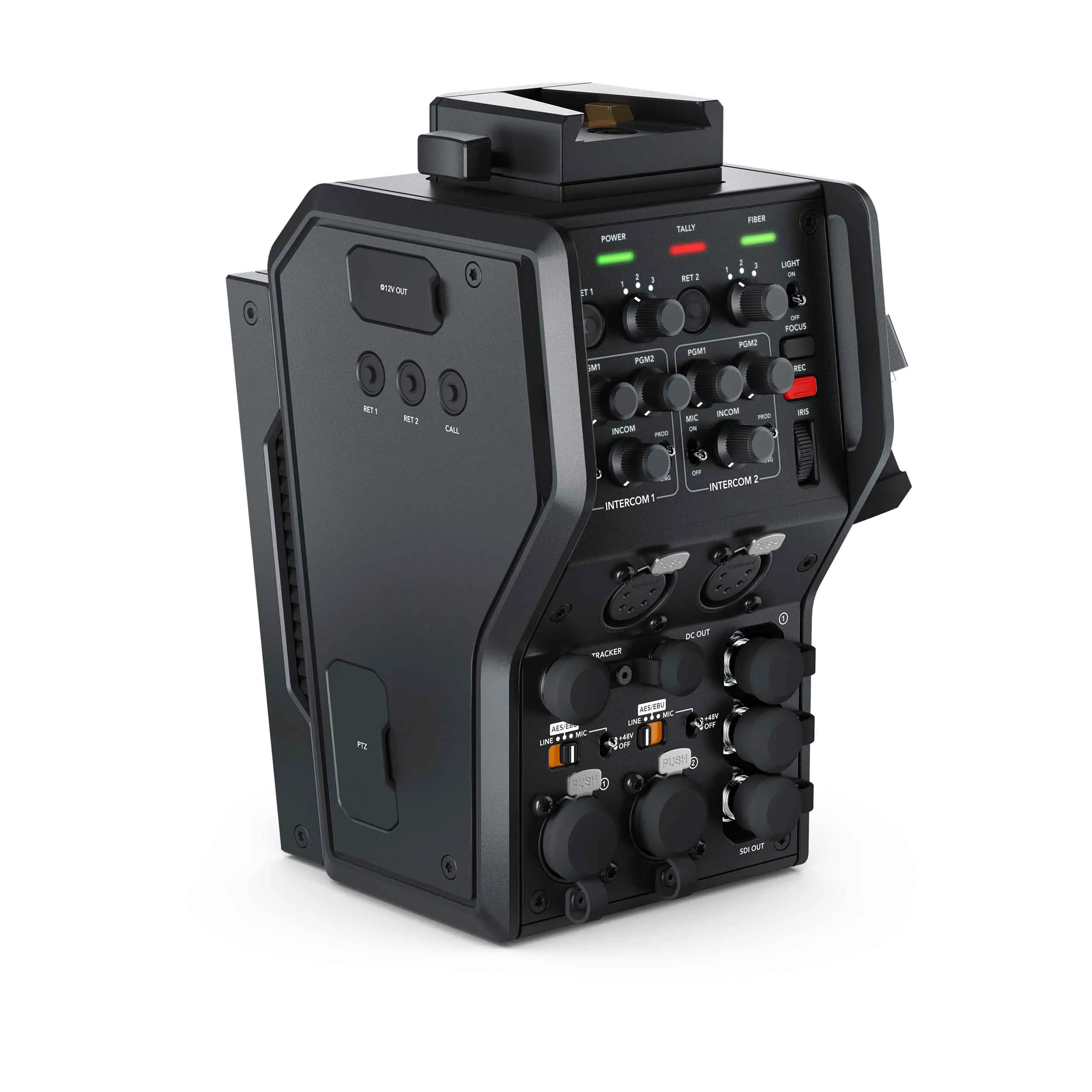

Blackmagic Camera Fiber Converter
Standards
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
Audio Sampling
Television standard sample rate of 48Khz, 24 bit A/D conversion.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 709, REC 2020.
Multiple Rate Support
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Software
Software Included
Camera Utility for firmware update.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
