Connections

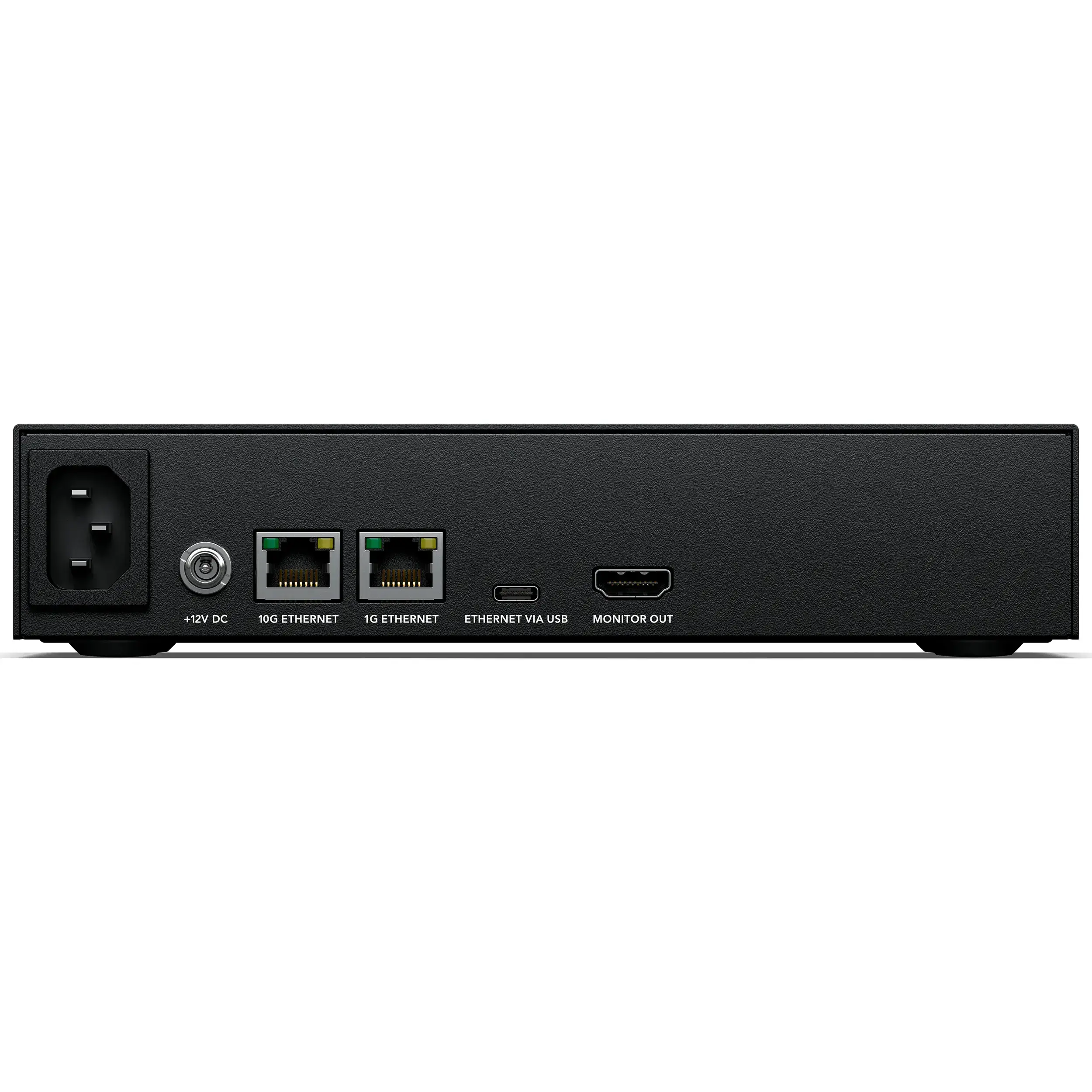

10G Ethernet Ports
1 x Ethernet 100/1000/10G BASE-T
1G Ethernet Ports
1 x 100/1000 BASE-T
USB-C Port
1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
HDMI Monitor Outputs
1
Computer Interface
USB-C or Ethernet for shared file access, configuration and software updates.
File Sharing Protocol
Protocol
SMB
Computer Connections
50 max.
Cloud Synchronization
Compatible Services
Dropbox
Google Drive
Storage
Storage Type
M.2 NVMe SSD
Total Capacity
8TB
Displays
HDMI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
Monitor Out Displays
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
Status Indicator
Front panel LED illuminates white indicating normal operation or red indicating disk fault.
Device Control
External Control
USB-C or Ethernet for configuration and software updates.
Software
Software Included
Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade via Blackmagic Cloud Setup using USB-C port.
Operating Systems
Mac icon
Mac 14.3 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Power Requirements
Power Supply
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Inputs
1 x IEC C14 mains input.
1 x 12V DC locking 5.5 mm barrel connector.
Power Usage
35W
Environmental Specifications
Operating Temperature
0° to 40° C (32°to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
