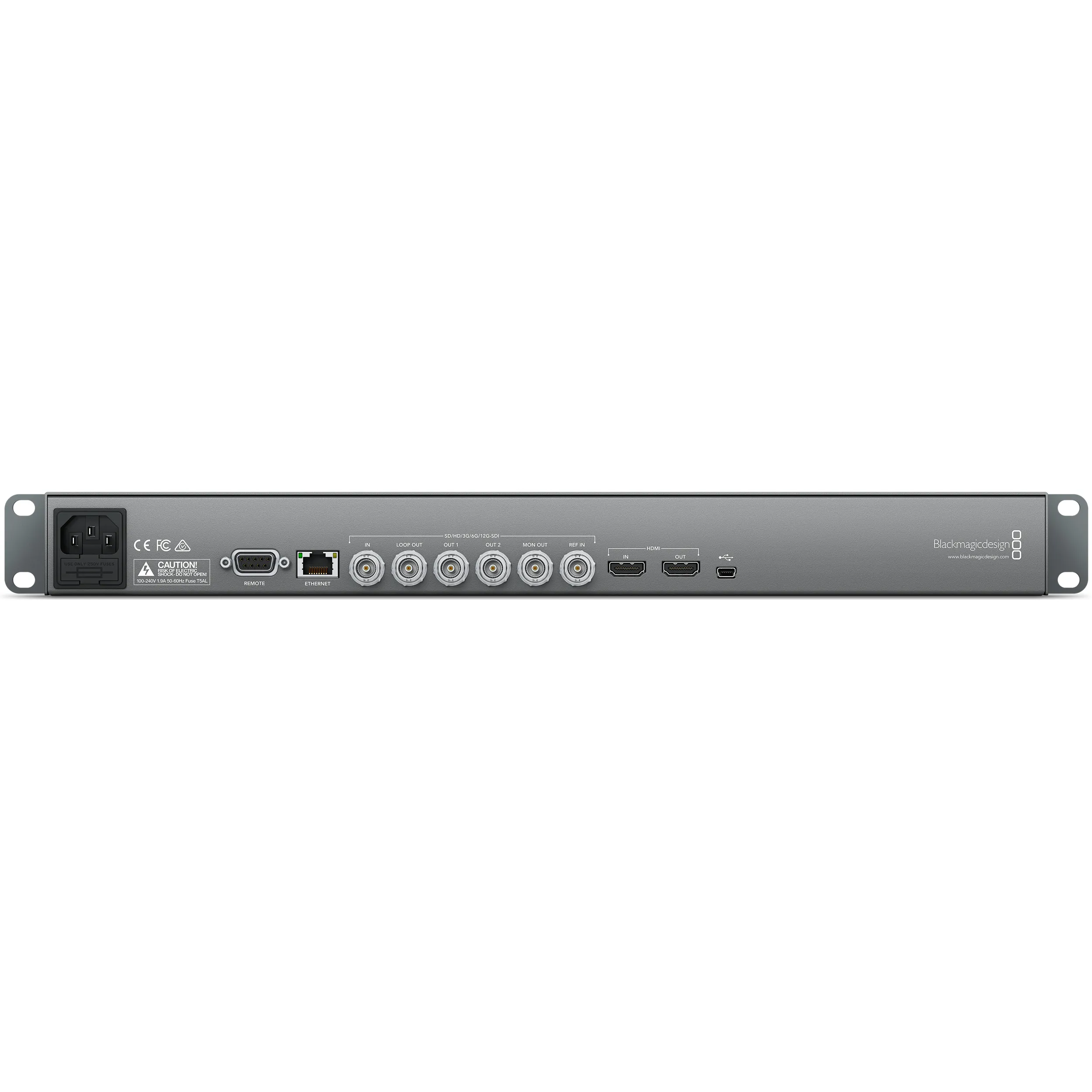

Connections
SDI Video Inputs
1
SDI Video Outputs
2
SDI Rates
270 Mb, 1.5G, 3G, 6G, 12G.
HDMI Video Inputs
HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2.
HDMI Video Outputs
HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2.
Analog Video Inputs
None
Analog Video Outputs
None
Analog Audio Inputs
None, embedded audio only.
Analog Audio Outputs
None, embedded audio only.
Timecode Connection
None
SDI Audio Inputs
16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.
SDI Audio Outputs
16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.
HDMI Audio Inputs
8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.
HDMI Audio Outputs
8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files.
Reference Input
Tri-Sync or Black Burst.
Recorder Configuration
Front panel configurable or USB 2.0 high speed interface.
Computer Interface
1 x USB 2.0 Mini-B port for software updates and HyperDeck Utility software control.

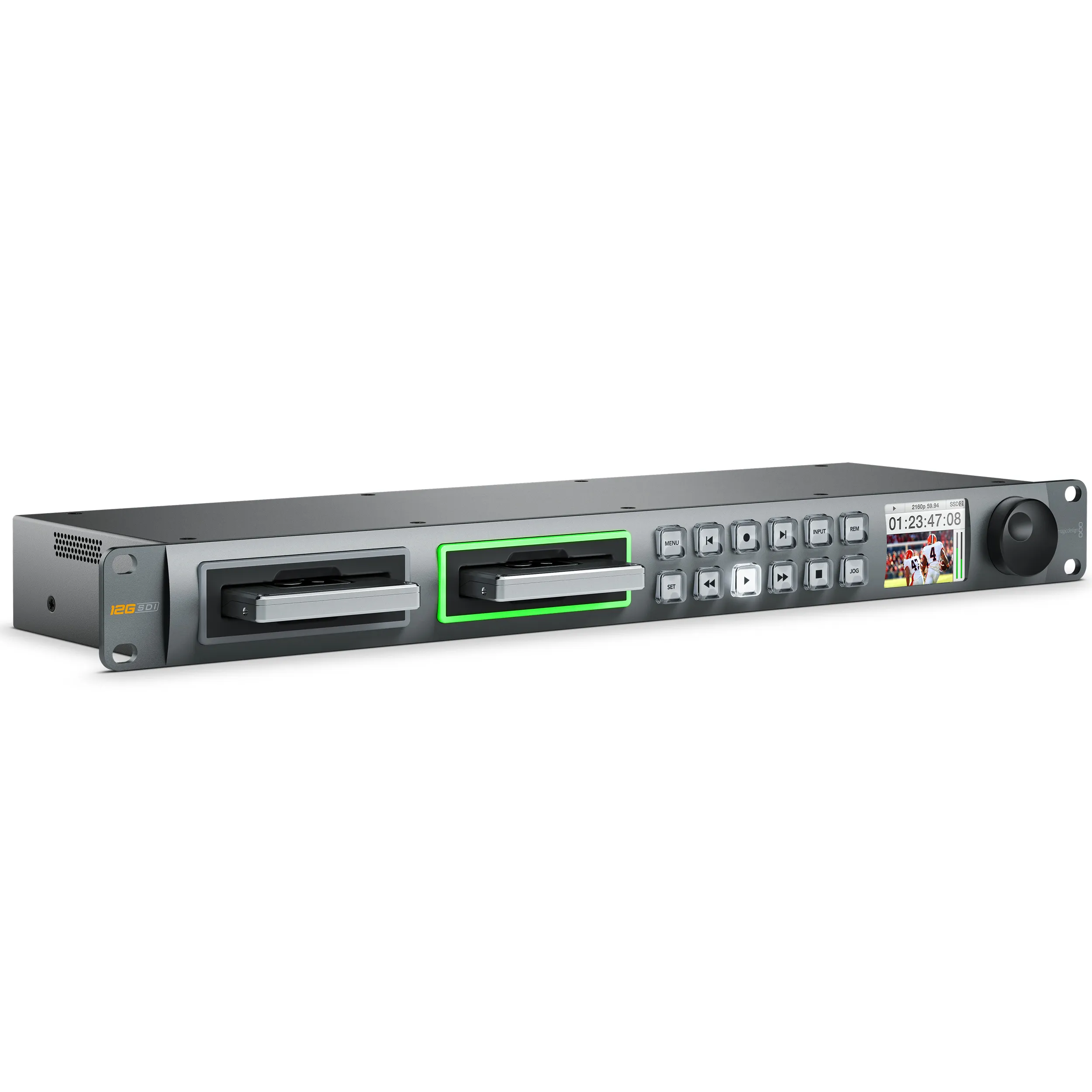

HyperDeck Studio 12G
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B
SDI Metadata Support
HD RP188 and closed captioning CEA-708.
Audio Sampling
Television standard 24-bit, 48 kHz sample rate.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media
2 x SSD for SD, HD and Ultra HD recording.
Media Type
SATA-II or SATA-III solid state disc.
Media Format
Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD/HR QuickTime and Avid DNxHD/HR MXF.
Computer Capture
None
Control
Built in Control Panel
12 buttons for transport and menu control, 2.2 inch color display.
External Control
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
Software
Software Included
Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
Internal Software Upgrade
Loaded at system start, or via updater software using USB port.
Display
Built in LCD for video, audio and timecode monitoring and menu settings.
Physical Installation
1 rack unit size. Less than 7 inches deep.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC.
Environmental Specifications
Operating Temperature:
5° to 40° C (41°to 104° F)
Storage Temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
