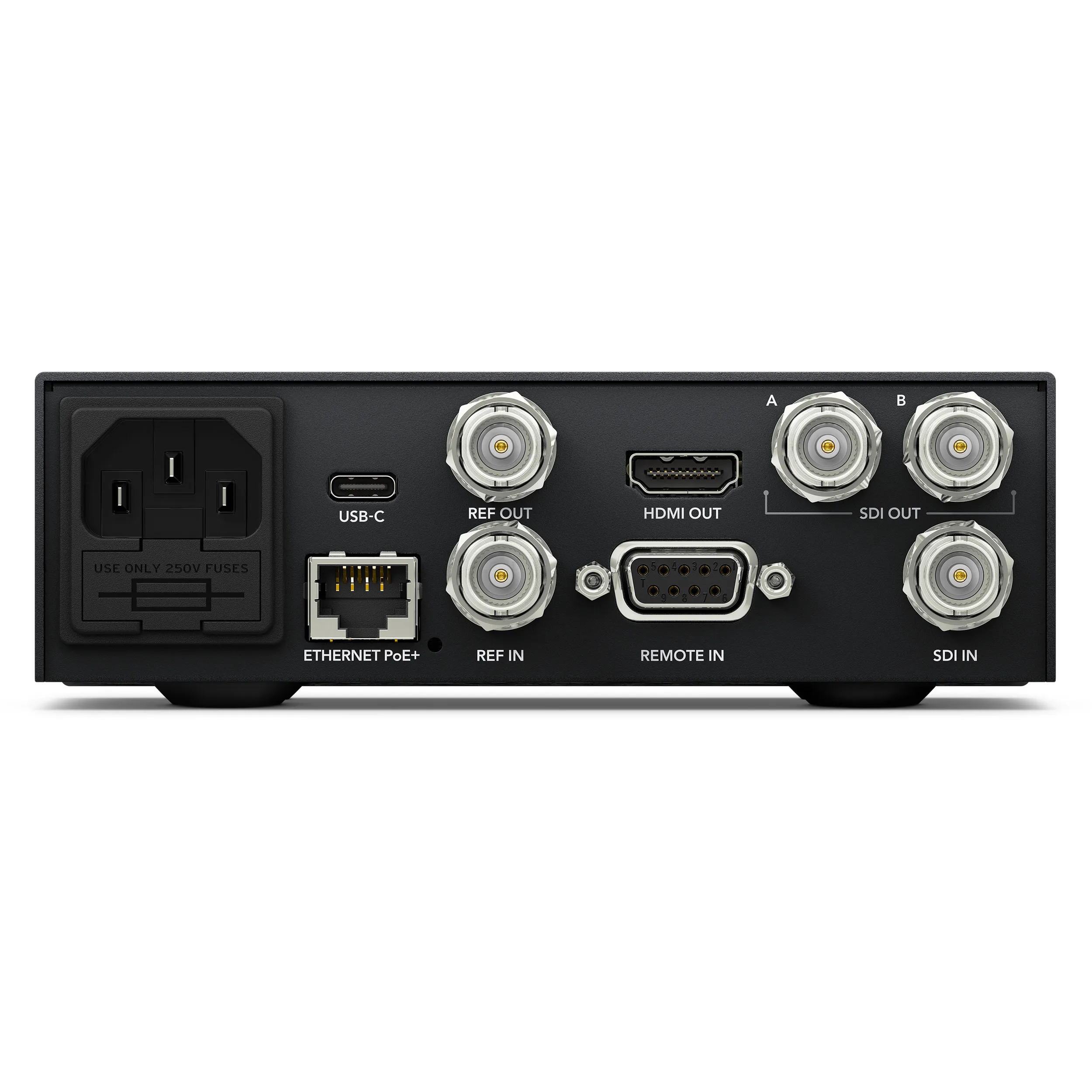

Connections
SDI Video Inputs
1
SDI Video Outputs
2
SDI Rates
270Mb, 1.5G-SDI, 3G-SDI, 6G-SDI
HDMI Video Outputs
1 x HDMI type A connector.
Power over Ethernet
1 x Ethernet with Power over Ethernet
Analog Video Inputs
None.
Analog Video Outputs
None.
Analog Audio Inputs
None, embedded audio only.
Analog Audio Outputs
None, embedded audio only.
Timecode connection
None.
SDI Audio Inputs
16 channels embedded in SD and HD in QuickTime files.
SDI Audio Outputs
16 channels embedded in SD and HD in QuickTime files.
HDMI Audio Inputs
None.
HDMI Audio Outputs
8 channels embedded in SD, HD and UHD in QuickTime files.
Reference Input
Tri-Sync or Black Burst.
Reference Generator
Tri-Sync or Black Burst.
Computer Interface
1 x USB 2.0 type C for software updates and HyperDeck Utility software control.
Please click here for a summary of compatible media.
HyperDeck Studio Mini
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
SDI Compliance
SMPTE 259M, 292M, 296M and 425M
SDI Metadata Support
HD RP 188 and closed captioning.
Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
Video Sampling
4:4:4:4
Color Precision
10-bit
Color Space
REC 601, REC 709
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution.
Media
Media
2 x SD for SD, HD and Ultra recording.
Media Type
UHS II and able to support ProRes 4444 playback and 422 recording.
Media Format
Can format discs to ExFAT (Windows/Mac) or OS X Extended (Mac) file systems.
Supported Codecs
DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF. ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime. ProRes 4444 QuickTime in HD for fill and key playback.
Computer Capture
None
FTP Clients
Cyberduck, Transmit, FileZilla
Control

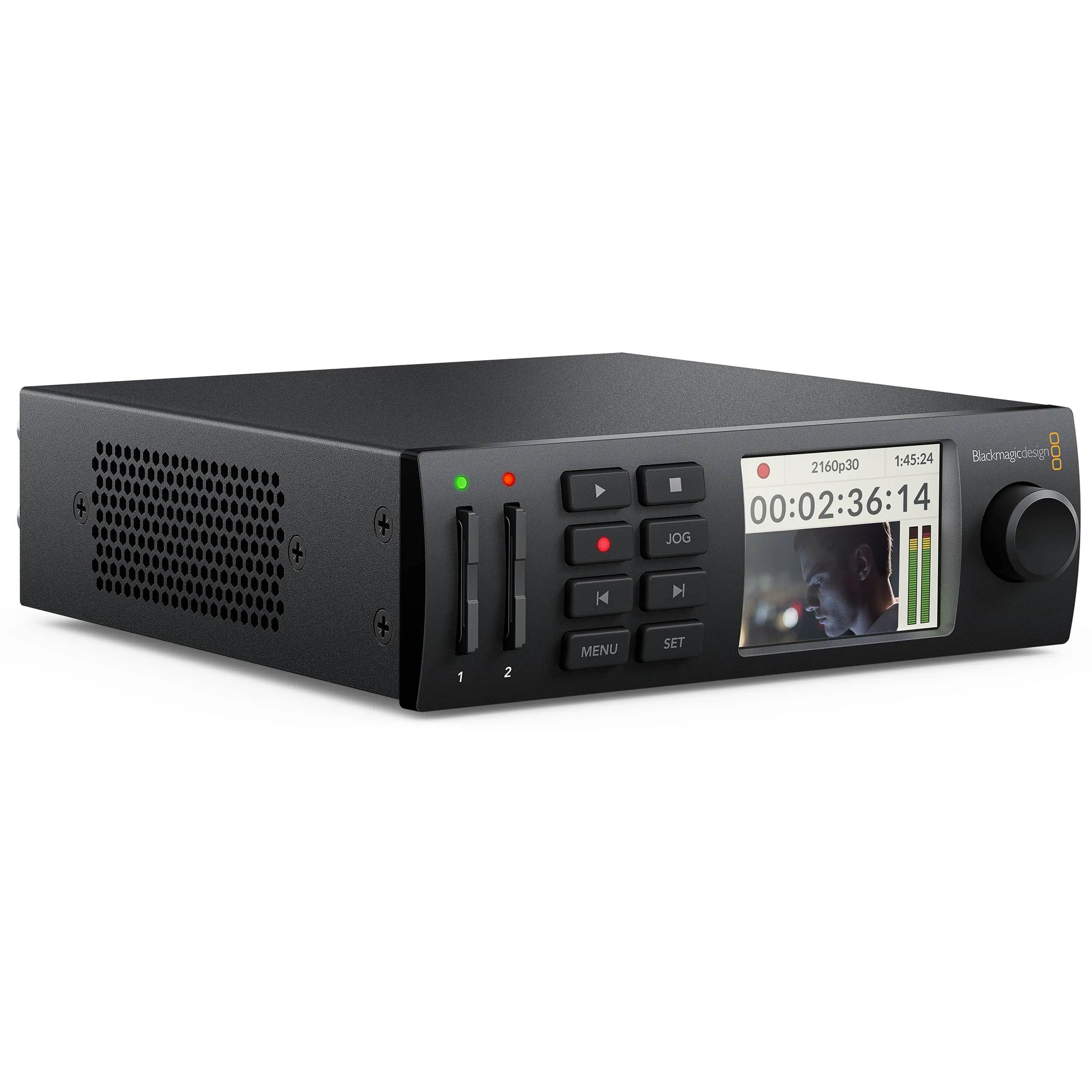

Built-in Control Panel
8 buttons for menu control, 2.2 inch color display, and a rotary wheel.
External Control
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol. Supports remote FTP file upload.
Software
Software Included
Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
Internal Software Upgrade
Firmware built into software driver. Loaded at system start, or via updater software.
displays
Built in LCD for video, audio and timecode monitoring and menu settings
2 x LED indicator lights above the SD slots.
Physical Installation
1/3 rack unit size. Less than 7 inches deep.
Power Requirements
Power Supply
1x Internal 100 - 240V AC.
Environmental Specifications
Operating Temperature:
5° to 50° C (41°to 122° F)
Storage Temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
