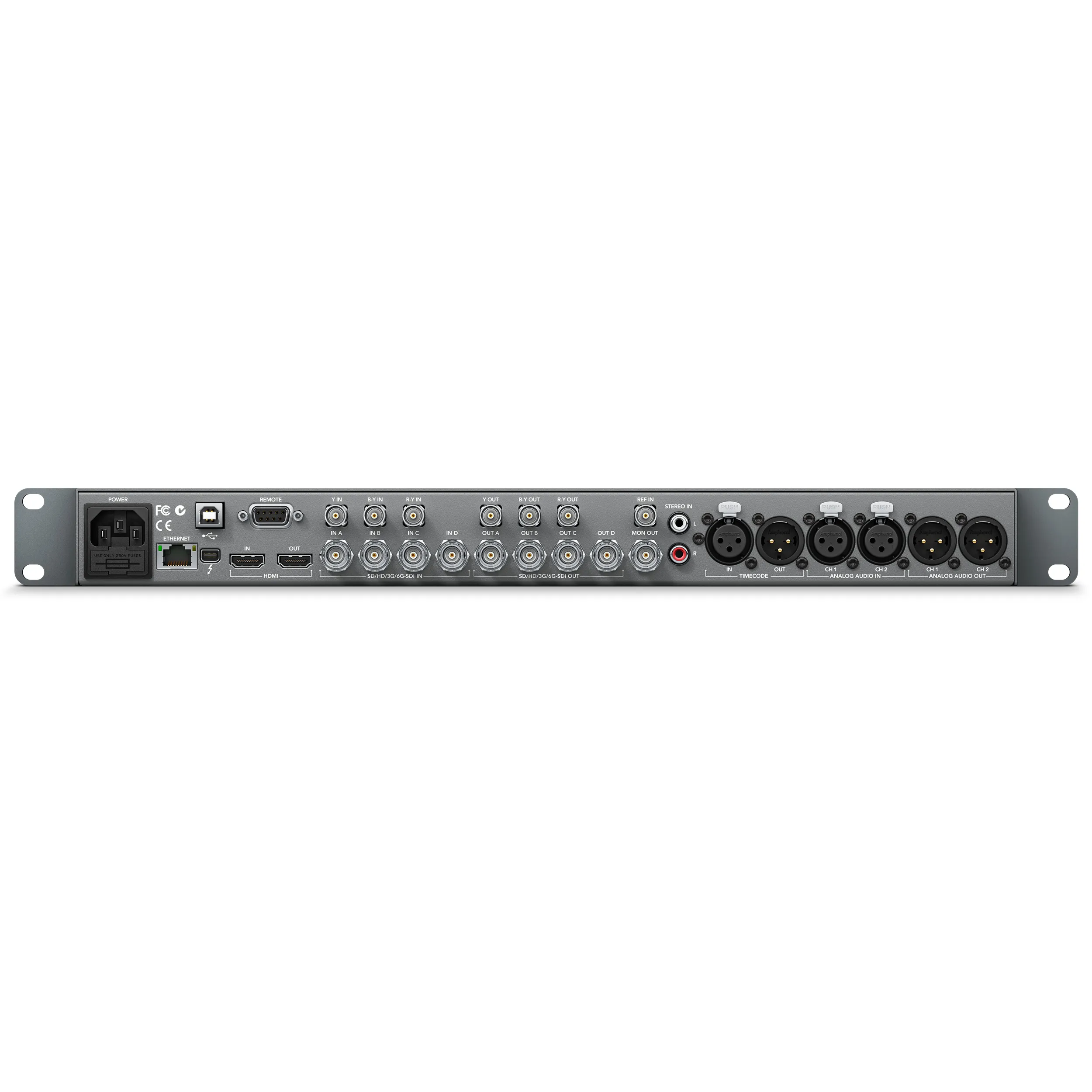

Connections
SDI Video Inputs
1
SDI Video Outputs
4, Single Link or Quad Link.
SDI Rates
270Mb, 1.5G, 3G, 6G.
HDMI Video Inputs
1 x HDMI type A connector including Ultra HD 4K support.
HDMI Video Outputs
1 x HDMI type A connector including Ultra HD 4K support.
Analog Video Inputs
Y, B-Y, R-Y
Analog Video Outputs
Y, B-Y, R-Y
Analog Audio Inputs
2 x XLR connectors for professional balanced analog audio. 2 x RCA connectors for unbalanced analog audio from consumer equipment.
Analog Audio Outputs
2 x XLR connectors for professional balanced analog audio.
Timecode Connection
1 x XLR in and 1 x XLR out.
SDI Audio Inputs
16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
SDI Audio Outputs
16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Inputs
8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Outputs
8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
Reference Input
Tri-Sync or Black Burst.
Recorder Configuration
Front panel configurable or USB 2.0 high speed interface.
Computer Interface
1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.
W-HYD-03
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B
SDI Metadata Support
Time Code: HD RP188. Closed Captioning: CEA-708.
Audio Sampling
Television standard sample rate of 48kHz and 24-bit
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media
2 x SSD for SD, HD and Ultra HD recording.
Media Type
SATA-II or SATA-III solid state disc.
Media Format
Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60.
Computer Capture
Thunderbolt for Mac/Windows.

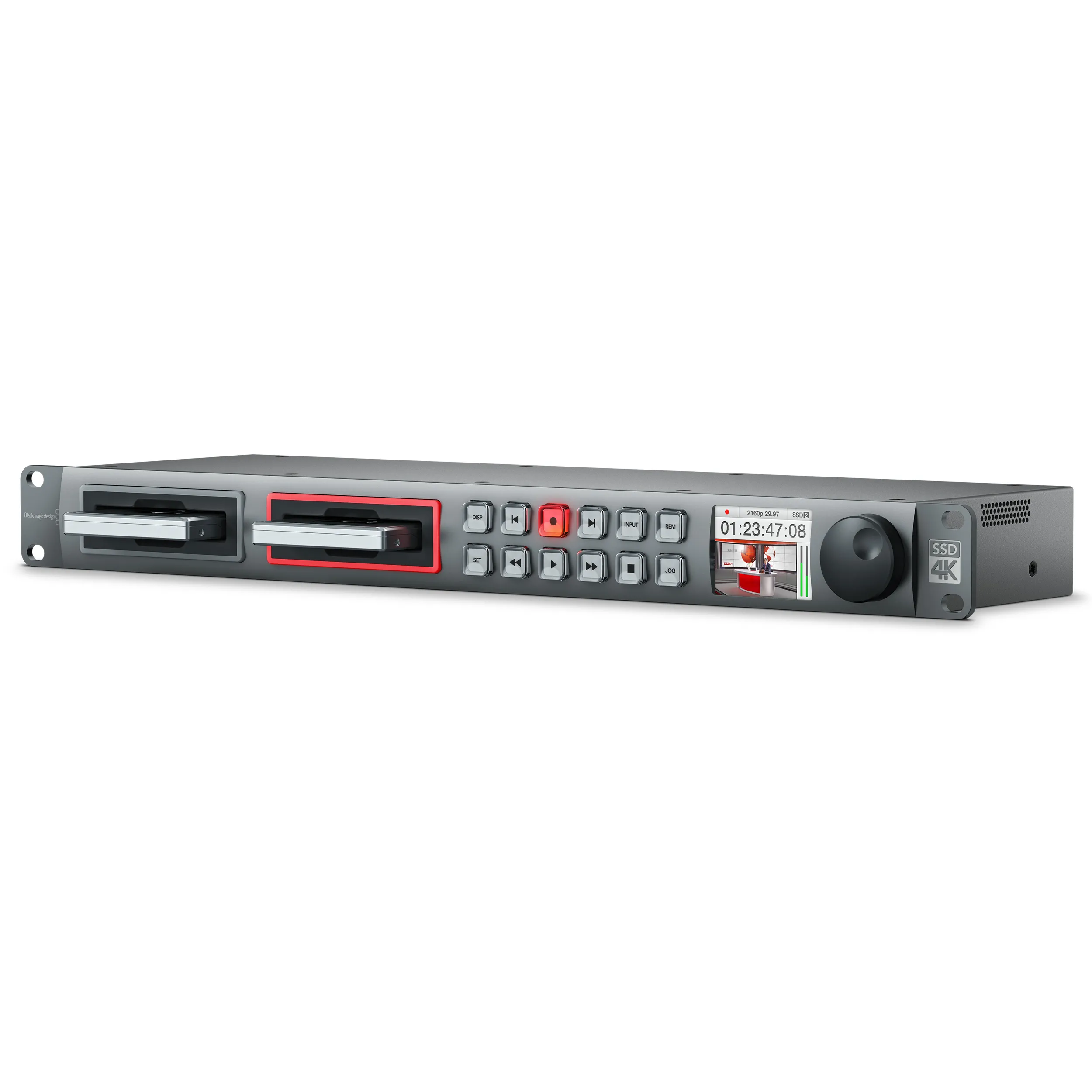

Control
Built in Control Panel
12 buttons for transport and menu control, 2.2 inch color display.
External Control
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
Software
Software Included
Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
Internal Software Upgrade
Firmware built into software driver. Loaded at system start, or via updater software.
Display
Built in LCD for video, audio and timecode monitoring and menu settings.
Physical Installation
1 rack unit size. Less than 7 inches deep.
Power Requirements
Power Supply
1x Internal 100 - 240V AC.
