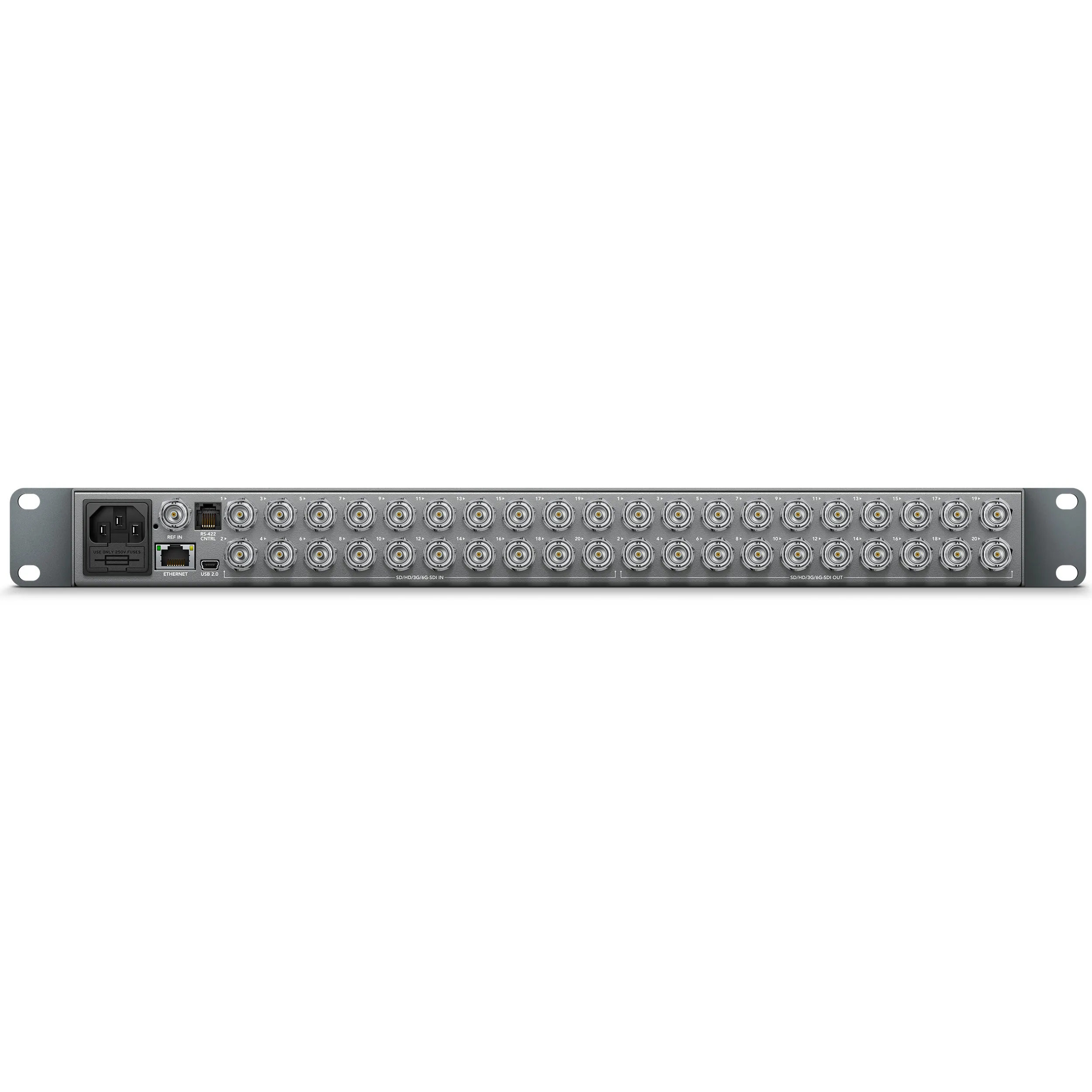

Connections
SDI Video Inputs
20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Outputs
20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
SDI Rates
DVB-ASI, 270Mb, 1.5G, 3G, 6G.
Video Input Re-Sync
None.
SDI Reclocking
On all SDI outputs
Reference Input
Tri-Sync or Black Burst.
Control Panel Connection
Ethernet.
Serial Control Connection
RJ-7 RS-422.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
Updates
USB.
Router Control
21 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router Configuration
Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for setting IP address only.
RS-422 Router Control
1 x input for controlling router crosspoint switching.

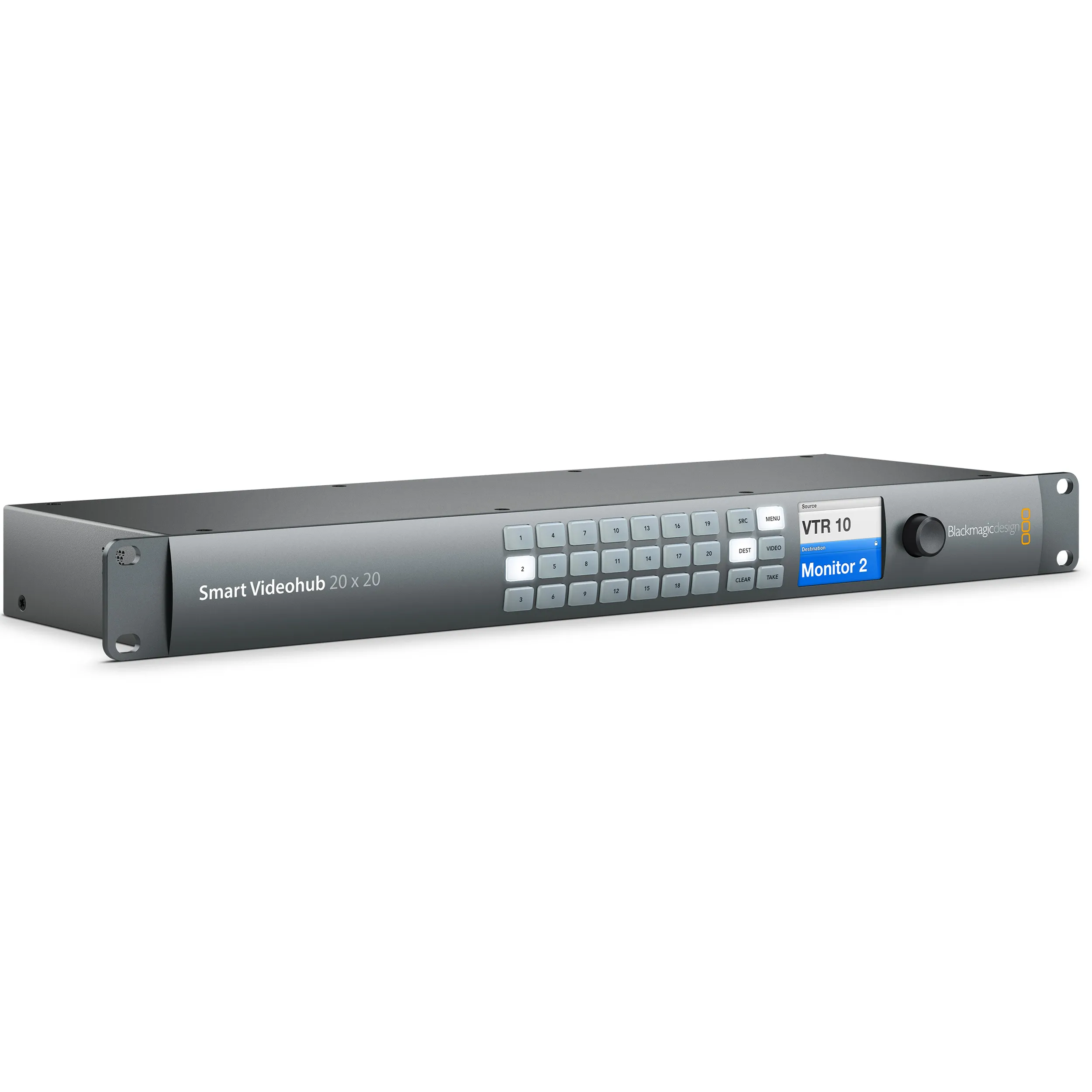

Smart Videohub 20x20
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, ITU-R BT.656 and ITU-R BT.601.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4 10 bit.
SDI Color Space
YUV or RGB.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control

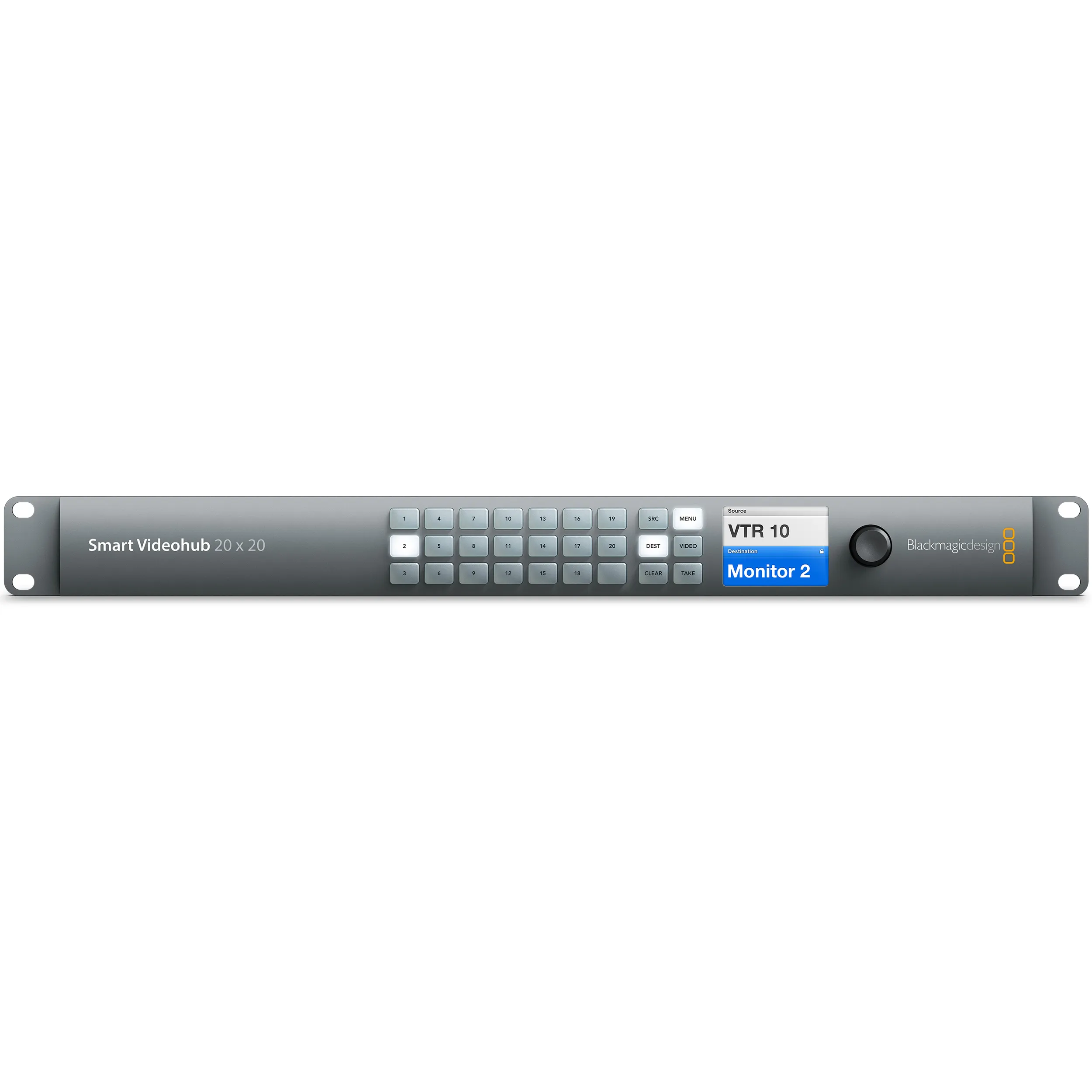

Built in Control Panel
20 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.
External Control Panel
Includes Blackmagic Videohub software control panel for Mac OS X and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Display
Built in LCD for video and menu settings.
Software
Software Control
Router control included free for Windows™ and Mac OS X™.
Internal Software Upgrade
Via included updater application.
Power Requirements
Power Supply
1 x Internal 90 - 240V AC. IEC power cable required.
Power Fail Protection
Router connections preserved and restored instantly at power on.
Power Consumption
34 Watts
Physical Installation
1 rack unit size. Less than 6 inches deep.
Environmental Specifications
Operating temperature:
0° to 40° C (32° to 104° F)
Storage temperature:
-20° to 45° C (-4° to 113° F)
Relative Humidity:
0% to 90% non-condensing
