Camera Features
Effective Sensor Size
13.056mm x 7.344mm
Focus
Auto focus. Peaking mode
Lens Mount
Active MFT Mount
Lens Control
Iris, focus, zoom on supported lenses
Dynamic Range
11 Stops

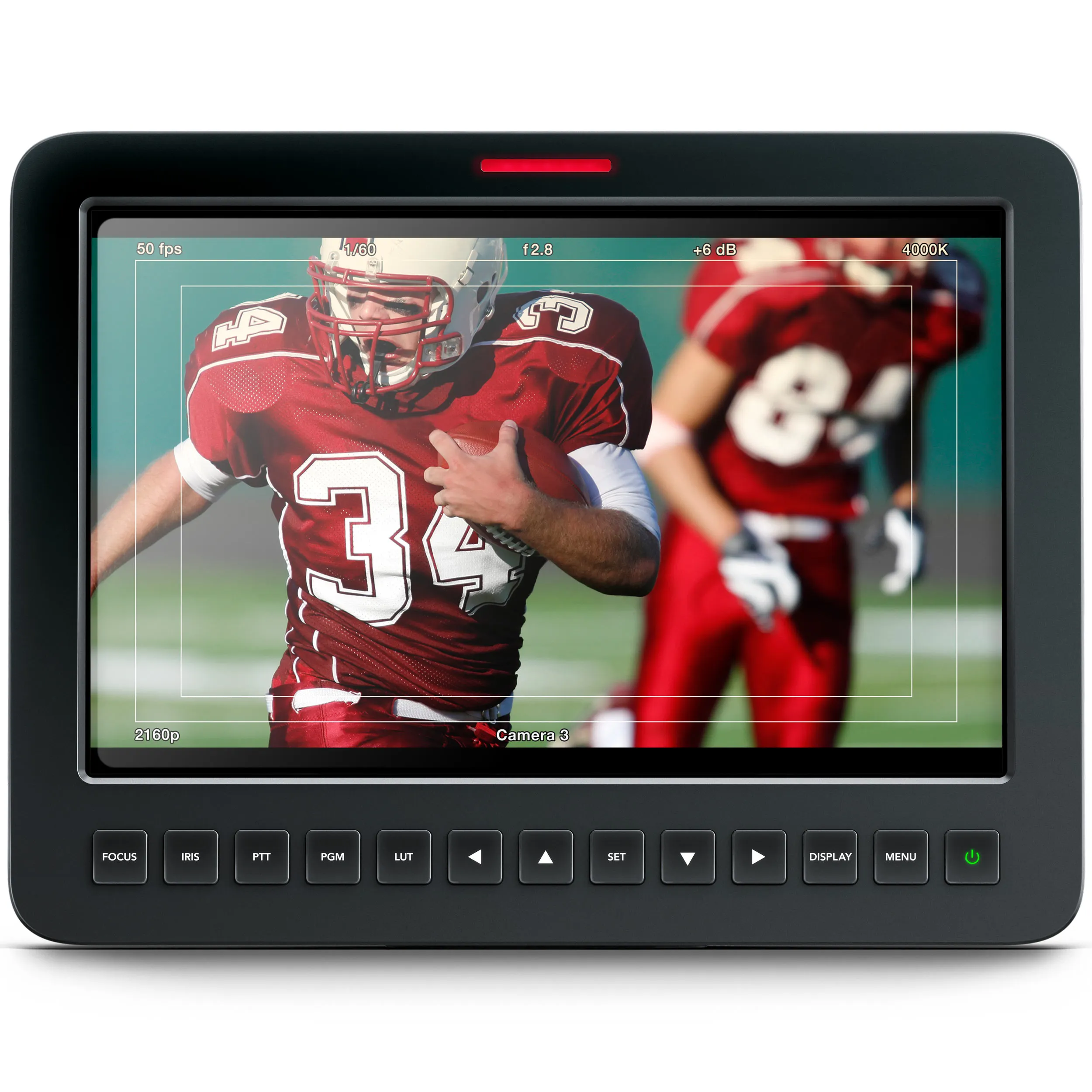

Screen Dimensions
1 x 10.1 inch 1920 x 1200
Screen Type
10.1 inch - TFT-LCD
Mounting Options
2 x 3/8” tripod mount. 4 x 1/4""-20 UNC thread mounting points on top of camera. 3 x 1/4” 20 UNC thread mounting points left on right of camera
Connections
Total Video Inputs
1 x SDI
Total Video Outputs
1 x SDI
SDI Rates
1.5G, 3G, 6G, 12G
Optical SDI
Supports optional SMPTE optical module
Optical Fiber Input/Outputs
12G Optical Fiber Input and Output capable
Optical fiber SFP module sold separately
Analog Audio Inputs
2 x XLR , phantom power
Analog Audio Outputs
Aviation headphone jacks (Fixed Wing Plugs) output for talkback and audio monitoring
Reference Input
Tri-Sync or Black Burst.
SDI Audio Outputs
2 channels in 12G-SDI 48Khz and 24 bit. 2 channels for talkback on channel 15-16
Remote Control
1 x 2.5mm LANC for Iris Control and Focus. SDI CCU control from ATEM
Computer Interface
USB 2.0 Mini-B port for software updates

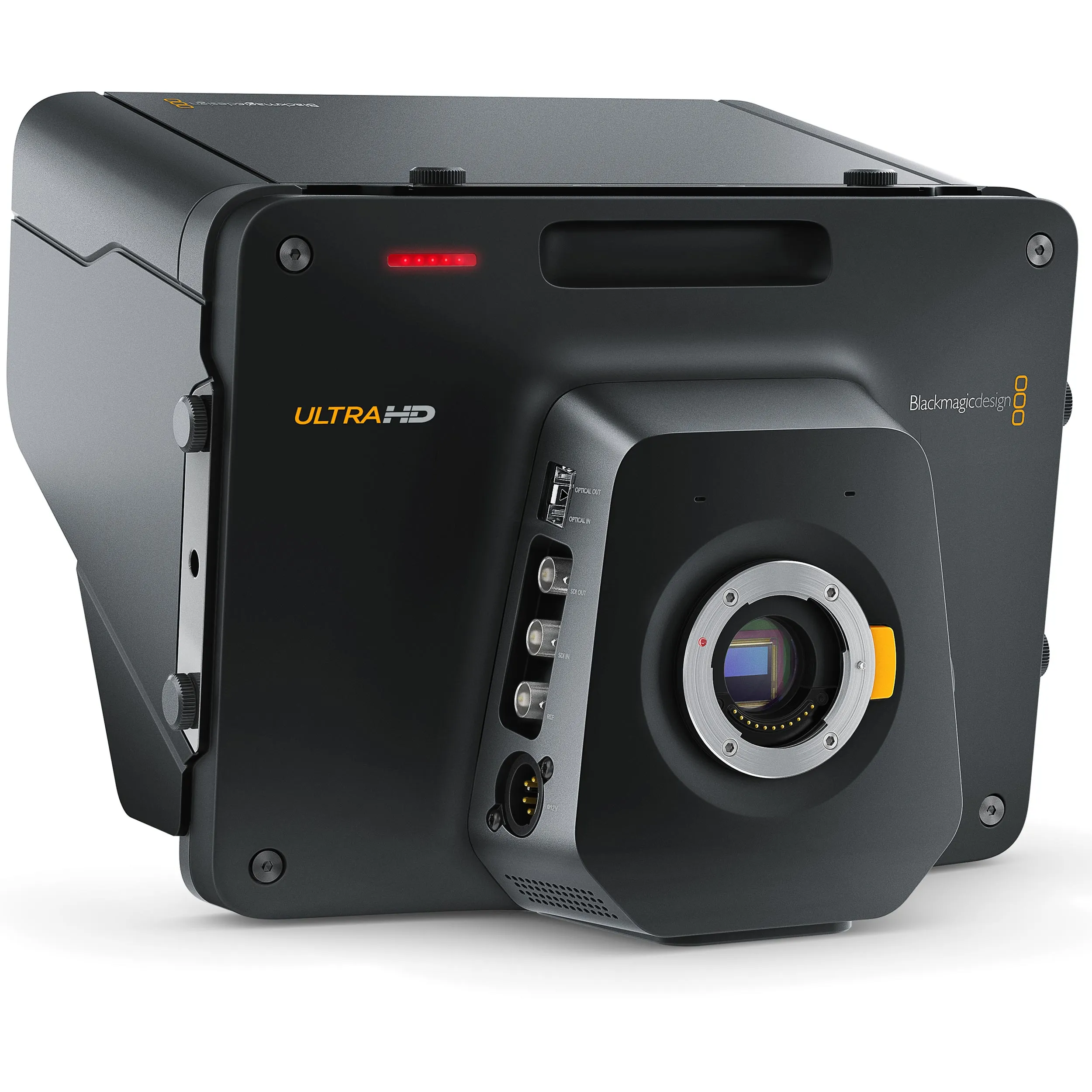

Blackmagic Studio Camera 4K
Audio
Microphone
Integrated stereo microphone
Built in Speaker
None
Standards
SD Video Standards
None
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94 and 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94 and 2160p60
SDI Compliance
SMPTE 292M, SMPTE 424M Level B, SMPTE 2081-1, SMPTE 2082-1
SDI Audio Sampling
48 kHz and 24-bit
Media
Media
None
Media Format
None
Supported Codecs
Codecs
None
Control
Controls
Push button controls for navigating menus
External Control
Blackmagic SDI Control Protocol. 2.5 mm LANC connection for lens control
Color Corrector
DaVinci YRGB
Talkback And Tally
Live Tally Indicator
1 x for talent, 1 x for operator
Talkback
SDI Channels 15 and 16
Software
Software Included
Blackmagic Camera Setup for Mac OS X and Windows
Power Requirements
1 x External 12V power supply
Optional Accessories
SMPTE compatible SFP Optical Module
ATEM Talkback Converter 4K
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
