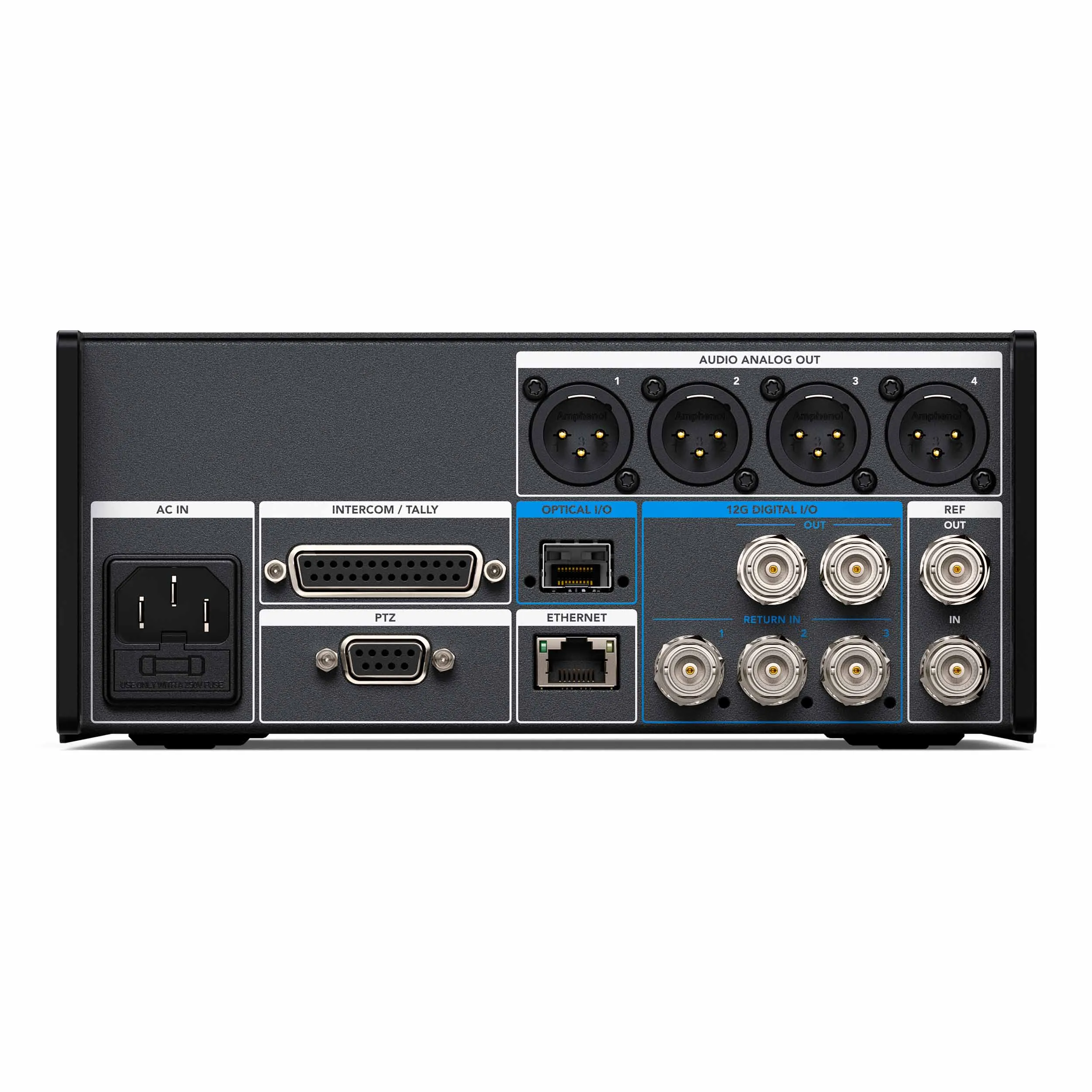

Connections
Optical Fiber Input
1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector.
SDI Video Input
3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1.
SDI Video Output
2x 12G SDI for Ultra HD up to 60p.
Talkback Audio
SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.
Balanced XLR Audio Outputs
4x camera analogue audio outputs.
Optical Fiber Outputs
1x Optical I/O via 10 Gb-E (not currently active).
Computer Interface
1x USB-C.

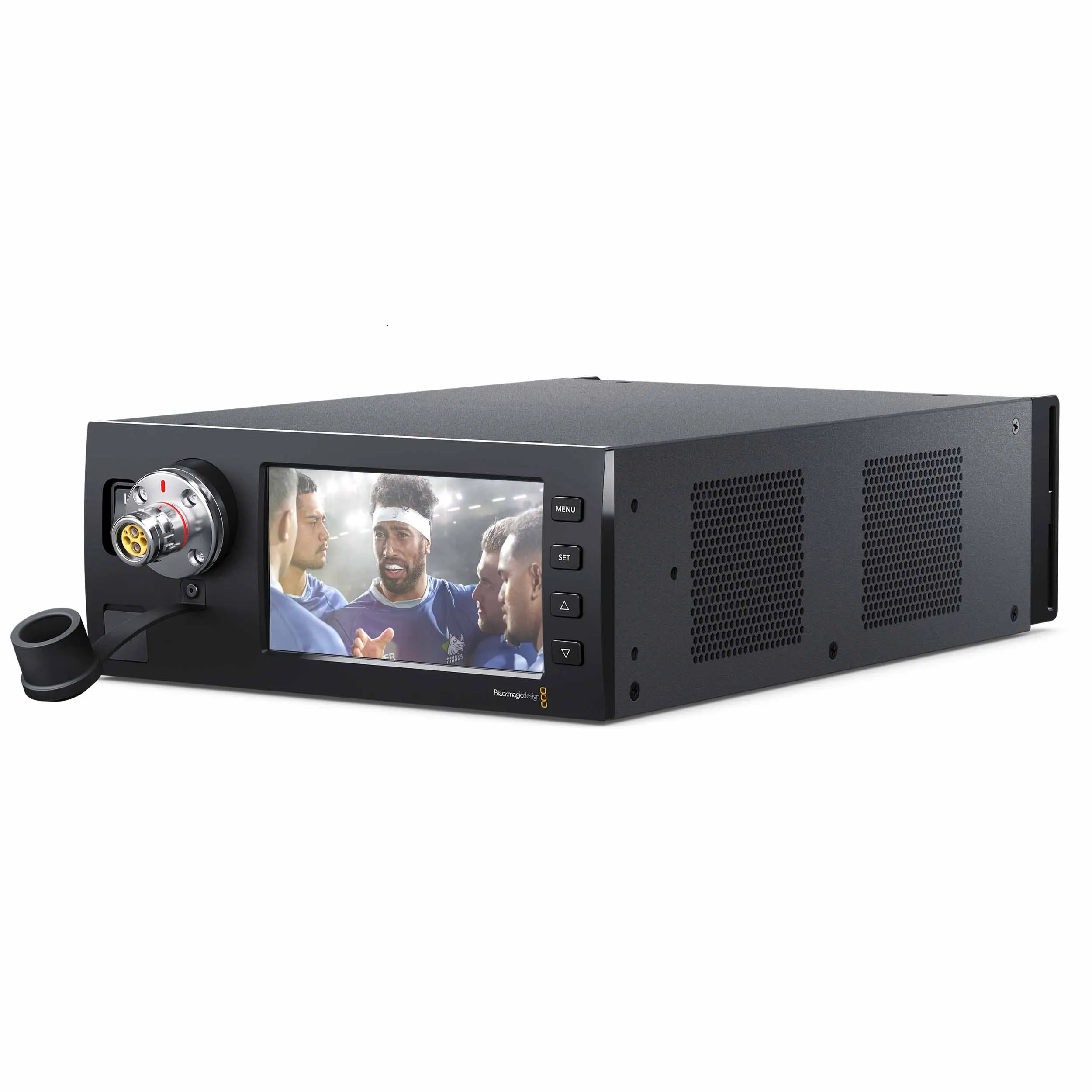

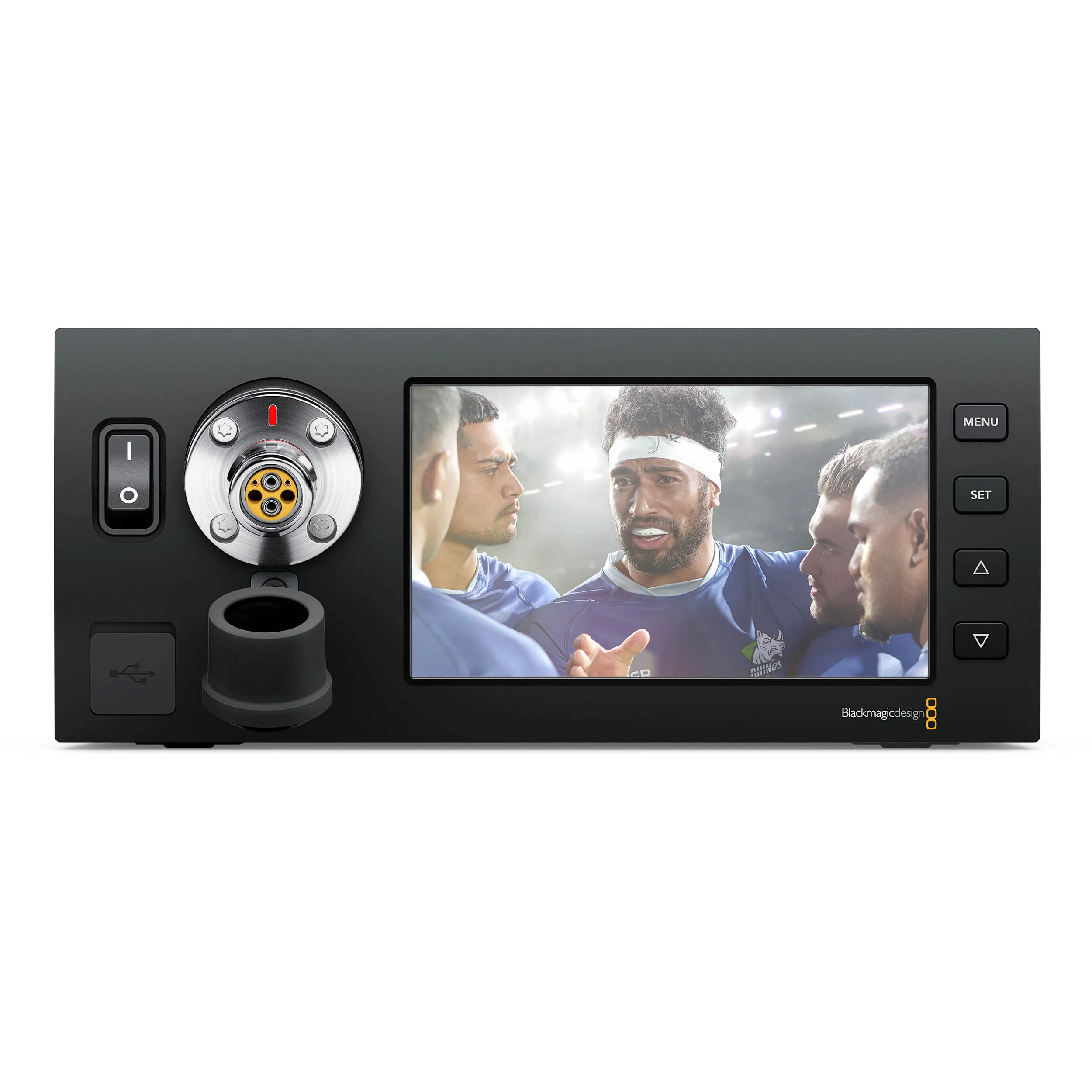

Blackmagic Studio Fiber Converter
Standards
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
Audio Sampling
Television standard sample rate of 48Khz, 24 bit A/D conversion.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 709, REC 2020.
Multiple Rate Support
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Software
Software Included
Camera Utility for firmware update.
Power Requirements
Power Supply
110 - 240V AC input.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
