Connections
SDI Video Input

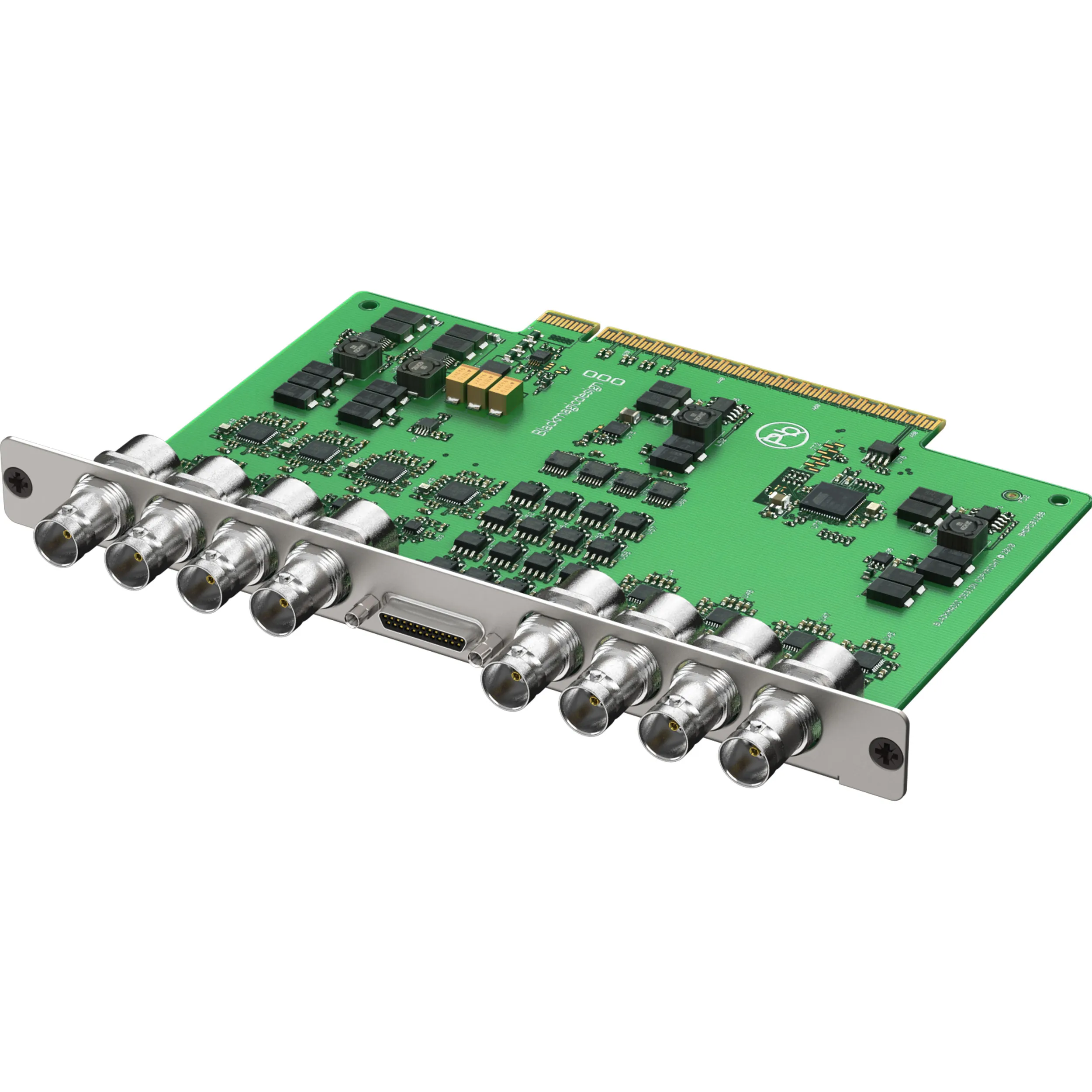

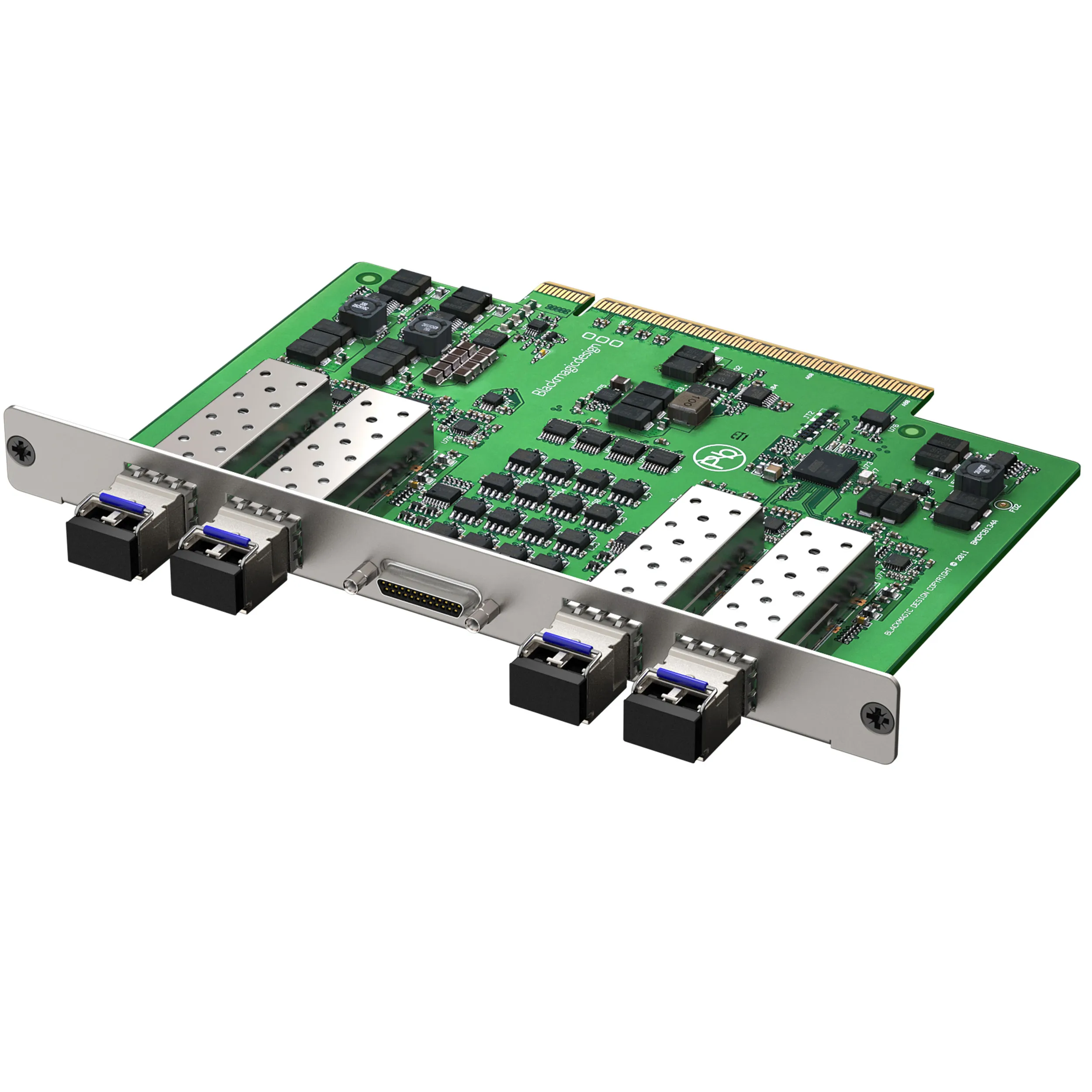

Up to 72 x SDI/HD-SDI, 3G-SDI and ASI. Can be BNC SDI or optical fiber SDI.
SDI Video Output
Up to 72 x SDI/HD-SDI, 3G-SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI.
Reference Signal
1 x Black Burst or Tri-level Sync input for all SD, HD and Optical connections.
Multi Rate Support
Auto detection of SD, HD or 3G-SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.
ASI Support
Yes.
Updates
USB 2.0 high speed (480Mb/s) interface.
Device Control
Up to 72 bidirectional Sony™ compatible RS-422 deck control ports via breakout cable.
Router Control

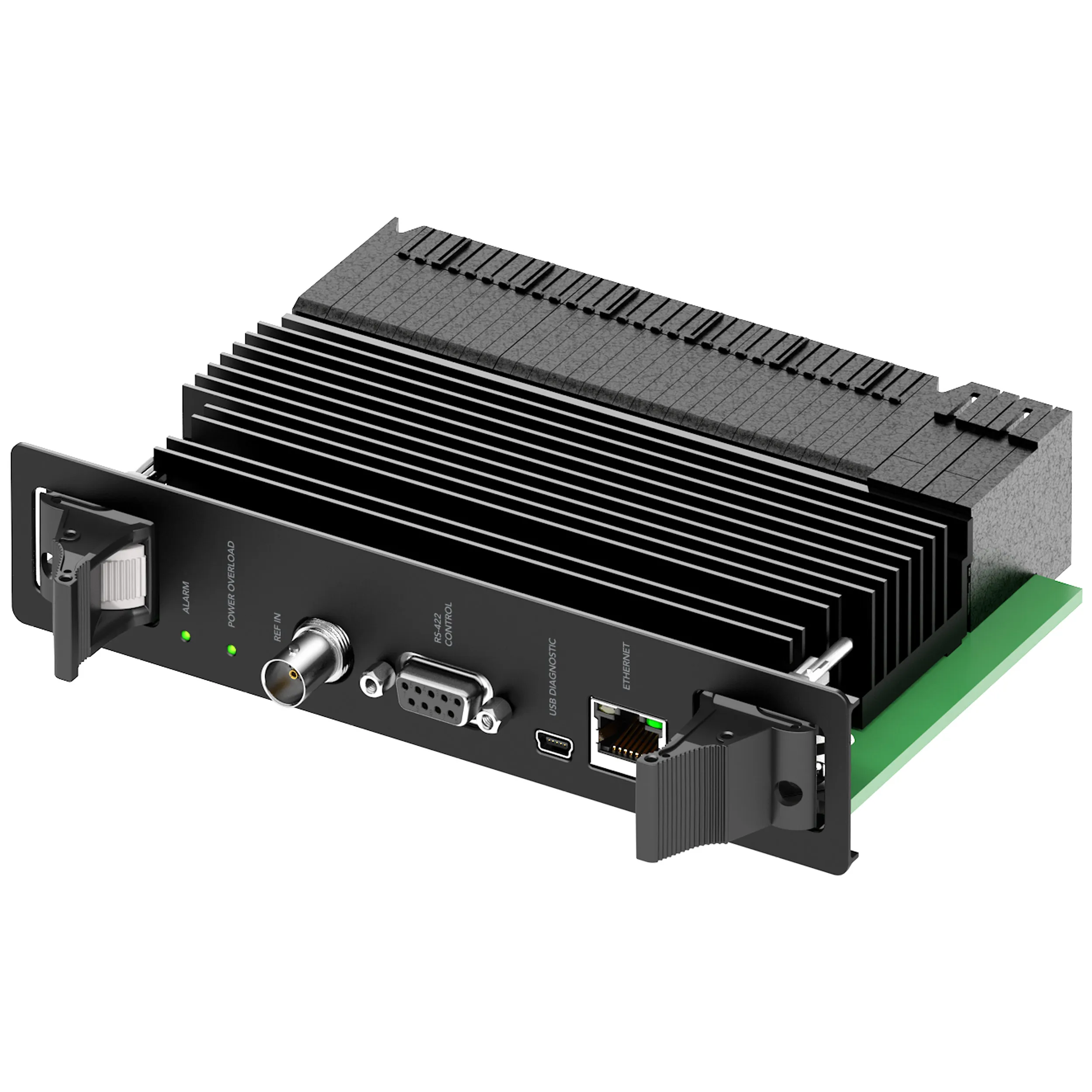

Use either RJ45 Ethernet, Smart Control or Master Control shared over IP network.
Router Configuration
RJ45 Ethernet for Videohub configuration and USB 2.0 for IP settings only.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
Reclocking
On all SDI outputs.

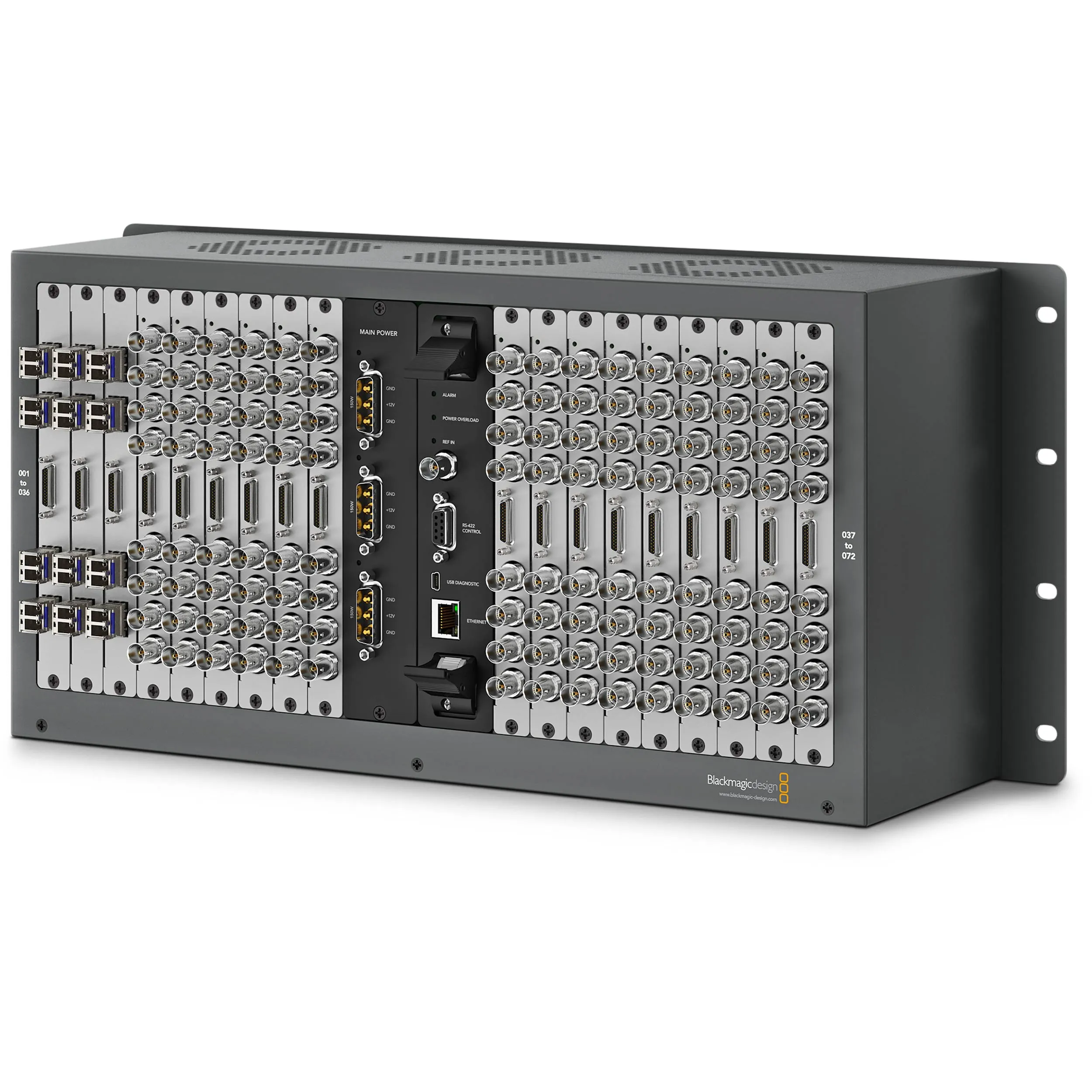

Universal Videohub 72
Standards
SD Format Support
525i29.97 NTSC, 625i25 PAL
HD Format Support
720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU‑R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD-SDI and 3G-SDI HD and 2K SDI.
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4 10 bit.
SDI Color Space
YUV or RGB.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 3G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Software
Internal Software Upgrade
Via included firmware updater application.
Software Control
Router control included free for Windows™ and Mac OS X™.
Power Requirements
Power Supply

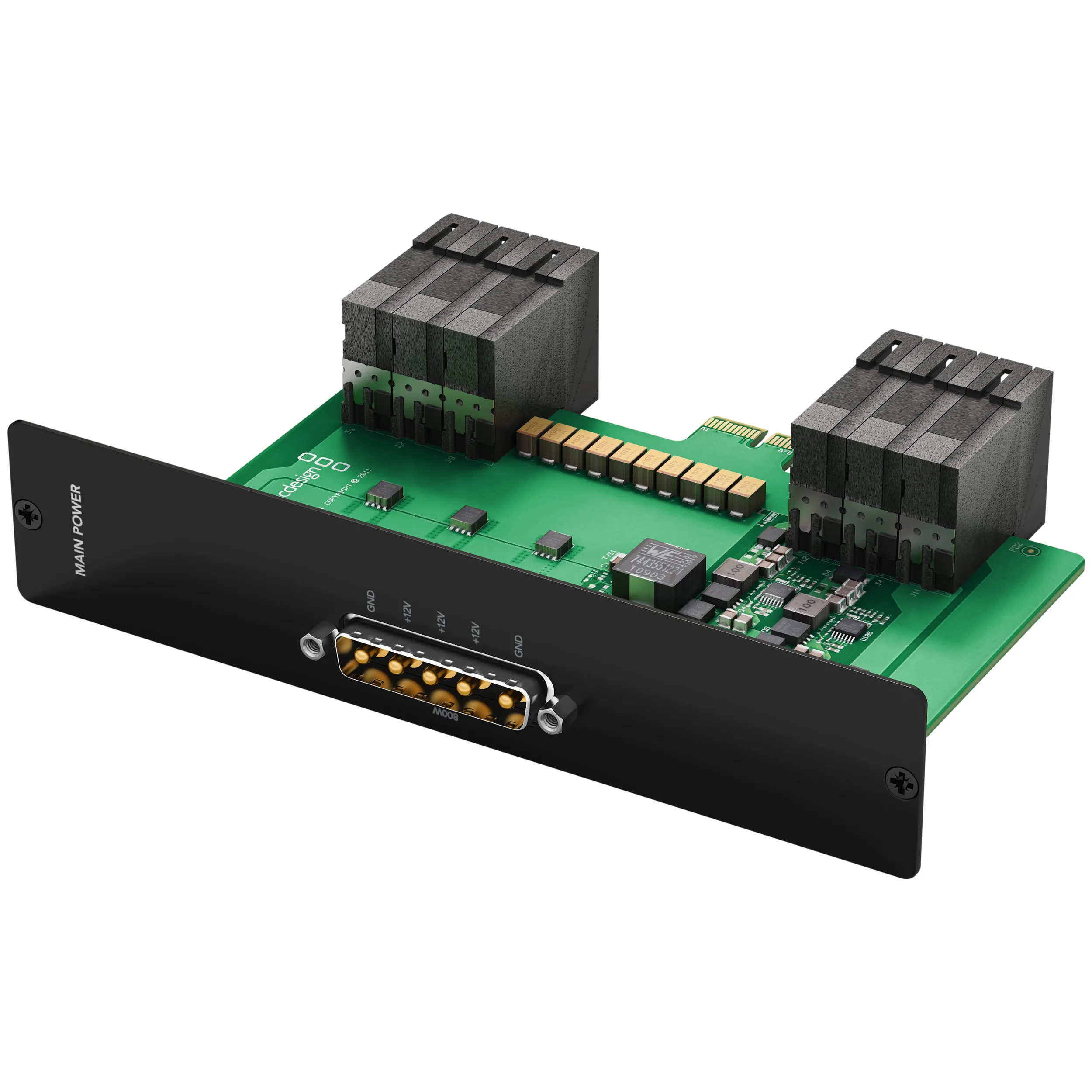

Redundant power supply options are available. GPI connector for connecting external alarms.
Power Fail Protection
Router connections preserved and restored instantly at power on independently of host computer.
Physical Installation
5 rack unit size. Less than 6 inches deep.
Environmental Specifications
Operating Temperature: 0° to 40° C
(32° to 104° F)
Storage Temperature: -20° to 45° C
(-4° to 113° F)
Relative Humidity: 0% to 90%
non-condensing
