Connections
SDI Video Input
1 x HD/Ultra HD 3G-SDI via BNC.
Power Input
1 x 4 pin XLR 12V.
Screen Dimensions
7" 1920 x 1200 resolution.
Screen Type
7" IPS LCD.
Computer Interface
1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.

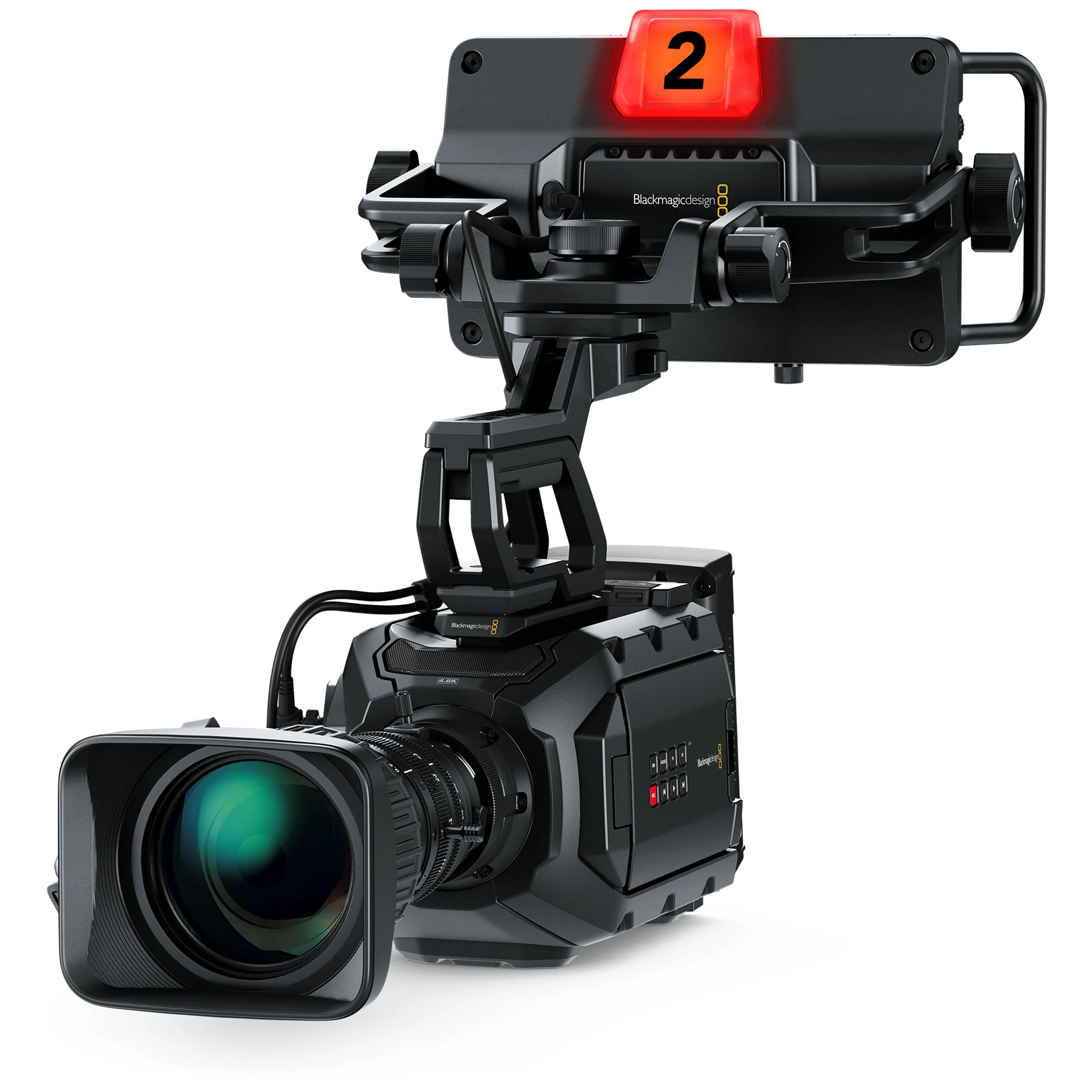

Blackmagic URSA Studio Viewfinder
SDI Video Standards
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Video Sampling
4:2:2 YUV.
Color Precision
10-bit.
Color Space
REC 601, REC 709.
Multiple Rate support
SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD.
Monitor Features
Controls
Dial, knobs and customizable function buttons for settings, short cut features and navigating menus.
Handles
Built in grab handles for positioning the monitor independently from the camera.
Position Adjustment Options
Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments.
Mounting Options

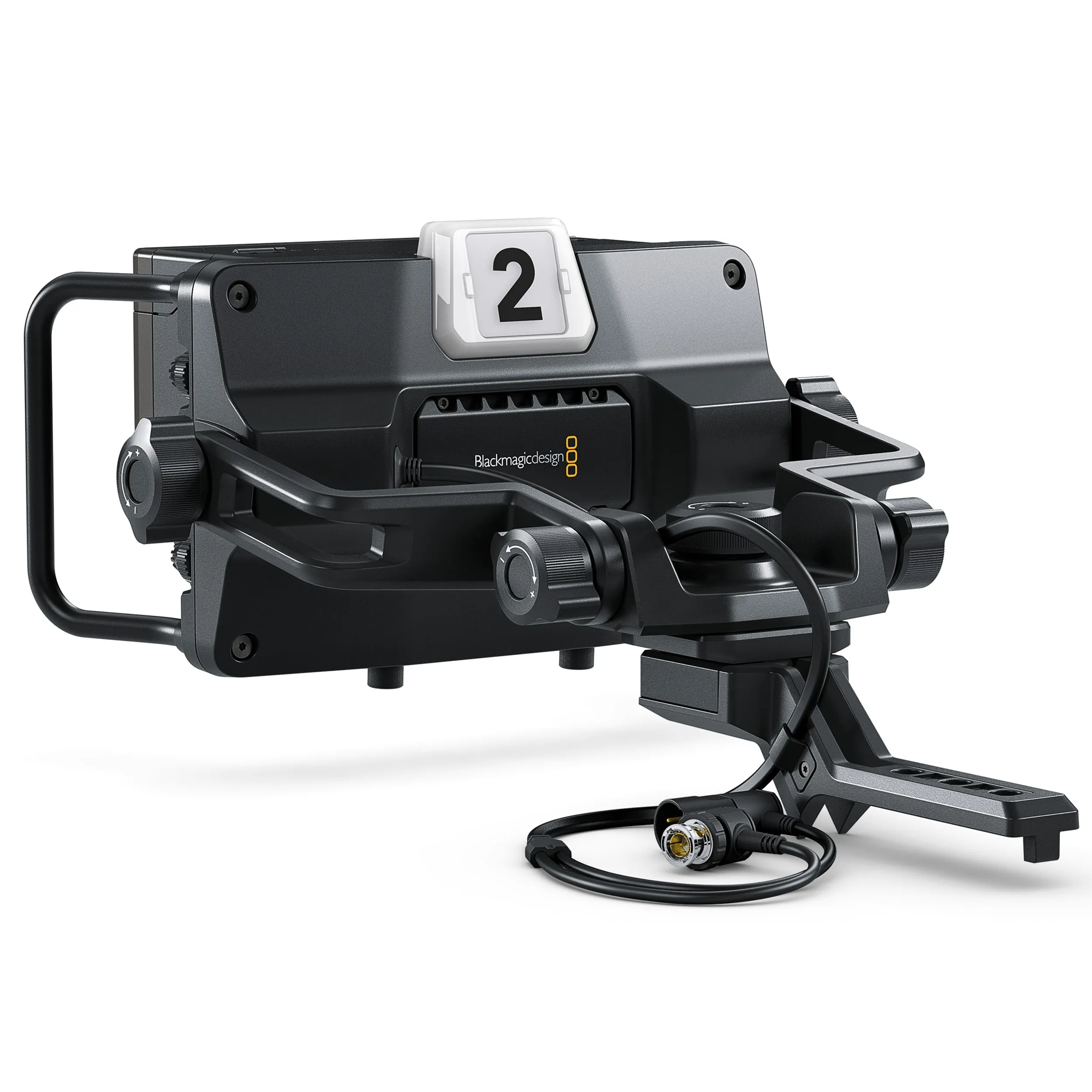

Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle.
Tally

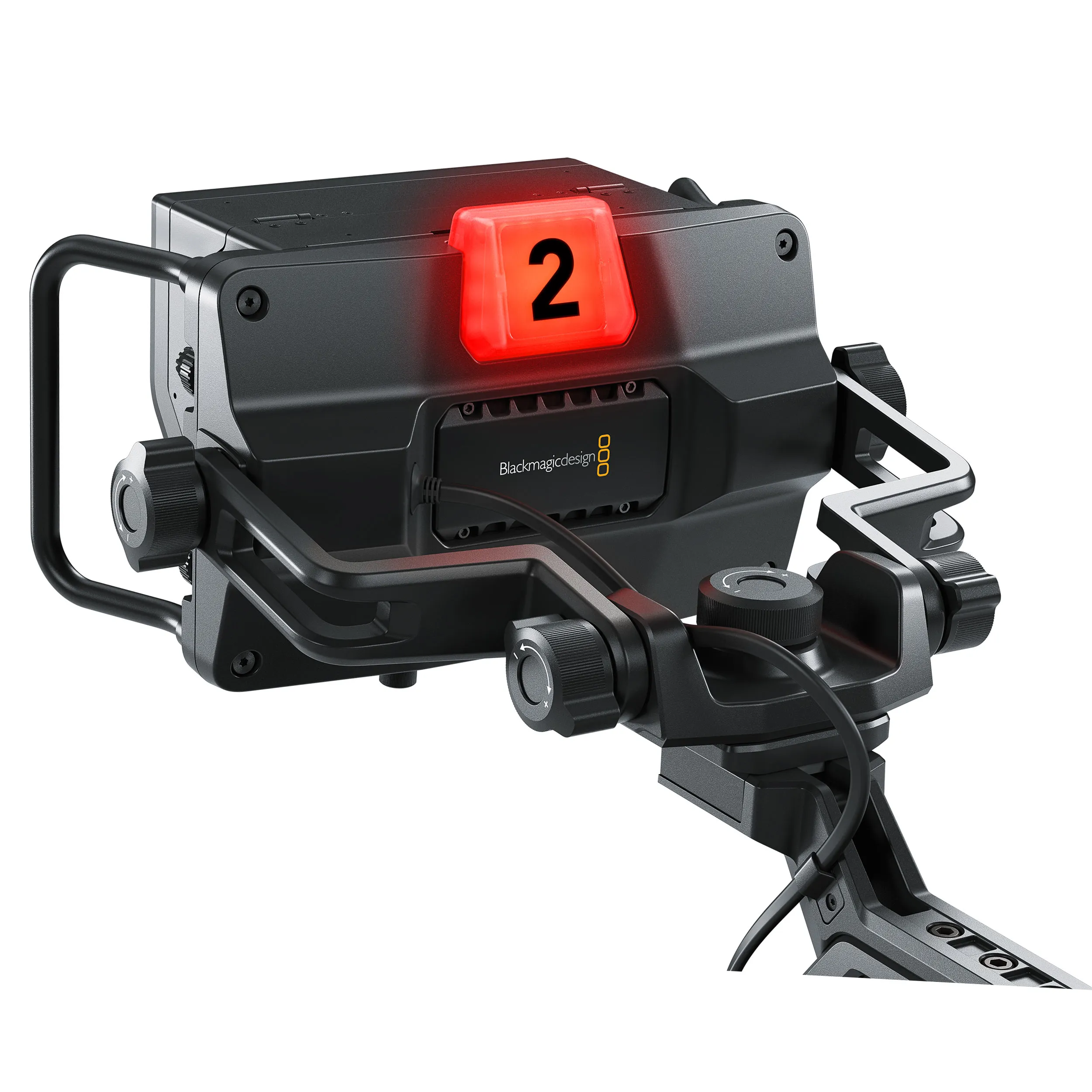

Large LED tally light with customizable perspex camera numbers.
Metadata Support
Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.
Screen Interface

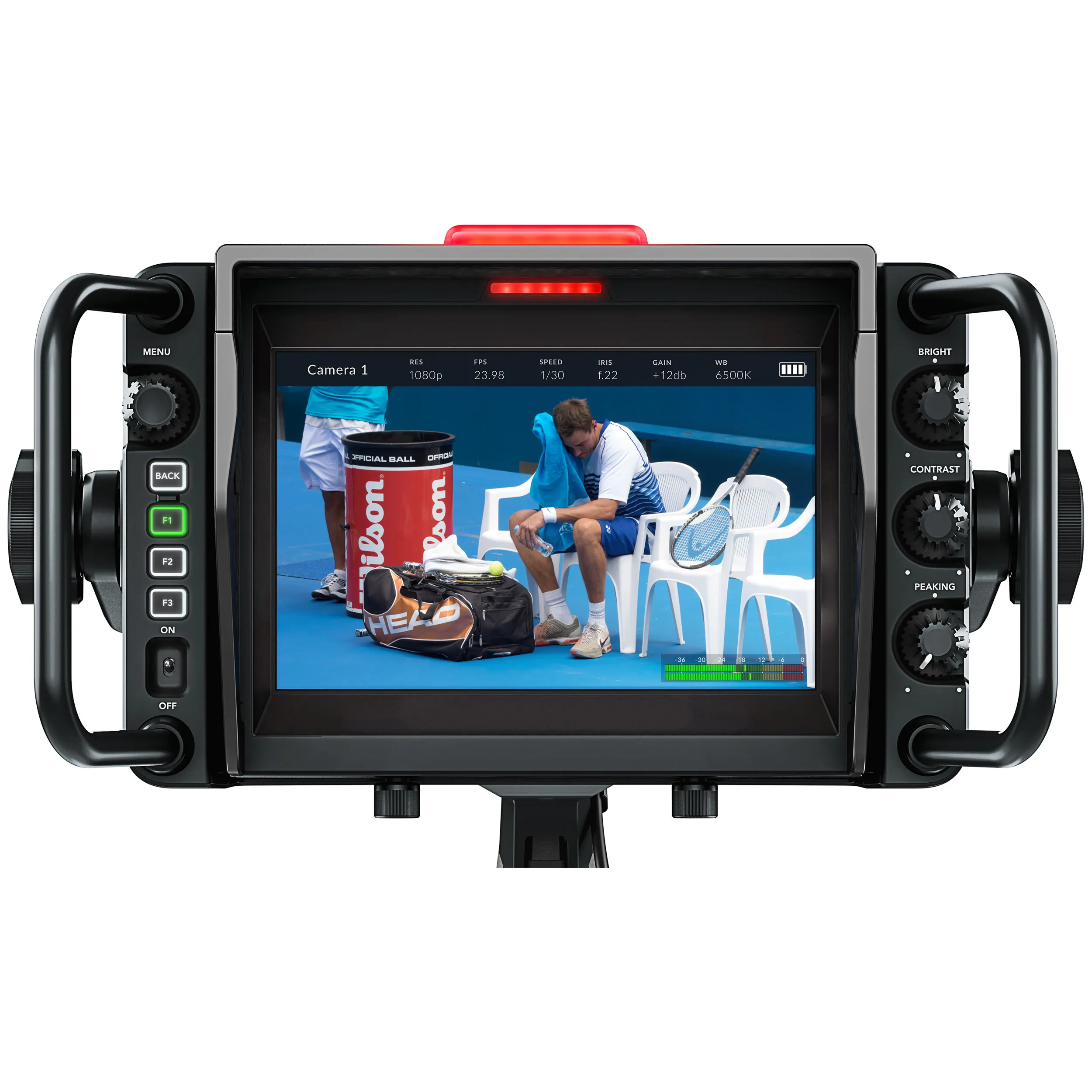

On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.
3D Lookup Table Support
LUT support for loading custom LUTs.
Power Requirements
12V power input via 4 pin XLR connected via URSA Mini 12v power output.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
