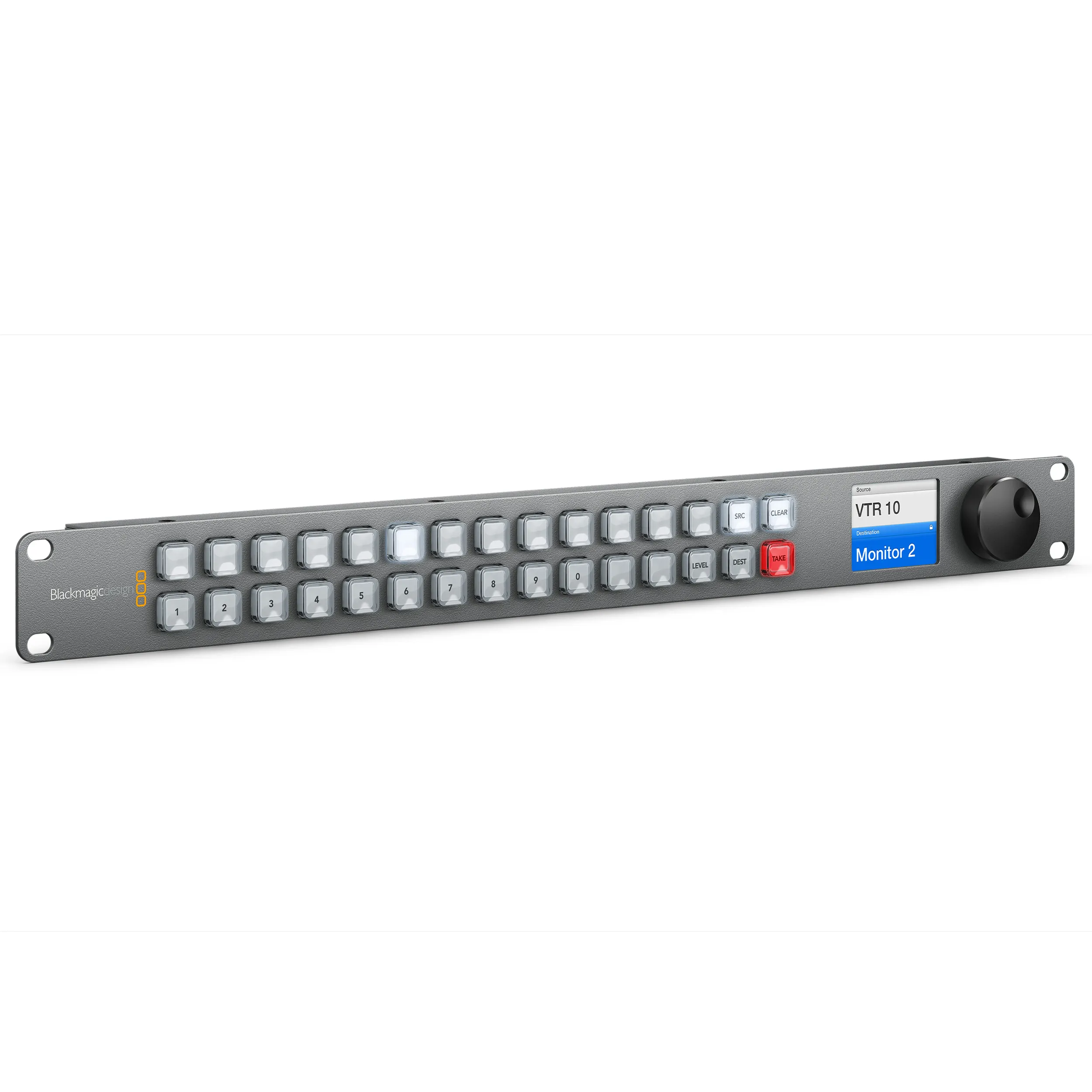

Blackmagic Videohub Master Control

מק"ט: VHUB/WMSTRCRL

Scroll router sources & destinations
See all routes on the LCD
Spin knob control
Direct button entry
24 חודשי אחריות – יבואן רשמי ABS

When you need to access your whole router without sacrificing speed, then Videohub Master Control lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection!

Blackmagic Videohub Master Control

תיאור

מפרט טכני

מה בקופסה

חוות דעת

קבצים להורדה

Blackmagic Videohub Master Control

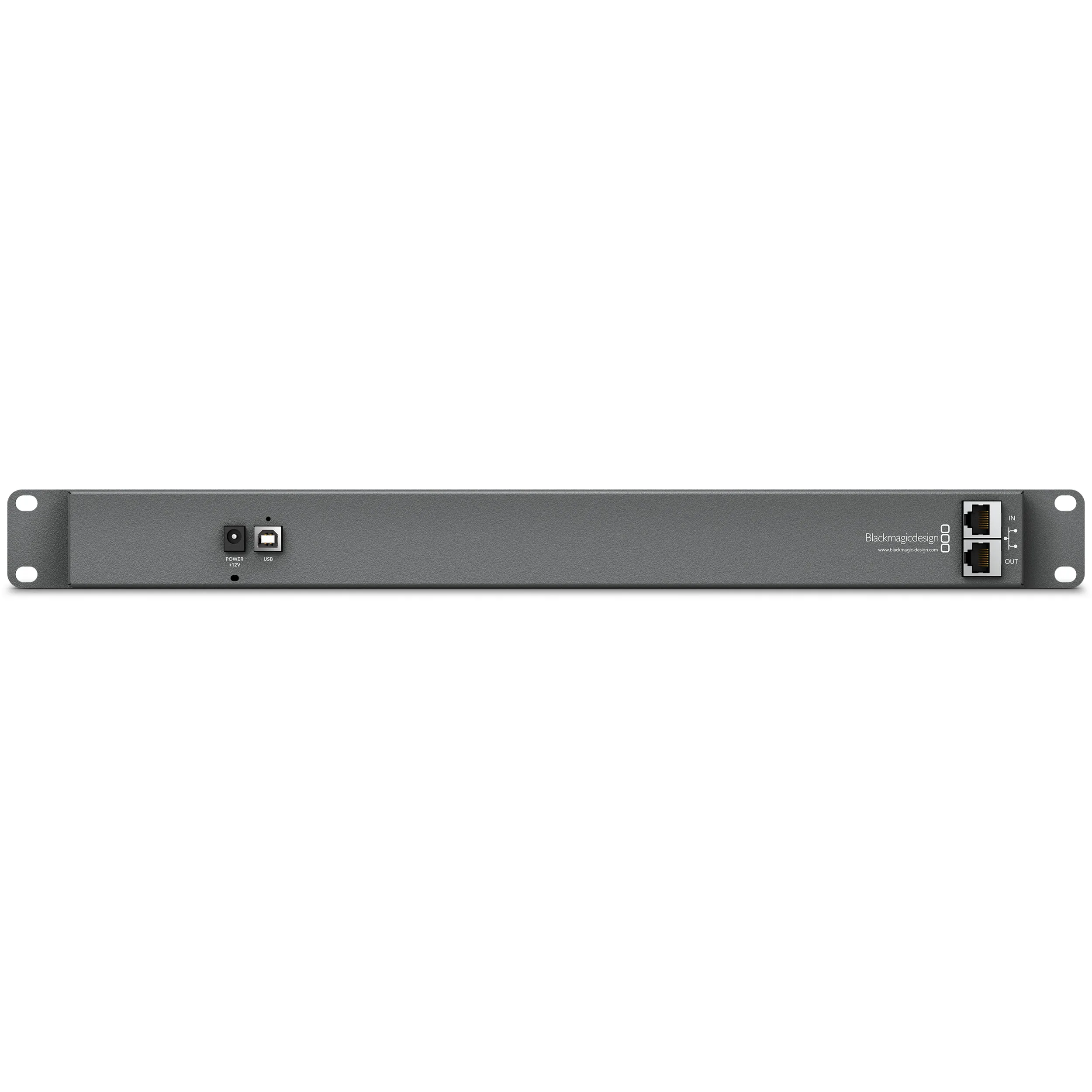

Connections
Ethernet
RJ45 Ethernet with Power over Ethernet supported, without power supplied on loop Ethernet output.

Updates
USB 2.0 high speed (480Mb/s) interface.

Power
+12V DC input

Videohub Master Control
Hardware Control
15 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.

Internal Software

Physical Installation
1 rack unit size. Less than an inch deep.

Button Configuration
Included free for Windows™ and Mac OS X™ via USB 2.0 high speed (480Mb/s) interface.

Power Requirements
Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.

Power Supply
1 x Universal power supply included with international socket adapters for all countries.

Physical Specifications
Weight: 827g

Depth (not including connectors): 36mm

Width: 482mm

Overall depth (including connectors): 40mm

Height: 44mm

Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)

Storage temperature
-20° to 45° C (-4° to 113° F)

Relative Humidity
0% to 90% non-condensing

Videohub Master Control
Universal power supply included with international socket adapters
