• Blackmagic ATEM 1M/E Advanced Panel 10
    Blackmagic ATEM 1M/E Advanced Panel 10
    Blackmagic ATEM 1M/E Advanced Panel 10
    Blackmagic ATEM 1M/E Advanced Panel 10

    Blackmagic ATEM 1M/E Advanced Panel 10

    Blackmagic
    מק"ט: SWPANELADV1ME
    166SWPANELADV1ME
    • 24 חודשי אחריות – יבואן רשמי ABS
    כמות:

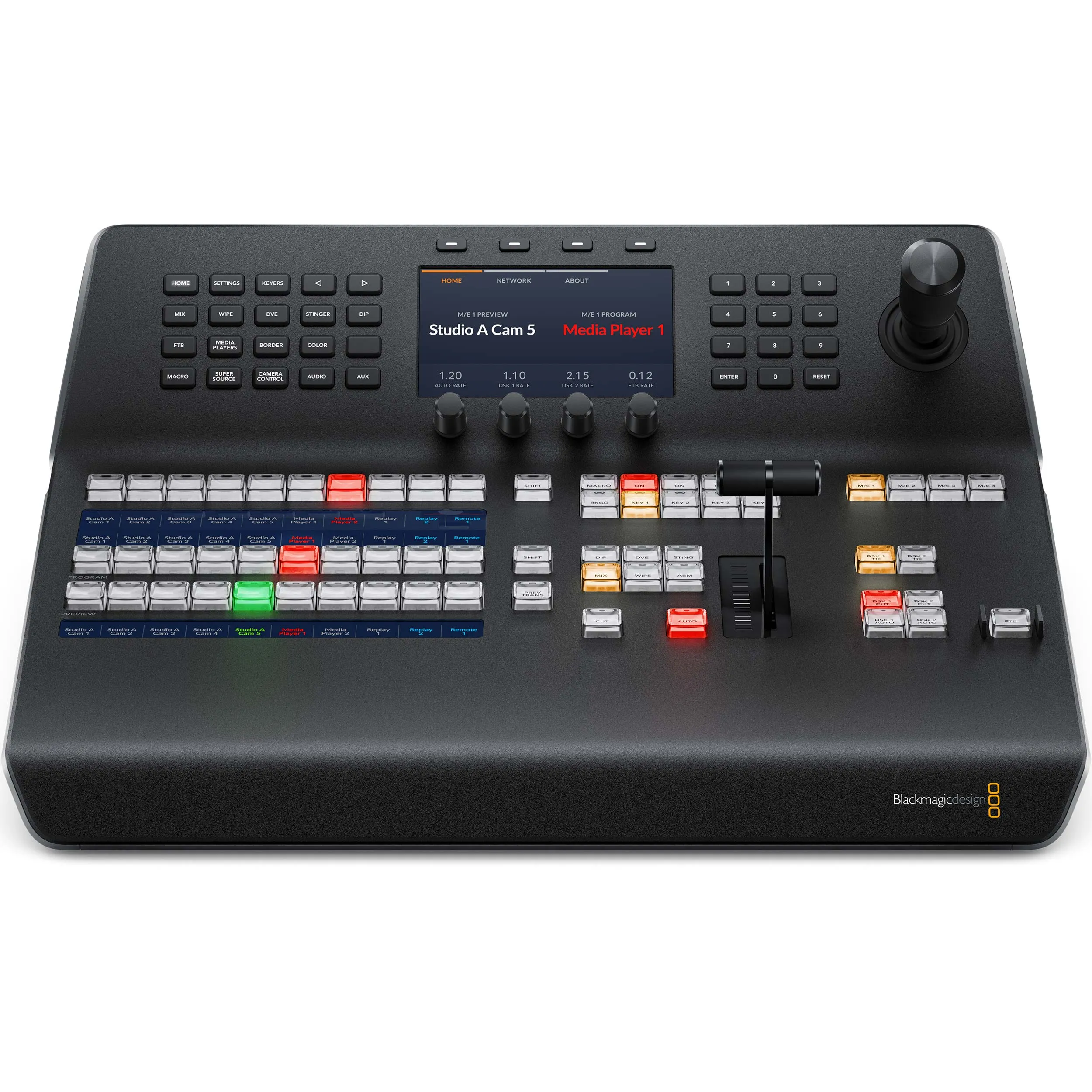

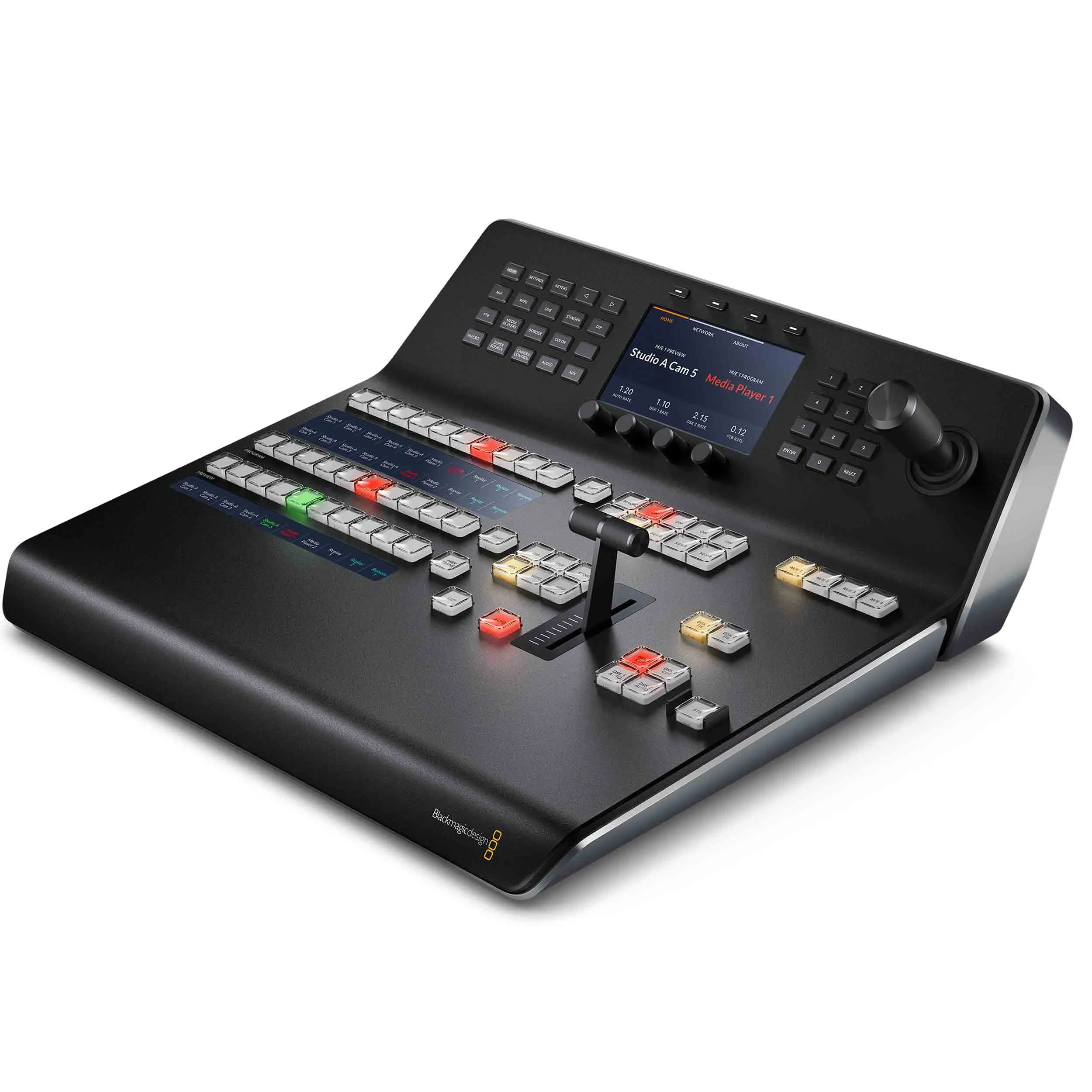

    The new ATEM 1 M/E Advanced Panel is an elegantly designed professional hardware control panel for all ATEM switchers. It combines modern design with the latest broadcast technology for faster workflows. The new design features a built in LCD and high quality curved buttons that help reduce incorrect key presses. The buttons also have color backlighting to help you quickly recognize important keys. You also get a professional joystick for DVE and camera adjustments, smooth weighted t-bar fader and much more. The buttons feature dynamic displays that allow full customization of the labels as well as custom colors. The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs. The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits.

      למה כדאי לקנות אצלנו

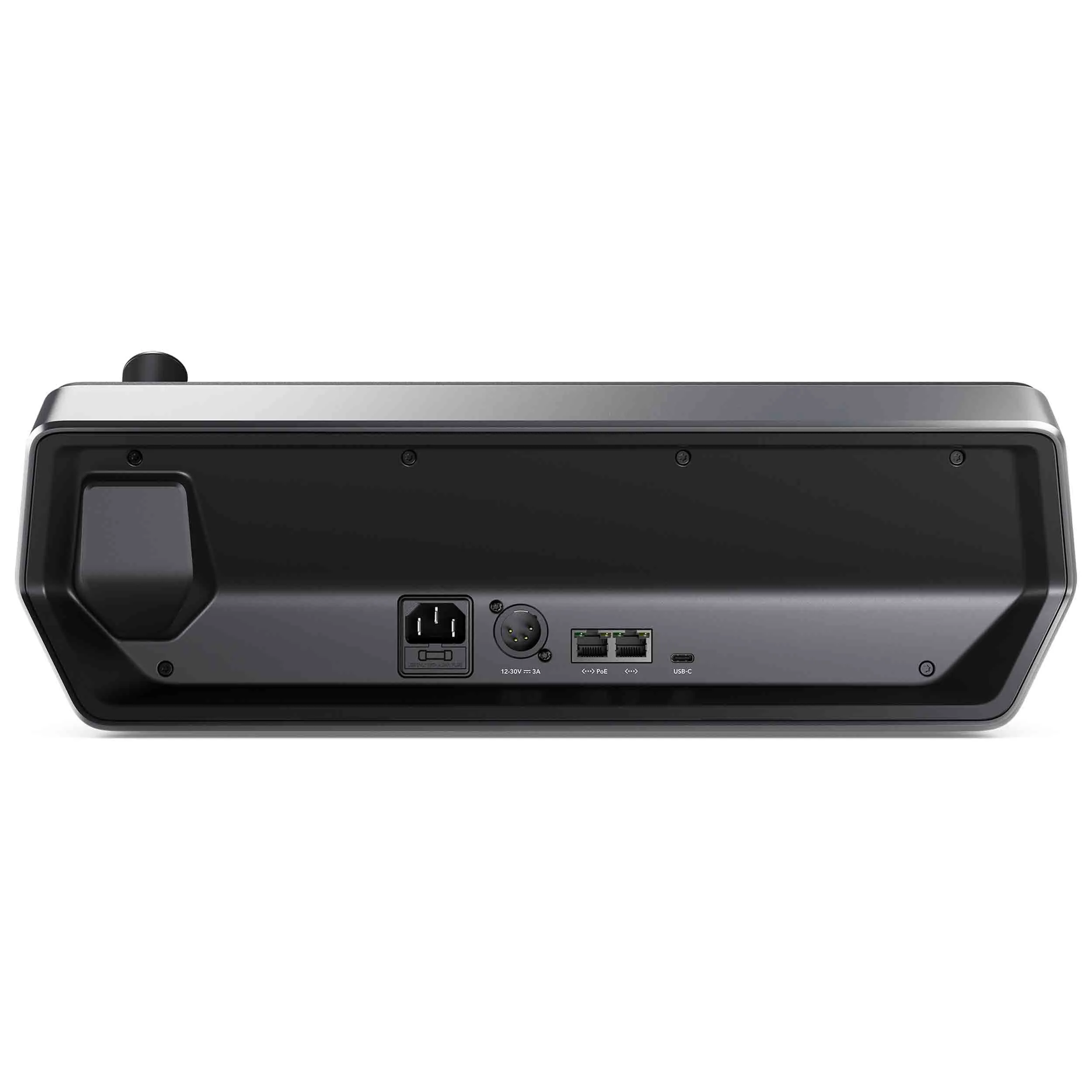

      Connections
      Ethernet
      2 x 10/100/1000 BaseT with loop output for additional control panels or computers

      Software Updates
      1 x USB-C for firmware updates

      ATEM 1 M/E Advanced Panel
      Product Specifics
      Direct Cross Points
      10

      Shifted Cross Points
      20

      Crosspoint Button Type
      Tri-Color LED

      Crosspoint Label
      3 rows 24 character LCD

      Next Transition Selectors
      BKG, Key 1 - Key 4.

      On-Air indicator
      4

      Power Status Indicators
      None

      DSK Transition Selectors
      Auto, Cut, Tie/Preview.

      Preview Transition
      1

      Transition Rate Displays
      Via main menu

      LCD Menu Displays
      3

      Menu Control
      20 buttons

      Dedicated Macro Buttons
      10

      Multi Control Buttons
      None

      Destination Bus
      1

      Source Select Bus
      1

      Fader Bar
      1

      3 Axis Joystick
      1

      Numeric Keypad
      1

      Software
      Software Applications
      ATEM Software Control Panel.

      Power Requirements
      Input Voltage
      1 x Internal 110 - 240V AC.

      Redundant Power
      Yes

      Power Usage
      45W

      Environmental Specifications
      Operating Temperature
      0° to 40° C (32° to 104° F)

      Storage Temperature
      -20° to 60° C (-4° to 140° F)

      Relative Humidity
      Up to 95%

      ATEM 1 M/E Advanced Panel
