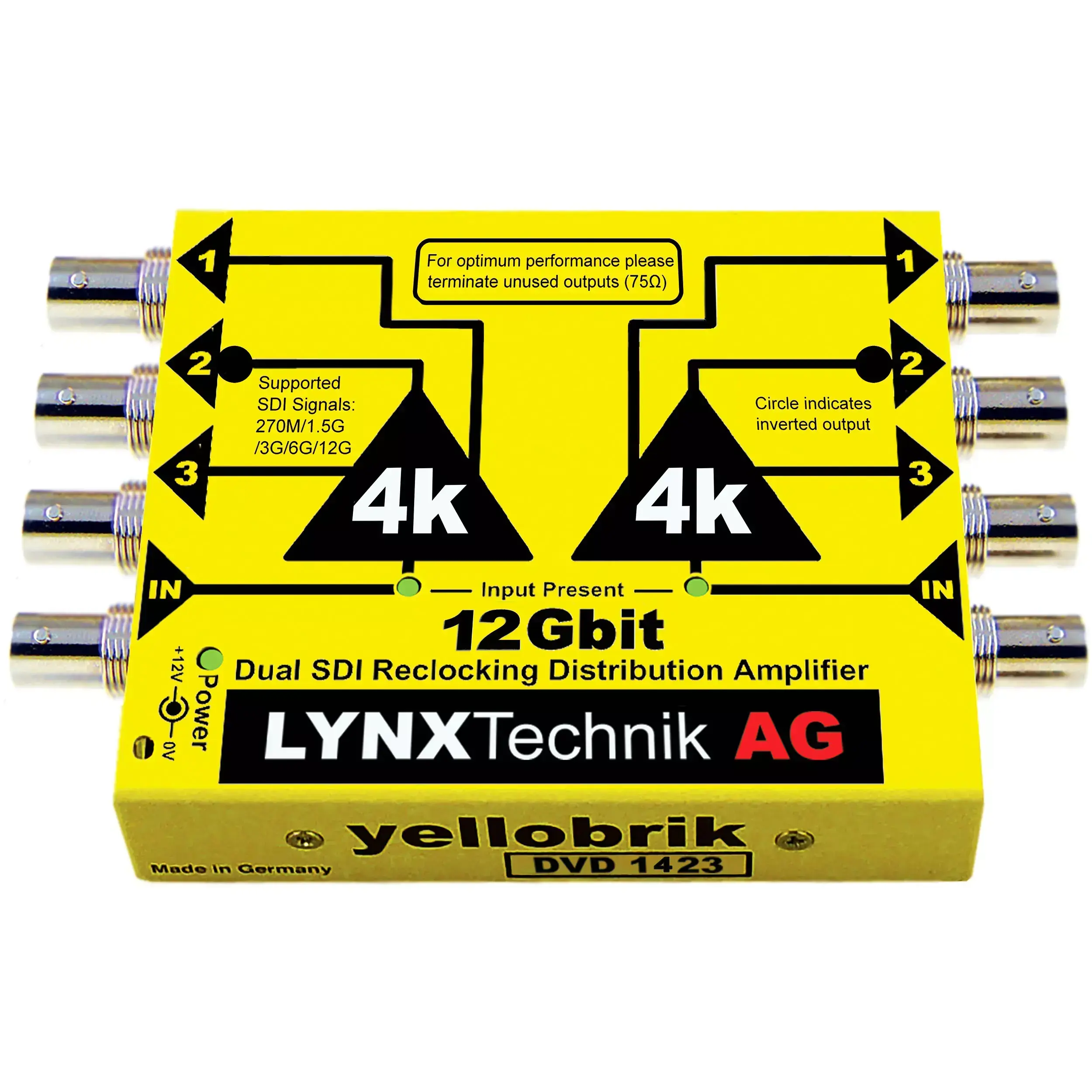

The DVD 1423 is a compact SDI distribution amplifier, which is suitable for all SMPTE standard SDI signals from 270Mbit/s through 4K UHD (12 Gbit/s). The SDI input formats are auto-detected and all outputs are reclocked.
Each channel is 100% independent and can process different SDI formats if required.
SMPTE 259M (270Mbit/s), SMPTE 292M (1.5Gbit/s), SMPTE 424M (3Gbit/s), SMPTE 2081 (6GBit/S) and SMPTE 2082 (12GBit/s) standards are supported.
