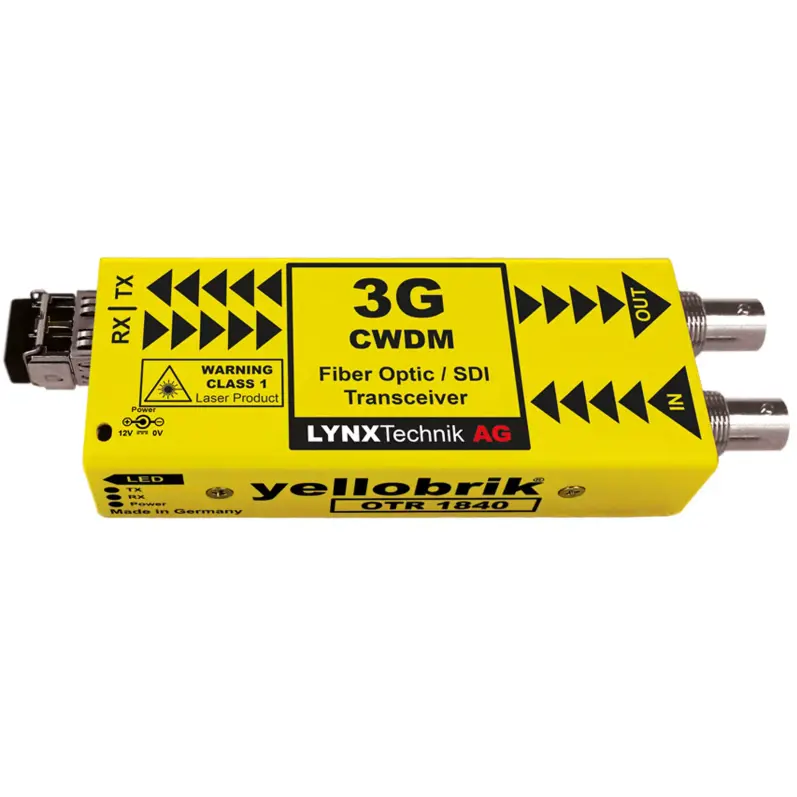

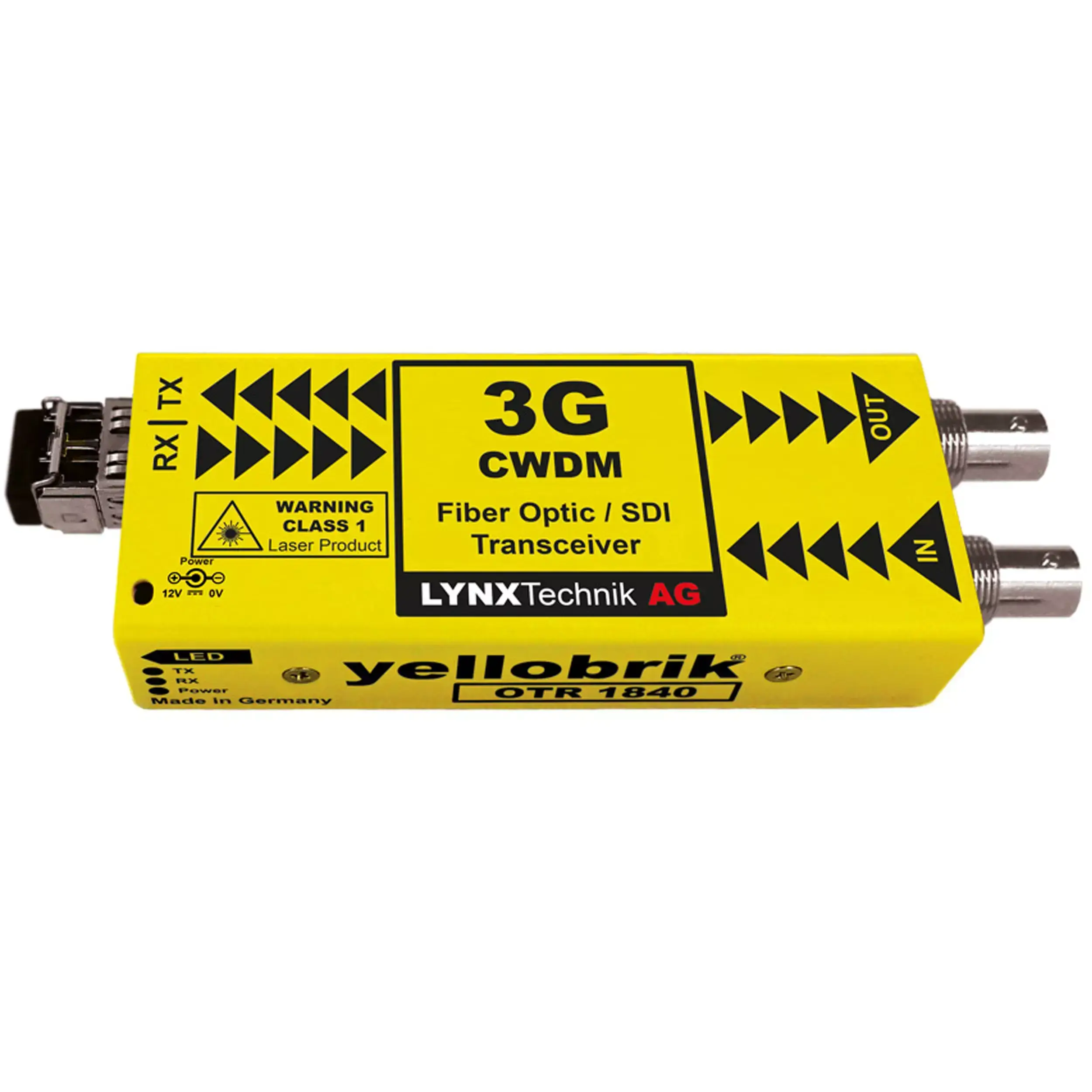

The OTR 1840-1 is a CWDM Fiber Optic to SDI transmitter and receiver combined in a compact self contained package. It is a convenient and cost effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.
Each OTR 1840-1 CWDM tranceiver has an independant transmitter and receiver channel, which provides an effective solution for any SDI signal up to 1080p60 (3Gbit/s) while preserving full uncompressed quality. Select from 18 transmitter wavelengths for full CWDM compatibility (ITU-T G.694.2).
The OTR 1840-1 will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s and 3Gbit/s SDI source prior to conversion. The module is fully compatible with 3G Level A and Level B formats.
