Lynx 3G/HD/SD Quad Split Multiviewer

Lynx 3G/HD/SD Quad Split Multiviewer

מק"ט: P MV 1841
  • 4 x SDI inputs and 1 x HDMI output
  • Support for 3G/HD/SD -SDI formats (auto-detect)
  • Full Screen, Quad Split and 4K (12G) monitoring modes
  • Input present LEDs for each SDI input
  • 4K (12G) monitoring mode (down converted HD HDMI output)
  • 12 חודשי אחריות – יבואן רשמי ABS

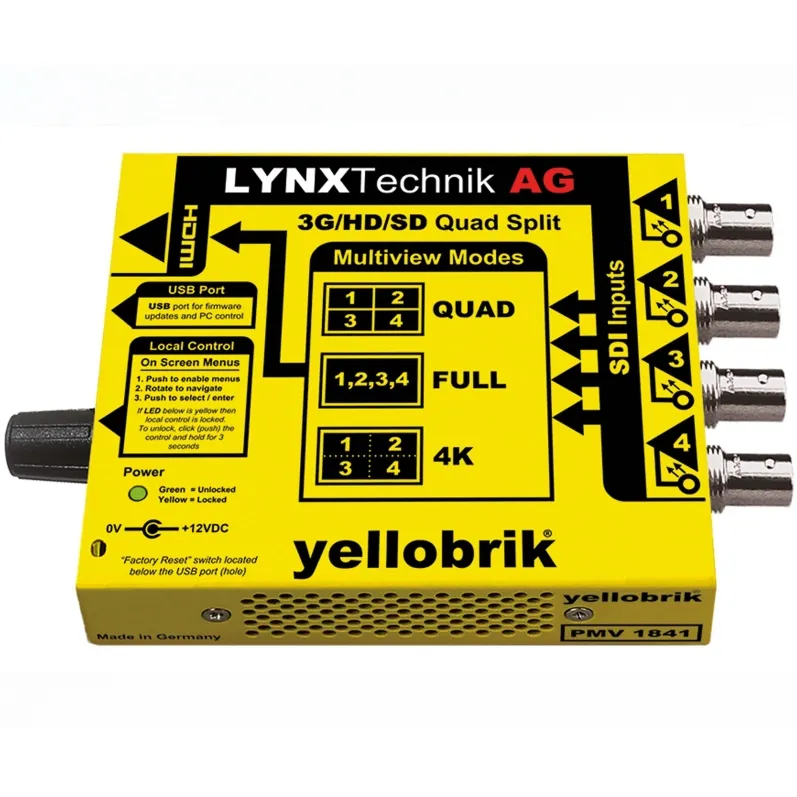

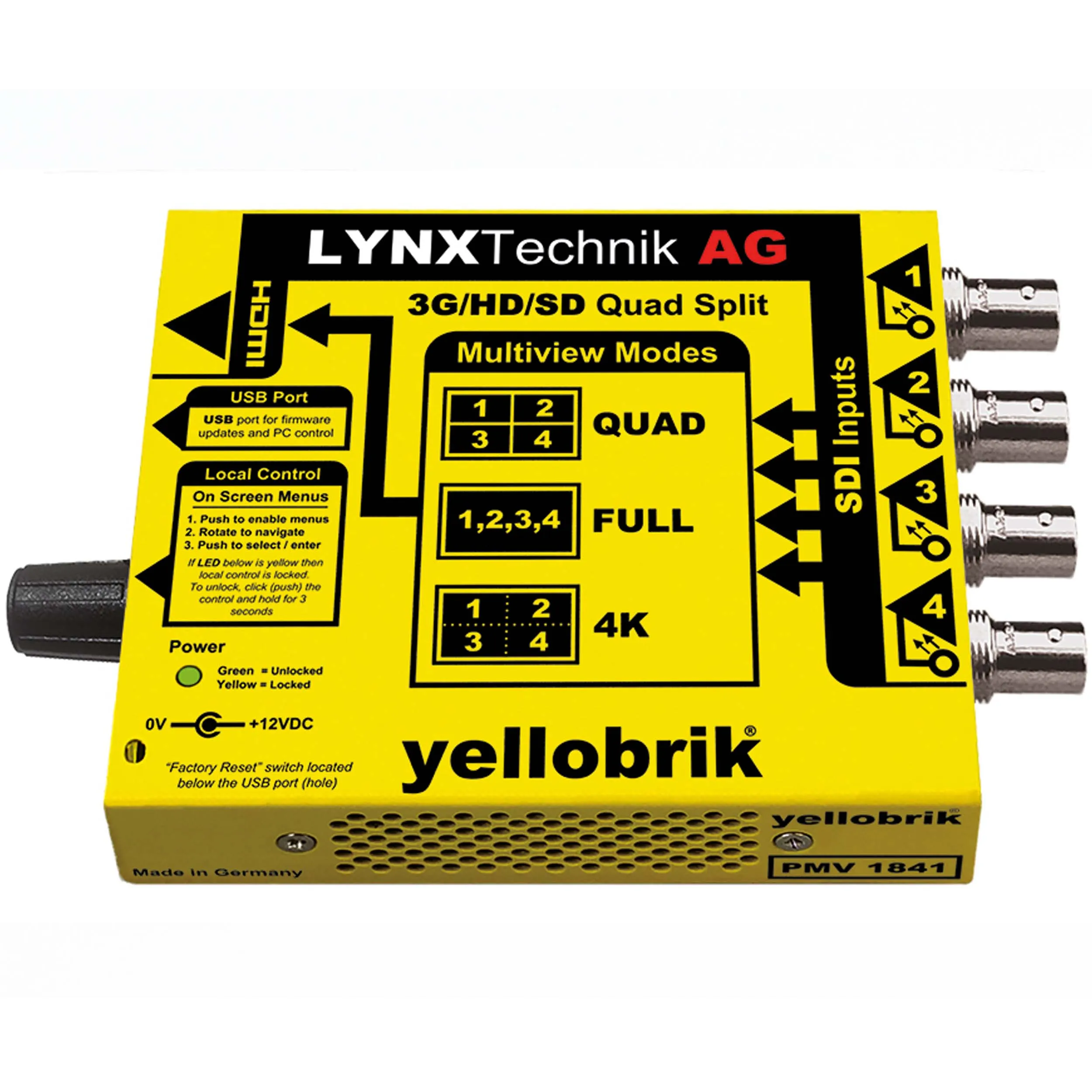

The PMV 1841 is a compact quad split multiviewer ideal for applications needing basic quad split multiview capability into an HDMI monitor. Four SDI inputs are supported with a single HDMI output. The module has three basic modes of operation:

Quad Split - All four inputs are arranged into a fixed quad display. Each input can have the monitoring tools (or on screen overlays) individually configured.
Full Screen - One of the four inputs is displayed full screen with the user configured monitoring tools. In this mode 2 channels embedded audio from the selected SDI input is embedded into the HDMI output.
4K Monitoring - The module can be used to monitor 4K (12G) signals. The four SDI inputs are "stitched" together to make a full frame for monitoring. The 4K image is down converted to HD for display (4K monitor not required).
Note: There are no on screen monitoring tools available in 4K mode.
The module is simple to setup and configure using the integrated local control and on screen menu system. All settings are automatically stored in flash RAM. USB is port is provided for firmware updates and also PC/MAC control using the yelloGUI application.

Lynx 3G/HD/SD Quad Split Multiviewer

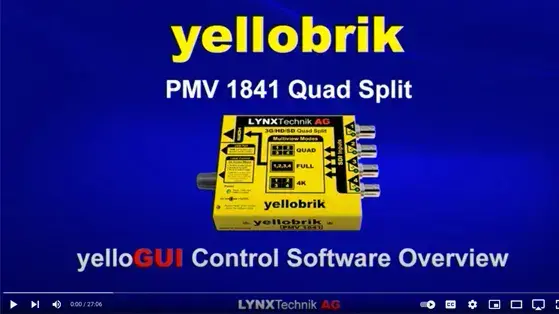

לצפייה בסרטון
    Lynx 3G/HD/SD Quad Split Multiviewer
    לצפייה בסרטון
    למה כדאי לקנות אצלנו

    SDI Video Input
    Number of Inputs 4x SDI video on 75 Ohm BNC connector
    Supported Standards SMPTE ST 259M (SDTV)
    SMPTE ST 292-1 (HDTV 1,5 Gb/s)
    SMPTE 424 M (3Gb/s) supporting ST 425-1 Level A and Level B-DL
    4k Quad Link Standards UHD 3840 x 2160
    DCI 4096 x 2160
    Return Loss > 15dB to 1.5GHz and > 10dB up to 3GHz
    Cable Length Automatic cable EQ (Belden 1694A cable)
    340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s
    HDMI Video Ouputs
    Number of Outputs 1x HDMI on Type A connector
    HDMI Standard 1.4a
    Embedded Audio 2 Channels of selected Input for full view
    Local Control
    Type of control On Screen Menu
    Control Rotary Push Encoder
    Input to Output Delay 1 Frame
    Connector Standard USB port for yelloGUI interface and firmware updates
    (Mini Type “B” plug)
    Size 138mm x 90mm x 22mm (5.13” x 3.54” x 0.86”) including connectors
    Weight 230g
    Consumption +12VDC @ 4.9W nominal
    Power Input Range supports 10 - 14VDC
    Temperature 5 – 40°C (41 – 104°F)
    Humidity 90% Humidity (non condensing)
