Connections
SDI Video Outputs
2 x SDI Video Outputs.
Analog Video Inputs
NTSC, PAL, S-Video and Component SD/HD input.
Analog Audio Inputs
2 channels of balanced analog audio.
Digital Audio Inputs
2 channels of balanced AES/EBU audio.
Multi Rate Support
Auto detection of SD or HD.
Updates and Configuration
Via USB 2.0 high speed. (480 Mb/s)
Reclocking
Yes

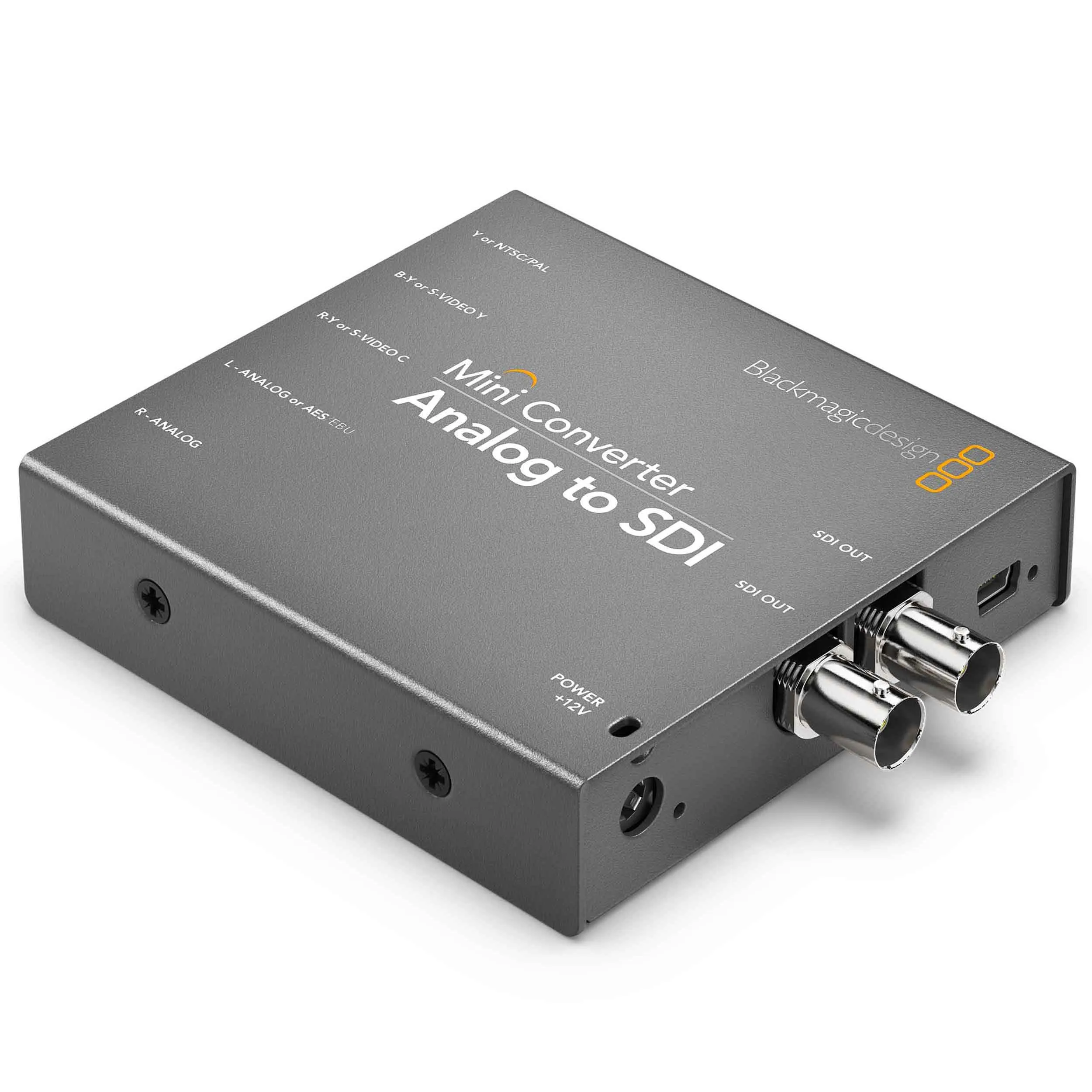

Mini Converter Analog to SDI
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically follows format of analog input.
Analog Video Standards
525i29.97 NTSC, 625i25 PAL
Analog Color Space
YUV
Analog Color Precision
4:2:2
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
6.50 Watts
Operational Voltage Range
12 - 31V DC
Settings Control
Mini Switches or USB software.
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
